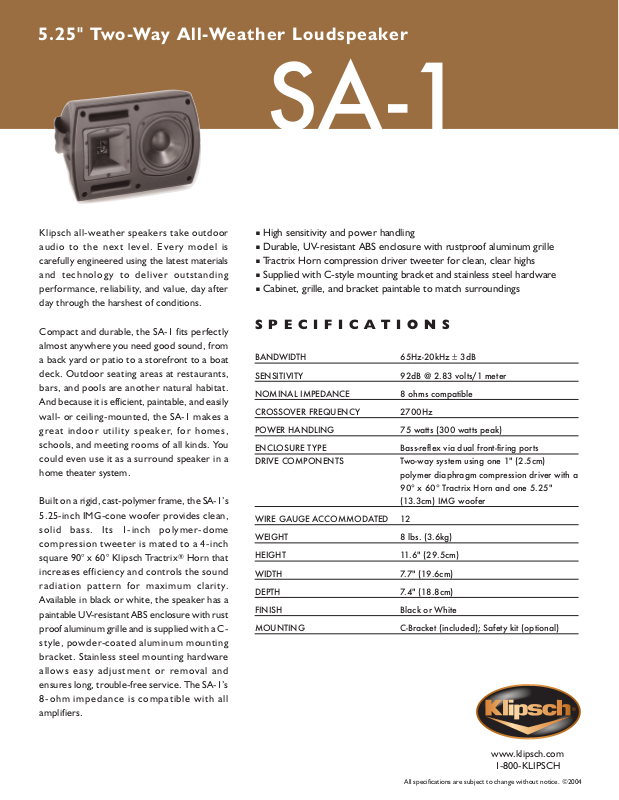

Klipsch SA-1 Brochure

5.25" Two-Way All-Weather Loudspeaker

SA-1

■

Klipsch all-weather speakers take outdoor audio to the next level. Every model is carefully engineered using the latest materials and technology to deliver outstanding performance, reliability, and value, day after day through the harshest of conditions.

High sensitivity and power handling

■

Durable, UV-resistant ABS enclosure with rustproof aluminum grille

■

Tractrix Horn compression driver tweeter for clean, clear highs

■

Supplied with C-style mounting bracket and stainless steel hardware

■

Cabinet, grille, and bracket paintable to match surroundings

Compact and durable, the SA-1 fits perfectly almost anywhere you need good sound, from a back yard or patio to a storefront to a boat deck. Outdoor seating areas at restaurants, bars, and pools are another natural habitat. And because it is efficient, paintable, and easily wall- or ceiling-mounted, the SA-1 makes a great indoor utility speaker, for homes, schools, and meeting rooms of all kinds. You could even use it as a surround speaker in a home theater system.

Built on a rigid, cast-polymer frame, the SA-1’s

5.25-inch IMG-cone woofer provides clean, solid bass. Its 1-inch polymer-dome compression tweeter is mated to a 4-inch

square 90 increases efficiency and controls the sound radiation pattern for maximum clarity.

vailable in black or white, the speaker has a

A paintable UV-resistant ABS enclosure with rust proof aluminum grille and is supplied with a Cstyle, powder-coated aluminum mounting bracket. Stainless steel mounting hardware allows easy adjustment or removal and ensures long, trouble-free service. The SA 8-ohm impedance is compatible with all amplifiers.

Klipsch T

x 60

ractrix

Horn that

-1’s

SPECIFICATIONS

BANDWIDTH 65Hz-20kHz ± 3dB

SENSITIVITY 92dB @ 2.83 volts/1 meter

NOMINAL IMPEDANCE 8 ohms compatible

CROSSOVER FREQUENCY 2700Hz

POWER HANDLING 75 watts (300 watts peak)

ENCLOSURE TYPE Bass-reflex via dual front-firing ports DRIVE COMPONENTS Two-way system using one 1" (2.5cm)

polymer diaphragm compression driver with a 90° x 60° Tractrix Horn and one 5.25" (13.3cm) IMG woofer

WIRE GAUGE ACCOMMODATED 12

WEIGHT 8 lbs. (3.6kg)

HEIGHT 11.6" (29.5cm)

WIDTH 7.7" (19.6cm)

DEPTH 7.4" (18.8cm)

FINISH Black or White

MOUNTING C-Bracket (included); Safety kit (optional)

www.klipsch.com

1-800-KLIPSCH
