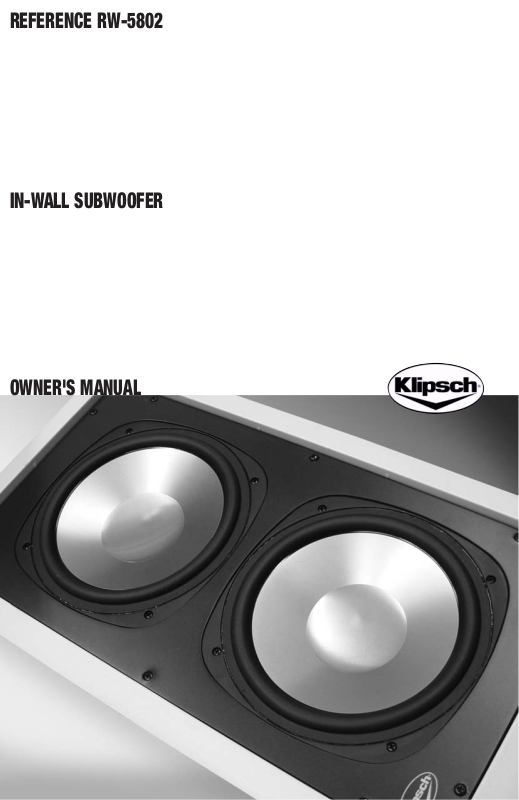

REFERENCE RW-5802

IN-WALL SUBWOOFER

OWNER'S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5.

DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance
with the manufacturer's instructions.

8. DO NOT install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9. DO NOT defeat the safety purpose of the polarized or grounding
type plug. A polarized plug has two blades with one wider than
the other.A grounding type plug has two blades and a third
grounding prong. The wider blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11. ONLY USE attachments/accessories specified by the
manufacturer.

12. USE only with a cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused
for long periods of time.

14. REFER all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.

This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.

This symbol indicates that dangerous voltage
constituting a risk of electric shock is present within
this unit.

ABOUT YOUR KLIPSCH PURCHASE

Your new Klipsch architectural subwoofer has been designed to
deliver g

reat sound while remaining unobtrusive wherever you

install it.

The RW-5802 can be used whenever a free standing
subwoofer cannot be installed. The RW-5802, has been
designed to be used only with the RSA-500 amplifier. The
RSA-500 can be used with one or two RW-5802 modules to
maximize your results.

Minimum Tools Required for Installation

#2 Phillips Screwdriver
Wire strippers
Level
Stud finder
Saw

In-Wall Speaker Placement

Designed to function in any standard wall the RW-5802 in-wall
subwoofer is engineered for years of performance. Minimum
construction requirements call for drywall or other mounting
surfaces to be at least 1/2" thick.

To maximize performance, install the RW-5802 low and near a
corner if possible. Try to avoid placing in locations where the
adjacent area would be disturbed by any sound that could
transfer through to the other side of the wall.

WARNING: To reduce the risk of fire or electrical shock, do not
expose this apparatus to rain or moisture.

ARNING:Voltages in this equipment are hazardous to life.

W

No user-serviceable parts inside. Refer all servicing to qualified
service personnel.

CAUTION: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate this device.

English

Speaker Installation (for New Construction, skip to step #3)

1. Cut the appropriate size opening in the wall or ceiling using
the template provided. If the template is not available, cutout
dimensions are provided on the Klipsch website, at
www.klipsch.com. Sizes listed are minimum. If accuracy of
cut cannot be achieved,
dimension.
or plumbing.
between studs.

Be careful not to cut through any existing wiring

Avoid compromising any fire stops

y add 1/4" to each

you ma

2. Run speaker wiring (18 gauge minimum) to the openings. Be
sure to compl

3. Attach the wire to the speaker using the wire’s color coding
or markings as a guide to maintain proper polarity.

4. Insert the speaker assembly into the opening and attach by
tightening the six Phillips screws (see illustration). The
frame’s six “dogs” will swivel out and “sandwich” the wall
and frame together as they are tightened. If you use a power
tool to tighten these screws, please use a low torque setting.
Failure to do so could result in damage to your speaker.

5. At this point, you may paint the speaker grille before
attaching it to the speaker. Klipsch speakers and grilles are
designed to accept most types of paint. Use the supplied
clear paint shield to protect the speaker baffle and drivers
when painting the bezel of the speaker. Care should be
taken to avoid excessive paint build-up in the grille
perforations. Please remove the scrim material attached to
inner surface of the grille by carefully peeling it out prior to
painting. Reinstall scrim after the paint on the grille is dry.

6. Press the grille into place.

WARRANTY—U.S. AND CANADA ONLY

The Warranty below is valid only for sales to consumers in the
United States or Canada.

KLIPSCH, L.L.C. ("KLIPSCH") warrants this product to be free
from defects in materials and workmanship (subject to the terms
set forth below) for a period of five (5) years from the date of
purchase. During the Warranty period, KLIPSCH will repair or
replace (at KLIPSCH’s option) this product or any defective parts
(excluding electronics and amplifiers). For products that have
electronics or amplifiers, the Warranty on those parts is for a
period of two (2) years from the date of purchase.

y with all building codes in your area.

Proof of purchase in the form of a bill of sale or receipted
invoice,

which is evidence that this product is within the Warranty

period, must be presented or included to obtain Warranty service.

This Warranty is invalid if (a) the factory-applied serial number
has been altered or removed from this product or (b) this product
was not purchased from a KLIPSCH authorized dealer.You may
call 1-800-KLIPSCH to confirm that you have an unaltered serial
number and/or you purchased from a KLIPSCH authorized dealer.

This Warranty is only valid for the original purchaser and will
automatically terminate prior to expiration (if applicable) if this
product is sold or otherwise transferred to another party.

This Warranty does not cover cosmetic damage or damage due
to misuse, abuse, negligence, acts of God, accident, commercial
use or modification of, or to any part of, the product.This
Warranty does not cover damage due to improper operation,
maintenance or installation, or attempted repair by anyone other
than KLIPSCH or a KLIPSCH dealer which is authorized to do
KLIPSCH warranty work. Any unauthorized repairs will void this
Warranty.This Warranty does not cover product sold AS IS or
WITH ALL FAULTS.

REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS
WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER.
KLIPSCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE
EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED
WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO,
THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PRACTICAL PURPOSE.

Some states do not allow the exclusion or limitation of incidental
or consequential damages or implied warranties so the above
exclusions may not apply to you. This Warranty gives you specific
legal rights, and you may have other rights, which vary from
state to state.

WARRANTY OUTSIDE THE UNITED STATES AND CANADA

The Warranty on this product if it is sold to a consumer outside
of the United States or Canada shall comply with applicable law
and shall be the sole responsibility of the distributor that supplied
this product. To obtain any applicable warranty service, please
contact the dealer from which you purchased this product, or the
distributor that supplied this product.

o obtain Warranty service, please contact the KLIPSCH

T
authorized dealer from which you purchased this product.
dealer is not equipped to perf

it can be returned, freight paid, to KLIPSCH for repair.

product,
Please call KLIPSCH a
need to ship this product in either its orig

ging affording an equal degree of protection.

packa

orm the repair of your KLIPSCH

t 1-800-KLIPSCH for instructions. You will

inal packaging or

If your
