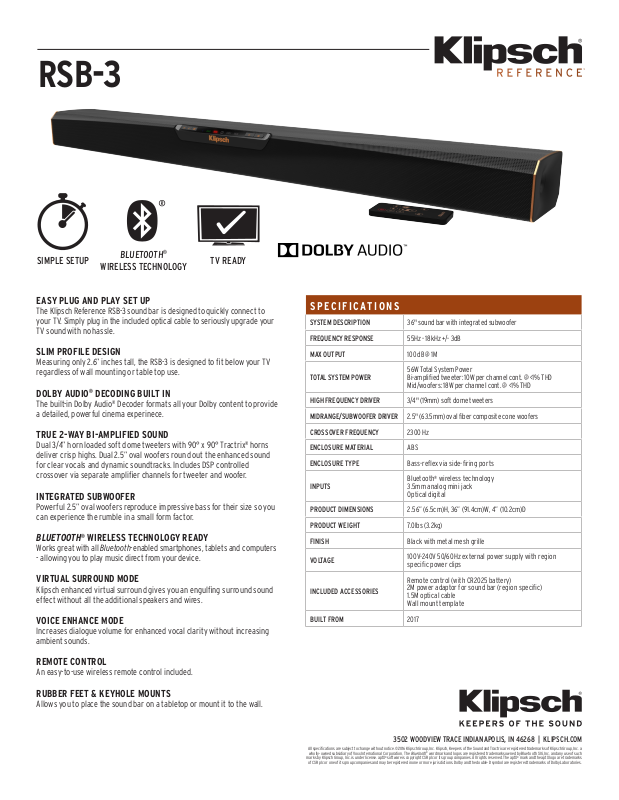

RSB-3
SIMPLE SETUP
BLUETOOTH
WIRELESS TECHNOLOGY
®
TV READY
EASY PLUG AND PLAY SET UP
The Klipsch Reference RSB-3 sound bar is designed to quickly connect to your TV. Simply plug in the included optical cable to seriously upgrade your TV sound with no hassle.
SLIM PROFILE DESIGN
Measuring only 2.6” inches tall, the RSB-3 is designed to fit below your TV regardless of wall mounting or table top use.
DOLBY AUDIO® DECODING BUILT IN
The built-in Dolby Audio® Decoder formats all your Dolby content to provide a detailed, powerful cinema experinece.
TRUE 2-WAY BI-AMPLIFIED SOUND
Dual 3/4” horn loaded soft dome tweeters with 90° x 90° Tractrix® horns deliver crisp highs. Dual 2.5” oval woofers round out the enhanced sound for clear vocals and dynamic soundtracks. Includes DSP controlled crossover via separate amplifier channels for tweeter and woofer.
INTEGRATED SUBWOOFER
Powerful 2.5” oval woofers reproduce impressive bass for their size so you can experience the rumble in a small form factor.
BLUETOOTH® WIRELESS TECHNOLOGY READY
Works great with all Bluetooth-enabled smartphones, tablets and computers
- allowing you to play music direct from your device.
VIRTUAL SURROUND MODE
Klipsch enhanced virtual surround gives you an engulfing surround sound effect without all the additional speakers and wires.
VOICE ENHANCE MODE
Increases dialogue volume for enhanced vocal clarity without increasing ambient sounds.
SPECIFICATIONS
SYSTEM DESCRIPTION 36" sound bar with integrated subwoofer
FREQUENCY RESPONSE 55Hz - 18kHz +/- 3dB
MAX OUTPUT
TOTAL SYSTEM POWER
HIGH FREQUENCY DRIVER 3/4" (19mm) soft dome tweeters
MIDRANGE/SUBWOOFER DRIVER 2.5" (63.5mm) oval fiber composite cone woofers
CROSSOVER FREQUENCY 2300 Hz
ENCLOSURE MATERIAL ABS
ENCLOSURE TYPE Bass-reflex via side-firing ports
INPUTS
PRODUCT DIMENSIONS 2.56” (6.5cm)H, 36” (91.4cm)W, 4” (10.2cm)D
PRODUCT WEIGHT 7.0lbs (3.2kg)
FINISH
VOLTAGE
INCLUDED ACCESSORIES
BUILT FROM 2017
100 dB @ 1M
56W Total System Power Bi-amplified tweeter: 10W per channel cont. @ <1% THD Mid/woofers: 18W per channel cont. @ <1% THD
Bluetooth® wireless technology
3.5mm analog mini jack Optical digital
Black with metal mesh grille
100V-240V 50/60Hz external power supply with region specific power clips
Remote control (with CR2025 battery) 2M power adaptor for sound bar (region specific)
1.5M optical cable Wall mount template
REMOTE CONTROL
An easy-to-use wireless remote control included.
RUBBER FEET & KEYHOLE MOUNTS
Allows you to place the sound bar on a tabletop or mount it to the wall.
