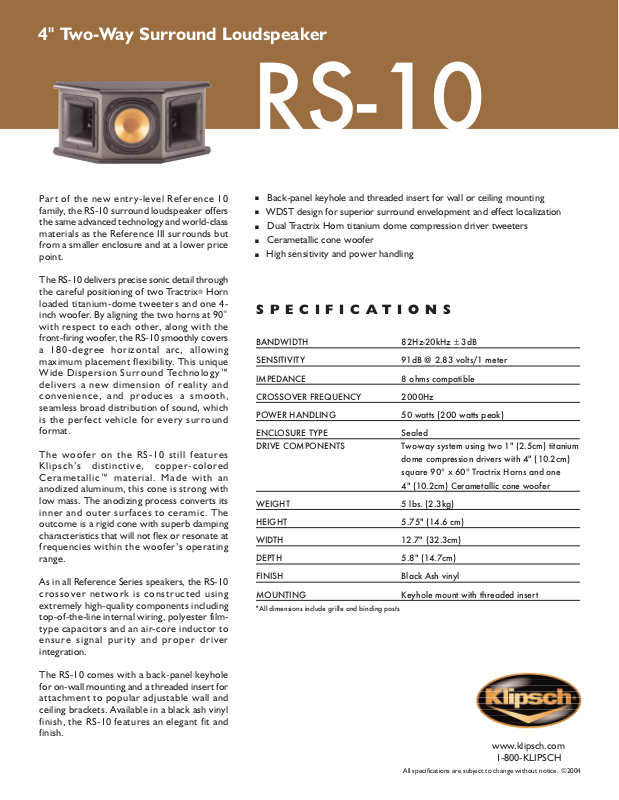

Klipsch RS-10 Brochure

4'' Two-Way Surround Loudspeaker

RS-10

■

Part of the new entry-level Reference 10
family, the RS-10 surround loudspeaker offers
the same advanced technology and world-class
materials as the Reference III surrounds but
from a smaller enclosure and at a lower price
point.

The RS-10 delivers precise sonic detail through

®

the careful positioning of two Tractrix
loaded titanium-dome tweeters and one 4­inch woofer. By aligning the two horns at 90˚
with respect to each other, along with the
front-firing woofer, the RS-10 smoothly covers
a 180-degree horizontal arc, allowing
maximum placement flexibility. This unique
Wide Dispersion Surround Technology™
delivers a new dimension of reality and
convenience, and produces a smooth,
seamless broad distribution of sound, which
is the perfect vehicle for every surround
format.

The woofer on the RS-10 still features
Klipsch’s distinctive, copper-colored
Cerametallic™ material. Made with an
anodized aluminum, this cone is strong with
low mass. The anodizing process converts its
inner and outer surfaces to ceramic. The
outcome is a rigid cone with superb damping
characteristics that will not flex or resonate at
frequencies within the woofer’s operating
range.

Horn

Back-panel keyhole and threaded insert for wall or ceiling mounting

■

WDST design for superior surround envelopment and effect localization

■

Dual Tractrix Horn titanium dome compression driver tweeters

■

Cerametallic cone woofer

■

High sensitivity and power handling

SPECIFICATIONS

BANDWIDTH 82Hz-20kHz ± 3dB

SENSITIVITY 91dB @ 2.83 volts/1 meter

IMPEDANCE 8 ohms compatible

CROSSOVER FREQUENCY 2000Hz

POWER HANDLING 50 watts (200 watts peak)

ENCLOSURE TYPE Sealed
DRIVE COMPONENTS Two-way system using two 1" (2.5cm) titanium

WEIGHT 5 lbs. (2.3kg)

HEIGHT 5.75" (14.6 cm)

WIDTH 12.7" (32.3cm)

DEPTH 5.8" (14.7cm)

dome compression drivers with 4" (10.2cm)
square 90° x 60° Tractrix Horns and one
4" (10.2cm) Cerametallic cone woofer

As in all Reference Series speakers, the RS-10
crossover network is constructed using
extremely high-quality components including

of-the-line internal wiring, polyester film-

top­type capacitors and an air-core inductor to
ensure signal purity and proper driver
integration.

The RS-10 comes with a back-panel keyhole
for on-wall mounting and a threaded insert for
attachment to popular adjustable wall and
ceiling brackets. A
finish, the RS-10 features an elegant fit and
finish.

vailable in a black ash vinyl

FINISH Black Ash vinyl

MOUNTING Keyhole mount with threaded insert

ille and binding posts

*All dimensions include g

r

www.klipsch.com

1-800-KLIPSCH

All specifications are subject to change without notice. ©2004
