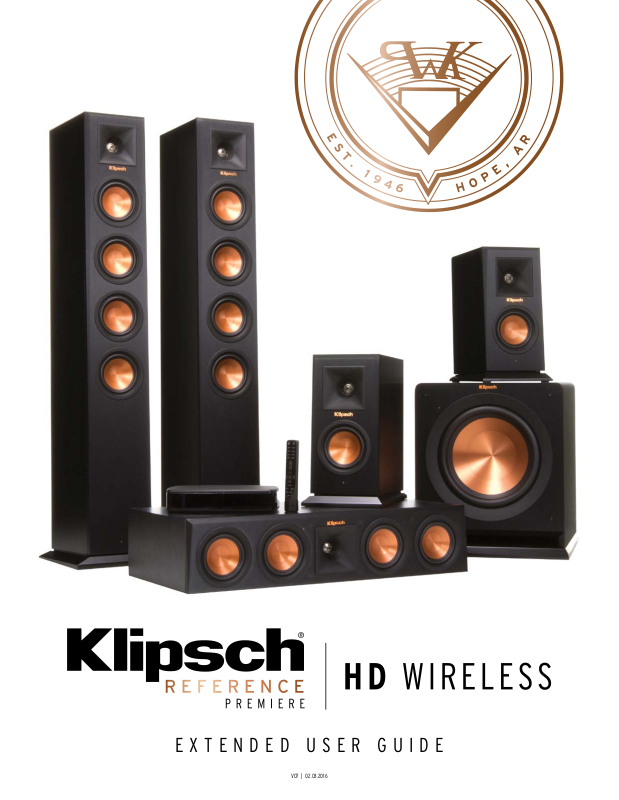

Klipsch RP-HD-Wireless-Extended User Guide

V07 | 02.03.2016

EXTENDED USER GUIDE

V07 | 02.03.2016

FUTURE PROOF YOUR SYSTEM

FREE FIRMWARE UPGRADES FOR LIFE

VISIT KLIPSCH.COM/RP-HD-WIRELESS TO REGISTER

YOUR HD CONTROL CENTER AND GET ACCESS TO NEW FEATURES

AND FIRMWARE UPDATES AS THEY BECOME AVAILABLE.

2

V07 | 02.03.2016

HD CONTROL CENTER (RP-HUB1)

ON/OFF

MUTE

SOURCE

VOLUME UP

VOLUME DOWN

HDMI 1 HDMI 2 HDMI 3 HDMI 4 OPTICAL COAX TV ANALOG VOLUME

HDMI Input 1

LED

HDMI Input 2

LED

HDMI Input 3

LED

HDMI Input 4

LED

Optical Input

LED

TV Input

Coaxial Input

LED

LED

RCA Analog

Bluetooth

Input LED

Input LED

®

Volume LEDs DTS Surround

LED

Dolby Digital

LED

3

V07 | 02.03.2016

HD CONTROL CENTER (RP-HUB1)

3

4

1

2

1 53

Service Port 3.5mm IR Input Coaxial Input Optical Input RCA Analog Inputs

HDMI Input 1

6

(HDMI 2.0 and HDCP 2.2 Compliant)

2

HDMI Input 2 HDMI Input 3 HDMI Input 4 HDMI OUT / TV

7 9

5

11

6 7 8 9 10

4

8 10 11

Power Input DC 5V

FIRMWARE UPDATES

• Firmware updates need to be downloaded from KLIPSCH.COM to a USB storage device and then inserted into the
HD Control Center’s SERVICE PORT.

• Upon plugging in a USB storage device which contains a new firmware file, a confirmation will pop up to remind you none of
your settings will be affected.

• Select YES to begin the update process. Wait until the on-screen display comes back and the HD Control Center’s Volume
LEDs return to normal operation.

NOTE: This update also applies if old speaker firmware is detected upon startup when new versions are available.

4

V07 | 02.03.2016

REMOTE

On/Off

HDMI 1 Source Select

HDMI 2 Source Select

HDMI 3 Source Select

HDMI 4 Source Select

Directional Pad

Return

HDMI 1

HDMI 2 COAX

HDMI 3

HDMI 4

OPTICAL

ANALOG

TV

OK

MENU

EXIT

Mute

Optical Source Select

Coaxial Source Select

RCA Analog Source Select

TV Source Select

Volume

Menu Select

Exit

Audio Enhancement

Bluetooth

®

Source Select

SURAUDIO

Surround Mode

5

V07 | 02.03.2016

QUICK SETUP

REPEAT FOR EVERY SPEAKER

REPEAT FOR EVERY SPEAKER

LEFT
SIDE

LEFT
FRONT

CENTER

TV

LEFT
REAR

RIGHT
SIDE

RIGHT
FRONT

RIGHT
REAR

PLUG THIS SPEAKER
INTO AN OUTLET

21

PRESS BUTTON TO
SELECT THE POSITION
OF THIS SPEAKER

3

PLUG HD CONTROL
CENTER INTO TV AND
FOLLOW THE ON-SCREEN
INSTRUCTIONS

1

*

2

LED SOLID = CONNECTED
LED FLASHING = NOT CONNECTED
LED OFF = HD CONTROL CENTER OFF

3

4

5

REPEAT FOR EVERY SPEAKER

Klipsch Reference Premiere HD Wireless Subwoofers and some other WiSA

*

certified Klipsch speakers may not have a Smart Speaker Selector.

FOLLOW ON-SCREEN INSTRUCTIONS

6
