A statement of style in extruded aluminum, the Icon X
Series combines intelligent engineering and striking
cosmetics, to deliver unrivaled audio experiences for
music and film alike.
X
W
The Icon W Series shares engineering philosophy
with the Icon X, but are housed in more traditional
cabinets, with finishes that are both timeless and
contemporary. They represent performance
art at its best.
I C O N
Page 3

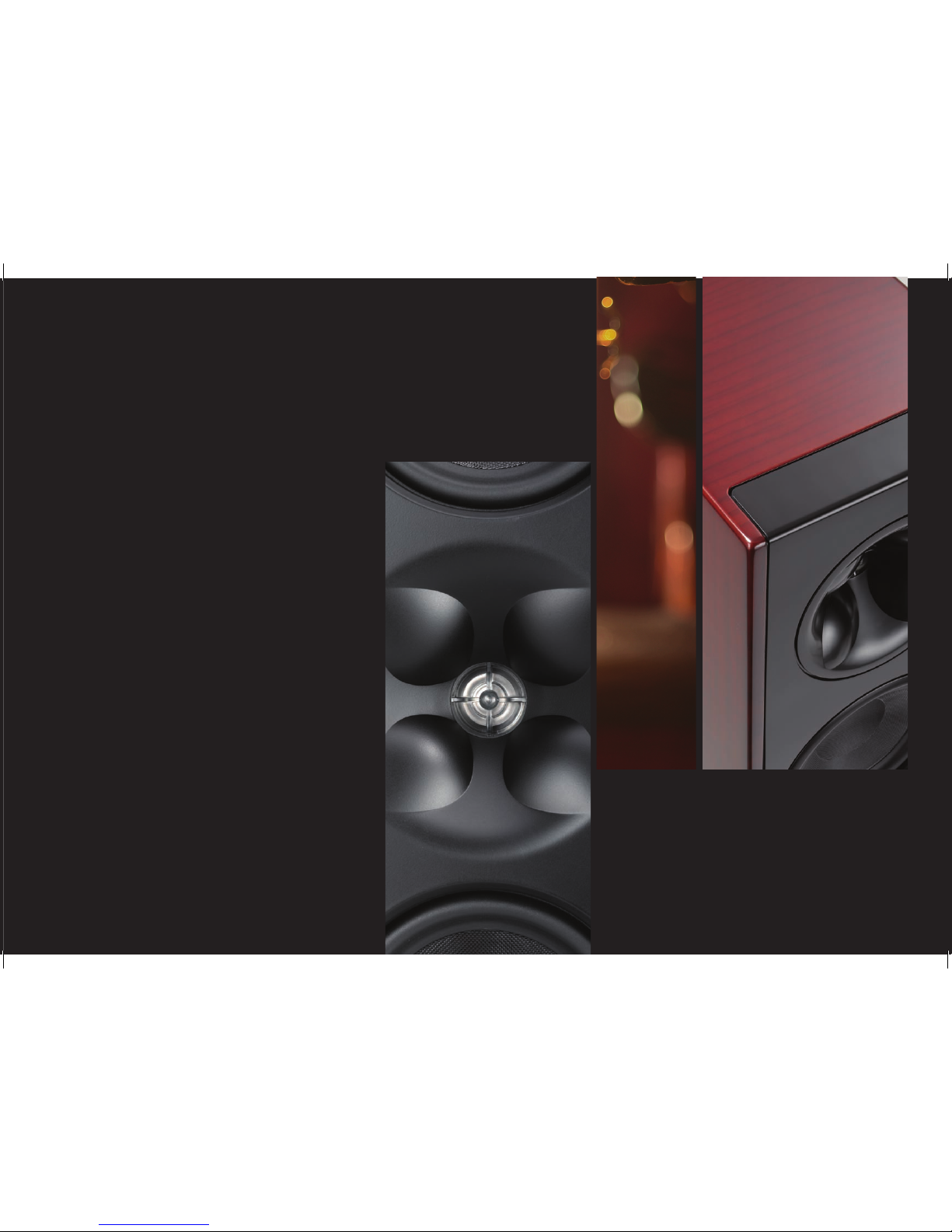

Continuing a mission…
…that began in 1946 with our first horn-loaded speakers, the new
Icon Series advances our classic, proven technology to new levels
of sophistication and brilliance. Each speaker features our new XT
Tractrix® Horn technology. Passionate about your music? You’ve
just met your match.
The vision is clear…
…and drives us ever closer to audio perfection. The Icon Series
delivers our signature high output, full-bodied sound from stylish
cabinets that will delight your eyes as much as they do your ears.
Whether it’s the sensuous curves and industrial design of the
aluminum models, or the traditional beauty of natural wood, form
and function have never been more closely in tune.
Page 4
X
Page 5
W
Page 6

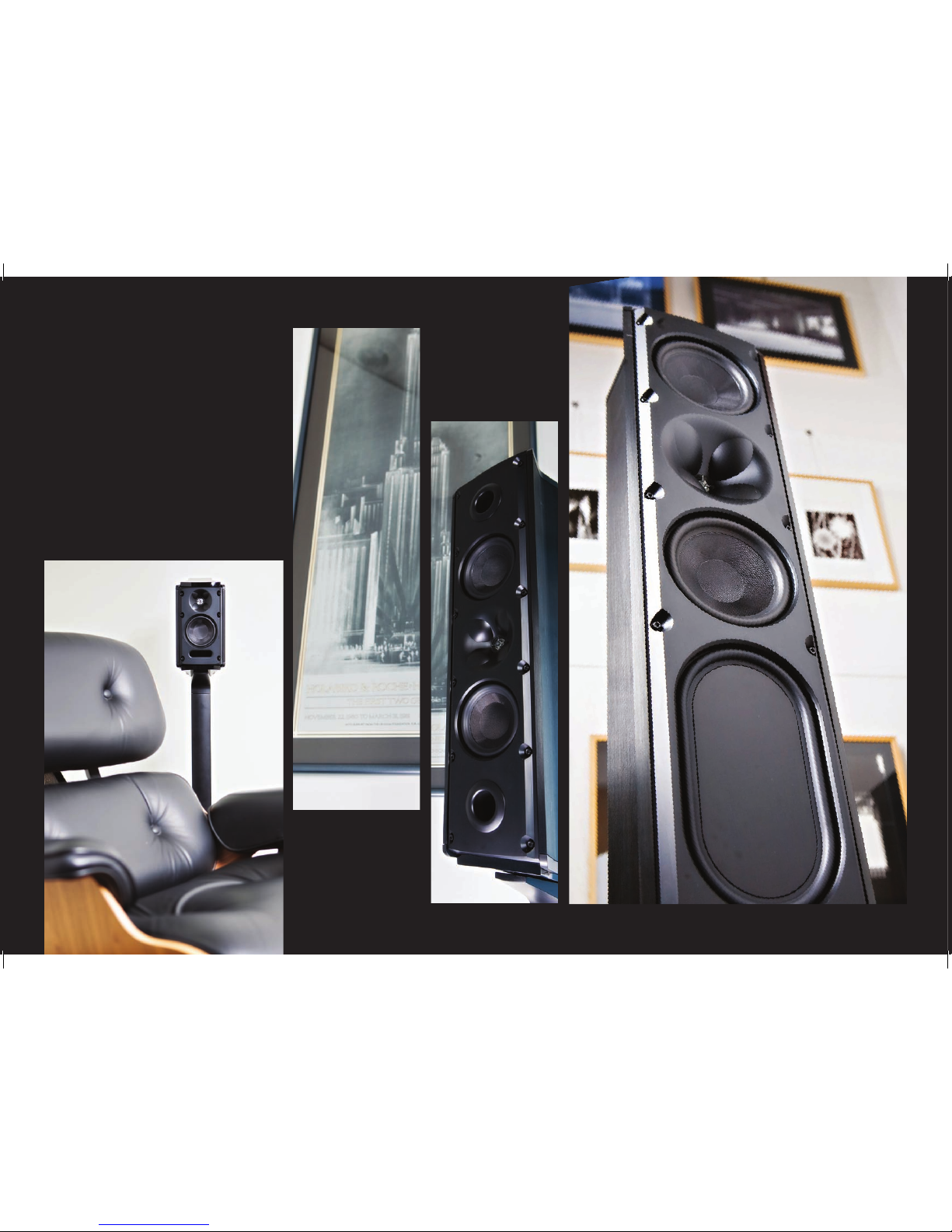

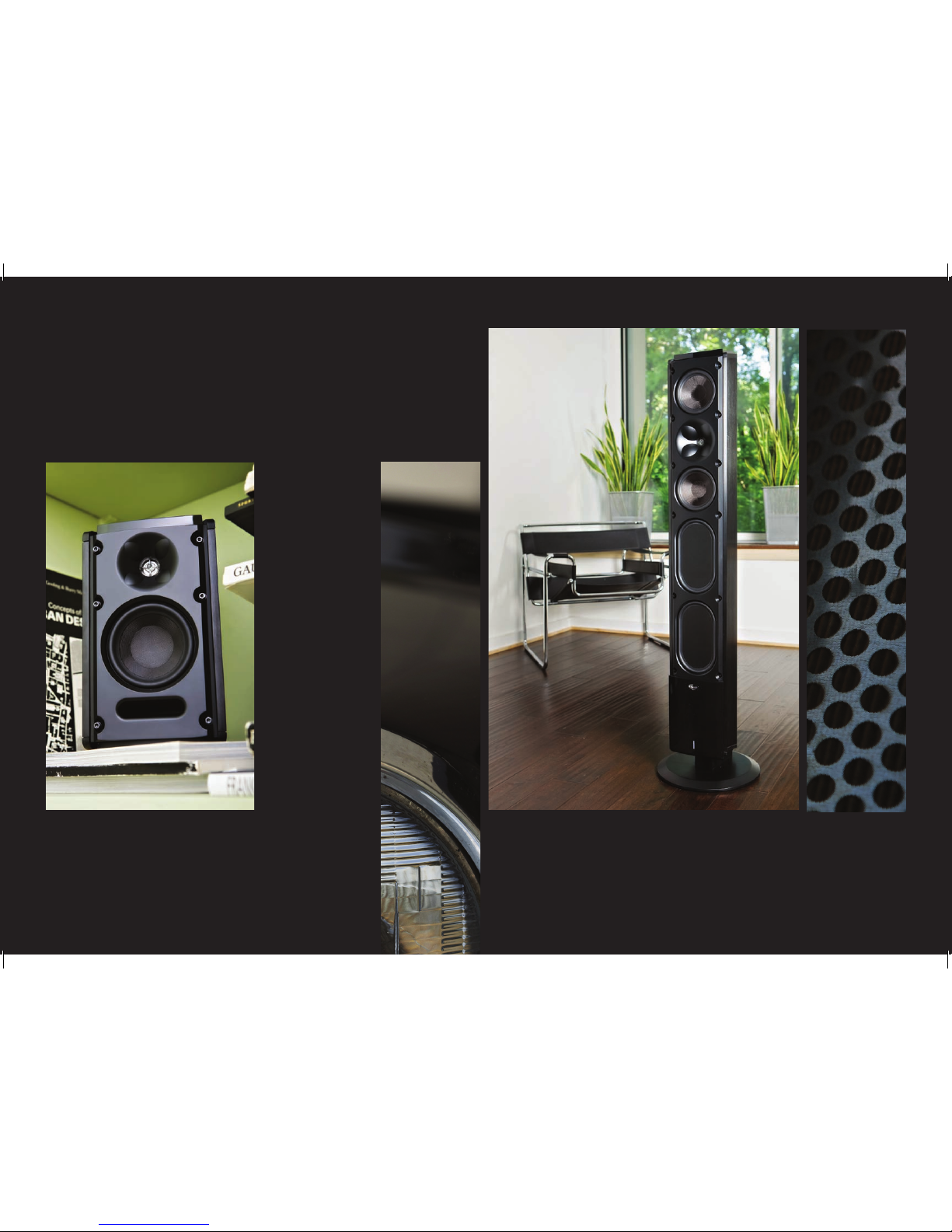

ICON X
XB-10 BOOKSHELF SPEAKER
XF-48 ACTIVE FULL-RANGE FLOORSTANDING SPEAKER
Page 7

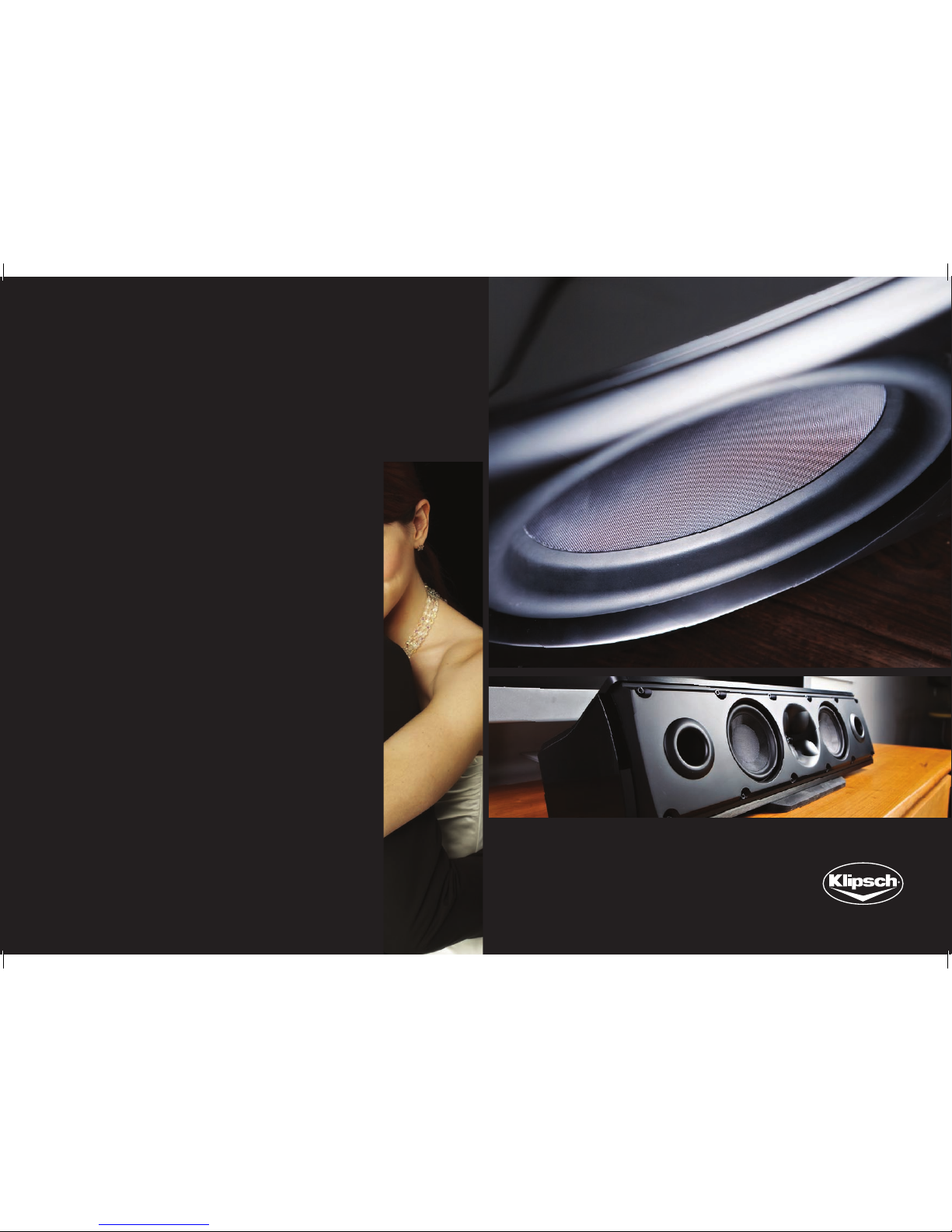

Our quest for precision in sound…
…means that only the finest materials can be used.
From premium titanium compression drivers to high-output
fiberglass woofers to neodymium motor structures, the Icon Series
represents the science of sound—while never compromising its art.
Each note has meaning…with Icon, you hear them all.
XW-500d SUBWOOFER
XL-23 LCR SPEAKER
Page 8
Page 9

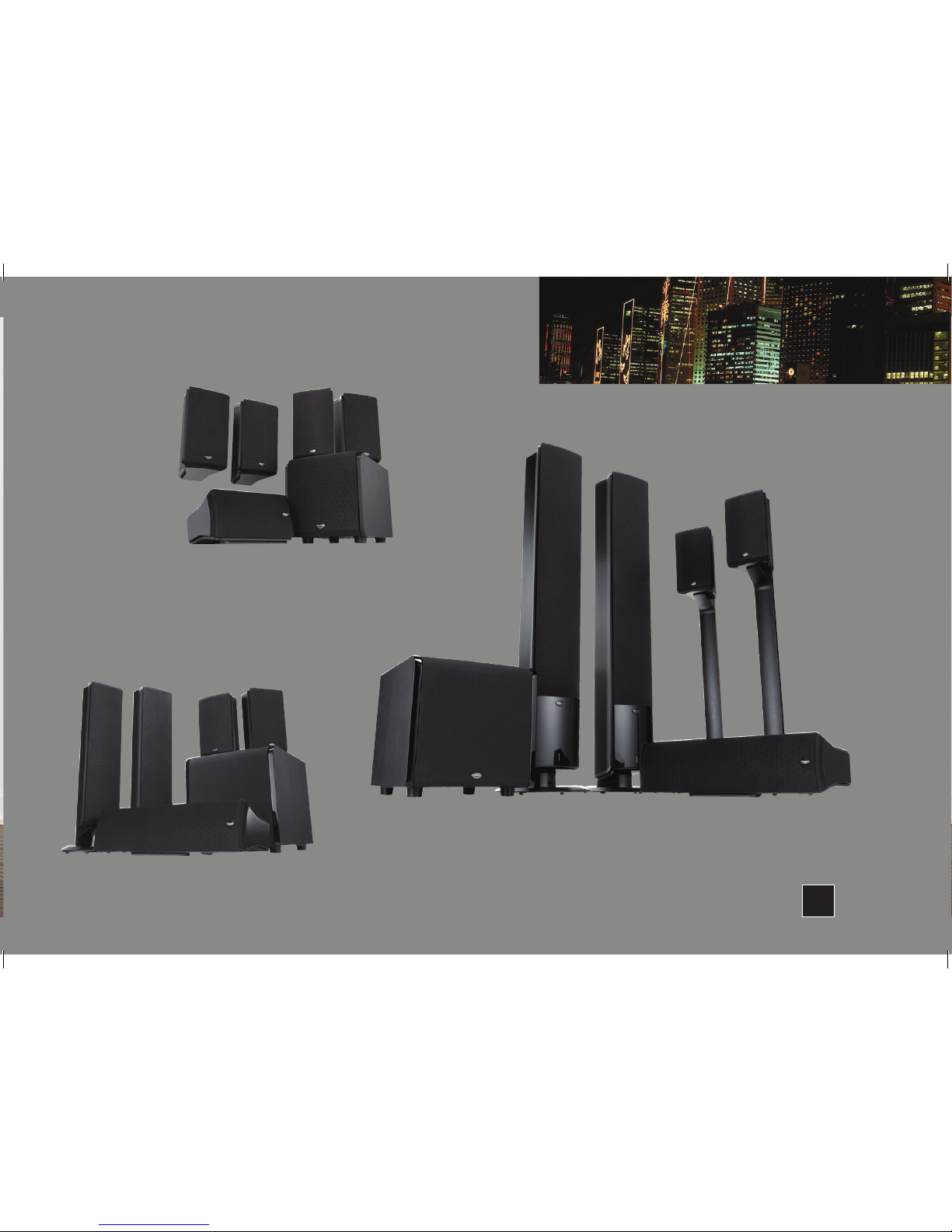

ICON XF-48 HOME THEATER SYSTEM
ICON XL-23 HOME THEATER SYSTEM
ICON XL-12 HOME THEATER SYSTEM
ICON X
Black
Page 10

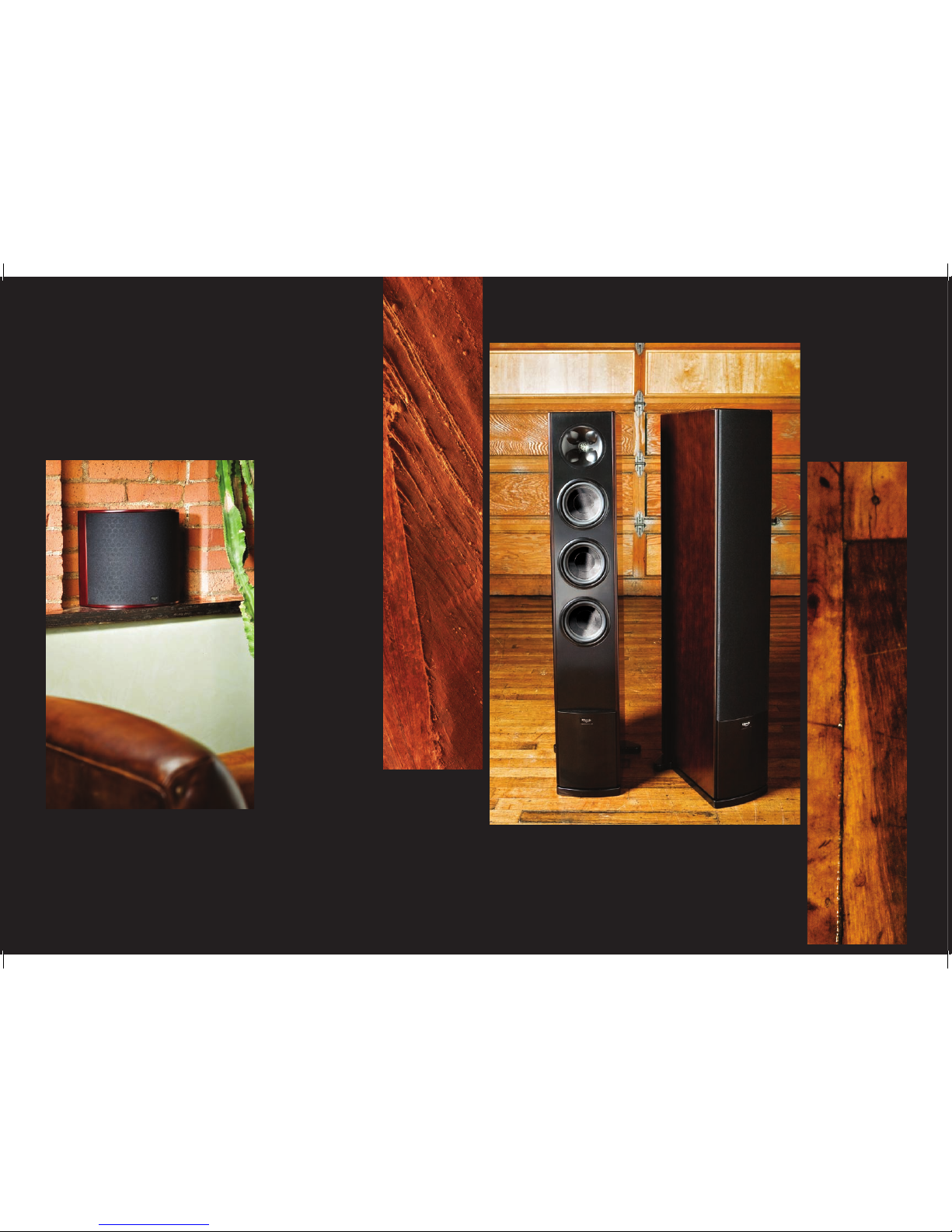

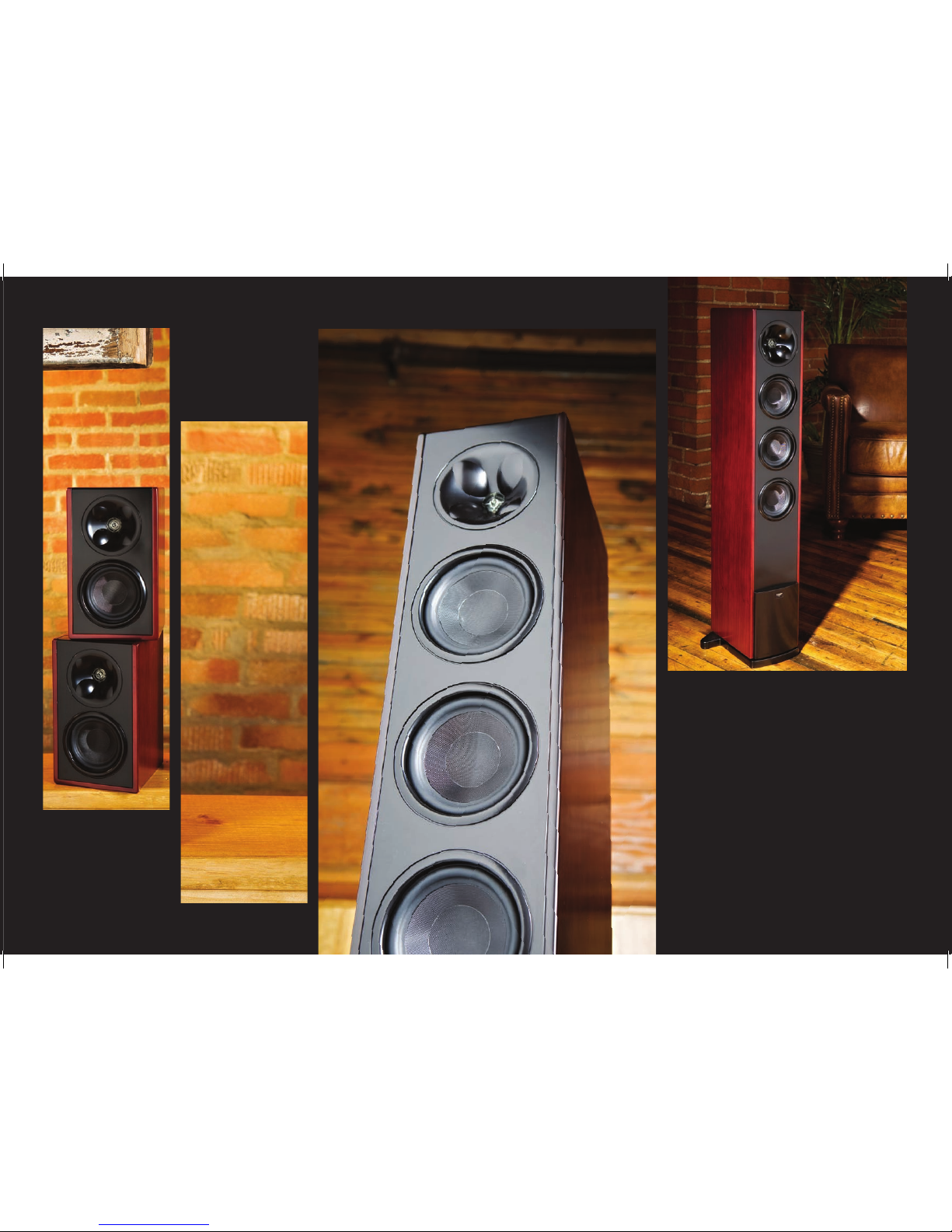

WF-34 FLOORSTANDING SPEAKERS
ICON W
WS-24 SURROUND SPEAKER
Page 11
Passion for our work…
…demands that we settle for no less than technical and aesthetic
brilliance. The moment you hear them, you’ll know—Icon W is a
worthy successor to a long line of groundbreaking Klipsch®
audio products.

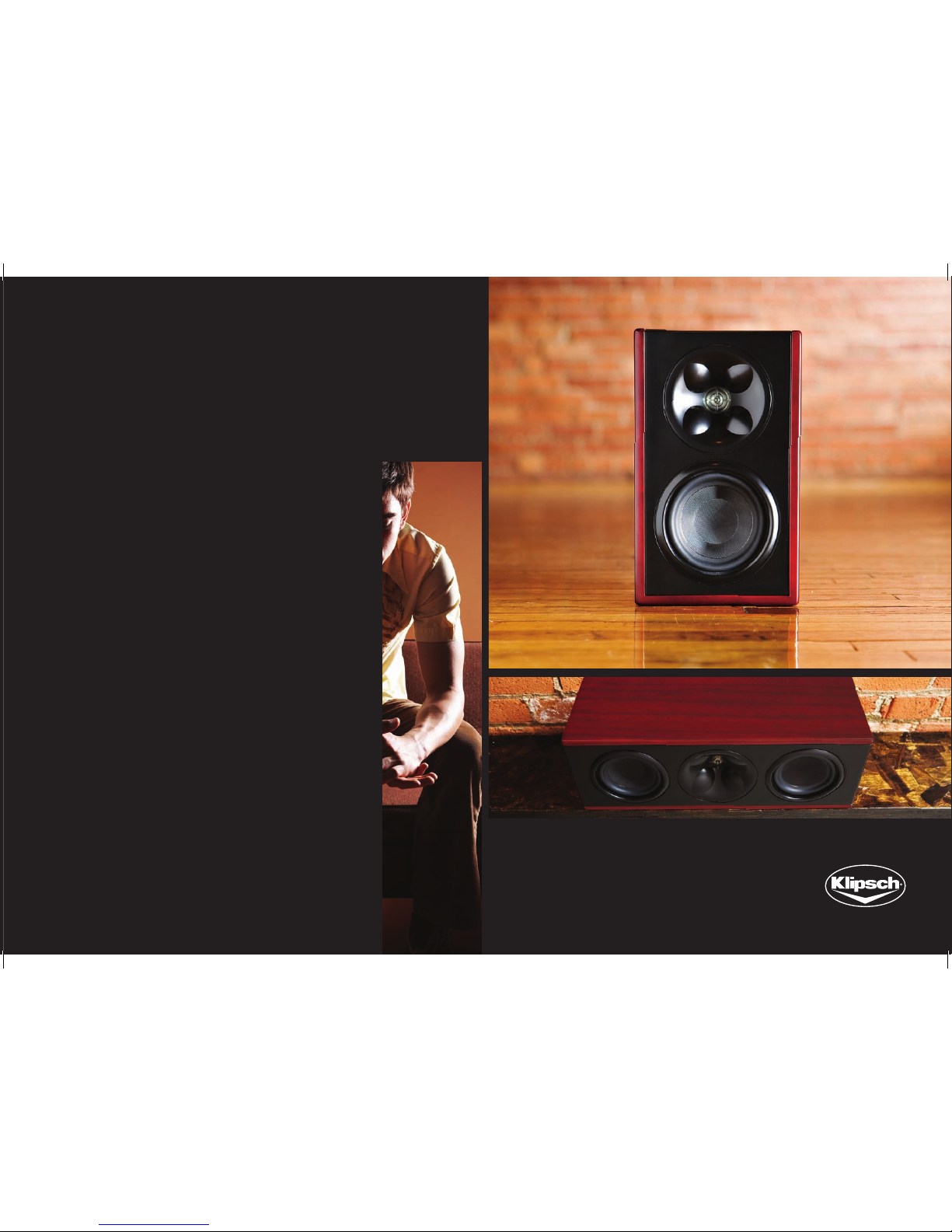

WB-14 BOOKSHELF SPEAKER
WC-24 CENTER CHANNEL SPEAKER
Page 12
Page 13
Cabernet Espresso
ICON WB-14 HOME THEATER SYSTEM
ICON WF-34 HOME THEATER SYSTEM
ICON WF-35 HOME THEATER SYSTEM
ICON W
Page 14
FREQUENCY RESPONSE
LOW-FREQUENCY EXTENSION
AMPLIFIER POWER
SENSITIVITY / MAX OUTPUT
NOMINAL IMPEDANCE
HIGH-FREQUENCY DRIVERS
HIGH-FREQUENCY CROSSOVER
LOW-FREQUENCY DRIVERS
AMPLIFIER
ENCLOSURE MATERIAL
ENCLOSURE TYPE
INPUTS
HEIGHT
WIDTH
DEPTH
WEIGHT
FEATURES
FINISHES
VOLTAGE
EXPORT VOLTAGE
96Hz-23kHz ± 3dB
73Hz
50W continuous / 200W peak
92dB @ 2.83V / 1m
8 ohms compatible
0.75" (1.9cm) titanium diaphragm
compression driver mated to
80° x 80° round XT Tractrix® Horn
2650Hz
4" (10.2cm) high-output,
fiberglass cone woofer
—
Aluminum
Bass-reflex via front-firing port
High-level speaker binding posts
10.8" (27.3cm)
5.75" (14.6cm)
6" (15.2cm)
6.5 lbs (2.9kg)
Wall mount bracket included
(also fits optional XFS floor stand)
Black anodized w/high-gloss
black accents
—
—
XB-10
Bookshelf Loudspeaker
22-120Hz ± 3dB
—
FTC Rated Power: 270 watts continuous @
<2% THD / Dynamic Power: 480 watts
105dB @ 30Hz 1/8 space, 1m
8 ohms compatible
—
—
Ultra-high-excursion 8" (20.3cm)
fiberglass cone, front-firing woofer
BASH® digital hybrid
—
Sealed enclosure
L/R Line-level RCA jacks
11" (27.9cm)
10" (25.4cm)
14.25" (36.2cm)
24 lbs (10.9kg)
DCS control and feature set w/
3 system presets
Black vinyl w/high-gloss
black accents
110/120 VAC 60Hz
220 VAC 50/60Hz
XW-300d
Subwoofer
40Hz-23kHz ± 3dB
33Hz
100W continuous system power/
360W peak
96.5dB @ 2.83V / 1m
8 ohms compatible
0.75" (1.9cm) titanium
diaphragm compression
driver mated to 80° x 80°
round XT Tractrix® Horn
2550Hz
Dual 5.25" (13.3cm) high-output,
fiberglass cone woofers with dual
5.25" x 9" (13.3cm x 22.9cm)
passive radiators
HF: Class A/B, LF: Class D
Aluminum
Bass-reflex via dual passive radiators
Line-level RCA jack,
High-level speaker binding posts
48.8" (123.8cm)
7" (17.8cm)
7.9" (20cm) not including
12" (30.5cm) diameter base
39 lbs (17.7kg)
Input Sensitivity Control, Auto Power
Black anodized w/high-gloss
black accents
110/120 VAC 60Hz
220 VAC 50/60Hz
XF-48
Floorstanding Loudspeaker
86Hz-23kHz ± 3dB
64Hz
70W continuous / 275W peak
94dB @ 2.83V / 1m
8 ohms compatible
0.75" (1.9cm) titanium diaphragm
compression driver mated to
80° x 80° round XT Tractrix® Horn
2500Hz
Dual 4" (10.2cm) high-output,
fiberglass cone woofers
—
Aluminum
Bass-reflex via dual front-firing ports
High-level speaker binding posts
26.3" (66.7cm) including
removable table stand
5.75" (14.6cm)
6.75" (17.1cm) not including removable
8" (20.3cm) diameter table stand
18 lbs (8.2kg)
Wall mount bracket and center
channel accessories included
(also fits optional XFS floor stand)
Black anodized w/high-gloss
black accents
—
—
XL-23
LCR Loudspeaker
92Hz-23kHz ± 3dB
72Hz
50W continuous / 200W peak
92dB @ 2.83V / 1m
8 ohms compatible
0.75" (1.9cm) titanium diaphragm
compression driver mated to
80° x 80° round XT Tractrix® Horn
2650Hz
4" (10.2cm) high-output,
fiberglass cone woofer
—
Aluminum
Bass-reflex via front-firing port
High-level speaker binding posts
10.8" (27.3cm)
5.75" (14.6cm)
6" (15.2cm)
6.5 lbs (2.9kg)
Wall mount bracket included
(also fits optional XFS floor stand)
Black anodized w/high-gloss
black accents
—
—
XL-12
LCR Loudspeaker

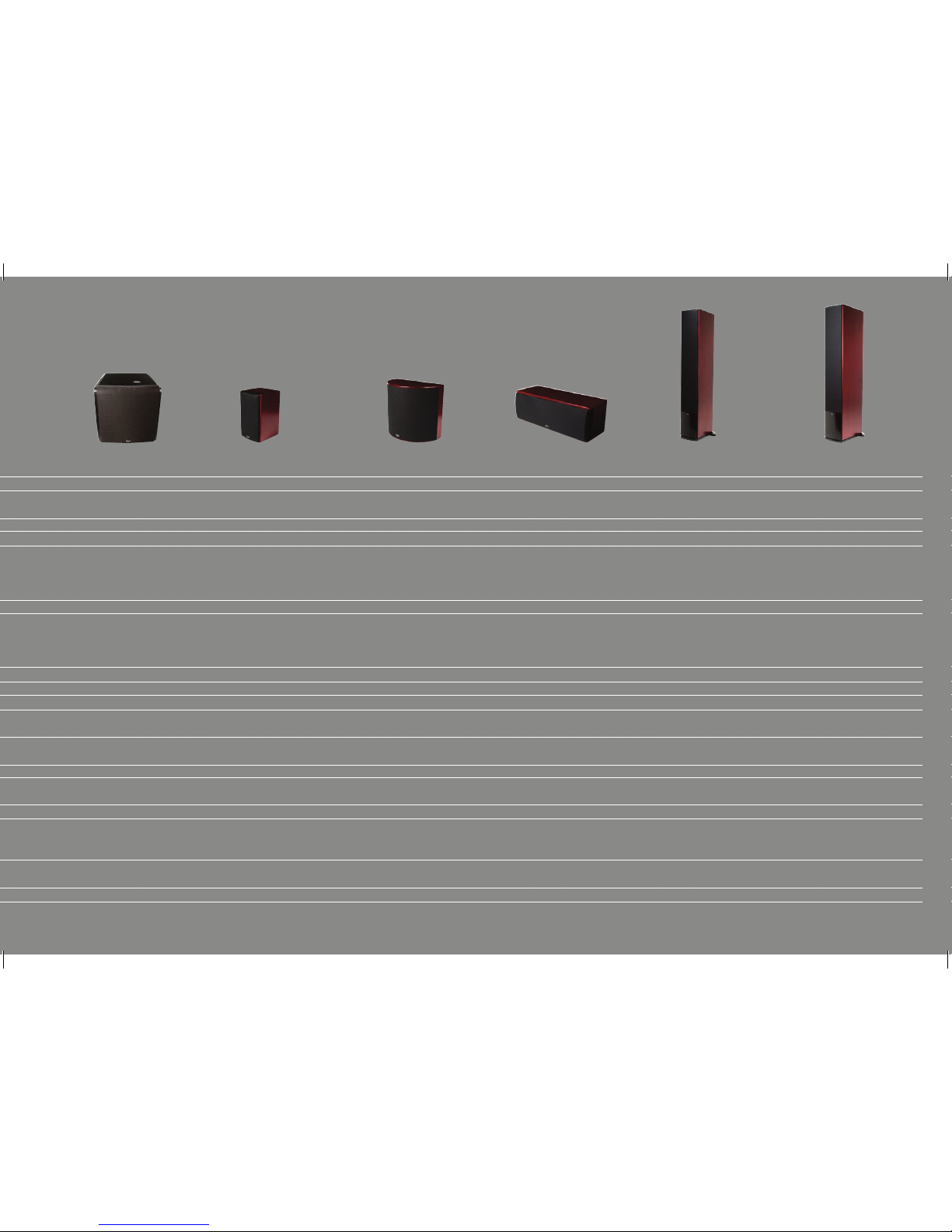

Page 15
85Hz-23kHz ± 3dB
65Hz
90W continuous / 200W peak
94.5dB @ 2.83V / 1m
8 ohms compatible
1" (2.5cm) titanium diaphragm
compression driver mated to a 4.5"
80° x 80° round XT Tractrix® horn
2500Hz
Dual 4.5" (11.4cm) high-output,
fiberglass cone woofers
—
MDF
Bass-reflex via dual front-firing ports
High-level speaker binding posts
6.5" (16.5cm)
18" (45.7cm)
6.5" (16.5cm)
11 lbs (4.9kg)
—
Furniture grade wood veneer
available in cabernet and espresso
—
—
WC-24
Center Channel Loudspeaker
21-120Hz ± 3dB
—
FTC Rated Power: 500 watts continuous @
<2% THD / Dynamic Power: 1200 watts
110dB @ 30Hz 1/8 space, 1m
8 ohms compatible
—
—
Ultra-high-excursion 10" (25.4cm)
fiberglass cone, front-firing woofer
BASH® digital hybrid
—
Sealed enclosure
L/R Line-level RCA jacks
14" (35.6cm)
13.25" (33.7cm)
17.5" (44.5cm)
48 lbs (201.8kg)
DCS control and feature set w/
3 system presets
Black vinyl w/high-gloss
black accents
110/120 VAC 60Hz
220 VAC 50/60Hz
50Hz-23kHz ± 3dB
41Hz
125W continuous / 200W peak
95.5dB @ 2.83V / 1m
8 ohms compatible
1" (2.5cm) titanium diaphragm
compression driver mated to a 4.5"
80° x 80° round XT Tractrix® horn
2700Hz
Triple 4.5" (11.4cm) high-output,
fiberglass cone woofers
—
MDF
Bass-reflex via dual rear-firing ports
High-level speaker binding posts
34" (86.4cm)
6.5" (16.5cm)
9.5" (24.13cm)
33 lbs (14.9kg)
—
Furniture grade wood veneer
available in cabernet and espresso
—
—
WF-34
Floorstanding Loudspeaker
50Hz-23kHz ± 3dB
40Hz
150W continuous / 200W peak
97dB @ 2.83V / 1m
8 ohms compatible
1" (2.5cm) titanium diaphragm
compression driver mated to a 4.5"
80° x 80° round XT Tractrix® horn
2500Hz
Triple 5.25" (13.3cm) high-output,
fiberglass cone woofers
—
MDF
Bass-reflex via dual rear-firing ports
High-level speaker binding posts
43" (109.2cm)
7.25" (18.4cm)
11.75" (29.8cm)
41 lbs (18.5kg)
—
Furniture grade wood veneer
available in cabernet and espresso
—
—
WF-35
Floorstanding Loudspeaker
XW-500d
Subwoofer
82Hz-23kHz ± 3dB
68Hz
40W continuous / 200W peak
92dB @ 2.83V / 1m
8 ohms compatible
1" (2.5cm) titanium diaphragm
compression driver mated to a 3.75"
80° x 80° round XT Tractrix® horn
2400Hz
4.5" (11.4cm) high-output,
fiberglass cone woofer
—
MDF
Bass-reflex via rear-firing port
High-level speaker binding posts
11" (27.9cm)
6.5" (16.5cm)
6.5" (16.5cm)
10 lbs (4.5kg)
—
Furniture grade wood veneer
available in cabernet and espresso
—
—
WB-14
Bookshelf Loudspeaker
82Hz-23kHz ± 3dB
63Hz
75W continuous / 200W peak
91dB @ 2.83V / 1m
8 ohms compatible
Dual 1" (2.5cm) titanium diaphragm
compression drivers mated to a 3.75"
80° x 80° XT Tractrix® Horn
2700Hz
Dual 4.5" (11.4cm) high-output,
fiberglass cone woofers
—
MDF
Bass-reflex via dual front-firing ports
High-level speaker binding posts
11.4" (28.9cm)
12.75" (32.4 cm)
7" (17.8cm)
11 lbs (4.9kg)
—
Furniture grade wood veneer
available in cabernet and espresso
—
—
WS-24
Surround Loudspeaker
