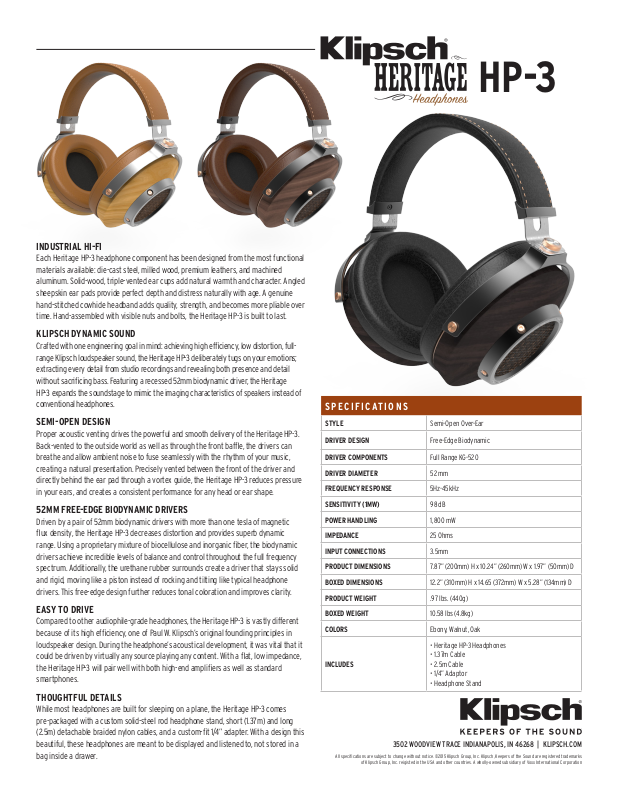

Klipsch HP-3 User Manual

INDUSTRIAL HI-FI

Each Heritage HP-3 headphone component has been designed from the most functional materials available: die-cast steel, milled wood, premium leathers, and machined aluminum. Solid-wood, triple-vented ear cups add natural warmth and character. Angled sheepskin ear pads provide perfect depth and distress naturally with age. A genuine hand-stitched cowhide headband adds quality, strength, and becomes more pliable over time. Hand-assembled with visible nuts and bolts, the Heritage HP-3 is built to last.

KLIPSCH DYNAMIC SOUND

Crafted with one engineering goal in mind: achieving high efﬁciency, low distortion, fullrange Klipsch loudspeaker sound, the Heritage HP-3 deliberately tugs on your emotions; extracting every detail from studio recordings and revealing both presence and detail without sacriﬁcing bass. Featuring a recessed 52mm biodynamic driver, the Heritage HP-3 expands the soundstage to mimic the imaging characteristics of speakers instead of conventional headphones.

SEMI-OPEN DESIGN

Proper acoustic venting drives the powerful and smooth delivery of the Heritage HP-3. Back-vented to the outside world as well as through the front bafﬂe, the drivers can breathe and allow ambient noise to fuse seamlessly with the rhythm of your music, creating a natural presentation. Precisely vented between the front of the driver and directly behind the ear pad through a vortex guide, the Heritage HP-3 reduces pressure in your ears, and creates a consistent performance for any head or ear shape.

52MM FREE-EDGE BIODYNAMIC DRIVERS

Driven by a pair of 52mm biodynamic drivers with more than one tesla of magnetic ﬂux density, the Heritage HP-3 decreases distortion and provides superb dynamic range. Using a proprietary mixture of biocellulose and inorganic ﬁber, the biodynamic drivers achieve incredible levels of balance and control throughout the full frequency spectrum. Additionally, the urethane rubber surrounds create a driver that stays solid and rigid, moving like a piston instead of rocking and tilting like typical headphone drivers. This free-edge design further reduces tonal coloration and improves clarity.

EASY TO DRIVE

Compared to other audiophile-grade headphones, the Heritage HP-3 is vastly different because of its high efﬁciency, one of Paul W. Klipsch’s original founding principles in loudspeaker design. During the headphone’s acoustical development, it was vital that it could be driven by virtually any source playing any content. With a ﬂat, low impedance, the Heritage HP-3 will pair well with both high-end ampliﬁers as well as standard smartphones.

THOUGHTFUL DETAILS

While most headphones are built for sleeping on a plane, the Heritage HP-3 comes pre-packaged with a custom solid-steel rod headphone stand, short (1.37m) and long (2.5m) detachable braided nylon cables, and a custom-ﬁt 1/4” adapter. With a design this beautiful, these headphones are meant to be displayed and listened to, not stored in a bag inside a drawer.

HP-3

SPECIFICATIONS

STYLE

DRIVER DESIGN

DRIVER COMPONENTS

DRIVER DIAMETER

FREQUENCY RESPONSE

SENSITIVITY (1MW)

POWER HANDLING

IMPEDANCE

INPUT CONNECTIONS

PRODUCT DIMENSIONS

BOXED DIMENSIONS

PRODUCT WEIGHT

BOXED WEIGHT

COLORS

INCLUDES

3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

of Klipsch Group, Inc. reigisted in the USA and other countries. A wholly-owned subsidiary of Voxx International Corporation

Semi-Open Over-Ear

Free-Edge Biodynamic

Full Range KG-520

52 mm

5Hz-45kHz

98 dB

1,800 mW

25 Ohms

3.5mm

7.87” (200mm) H x 10.24” (260mm) W x 1.97” (50mm) D

12.2” (310mm) H x 14.65 (372mm) W x 5.28” (134mm) D

.97 lbs. (440g)

10.58 lbs (4.8kg)

Ebony, Walnut, Oak

• Heritage HP-3 Headphones

• 1.37m Cable

• 2.5m Cable

• 1/4” Adaptor

• Headphone Stand
