KLING & FREITAG NOMOS XLC User Manual

K&F NOMOS XLC

User's Manual

Important Information, Please Read Before Use!

KLING & FREITAG GmbH Junkersstraße 14 D-30179 Hannover TEL +49 (0) 511 96 99 70 FAX +49 (0) 511 67 37 94 www.kling-freitag.de

Version 4.2

Released: 19.05.2015

User's manual K&F NOMOS XLC

Table of contents

1.1 Symbols in User's Manual 4

1.2 Information about this User's Manual 4

2.1 Scope of Delivery 5

2.2 Overview of components 5

4.1 Safety Instructions for Stacked Setups 6

4.2 Protecting the Speakers / Operating Safety 7

7.1 Setup instructions for a cardioid array 10

7.2 LSBlocks for cardioid useNOMOS XLC 11

Introduction 4

Product Description 5

System Requirements for Use 5 Safety Instructions 6

Stacking the Subwoofers 7 NOMOS XLC combined with other K&F tops. 9 Cardioid Arrays with CD 44 9

Fuse in the NOMOS XLC 12

8.1 Replacing the Fuses 12

9.1 Terminal assignment 12

9.2 Cabling a K&F System Rack 12

9.3 Connecting the NOMOS XLC 14

15.1 Regulations for Disposal 18

Connection 12

Transport and Storage 14 Technical Specifications 15 Measuring Diagrams 16 Dimensions NOMOS XLC 17 Accessories 17 Disposal 18

15.1.1 Germany 18

15.1.2 EU, Norway, Iceland, and Liechtenstein 18

15.1.3 All other Countries 19

EC Declaration of Conformity 20

Warning

Caution

User's manual K&F NOMOS XLC

1. Introduction

Thank you for your decision to buy a KLING & FREITAG product. To guarantee a troublefree operating of the equipment and to allow your KLING & FREITAG NOMOS XLC system to achieve its full potential please read the operating instructions carefully before use. With the purchase of a NOMOS XLC, you have acquired a large sound system with the highest possible quality and performance capabilities. As the owner of a NOMOS XLC loudspeaker, you now have a versatile and highly professional tool which, when operated properly, is a true pleasure to use.

1.1 Symbols in User's Manual

This symbol indicates the possibility of life-threatening danger and a health risk for persons. Not following these instructions may result in serious health problems including potentially fatal injuries.

This symbol indicates a possibly dangerous situation. Not following these instructions may cause minor injuries or cause property damage.

This symbol gives instructions for the proper use of the described products. Not following these instructions may cause malfunctions or property damage.

1.2 Information about this User's Manual

for the features and safety guidelines of the described products. Technical specifications, measurements, weights and properties are not guaranteed. The manufacturer reserves the right to make product alterations within legal provisions as

well as changes to improve product quality.

All persons who use the speaker system must have this guide and all further information for safe operations available to them during assembly, disassembly, and use. The speaker system may neither be set up nor used until this manual has been read, understood and kept readily available on site.

We appreciate any input with suggestions and improvements for this manual. Please send this to us at the following address:

info@kling-freitag.de or to: KLING & FREITAG GMBH Junkersstr.14 D-30179 Hannover.

Phone +49 (0) 511 - 96 99 70, Fax +49 (0) 511 - 67 37 94

User's manual K&F NOMOS XLC

2. Product Description

2.1 Scope of Delivery

• Cardioid Bass Speaker NOMOS XLC

• User's Manual (1x)

2.2 Overview of components

1. Stacking grooves (8x) , adjacent: plastic glider

2. Butterfly handles (8x)

3. locking profile

4. speaker enclosure

5. front grille with acoustic foam

6. rear grille with acoustic foam

7. Speakon connector

8. transport castors, 100mm, permanently installed

9. Plastic glider (8x) , adjacent: stacking grooves

3. System Requirements for Use

K&F CD 44 Digital System Controller

LAB.GRUPPEN FP 10000Q:

LAB.GRUPPEN FP 14000:

Warning

User's manual K&F NOMOS XLC

for high power configurations with NOMOS subwoofer

Connector Panel CP 4:

These components will be referred to as 'K&F SystemRack' in this manual.

4. Safety Instructions

The speaker is solely for professional use in the manner described here. To prevent damage to persons and property, you must set up the speaker in compliance with

the specifications of applicable national standards. The information described here does not relieve the user of the duty to follow the given

safety requirements and legal regulations. The technicians responsible for assembling are responsible for the safe setup and use of the

speaker and guarantee this. For mobile and fixed installations, use only assembly equipment from KLING & FREITAG. If not otherwise stated in this manual, only original KLING & FREITAG parts may be used. The

use of other parts - in particular parts by other manufacturers - is not permitted. As a basic principle, you must visually inspect all safety-relevant components of the speaker

and the accessory before every use. For fixed installations, you must inspect the speaker for signs of wear at regular intervals. If there are signs of wear, cracks, or deformation, etc. then you must replace the parts immediately.

Caution

Warning

When laying out the connecting cables, make sure that nobody can trip. At least 2 people are necessary to carry the speaker.

Preventing hearing damage

Avoid beeing too close to operating speakers. Even loudness levels of approx. 90 dB - that you subjectively judge as being low - can lead to hearing damage.

4.1 Safety Instructions for Stacked Setups

Falling speakers pose the threat of fatal injuries to people near them!

Be sure to follow the relevant national specifications, norms, and safety regulations. Always make sure that a sufficient safety level is still given, even when outside forces have

an additional impact on the stacked speakers. Before setup, carefully ascertain if there are any possible outside forces that could result in the array falling over. (Slant of the ground / the bearing capacity of the ground / wind / person or vehicle impact, etc.). A technical expert who is responsible for the setup must evaluate and determine necessary measures (including calculating the statics). If necessary, obtain expert proof of stability.

Stacked systems may not fall over even if they are inclined by 15° in each direction. If this requirement is not fulfilled, then it is necessary to take steps to achieve compliance. Possible measures include strapping it to an appropriate base structure or fastening it using safety straps. A planned tilt of the loudspeakers ist not permissible. In calculations, the tilted setup serves the purpose of levelling out unevenness.

With the set-up systems for which you cannot verify the structural safety without safeguards, you must secure them to prevent sliding or tipping in order to provide proof of this safety. To secure the system from tipping over, use water tanks or floor bolts. Other possible measures include strapping it to a suitable substructure or tying it using safety straps.

For outdoor and trade fair venues in which wind loads must be considered, additional proof of stability is necessary.

User's manual K&F NOMOS XLC

Make sure that the stacking feet of subwoofers stacked on top of one another are securely positioned in the grooves of the lower speaker.

If you place a top speaker on a NOMOS XLC you must always strap the speakers to one another and secure them from falling over.

4.2 Protecting the Speakers / Operating Safety

NOMOS XLC speakers may only be used in combination with a K&F SystemRack. 5System Requirements for Use

In general, audio signals must not be overdriven. This may be caused by mixing consoles, equalizers, effect equipment, etc. and should be indicated on this equipment. When a power amplifier is overloaded at the output (clipping), then the amplifier activates a clipping warning signal. In any case, the signal must be reduced as soon as it sounds unnaturally distorted.

The following signals may damage the speakers:

• permanent high-level signals with high frequency and continuous noise from feedback.

• permanently distorted high-level signals.

• noises, which occur when the amplifier is on while equipment is being connected, disconnected or switched on.

Do not install devices in any of the following places:

• where the devices are permanently exposed to direct sunlight.

• where the devices are exposed to high moisture or rain.

• where the devices are exposed to strong vibrations and dust.

• where low air circulation (convection) prevails.

• that have a small distance to a wall.

Damage caused by the speakers' magnetic fields

Speakers are permanently surrounded by a magnetic field, even when they are not connected. Therefore, during transport and placement of the speakers, it is important to ensure that there is always approx. 1 m between the speakers and magnetic data media and computer/video monitors.

For damage caused by

• overloading the speakers

• using the speakers without K&F SystemRack

we do not assume warranty and excludes liability for possible consequential damage.

5. Stacking the Subwoofers

1. Securely place the bottom subwoofer onto a level surface.

User's manual K&F NOMOS XLC

2. Stack the subwoofers on top of one

another. Make sure that the stacking feet of

subwoofers stacked on top of one another are securely positioned in the grooves of the lower speaker.

You must additionally secure vertically standing stacked NOMOS XLC systems from falling since the structural safety is not guaranteed, otherwise.

User's manual K&F NOMOS XLC

6. NOMOS XLC combined with other K&F tops.

The NOMOS XLC can be combined with K&F top speakers using the controller K&F CD 44.

• To do so, select the desired LS blocks for the top in the Controller CD 44 or systemamp

TOPAS, and combine these with the desired LS block for the NOMOS XLC.

In the respective Hardware Manuals, you will find detailed descriptions about connecting the SEQUENZA 10 speakers and the settings necessary on the System Controller CD 44. SEQUENZA 10 N/W

7. Cardioid Arrays with CD 44

The subwoofer NOMOS XLC is a cardioid loudspeaker. A cardioid array results in an increase of sound pressure towards the front because of the

rear-facing subwoofer. In the rear area (cardioid) or in the lateral side area (hypercardioid), on the other hand, the sound pressure is clearly reduced.

With this, you achieve

• less unwanted sound on the stage

• low feedback

• simplified miking

• improved room acoustics with fewer reflections from the rear and side walls, or – when

flown – from the ceiling

• simplified adherence of sound emission limits and therefore less noise disturbance for

nearby residential areas during open air events.

User's manual K&F NOMOS XLC

40 cm [1,3 ft]

7.1 Setup instructions for a cardioid array

In order to implement a cardioid or hyper-cardioid setup, the fronts of the speakers must face the audience.

When cardioid speakers are put on the floor, ensure that there is always a distance of at least 40 cm between and over the speakers.

We recommend a safe distance to a possible obstruction of at least one meter (1m).

Distance at standing speakers:

Distance at lying speakers:

User's manual K&F NOMOS XLC

7.2 LSBlocks for cardioid useNOMOS XLC

The following cardioid or hypercardioid setups are available in the K&F CD 44. All setups with a cutoff frequency other than 60Hz have a cutoff frequency of 100Hz.

Operation Mode Chassis LSBlocks (NomXLC)

'Cardioid' front NomXLC C-F

rear NomXLC C-R

'Hypercardioid' front NomXLC H-F

rear NomXLC H-R

'Infrabass Cardioid' front NomXLC C-F60Hz

rear NomXLC C-R60Hz

'Infrabass Hypercardioid' Front NomXLC H-F60Hz

Rear NomXLC H-R60Hz

User's manual K&F NOMOS XLC

2-2+1-1+ 2-2+1-1+

REAR SPEAKER

FRONT SPEAKERS

SPEAKON CONNECTORS

8. Fuse in the NOMOS XLC

To increase the operating safety of the NOMOS XLC, the subwoofers are equipped with fuses at the signal input. These fuses reduce the risk of consequential damage resulting from a short circuit (i.e. charred cables / connectors / fire damage).

8.1 Replacing the Fuses

The fuse holder is behind the rear chassis. Replace the fuse with the following original fuse only:

Bussmann S 506-8A, T 250V

9. Connection

The operating safety and the highest-possible performance is only guaranteed in conjunction with the K&F Topas or K&F SystemRack.

9.1 Terminal assignment

User's manual K&F NOMOS XLC

9.2 Cabling a K&F System Rack

User's manual K&F NOMOS XLC

9.3 Connecting the NOMOS XLC

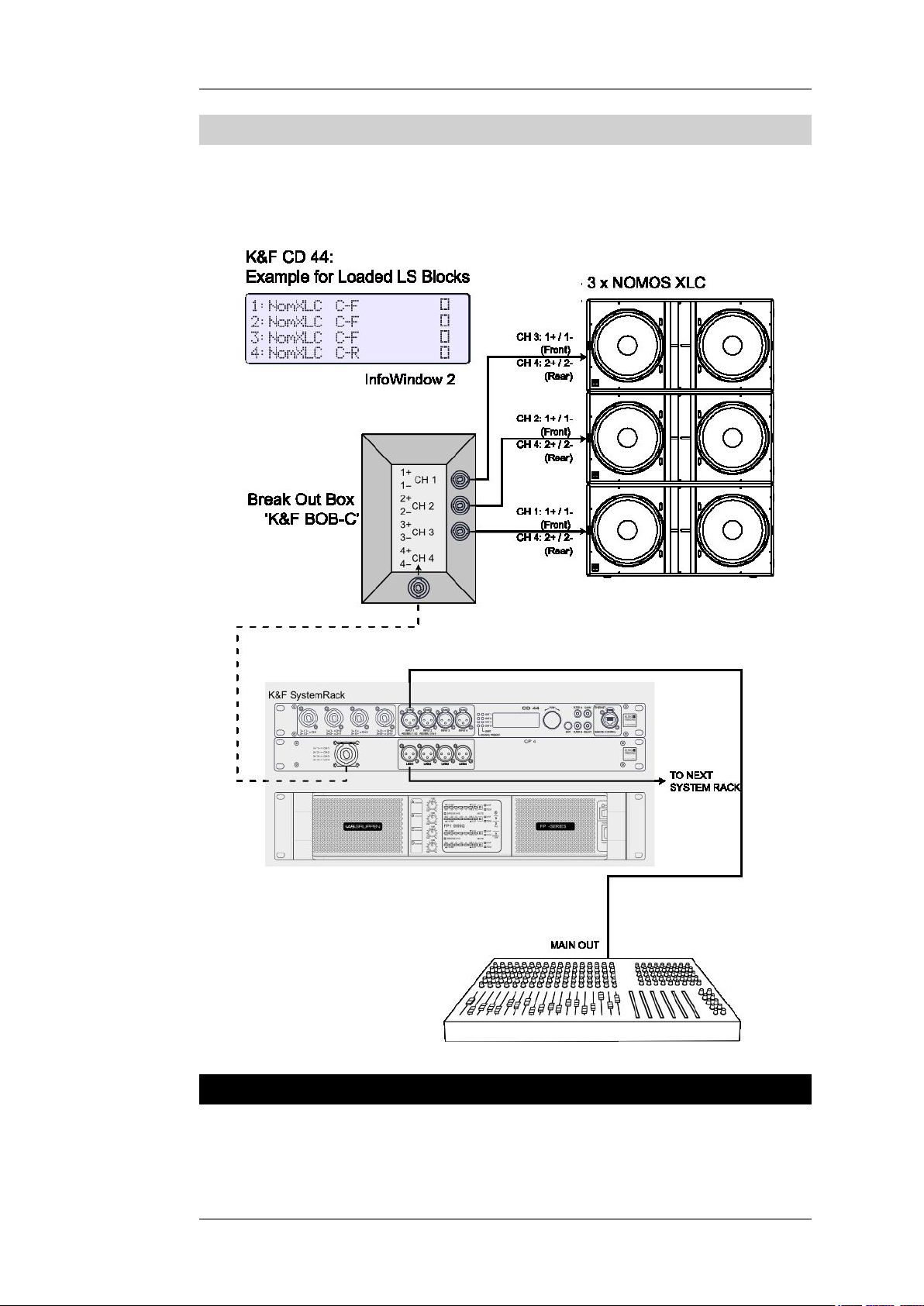

The following connecting diagram shows an example with the K&F CD 44 Routing '1 in 4 out'. A maximum of 3 NOMOS XLC subwoofers can be driven by one K&F SystemRack. If you want

to use 3 NOMOS XLC subwoofers with a K&F SystemRack you will need the Break Out Box 'K&F BOB-C' available as an accessory.

10. Transport and Storage

The housing of the speaker is protected against short-term moisture by a coating. The accessories has to be stored, transported and used in a dry enviroment. The NOMOS XLC System is not designed for long-term use in a corrosive environment.

User's manual K&F NOMOS XLC

Make sure that the system is adequately ventilated during longer storage periods so that possible residual moisture can escape from the equipment.

Furthermore, you should ensure that the NOMOS XLC System is protected from mechanical strain to prevent possible damage.

We recommend using the optional soft cover.

11. Technical Specifications

Design Bass reflex system(Operations via K&F

SystemRack)

Crossover frequencies (2-Way-Mode / 60

100Hz / 60 Hz

Hz)

Lower cut-off frequency (-3 dB / -10 dB) 33 Hz / 28 Hz

Coverage Cardioid / Hypercardiod

Power handling (front / rear)

2000 W / 1000 W nominal

4000 W / 2000 W program

Max. SPL 140 dB (SPL Peak / 1 m / free field)

Components 3 x 18“ long excursion chassis, 100mm

voice

coil with double centring, internal and external ven-

tilation, demodulation ring for minimal

distortion

Impedance (nominal) front / rear 4 Ohm / 8 Ohm

Connection 2 x Speakon 4-pin NLT4MP

front speakers: 1+ / 1- ,

rear speaker: 2+ / 2-

IN parallel into OUT

Enclosure Design 15 mm frame reinforced multiplex

plywood enclosure

with highly resilient Polyurea synthetic black,

coating,

8 ergonomic butterfly handles,

8 plastic sliding feet, 8 stacking grooves for

8 stacking grooves for save stackings of

identical enclosures,

User's manual K&F NOMOS XLC

80 Hz 100 Hz 125 Hz

40 Hz 50 Hz 63 Hz

0°

30°

330°

300°

270°

240°

210°

180°

150°

120°

90°

60°

0°

30°

330°

300°

270°

240°

210°

180°

150°

120°

90°

60°

-12 dB

-24 dB

80 Hz 100 Hz 125 Hz

40 Hz 50 Hz 63 Hz

0°

30°

330°

270°

240°

210°

180°

150°

120°

90°

60°

0°

30°

330°

300°

270°

240°

210°

180°

150°

120°

90°

60°

-12 dB

-24 dB

-12 dB

-24 dB

4 x 100 mm rear mounted castors,

2 locking profiles for optional transport cover,

ball-proof steel grilles with exchangeable

black acoustic foams behind grilles

Dimensions (W x H x D) 1200 x 600 x 903 (with castors)

Weight 95,0 kg / Transport Cover: 8,7 kg

Accessories see catalogue or visit www.kling-

freitag.de

1) Pink noise 40 - 250 Hz, 2 h; 2) as 1) but with 50% duty cycle

Measurings taken with the K&F SystemRack. The K&F SystemRack is required for operation of the K&F NOMOS XLC.

12. Measuring Diagrams

Polar Patterns

Cardioid

Hypercardioid

Frequency response

User's manual K&F NOMOS XLC

13. Dimensions NOMOS XLC

14. Accessories

Protective Cover NOMOS XLC

User's manual K&F NOMOS XLC

Transport Cover NOMOS XLC

K&F BOB-C:

Speaker signal distributor, 1 x 8-pin into 3 x 4-pin. For operations of 3 x NOMOS XLC with a K&F SystemRack.

15. Disposal

15.1 Regulations for Disposal

15.1.1 Germany

It is not allowed to dispose of used electrical equipment as domestic waste. But please do not dispose of them at official collecting points for recycling either!

All KLING & FREITAG products are plain business-to-business (B2B) products. KLING & FREITAG products labelled with a waste bin sign have thus to be disposed of by KLING & FREITAG GmbH alone. Please call KLING & FREITAG at the number stated below if you have a KLING & FREITAG product to be disposed of. We will offer you a straightforward and professional disposal with no costs involved.

If there is no waste bin sign on one of your KLING & FREITAG products, because it has been sold before 24 March 2006, then by law the owner is in charge of the disposal. In this case we will be happy to assist and offer you proper ways of disposal.

Telephone number to call about the disposal of used KLING & FREITAG products: +49 (0) 511-96 99 7-0

Explanation: With the ElektroG (law relating to electrical and electronic equipment and appliances) we have complied with the EU-directive on waste electrical and electronic equipment (WEEE, 2002/96/EC).

From 03/24/2006 onwards KLING & FREITAG GMBH has thus labelled all products mentioned in the WEEE with a sign with a crossed out waste bin and a white bar below. This sign indicates that the disposal as domestic waste is prohibited and that the product has been put into circulation on 03/24/2006 at the earliest.

KLING & FREITAG GMBH has been legally registered as a manufacturer with the German registration office EAR. Our WEEE registration number is: DE64110372.

For the German Registration office EAR we have accredited that our products are soleB2B products.

15.1.2 EU, Norway, Iceland, and Liechtenstein

It is not allowed to dispose of used electrical equipment as domestic waste.

From 08/13/2005 onwards KLING & FREITAG GMBH has thus labelled all products for EUMember countries as well as Norway, Iceland and Liechtenstein (except Germany) mentioned in the WEEE with a sign with a crossed out waste bin and a white bar below. This sign indicates that the disposal on domestic waste is prohibited and that the product has been put into circulation on 08/13/2005 at the earliest.

User's manual K&F NOMOS XLC

Unfortunately the European directive WEEE has been complied with implementing different national provisions of law throughout all member countries, which makes it impossible for us to offer consistent solutions for the disposal throughout Europe.

Responsible for complying with these provisions of law is the local distributor (importer) of each country.

For proper disposal of used products in accordance with these local provisions in the mentioned countries of the European Union (except Germany) please ask your local dealer or the local authorities.

15.1.3 All other Countries

For proper disposal of used products in accordance with local provisions in other than the above mentioned countries please ask your local dealer or the local authorities.

User's manual K&F NOMOS XLC

16. EC Declaration of Conformity

for the products mentioned hereafter including model variants from KLING & FREITAG GmbH provided the products have not been altered subsequently.

Loudspeaker systems:

ACCESS B5 ACCESS B10 ACCESS TS/T9 CA 106 CA 205 *) **) CA 1001 CA 1201 *) CA 1215 CA 1515 GRAVIS 8 N/W GRAVIS 12 N/W GRAVIS 12+ N/W GRAVIS 15 N/W

*) These products are discontinued.

**) These systems are not covered by the Low Voltage Directive because of the rated voltage used.

We declare that the listed products are in conformity with the protection requirements of the following directives:

Electromagnetic Compatibility Directive (EMC) Low Voltage Directive (LVD) Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances

E 90 MK II LINE 212 NOMOS LS II NOMOS LT NOMOS XLC NOMOS XLS NOMOS XLT PASSIO **) PASSIO SUB 12 PASSIO SUB 15 SCENA 15 SEQUENZA 10 N/W SEQUENZA 10 B

SEQUENZA 5 W SEQUENZA 5 B SONA 5 **) SONA 6 SONA 8 SONA SUB **) SONS SUB II SW 112 SW 115D *) SW 115E SW 118E SW 212E

(2004/108/EC) (2006/95/EC) (VDE 0042-12:2013-02)

The operating conditions specified in the user's manual must be met accordingly.

This declaration is issued under the sole responsibility of the manufacturer:

KLING & FREITAG GmbH

Junkersstraße 14, 30179 Hannover, Germany

Hannover, 30 March 2015

Jürgen Freitag (Managing Director / CEO)

KLING & FREITAG NOMOS XLC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. Introduction

1.1 Symbols in User's Manual

1.2 Information about this User's Manual

2. Product Description

2.1 Scope of Delivery

2.2 Overview of components

3. System Requirements for Use

4. Safety Instructions

4.1 Safety Instructions for Stacked Setups

4.2 Protecting the Speakers / Operating Safety

5. Stacking the Subwoofers

6. NOMOS XLC combined with other K&F tops.

7. Cardioid Arrays with CD 44

7.1 Setup instructions for a cardioid array

7.2 LSBlocks for cardioid useNOMOS XLC

8. Fuse in the NOMOS XLC

8.1 Replacing the Fuses

9. Connection

9.1 Terminal assignment

9.3 Connecting the NOMOS XLC

15.1 Regulations for Disposal

15.1.1 Germany

15.1.2 EU, Norway, Iceland, and Liechtenstein

15.1.3 All other Countries
