Self Powered LINE 212-6 - SP / LINE 212-9 - SP

Benutzer Handbuch

User's Manual

Important Information,

Wichtige Informationen, Please Read Before Use!

vor Inbetriebnahme lesen!

KLING & FREITAG GmbH KLING & FREITAG GmbH

Junkersstrasse 14 Junkersstrasse 14

D-30179 Hannover D-30179 Hannover

PHONE 0 (049) 511- 969 97-0 TEL 0 (049) 511- 969 97-0

FAX 0 (049) 511- 67 37 94 FAX 0 (049) 511- 67 37 94

www.kling-freitag.de www.kling-freitag.de

Released: 23.03.2006

Version 4.1

Page 2

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

Page 3

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

Thank you for your decision to buy a Kling & Freitag sound system. To guarantee a trouble-free operating of the equipment and to allow the KLING & FREITAG --- ‘SP’ speaker system to achieve its full potential please read the operating instructions carefully before use.

With the purchase of a LINE 212 --- SP system with integrated power amplifier technology, you have acquired a speaker system with the highest possible quality and performance capabilities.

As the owner of this system, you now have a versatile and highly professional tool which, when operated properly, is a true pleasure to use.

Symbols in User's Manual

This symbol indicates the possibility of life-threatening danger and a health risk for persons. Not following these instructions may result in serious health problems including potentially fatal injuries.

Warning

Caution

This symbol indicates a possibly dangerous situation. Not following these instructions may cause minor injuries or cause property damage.

This symbol gives instructions for the proper use of the described products. Not following these instructions may cause malfunctions or property damage.

Important

Information about this User's Manual

User's Manual K&F LINE 212-6 - SP / LINE 212-9 - SP, Version 4.1, 23.03.2006 © by André Figula, Kling & Freitag GmbH, May 2003 - 2006; all rights reserved. All specifications in this manual are based on information available at the time of pub-

lishing for the features and safety guidelines of the described products. Technical specifications, measurements, weights and properties are not guaranteed. The manufacturer reserves the right to make product alterations within legal provisions

as well as changes to improve product quality.

All persons who use the speaker system must have this guide and all further information for safe operations available to them during assembly, disassembly, and use.

We appreciate any input with suggestions and improvements for this manual. Please send this to us at the following address:

info@kling-freitag.de or to: KLING & FREITAG GMBH, Junkersstr.14, D-30179 Hannover Phone +49 (0) 511 - 96 99 70, Fax +49 (0) 511 - 67 37 94

Page 4

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

Contents

Chapter Page

1. General Safety Instructions 5

2. Introduction SP Loudspeakers 7

3. Connectors, Controls und Displays 9

4. Power Cord 13

5. Rigging Instructions for Line 212 Systems 14

5.1 Vertical Suspension 14

5.2 Horizontal Suspension 15

6. Using the ‘allsafe JUNGFALK’ Flying Points 16

7. Using the Rear Mounted ‘allsafe JUNGFALK’ Flying Track 17

7.1 Mounting the Single Stud Fittings 17

7.2 Mounting the Double Stud Fitting 18

8. Coverage Pattern of the Line 212 --- SP Systems 19

8.1 Changing the Coverage Pattern 19

9. Mounting Instructions for Speakers 20

9.1 Proper Arrangement of the Loudspeakers 20

9.2 Arrayed Speaker Systems (Cluster) 21

9.3 LINE 212 Systems on Top of SW 215E 22

10. Wiring 23

10.1 Avoiding Ground Loops 23

10.1.1 What is a Ground Loop? 23

10.1.2 Avoiding Ground Loops 23

10.2 Connecting the Power Connectors to the Connecting Terminal 24

11. Configurations and Connecting Diagrams 25

11.1 Operating the Systems without C2 Controller 25

11.1.1 Full-Range Mode 25

11.1.2 Full Range Mode with Subwoofer 26

11.2 Operating the Systems with C2 Controller 27

11.2.1 Full-Range Mode with K&F C2 Controller 27

11.2.2 2-Way Active Mode with K&F Controller C2 28

11.3 Maximum Configuration 29

12. Operating the Speakers 30

13. Touching Up Damage to Paint / Changing the Front Foam 30

14. Block Diagram LINE 212 - SP 31

15. Technical Specifications 32

15.1 LINE 212-6 - SP 32

15.2 LINE 212-9 - SP 33

16. Measuring Charts 34

16.1 LINE 212-6 - SP 34

16.2 LINE 212-9 - SP 36

17. Dimensions 38

18. Accessories for the LINE 212 System 39

19. Regulations for Disposal 40

19.1 Germany: 40

19.2 EU, Norway, Island, and Liechtenstein (not Germany): 40

19.3 Other countries 40

20. Declaration of Conformity and International Certificates 41

20.1 Declaration of Conformity 41

20.2 EMV Certificate Directive 89 / 336 / EWG 42

20.3 TÜV Certificate for the USA and Canada (UL 6500) 44

21. Included Safety and Mounting Instructions for Loudspeakers and Accessories

Page 5

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

1. General Safety Instructions

CAUTION

Risk of electric shock!

Do not open the units!

Warning: To avoid electric shock hazard, do not expose this

appliance to rain or moisture. The enclosures may only be

opened by qualified personnel!

Do not install devices in any of the following places:

− where the devices are permanently exposed to direct sunlight.

Warning

− near any heat sources and open fire. Do not put candles etc. on top of the speaker.

− where the airflow for cooling is blocked. A minimum distance of 10 cm to the heat

sink on the rear of the speaker must be kept.

− where the devices are exposed to high moisture. Objects filled with liquids, such as

a vase, must not be placed on the speaker.

− where the devices are exposed to strong vibrations and dust.

Power supply

Before connecting the AC power cable of the SP speaker, please check if the available voltage is compatible with the operating voltage as indicated on the unit. If this is not the case, then the unit needs to be adapted by the manufacturer or an authorized service centre. If the unit is not compatible with the available voltage, it should never be connected! This could irreparably ruin the SP speaker. Make sure that the power outlet supplies a ground connector, which must be connected to the unit via the PE conductor of the power cord! All equipment, which is connected together using signal cables and has a connection to protective earth, must be connected to a common PE conductor. If not, there is a risk of an electric shock or the destruction of the connected equipment. The power plug must always be used to disconnect from the power supply. Furthermore, the power plug must be easily accessible for use at all times.

Protection of electrical cables

Power cords should be laid in such a way that they are protected against footstep damages, tensile strain and against being trapped.

Transportation

When transporting the equipment, make sure that it is protected from vibrations.

Cleaning

The equipment should only be cleaned with a damp cloth when it is not plugged in.

Pauses in use

The power cord should be disconnected from the power source during longer pauses in use.

Intrusion of objects or liquids

No objects or liquids should intrude or leak into the equipment.

Page 6

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

Maintenance and technical service

The user should not perform any maintenance work on the equipment other than that which is described in this manual. Repairs should be executed by a qualified service technician only.

In the following cases, the unit should be serviced by an authorized technician only if:

− the power cord or the mains connectors have been damaged.

− objects or liquids have gotten into it.

− it was exposed to rain.

− it doesn't appear to be functioning properly.

− it has fallen down or the enclosure is damaged.

Warning

Mounting the speakers

If the weight of the speaker exceeds 25 kg then it is necessary for two people to carry it. To prevent injury, this equipment must be securely placed on the floor or secured to the

wall according to the mounting instructions. Speakers, which are stacked, must be secured with securing straps. Please note that speakers can move as a result of vibrations. To prevent them from falling from their mounted position, they must be secured properly.

Speakers may only be suspended by qualified personnel. Never use signal cables or power cords for suspending, aligning or securing the systems.

When laying the connecting cables, make sure that nobody can trip. The speakers must be hung by using at least two of the designated flying points. The

same applies when lifting and aligning the speakers. Never hang more than two speakers under one another without using the designated

Kling & Freitag rigging equipment. Ensure that all installation connections comply with the applicable safety guidelines and

that the size and strength are sufficient. Further instructions are in our user's manual for assembly equipment and in the general safety instructions for speakers and assembly equipment.

For mobile and fixed installations, use only rigging equipment from KLING & FREITAG. Make sure to observe the included safety and mounting instructions for loudspeakers and accessories.

Unwanted interference

RF interference on the power cord or on the line signal cables may lead to unwanted sound interference.

Damage caused by the speakers' magnetic fields

Speakers are permanently surrounded by a magnetic field, even when they are not operating. Therefore, during transport and placement of the speakers, it is important to ensure that there is always approx. 1 m between the speakers and magnetic data media and computer/video monitors.

The following signals may damage the speakers

− permanent high-pitched signals with high frequency and continuous noise from

feedback.

− permanently distorted signals with high power.

− noises, which occur when the SP speaker is connected while equipment is being

connected, disconnected or switched on.

Preventing hearing damage

To prevent the risk of hearing damage, avoid being too close to operating speakers, even if the volume level seems to be low enough. In general, volume levels over 90 dB can cause hearing damage.

Important

Caution

Page 7

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

2. Introduction SP Loudspeakers

‘SP’ denotes ‘Self Powered’ series in the K&F range of loudspeakers. Based on selected K&F speaker systems, the ‘SP’ models are equipped with state-of-the-art integrated driver circuits and Class D power amplifier technology. The extremely lightweight system electronics replace ponderous racks, power amplifiers, controllers, and speaker cables.

Aside from the integrated power amplifier and input modules with controller functions, the full-range systems possess a passive crossover so that the advantageous features provided by the K&F passive technology (all-pass filter, protection circuits) remain usable. The frequency separation for the subwoofers is controlled by an active 110 Hz low-pass filter.

Integrated phase optimisation allows for all systems in the ‘SP Series’ to be combinable with one another. With this, the ‘SP’ speakers, when the filter section is switched off, have a completely comparable sound to the corresponding versions without integrated power amplifier technology. Operations using the K&F C2 Controller are also possible, which is, for example, appropriate for combined applications with equivalent passive systems or for the use of C2 presets (clustering = Top Low Cut, Bass-Boost etc.).

Operating the ‘SP Series’ is incredibly easy: The full-range systems reproduce the complete frequency spectrum. If necessary, the ‘SP’ subwoofers in parallel operations can provide an additional bass boost.

The Input Module

− Line signal input

− Limiter section (feed-forward RMS-limiter and peak limiter in feed-back design).

− High pass filter, 45 Hz tops, and 32 Hz subwoofers

− Low pass filter 110 Hz (only subwoofer systems)

− System specific, switchable frequency deemphasis (‘FILTERS ON/ OFF’) controllable

by a covered switch on the connecting terminal

− Phase correction

− Level adjustment (countersunk level control on the connecting terminal)

The Amplifier Module

− 1 x, or 2 x 1 kW Class D state-of-the-art power amplifier

− Minimal dimensions (speaker dimensions of the models without the ‘SP’ module are

retained)

− Low weight (weight increase of 2.5 / 4 kg as compared to systems without the ‘SP’

module; and with the Line 212 --- SP, the weight even stays identical)

− High efficiency enables convection cooling, because of which bothersome fans are

unnecessary

− High fidelity (even in high frequency range) and a large power bandwidth resulting

from impedance optimisation

Page 8

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

Modes of Operation

− Operations without external controller:

with activated filters (FILTERS ‘ON’), all K&F models in the ‘SP Series’ are combinable with one another by simply linking the signal from one speaker to the next.

− With optional K&F system controller*:

with system plug-in cards via the K&F Controller C2 or an Audio DSP*

− if used with BSS Soundweb, FDS 366, 336, 334, and XTA DP 226, 224, K&F sys-

tem parameters are available upon request

* The operation of the K&F ‘SP’ models with Controller C2 or Audio DSP is recommended for uses in which special filter presets are advisable, i.e. in combination with passive systems of the ‘CA Series’, in cluster operations (top low cut), when bass and high boost are necessary, adjustment to the room acoustics (EQ), etc.

The following K&F ‘SP’ speakers are available:

Full-range systems: CA 1001 - SP, CA 1201 - SP, CA1215-6 - SP, CA 1215-9 - SP CA 1515-6 - SP, CA 1515-9 - SP LINE 212-6 - SP, LINE 212-9 --- SP

Subwoofers: SW 112 - SP, SWi 112 - SP, SW 115E - SP, SWi 115E - SP, SW 118E - SP, SWi 118E - SP, SW 215E - SP

Page 9

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

3. Connectors, Controls und Displays

Warning

1) LINE IN and LINE OUT (+6 dB)

Electronically balanced input and output connectors. Use the XLR female connector (marked ‘IN’) as input. The parallel-wired XLR male connector (‘OUT’) is for connection to further ‘SP’ loudspeakers.

2) GROUND LIFT

When the ‘Ground Lift’ switch is set to LIFT, pin 1 of the LINE IN connector (ground) is not connected to the chassis ground of the integrated amplifier module. The ground connection between LINE IN (XLR male) and LINE OUT (XLR female) is maintained. The use of the ‘Ground Lift’ switch is sometimes necessary in dealing with hum problems (see chapter 10.1 )

Never

Never tape over the protective earth on the plug

tape over the protective earth on the plug ---

Never Never

tape over the protective earth on the plug tape over the protective earth on the plug

3) PROTECTIVE COVER

--- danger to life!

danger to life!

------

danger to life! danger to life!

The protective cover prevents unwanted adjustment of the gain control and filter ON / OFF switch. The cover has a snap-in lock. In order to reach the controls beneath, turn the cover sharply in the direction of the arrow.

Page 10

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

4) GAIN CONTROL (± 6 dB)

a) The gain control can be used to adjust the input level of the amplifier module

by ± 6dB. It serves to balance the volume levels of the various systems. In order to avoid overloading the input circuit or mixer’s output circuit, it should normally be set in the case of K&F full-range systems at 0 dB (centre notch setting).

b) When operating with C2 Controller, set the input level of the amplifier mod-

ule on the C2 Controller (Input Gain). The gain control on the SP speaker should be set at 0 dB (centre notch setting). One exception to this rule is a cluster arrangement, in which the inner speakers should be set at a lower level than the outer ones. In this case, the level of the gain control on the inner SP speakers can be adjusted downwards accordingly.

When operating with additional bass systems it is very important that the respective volume levels between the top speakers and the bass systems are correctly balanced. To this end, the sound engineer should check the volume levels during the set-up and adjust them accordingly. When setting up a system without C2 Controller this adjustment should be carried out using the gain control of the SP subwoofer; in the case of a system with C2 Controller, use the 'Sub Gain' control on the C2 Controller.

Normally we recommend the following settings*

Configuration:

Configuration: Gain control

Configuration:Configuration:

* These details may vary due to different room geometries. The position of a bass

speaker is also crucial for its actual sound level. A bass speaker, which is on the floor, can be a few decibels louder than a flown bass system because of the floor reflections. Because of this, a sound engineer must always fine-tune the system using the corresponding level controls.

Gain control

Gain controlGain control

Line 212:

---- 6 dB

6 dB

6 dB 6 dB

Subwoofer / C2 Sub-Gain:

+6 dB

+6 dB+6 dB

Line 212:

0 dB

0 dB0 dB

Subwoofer / C2 Sub-Gain:

+6 dB

+6 dB+6 dB

Line 212:

0 dB

0 dB0 dB

Subwoofer / C2 Sub-Gain:

0 dB

0 dB0 dB

Page 11

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

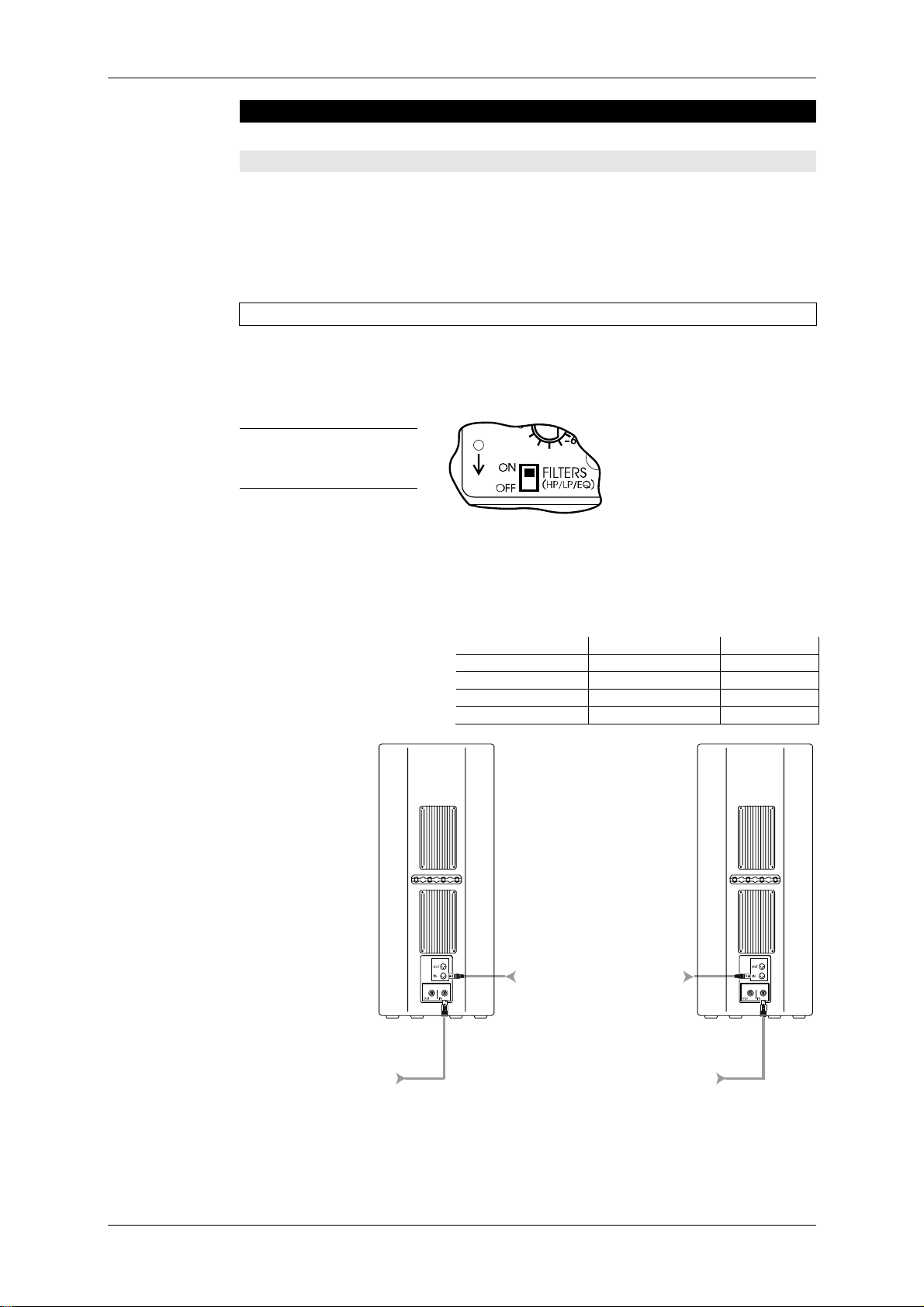

5) FILTERS ON / OFF (High Pass / Low Pass / Equalizer)

This switch turns the filter in the SP module on (‘ON’), or off (‘OFF’). a) The switch should always be in the ‘ON’ position when the speakers are being

driven without

C2 Controller.

b) The switch should always be in the ‘OFF’ position when the speakers are being

driven with

C2 Controller.

The filters consist of:

− high-pass: protects the speakers against mechanical stress due to frequen-

cies outside the speaker's frequency range (protection against subsonic frequencies)

− EQ: filter for basic equalization, optimising the frequency response of the

speaker systems.

Furthermore, the SP filter module has a phase alignment, which prevents loss of certain frequencies due to phase shift between mid-high and bass systems. Thus the combination of all available K&F mid-high SP systems with all K&F bass SP systems is possible, and 100% phase compatibility with all K&F speakers operating in conjunction with the K&F C2 Controller in the ‘2-way active’ mode is guaranteed.

6) LED POWER ON (GREEN) and LIMIT / PROTECT (RED)

The LED is dual-purpose: a) When the LED is green, the speaker is connected to the supply voltage and

ready for operation

b) The LED will turn red if…

…the input signal is so high that the internal limiters reduce its level. The limiters consist of a peak limiter, which limits the peaks of the signal,

and an RMS / thermal limiter, which continuously regulates excessive levels. During normal operation, the red light may occasionally illuminate briefly when the barely audible limiter cuts in to limit peak levels. It does indicate that the level peaks are limited by the limiter circuit. The peak performance of the speaker has then been reached.

Should the red light come on more frequently or remain illuminated, the output level of the mixer should be reduced. When speakers with and without SP module are in operation simultaneously, the gain control on the SP speaker can be turned down, provided the level is sufficient for the other power amplifiers. The limiter protects the speaker from damage due to excessive levels.

Page 12

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

c) The LED stays permanently red, if…

…the protection circuitry of the integrated power amplifier cuts in and as a result, no further signal reaches the speaker (Protect Mode).

The protection circuitry switches off the integrated power amplifier,…

− …if the temperature of the amplifier module is too high. As soon as

the temperature falls below the critical value, the amplifier module is switched on again automatically. Excessive temperatures can be caused for example by inadequate ventilation of the heat sink. Make sure that the heat sinks are not covered or positioned directly against a wall.

− …if the output impedance is too low or in the case of a short circuit,

caused for example by a defective chassis or a faulty component on the crossover.

− …if the amplifier has an internal fault. The SP amplifier module checks

that all is functioning correctly during operation. As soon as a fault becomes apparent, the module switches into protect mode. If only one module has a fault, the input signal is attenuated by 70 dB, to prevent damage to the other module.

Measures to be taken when LED is red:

Fault Measure Function

LED remains red or flickers continually during operation. No output signal, LED shows red in spite of reduced mixer level. No output signal, LED stays red after cooling down. Output signal is too low, no bass frequencies or no high

Reduce output level on mixer until the LED goes out or flickers only occasionally Allow to cool. The amplifier module switches itself on after a few minutes. Provide sufficient ventilation. Have loudspeaker checked by authorized service technician. Have loudspeaker checked by authorized service technician.

Limiter

Temperature protection

Other protection Other protection

frequencies.

7) AC MAINS ‘IN’

Connect this PowerCon socket using the mains cable supplied to a max. 16 A fused mains socket, paying particular attention to the stated mains voltage! Connection to an incorrect mains voltage can result in irreparable damage!

8) AC MAINS ‘OUT’

Important

Socket for connection to further equipment such as further speakers with SP module. Use only connection cables, which conform to your national safety regul

Use only connection cables, which conform to your national safety regula-

Use only connection cables, which conform to your national safety regulUse only connection cables, which conform to your national safety regul

tions.

tions.tions.

a-a-

Maximum power consumption: 230 V: 10 A / 2300 W 110 V: 10 A / 1150 W

Warning

Page 13

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

4. Power Cord

In Germany, a pre-constructed ready for use power cord is included in the delivery. For deliveries to foreign countries, a pre-constructed power cord incl. PowerCon plug is included. Because of the different standards abroad, the power plug is not included. This must be subsequently assembled only by qualified electrical specialists.

brown = BN = L green / yellow = GNYE =

blue = BU = N

Page 14

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

5. Rigging Instructions for Line 212 Systems

The speakers may only be mounted by trained specialised pe

The speakers may only be mounted by trained specialised perrrrsonnel with proof

The speakers may only be mounted by trained specialised peThe speakers may only be mounted by trained specialised pe of their qualifications as an experienced ‘rigger’.

of their qualifications as an experienced ‘rigger’.

of their qualifications as an experienced ‘rigger’.of their qualifications as an experienced ‘rigger’. Please follow the accompanying instructions for speakers and assem

Please follow the accompanying instructions for speakers and assembly equipment.

Please follow the accompanying instructions for speakers and assemPlease follow the accompanying instructions for speakers and assem

sonnel with proof

sonnel with proof sonnel with proof

bly equipment.

bly equipment.bly equipment.

Ensure that all connections are secured to prevent their detaching on their own and that only admissible statically tested and sufficiently sized connecting devices, ropes and chains are used.

Warning

Pay attention to the required safety factors. Please follow the accompanying safety and mounting instructions carefully.

A maximum load of 73 kg may be suspended from the two flying points of one Line 212 system. This means a maximum additional load of 36.5 kg on each JUNGFALK’ flying point.

This means a maximum additional load of 36.5 kg on each ‘allsafe

This means a maximum additional load of 36.5 kg on each This means a maximum additional load of 36.5 kg on each flying point. This applies for both vertical (see details on this page) and

flying point.flying point.

horizontal suspension (see details on next page).

5.1 Vertical Suspension

The Line 212 System must always be mounted with two wire ropes or chains, which are independent of one another! Furthermore tems, no matter if individual or connected to one another, must be secured onto the ‘allsafe JUNGFALK’ flying track on the rear. This safety rope may be used for aligning the systems.

The safety rope must have a minimum length

The safety rope must have a minimum length The safety rope must have a minimum length of 100 cm and must be

of 100 cm and must be attached so that, in

of 100 cm and must be of 100 cm and must be case it falls, the height of the fall is kept to a

case it falls, the height of the fall is kept to a

case it falls, the height of the fall is kept to a case it falls, the height of the fall is kept to a minimum. A possible fall height of 20 cm may

minimum. A possible fall height of 20 cm may

minimum. A possible fall height of 20 cm may minimum. A possible fall height of 20 cm may not be exceeded! With a higher fall height,

not be exceeded! With a higher fall height,

not be exceeded! With a higher fall height, not be exceeded! With a higher fall height, the dynamic load of a fall could be inadmi

the dynamic load of a fall could be inadmis-

the dynamic load of a fall could be inadmithe dynamic load of a fall could be inadmi sibly high; potential risk of system crash.

sibly high; potential risk of system crash.

sibly high; potential risk of system crash.sibly high; potential risk of system crash.

attached so that, in

attached so that, in attached so that, in

The safety ropes of different systems must always come together at one point.

Each of the utilised separate lifting accessories (chains / wires / shackles) must be able to carry the 12-fold load of the total weight.

While installing, be sure that the system can swing in case a rigging point fails. With this in mind, the speaker must be mounted so that no people or objects are within the potential range of the swinging speakers.

The weight of the speaker hung below may not exceed 73 kg (this weight corresponds to the approx. weight of a SW 215E-SP).

The angle of the rope / chain to the top of the speaker mounted below may not exceed 45°.

, the sys-

s-s-

Page 15

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

5.2 Horizontal Suspension

If a speaker unit consisting of several connected systems is to be flown and aligned, then the individual speakers must be attached to one another before connecting them to the ‘allsafe JUNGFALK’

Warning

Flying Track. Consult the provided illustration when doing so. For the rear connection of the loudspeaker systems, use the double stud fittings available from Kling & Freitag and a proven 1/2" shackle (alternative single stud fittings and 3/8" shackle). Pull the threaded bolt of the shackle with a torque of 10 Nm (hand with 200 mm long lever, e.g. screwdriver).

with 200 mm long lever, e.g. screwdriver). Alternatively, you

with 200 mm long lever, e.g. screwdriver).with 200 mm long lever, e.g. screwdriver). can use prov

can use proven, high

can use provcan use prov in this way can you ensure that the bolt will not become loose.

The ‘allsafe JUNGFALK’ flying track can only support weights up to 73 kg. Therefore, the load must be distributed on several flying tracks when suspending the systems.

For horizontal operations, the system is designed for a maximum array of three Line 212-6 systems. More of theses systems may not be flown below one another.

en, high----strength shackles with a cotter pin

en, highen, high

strength shackles with a cotter pin.... Only

strength shackles with a cotter pinstrength shackles with a cotter pin

(hand----tight

tight

(hand(hand

tight tight

Alternatively, you

Alternatively, you Alternatively, you

We recommend using the BGV C1 certified and type tested Click & Fly Rigging System for mounting the Line 212 systems (see the ‘Click & Fly for Line 212 / SW215E' user's manual).

Please follow the following instructions for flown operations without the Click & Fly Rigging System:

Wrong:

− The upper rigging points of the top speaker

must carry the full load. Consequently, the permissible max. load of the top points is exceeded.

− The speakers are not secured by the additional

safeties.

Right:

− The load of the individual speakers is threaded

through the bent continuous bracket. The load is, therefore, held by the bracket and the speakers’ flying points consequently only have to carry the load of the corresponding speaker.

− The speakers are connected to one another on

the rear. The suspension point is located on the connection of the two lower speakers. As a result, the load is distributed to both speakers.

Page 16

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

6. Using the ‘allsafe JUNGFALK’ Flying Points

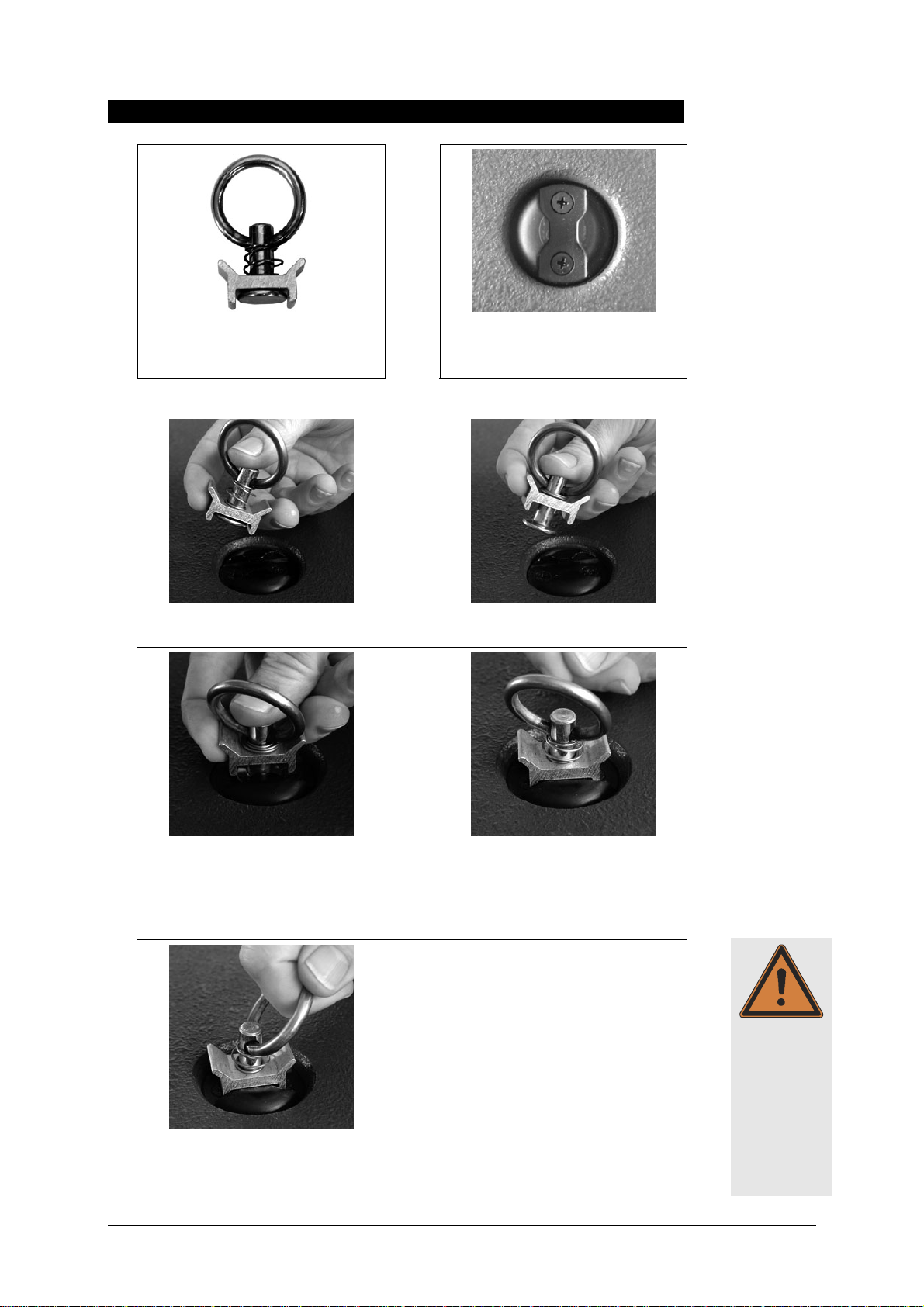

Single Stud Fitting

Used as fastener to the ‘allsafe JUNGFALK’ Flying Point.

1.)

Take the single stud fitting in one

hand...

3.)

‘allsafe JUNGFALK’ Flying Point

Receptacle for special fasteners.

2.)

... and push the locking device up

against the spring tension.

4.)

Put the flat head of the holding

bolt into the guiding of the flying point.

Release the locking device when

the single stud fitting is located in the middle of the flying point. Make sure that the locking device clicks into place.

5.)

Warning

Check that the single stud fitting is

securely fastened and cannot be pulled out.

Page 17

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

7. Using the Rear Mounted ‘allsafe JUNGFALK’ Flying Track

The ‘allsafe JUNGFALK’ flying track can be used for fixing and adjusting the speaker systems.

The ‘allsafe JUNGFALK’ flying track can only support weights up to 73 kg!

Please also consult the provided instructions for speakers and assembly equipment.

Warning

7.1 Mounting the Single Stud Fittings

Single Stud Fitting

Used as fastener to the ‘allsafe JUNGFALK’ Flying Point and the ‘allsafe JUNGFALK’ Flying Track.

1.)

Take the single stud fitting in one

hand...

3.)

2.)

... and push the locking device up

4.)

‘allsafe JUNGFALK’ Flying Track

Receptacle for special fasteners such as the single stud fitting.

against the spring tension.

Warning

Slide the flat head of the holding

bolt into the guiding device of the flying track and slide the single stud fitting sideways into the flying track.

Release the locking device when the

single stud fitting is located over the tabs of the track. Make sure that the locking device clicks into place. Make sure that it is secured tightly.

Page 18

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

7.2 Mounting the Double Stud Fitting

Double Stud Fitting

Used as fastener to the ‘allsafe JUNGFALK’ Flying Point and the ‘allsafe JUNGFALK’ Flying Track.

‘allsafe JUNGFALK’ Flying Track

Receptacle for the double stud fitting.

1.)

Align the double stud fitting as

shown above and push it into the track,…

2.)

... slide the pushed double stud fitting

to the middle of the speaker until it clicks into place. Make sure that it is secured tightly.

Warning

Page 19

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

8. Coverage Pattern of the Line 212 --- SP Systems

The Line 212 can be operated in a vertical or horizontal position. The coverage pattern of the speaker can be adapted to special needs by a 90° rotatable horn.

The following graphics demonstrate how to recognize how the built-in horn emits in a standing speaker: To determine the coverage pattern of the high frequency horn, shine a flashlight through the front covering at the level of the horn. You will find a silver stripe that determines the position and coverage angles of the horn.

DEFINITION:

DEFINITION:DEFINITION:

Warning

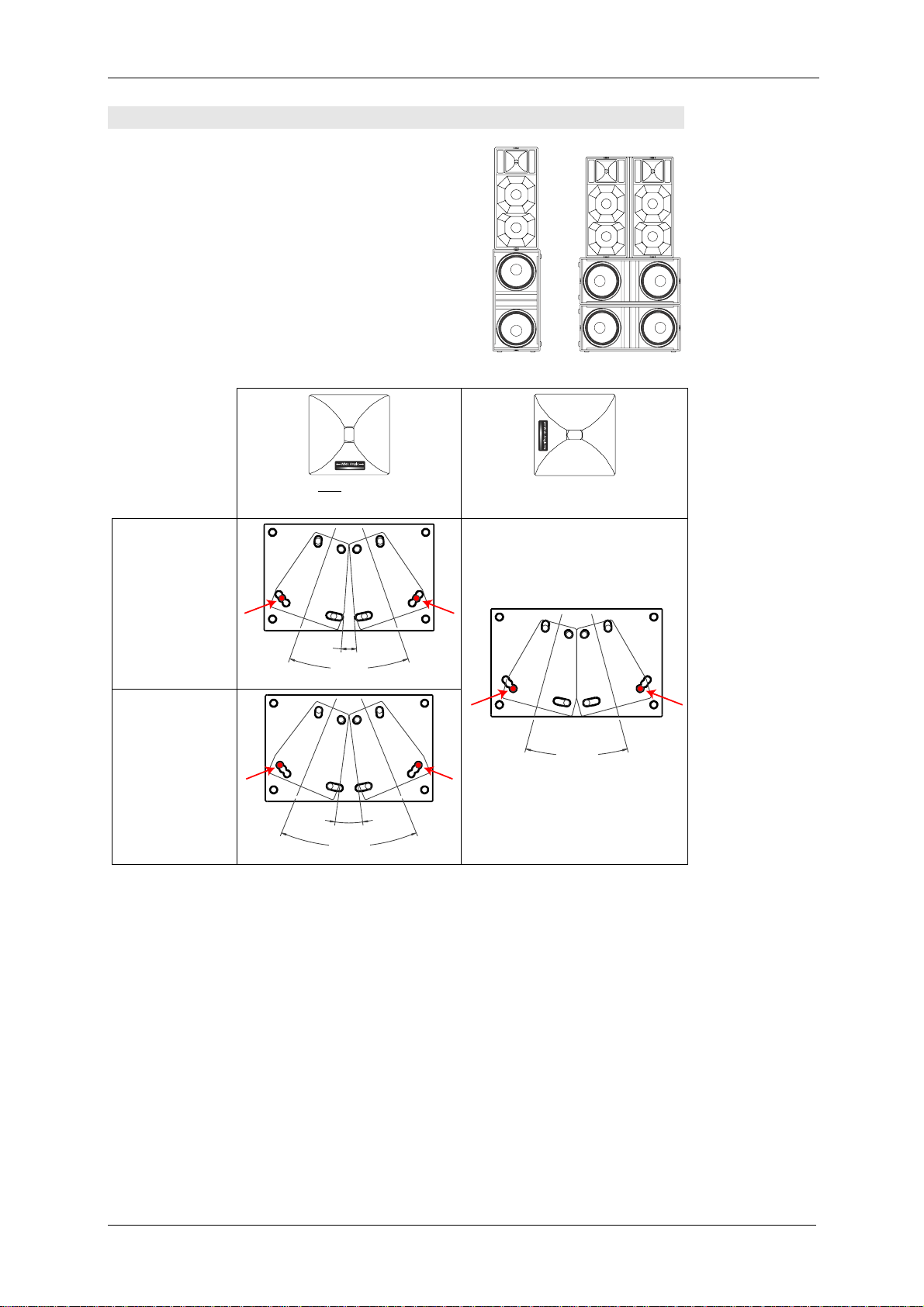

Horn not rotated

Standing speaker:

Model

ModelModel LINE 212-6 - SP 65° h x 50° v 50° h x 65° v LINE 212-9 - SP 90° h x 50° v 50° h x 90° v

Horn not rotatedHorn not rotated

Horn rotated

Horn rotatedHorn rotated

8.1 Changing the Coverage Pattern

The front grille of the Line 212 - SP is divided into two sections (except the version ‘Outdoor Installation’). Changing the coverage angle is possible by only removing the upper section of the grille. To turn the horn, follow these steps:

1) Disconnect the power plug!

2) Make sure that no objects fall into the enclosure!

3) Remove the four grille mounting screws from the top on the sides of the speakers

with a 3 mm Allen key and remove the grille from the speaker enclosure. It may be necessary to use a screwdriver in the middle of the top grille edge to pry up the grille. There is a groove in the grille in this position (under the locking profile) just for this purpose.

4) Remove the six screws from the high frequency horn (also using a 3 mm allen key).

Loosen the high frequency horn by using both hands, palms to the outside, to grasp into the horn and lift the horn with even pressure from the palms of your hands towards the outside. Never use a screwdriver or similar objects to reach behind the edge of the horn, as this could damage it.

5) Rotate the horn 90° and screw the horn on tightly again (do not force it!).

6) Screw the grille on tightly.

If the coverage angle needs to be changed often, make sure that the horn is not always rotated in the same direction, as the connecting cable may cause the contacts of the driver to become loose. Open wires may hit other live parts: Danger of electrical

shock.

Page 20

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

9. Mounting Instructions for Speakers

Mount the speakers securely. To avoid injury or damage, always be sure to mount the speakers securely so that they do not fall. Speakers, which are stacked, must be secured with securing straps. When laying the connecting cables, make sure that nobody can trip.

The stability of stacked systems (also valid for the use of stands and distance rods!) is

Warning

contingent upon the following stability requirement. These conditions must, therefore, be guaranteed by the user:

Stacked systems may not fall over even if they are inclined by 10° in each direction. If this requirement is not fulfilled, then it is necessary to take steps to achieve compliance. Possible measures include strapping it to an appropriate base structure or fastening it using safety straps.

We recommend using the optionally available transport covers with castors when transporting and positioning the system. These covers have handles, which considerably simplify the carrying and stacking of the Line 212 systems. We therefore recommend removing the covers after

the systems have been positioned. Always loosen the lower

catch first so that the cover does not fall over.

9.1 Proper Arrangement of the Loudspeakers

Be aware of the fact that the logical targeted alignment of this high quality speaker system can lead to a significant qualitative increase in the acoustic result. It is not possible to make generalities about the alignment of specific systems because the room has a substantial influence on the signal and the audible result.

As a rule, the mid- and high-transducers of loudspeakers should be mounted above the audience's face value, so that the sound distribution cannot be shadowed.

In many cases, it is advisable to mount a loudspeaker higher, so that the sound will be distributed throughout the room more evenly. Low standing systems result in a greater difference in volume between front and back seats than higher standing systems.

Please note that this is only a general guideline and the best possible result may vary from room to room.

To simulate the correct alignment of the speakers beforehand, there are various programs such as ‘Ease’ or ‘Ulysses’. ‘‘The Kling & Freitag speaker system data is available for download on our website www.kling-freitag.de.

The following graphics will assist in making a rough estimate as to the distance range of speaker systems. The graphics only take into consideration the sum of the direct sound and not the influence of the room. Because of this there can, in some cases, be noticeable deviation.

Distance range of SPL (direct sound level):

-18 dB

-12 dB

0 dB

-6 dB

-24 dB -30 dB

2m 4m 8m 16m 32m 50m

-34 dB

Page 21

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

9.2 Arrayed Speaker Systems (Cluster)

If the loudspeakers are operated through the optional K&F C2 System Controller, we recommend turning on the 'Top Low Cut' switch for clustered operation. Thus the frequency response for this application can be optimised (see also K&F C2 User's Manual).

If the Line 212 Systems are operated in a cluster without the C2 Controller (speakers are set up directly next to one another), then lower the ' scribed below!

1. If several Line 212-6 with a horn coverage pattern of 65°h x 50°v are arranged on one side (cluster / array), it is recommended for the Line 212-6 to have a horizontal array angle of 38.5° to one another (see fig. 2).

2. In a cluster comprised of a combination of the Line 212-6 with Line 212-9, we recommend an array angle of 45° (see fig. 3).

3. With a rotated horn (Line 212-6 standing: 50°h x 65°v / Line 212-9 standing: 50°h x 90°v), an array angle of 30° is recommended for both versions (see fig. 1).

Because increased interference effects occur when several 90° systems are arranged next to one another, the clustering of several Line 212- 9 is only conditionally recommendable.

EQ LOW CUT' frequency as de-

EQ LOW CUT

Frequency 120Hz

Quality (Q) 0.55

Bandwidth (oct.) 2.35

Level -2.95dB

Fig.

Fig. 1111

Fig. Fig.

30,0°

Line 212

Line 212---- 6

Line 212Line 212

6 6

(horn rotated) horn 50° h x 65° v

Line 212

Line 212----9999

Line 212Line 212 (horn rotated) horn 50° h x 65° v

Fig.

Fig. 2222

Fig.Fig.

Line 212

Line 212----6666

Line 212Line 212 (horn not horn 65° h x 50° v

8,5°

38,5°

rotated)

Fig.

Fig. 3333

Fig. Fig.

Combination (horns not

Line 212

Line 212----6666

Line 212Line 212 Horn 65°h x 50°v

with

Line 212

Line 212----9999

Line 212Line 212 horn 90°h x 50°v

15,0°

45,0°

rotated):

Page 22

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

9.3 LINE 212 Systems on Top of SW 215E

In addition to the stacking foot grooves for stacking the same enclosures, the subwoofer SW 215E also has stacking foot grooves for the Line 212 System.

One Line 212 System can be quickly and safely positioned on top of a vertically placed SW 215E.

Two Line 212 Systems can be precisely arrayed on top of a horizontally placed SW 215E.

Line 212

Line 212----6666

Line 212Line 212

with

withwith

Line 212

Line 212----6666

Line 212Line 212

Line 212

Line 212----6666

Line 212Line 212

with

withwith

Line 21

Line 212222----9999

Line 21Line 21

Horn

Horn not

not rotated on

Horn Horn

standing Line 212 system

standing Line 212 systemstanding Line 212 system

15,0°

rotated on

notnot

rotated on rotated on

8,5°

38,5°

45°

Horn rotated

Horn rotatedHorn rotated

standing Line 212 system

standing Line 212 systemstanding Line 212 system

30°

Other combinations of Line 212 Systems are not recommended as they can cause unwanted interferences.

Page 23

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

10. Wiring

Before connecting your SP system, be sure to switch off all connected appliances and turn down all level controls.

− We recommend the use of high-quality cables provided by KLING & FREITAG.

− For connections to the line signal inputs, please use 2-pin shielded microphone cable

with high-quality connectors.

− Avoid ground loops (see chapter 10.1 )

− Make sure that the pin assignment of the line level connectors is correct. (2 +/ 3 - / 1 ┴).

10.1 Avoiding Ground Loops

10.1.1 What is a Ground Loop?

Every component of a P.A. or Hi-Fi System has its own internal 0V reference (ground). This point is often connected to the protective earth connector (PE / Ground). If two or more units are connected to one another with a line level audio cable, there may be a ground connection through the ground of the power supply cable (yellow-green) as well as through the shielding of the audio cable. The voltage difference between these two ground points causes audible interference to come from the speaker.

Warning

10.1.2 Avoiding Ground Loops

If there is a loud humming or buzzing after the ‘SP’ System has been connected, then set the ‘Ground Lift’ switches on the rear of the ‘SP’ speakers to the ‘Lift’ position (chapter: 3 / section 2)

If the noise is still audible, check if

1. the noise is caused by a ground loop before the speakers (e.g. mixing console, effects or equalizers).

2. the system or parts of the system are connected to an ‘unclean’ power supply meaning one which is also running large motors or lighting systems. An ‘unclean’ supply voltage, electrostatic and electromagnetic fields can cause interference

Please observe the following basic rules:

− Never !!! try to avoid a ground loop by disconnecting or taping the ground

contact at the connector! Extremely dangerous!

− If possible, only use high-quality audio appliances with balanced signal outputs and

power cables with PE connectors.

− Use high-quality cables with good shielding.

− The point of ground for all connected components should merge at one central

point. The power connections should lead out in a radial manner from one point and not be linked from one unit to the next.

− When installing appliances that create strong electrostatic or electromagnetic fields

(large transformers, switch-mode power supplies), maintain some distance from other audio appliances. In extreme cases, the only solution is to create a completely independent ‘audio ground’; in other cases, it is sufficient to connect a filter in front of the audio equipment.

Page 24

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

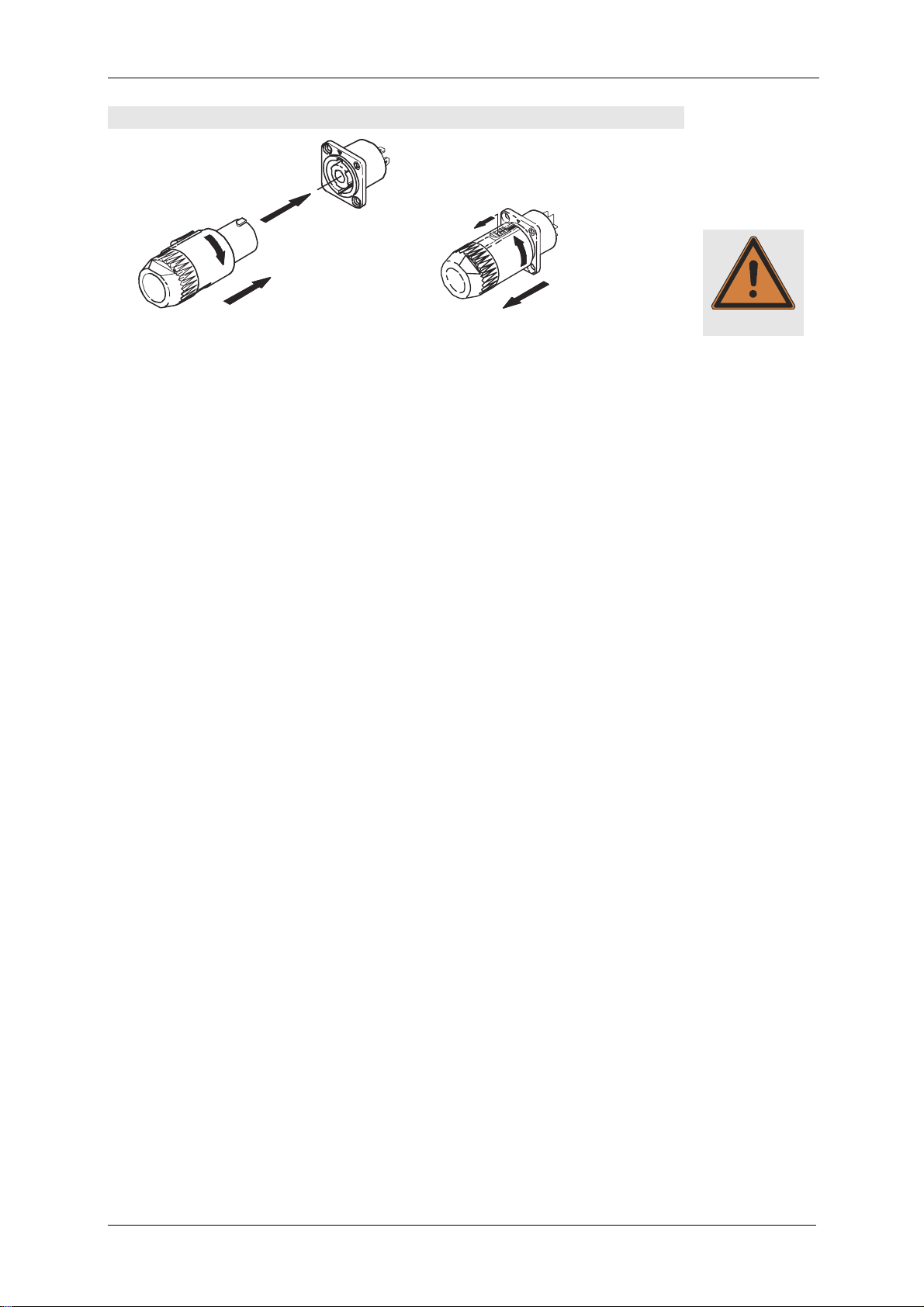

10.2 Connecting the Power Connectors to the Connecting Terminal

Only use the supplied power cable and connect it to a mains outlet with a 16 A fuse. See instructions in chapter 4‚ ‘Power Cord’ on page 13.

Warning

Page 25

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

11. Configurations and Connecting Diagrams

11.1 Operating the Systems without C2 Controller

The full-range system can be used alone or in conjunction with an SP subwoofer. The subwoofer has an integrated filter for use in this mode, which limits the bandwidth.

The full-range system is protected against low frequency (subsonic) signals by a highpass filter and when used with bass speakers it is phase aligned with the subwoofers by means of alignment filters.

11.1.1 Full-Range Mode

This mode of operation is ideal for speech and music applications without the need for a high bass content. Should more bass be needed, the bass level can be increased between 50 and 80 Hz at the mixing console.

The switch ‘FILTERS’ on

The switch ‘FILTERS’ on The switch ‘FILTERS’ on the SP speaker must be

the SP speaker must be

the SP speaker must be the SP speaker must be at ‘ON’ in this mode.

at ‘ON’ in this mode.

at ‘ON’ in this mode.at ‘ON’ in this mode.

If you need a high-boost for covering larger distances (compensation of high frequency attenuation), then increase the ‘

EQ HIGH BOOST’ frequency as described below!

If the mid-high systems are operated in a cluster (speakers are set up directly next to one another), then lower the ‘

EQ LOW CUT’ frequency as described below!

EQ HIGH BOOST EQ LOW CUT

Frequency 14000Hz 120Hz

Quality (Q) 2.6 0.55

Bandwidth (oct.) 0.55 2.35

Level +4.4dB -2.95dB

LINE

AC-MAINS

INPUTChannel 2 Channel 1

LINE

AC-MAINS

AC ~ 16 A max.AC ~ 16 A max.

Page 26

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

11.1.2 Full Range Mode with Subwoofer

You can link the input signal (for example from the mixer) from one loudspeaker to another. It makes no difference whether the input signal reaches the bass speaker first and is then transmitted to the mid-high speaker or the other way around.

The switch ‘FILTERS’ on

The switch ‘FILTERS’ on The switch ‘FILTERS’ on

the SP speaker must be at

the SP speaker must be at the SP speaker must be at

‘ON’ in this mode.

‘ON’ in this mode.‘ON’ in this mode.

If you need a high-boost for covering larger distances (compensation of high frequency attenuation), then increase the ‘

If the mid-high systems are operated in a cluster (speakers are set up directly next to one another), then lower the ‘

EQ HIGH BOOST’ frequency as in the following table!

EQ LOW CUT’ frequency as described below!

EQ HIGH BOOST EQ LOW CUT

Frequency 14000Hz 120Hz

Quality (Q) 2.6 0.55

Bandwidth (oct.) 0.55 2.35

Level +4.4dB -2.95dB

AC ~ 16 A max.

Channel 1

INPUT

Channel 2

LINE

AC-MAINS

LINE

AC-MAINS

To next 'SP'-Top

or Sub

AC ~ 16 A max.

LINE

AC-MAINS

LINE

AC-MAINS

To next 'SP'-Top

or Sub

Page 27

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

11.2 Operating the Systems with C2 Controller

The frequency responses of SP speakers with switched off filters (FILTERS ‘OFF’) are compatible with those of the corresponding K&F speakers without SP modules (version without XO for subwoofers). The speakers can be driven via the C2 controller with the respective system plug-in cards. In doing so, it is possible to use features as bass-boost in full-range mode, cluster optimisation (top low cut), high-boost or the sub-mono function.

11.2.1 Full-Range Mode with K&F C2 Controller

The switch ‘FILTERS’ on

The switch ‘FILTERS’ on The switch ‘FILTERS’ on the SP speaker must be

the SP speaker must be

the SP speaker must be the SP speaker must be at ‘OFF’ in this mode.

at ‘OFF’ in this mode.

at ‘OFF’ in this mode.at ‘OFF’ in this mode.

The ‘Sense’ cables on the C2 Controller do not need to be connected as the SP speakers have their own limiters!

The countersunk switch ‘Full-Range Mode’ on the C2 Controller should be pressed and the LED assigned to it should light up. The full-range switch increases the bass frequencies of the mid-high systems so that a well-balanced sound for music programme is guaranteed.

If you are using the mid-high systems in a cluster (speakers in close proximity), press the ‘Top Low Cut’ switch on the C2 Controller.

AC-MAINS

To next 'SP'-Top

LINE

AC-MAINS

LINE

AC-MAINS

To next 'SP'-Top

LINE

AC-MAINS

AC ~ 16 A max. AC ~ 16 A max.

Rear

240V / 50Hz

FUSE: 100mA / SLOW BLOW

KLING & FREITAG

SOUND SYSTEMS

CH1 TOP OUT

CH1 SUB OUT CH2 TOP OUTCH2 SUB OUT

SER No.

REMOTE CONTROL

MADE IN GERMANY

KLING & FREITAG

CH2 SUB AMP

GND LIFT

CH1 TOP AMPCH1 SUB AMPCH2 TOP AMP CH1 INPUT

CHANNEL 2 LINKCHANNEL 2 INCHANNEL 1 IN CHANNEL 1 LINK

CH2 INPUT

INPUT GAIN

AMP RETURN CH2 AMP RETURN CH1

-LF+

FULLRANGE

TOPHF

SUB

LOW CUT

MODE

BOOST

SUB GAIN

MONO

-HF+C2-LF+-LF+ -HF+ -LF+

SYSTEM

CONTROLLER

SYSTEM

CONTROLLER

Channel 1Front

INPUT

Channel 2

Page 28

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

11.2.2 2-Way Active Mode with K&F Controller C2

The switch ‘FILTERS’ on

The switch ‘FILTERS’ on The switch ‘FILTERS’ on

the SP speaker must be at

the SP speaker must be at the SP speaker must be at

‘OFF’ in this mode.

‘OFF’ in this mode.‘OFF’ in this mode.

The ‘Sense’ cables on the C2 Controller do not need to be connected as the SP speakers have their own limiters!

The countersunk switch ‘Full-Range Mode’ on the C2 Controller should not and the LED assigned to it should not light up.

If you are using the mid-high systems in a cluster (speakers in close proximity), press the ‘Top Low Cut’ switch on the C2 Controller.

be pressed

C ~ 16 A max.

Rear

FUSE: 100mA / SLOW BLOW

KLING & FREITAG

SOUND SYSTEMS

CH1 TOP OUT

CH1 SUB OUT CH2 TOP OUTCH2 SUB OUT

AC-MAINS

To next 'SP'-Top

LINE

To next

'SP'-Sub

LINE

AC-MAINS

LINE

AC-MAINS

To next

'SP'-Sub

To next 'SP'-Top

AC ~ 16 A max.

KLING &

SER No.

FREITAG

GND

REMOTE CONTROL240V / 50Hz

MADE IN GERMANY

CH2 SUB AMP

LIFT

CH1 TOP AMPCH1 SUB AMPCH2 TOP AMP CH1 INPUT

CHANNEL 2 LINKCHANNEL 2 INCHANNEL 1 IN CHANNEL 1 LINK

CH2 INPUT

INPUT GAIN

BOOST

SUB GAIN

AMP RETURN CH2 AMP RETURN CH1

-LF+

FULLRANGE

TOPHF

SUB

LOW CUT

MODE

MONO

-HF+C2-LF+-LF+ -HF+ -LF+

SYSTEM

CONTROLLER

SYSTEM

CONTROLLER

Channel 1Front

INPUT

Channel 2

Page 29

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

11.3 Maximum Configuration

It is possible to use a large number of SP speakers in parallel simultaneously, however, this number is limited according to the permitted minimum load impedance of the signal source (e.g. mixer, equalizer, etc.).

The total input impedance of all SP speakers must be larger than the permitted minimum load impedance of the signal source. If no manufacturer’s recommendations can be found, take the output impedance of the signal source. In this case, we recommend a total input impedance at least 10 times higher than the stated output impedance of

Important

the signal source. (The output impedance of your signal source can normally be found under ‘Technical

Specifications’ in the manufacturer’s instruction manual).

Definition:

OUT

MAX

source signal of impedance output R

50.000Ω 50kΩ speaker - SP impedance input R

===

speakers SP of number drecommende maximum n

The maximum number of SP speakers can be calculated with this formula:

MAX.

Example:

OUT

MAX.

<⇒

Ω= 75

OUT

Ω

OUTOUT

66n

000.50

Ω

1075

Page 30

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

12. Operating the Speakers

− Switch off all equipment and make sure that the SP speakers are not connected to a

power source.

− Connect your SP systems in accordance with the preceding connection diagrams.

Use only mains cables, which comply with your national safety regulations.

− Upon completing the wiring, ensure that the connected speakers are working in phase. To

do so, use i.e. a phase checker. A phase error can also be recognized when the connected channels are used simultaneously. During simultaneous use the bass frequencies become notably quieter or the mid-frequencies such as voices cannot be located.

Warning

− Switch on first the peripheral units (mixer, effects, etc.), then, if used, the C2 Controller

and connect lastly Otherwise switching noises may damage the system.

the SP loudspeakers. Always use the before mentioned switching order.

− If there is interference, turn off all appliances in the reverse order and check all cable

connections (see chapter 10.1 ). Next, turn up the C2 Controller, if used, and all other peripheral units, and check these for interference.

−

Your system should now be ready for operation.

− You can now turn up the level on the mixer.

− If you are using additional bass systems, you can now balance the respective volume

levels of the top speakers and bass systems. A fine adjustment of the system without C2 Controller can be obtained using the gain control on the SP loudspeakers (not on the mixer!). To adjust the system with C2 Controller use the ‘Sub Gain’ control of the C2 Controller (see chapter 3. / section 2)

− When switching off the system first disconnect the ‘SP’ loudspeakers. Then you can switch

off the remaining units.

13. Touching Up Damage to Paint / Changing the Front Foam

Although the PU structured paint used by KLING & FREITAG is extremely resistant, we recommend using protective covers or cases to help avoid damaging the paint during i.e. continuous mobile use. If paint damage occurs despite these precautions, it can be touched up by using commercial acrylic paint in the appropriate RAL colour of the speaker. To replace the filter foam, send the front grille incl. foam to KLING & FREITAG GmbH. Upon payment for expenses, the grille with the new covering will be returned.

Important

Page 31

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

14. Block Diagram LINE 212 - SP

12 V DC

LINE 212

CIRCUIT

POTECTION

POWER

SUPPLY

FILTER AMP

ERROR

SIGNAL

AMP

DIGITAL

THRESHOLD PEAKTHRESHOLD RMS

SIGNAL

RMS

+ PEAK

LIMITER

ERROR

POWER 'ON '

ERROR

CONTROLLER

FUSE

AMPLIFIER UNIT 2

HF-

CIRCUIT

POTECTION

CONTROL

AMP

DIGITAL

LED

BI-COLOUR

CORRECTION

FILTERBOARD 'LINE 212'

PHASE-CORRECTION

POWER SUPPLY

FUSE

F F

' / ' N O

' S

R E T L

I F

HI-PASS

AMPLIFIER UNIT 1

6 dB

GAIN

PASSIVE CROSSOVER

LINE 212 - SP

SCHEMATIC LINE 212 - 'SP'

LF 1

LF 2

T F

I L

D N G

INPUT UNIT

Page 32

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

15. Technical Specifications

15.1 LINE 212-6 - SP

Loudspeaker

LoudspeakerLoudspeaker

Design 2+1-way full-range system with integrated driver and power amplifier technology, completely horn loaded, bass reflex tuning Frequency range -10 dB 51 Hz - 20 kHz ('FILTERS ON'), 65 Hz - 20 kHz ('FILTERS OFF') 49 Hz - 20 kHz ('FILTERS OFF' with C2 Controller) Frequency range ± 3 dB 66 Hz - 18 kHz ('FILTERS ON'), 130 Hz - 18 kHz ('FILTERS OFF') 60 Hz - 18 kHz ('FILTERS OFF' with C2 Controller) Nominal coverage angle 65° x 50° / rotatable horn Directivity index (DI) 12 (+1.5/-3) 600 Hz - 16 kHz Max. SPL 135 dB (SPL peak/1 m) Components 1 x 12‘‘ woofer and 1 x 12‘‘ low-mid chassis with horns,

1.5‘‘ high freq. driver with 75 mm titanium dome on rotatable CD horn Crossover Active (1) and passive (2) in FLC technology, delay time correction and phase optimisation, self-resetting protection circuit for 1.5‘‘ driver Supply voltage AC 195-250 V, 50 / 60 Hz (230 V version) alternative AC 95-125 V, 50 / 60 Hz (115 V version) Power consumption (nominal) @ 230 V: 1.25 A @ 115 V: 2.5 A Max. Power consump. (Irms / <500 ms) @ 230 V: 8 A @ 115 V: 16 A Idle current @ 230 V: 360mA @ 115 V: 720 mA Power connectors Neutrik PowerCon, lockable, 1 input and 1 output

Input module

Input moduleInput module

Signal connectors Pin 1 = ground / pin 2 = + signal / pin 3 = - signal LINE IN: XLR 3 pin female LINE OUT: XLR 3 pin male, parallel with LINE IN Input sensitivity +6 dB / 1.55 Vrms for rated output Input impedance 50 kW (balanced / unbalanced) Common mode rejection Min.: 74 dB, typical: 90 dB Controls Level control ± 6 dB, bypass switch for the active filters (for operations with external controller), ground lift switch Display Bi-coloured LED: green = Power On, red = Limit / Protect Driver circuit Peak limiter, RMS limiter High-pass 45 Hz (-3 dB), 24 dB / octave (‘FILTERS ON’), Phase correction, frequency equalisation (EQ)

Amplifier module (2 x)

Amplifier module (2 x)Amplifier module (2 x)

Type Class D Power Power bandwidth 10 Hz to 30 kHz Damping factor > 500 (100 Hz), > 100 (10 kHz) S / N ratio > 105 dB (A) Cooling Air convection (without fan) Protection circuits Short circuit, over-temperature, clipping, overload

Enclos

Enclosure

ure

EnclosEnclos

ureure Trapezoidal, frame-reinforced 15 mm birch plywood with with highly resistable grey or black structured paint, 2 butterfly handles, ball proof front grille with exchangeable black acoustic foam Rigging 4 flying points ‘allsafe JUNGFALK’ 1 rear mounted flying track ‘allsafe JUNGFALK’ Dimensions 429 x 1025 x 510 mm (W x H x D) Weight 57.5 kg Options special finish in RAL colours

Technical changes without prior notice reserved

1000 W @ 8 Ω ( EIAJ / 1 kHz, 1% THD)

Page 33

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

15.2 LINE 212-9 - SP

Loudspeaker

LoudspeakerLoudspeaker

Design 2+1-way full-range system with integrated driver and power amplifier technology, completely horn loaded, bass reflex tuning Frequency range -10 dB 51 Hz - 20 kHz ('FILTERS ON'), 65 Hz - 20 kHz ('FILTERS OFF') 49 Hz - 20 kHz ('FILTERS OFF' with C2 Controller) Frequency range ± 3 dB 66 Hz - 18 kHz ('FILTERS ON'), 130 Hz - 18 kHz ('FILTERS OFF') 60 Hz - 18 kHz ('FILTERS OFF' with C2 Controller) Nominal coverage angle 90° x 50° / rotatable horn Directivity index (DI) 10 (±1.5) 600 Hz - 12 kHz Max. SPL 135 dB (SPL peak/1 m) Components 1 x 12‘‘ woofer and 1 x 12‘‘ low-mid chassis with horns,

Input module

Input moduleInput module

Amplifier module (2 x)

Amplifier module (2 x)Amplifier module (2 x)

Enclos

Enclosure

ure

EnclosEnclos

Technical changes without prior notice reserved

1000 W @ 8 Ω ( EIAJ / 1 kHz, 1% THD)

Page 34

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

16. Measuring Charts

16.1 LINE 212-6 - SP

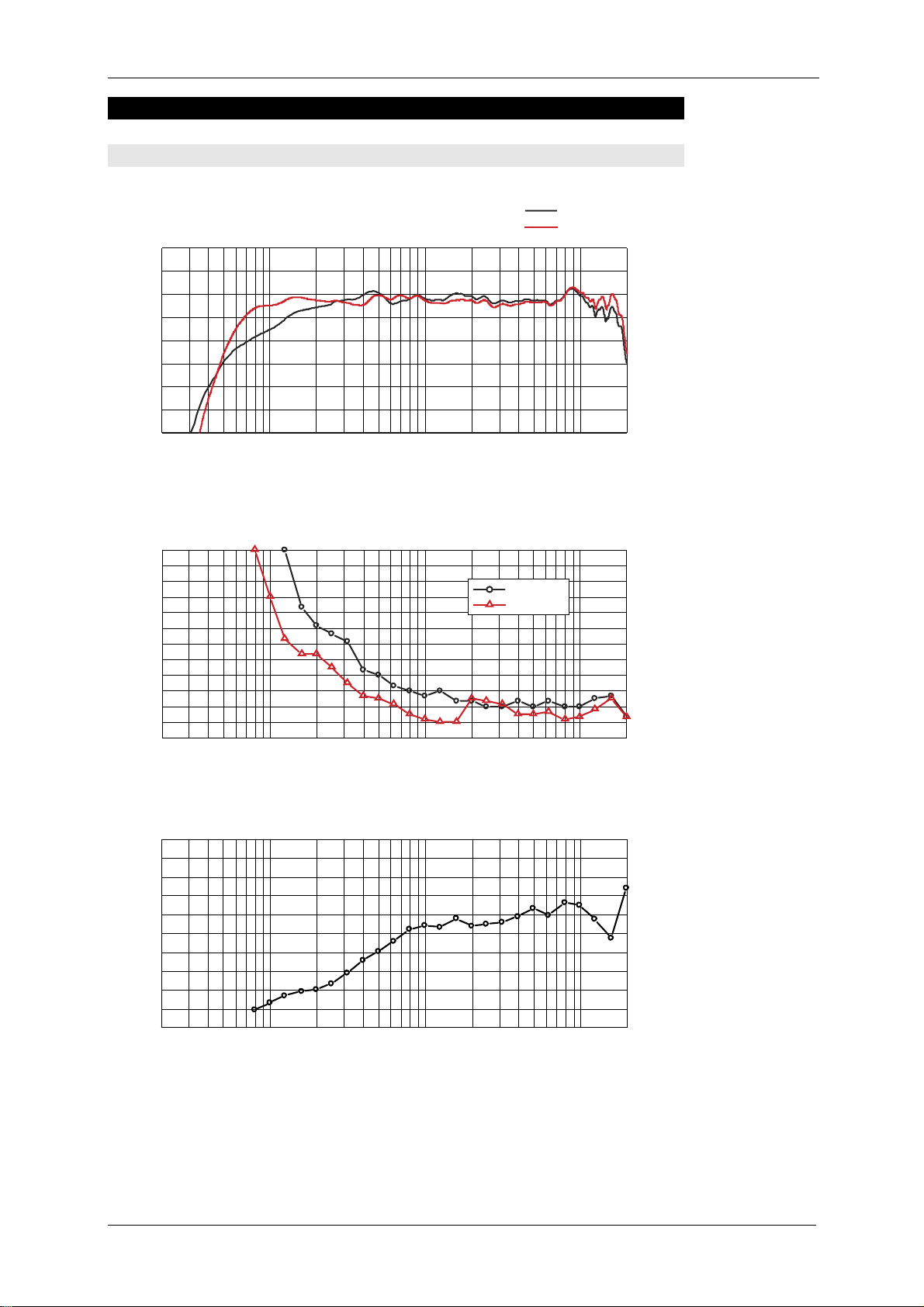

Frequency response ‘on axis’

115

105

SPL (dB)

20 100 1000 10000 20000

Frequency (Hz)

Beamwidth

360

Filters 'OFF' Filters 'ON'

-6dB Beamwidth (degrees)

300

240

180

120

100 1000 10000 20000

Frequency (Hz)

Horizontal Vertical

Q-Index

DirectivityI ndex (DI), dB

20 100 1000 10000 20000

Frequency (Hz)

100

Directivity Factor (Q)

Page 35

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

Horizontal coverage pattern

180°

150°

120°

90°

Attenuation in dB

60°

30°

0°

-30°

-60°

-90°

-120°

-150°

-180°

125 250 500 1k 2k 4k 8k 16K

f[Hz]

0-3

-3-0

-6--3

-9--6

-12--9

-15--12

-18--15

- --18

Vertical coverage pattern

180°

150°

120°

90°

Attenuation in dB

60°

30°

0°

-30°

-60°

-90°

-120°

-150°

-180°

125 250 500 1k 2k 4k 8k 16K

f[Hz]

0-3

-3-0

-6--3

-9--6

-12--9

-15--12

-18--15

- --18

Page 36

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

16.2 LINE 212-9 - SP

Frequency response 'on axis'

115

105

SPL

SPL (dB)

20 100 1000 10000 20000

Frequency (Hz)

Beamwidth

360

Filters 'OFF' Filters 'ON'

300

240

180

120

-6dB Beamwidth (degrees)

Q-Index

DirectivityI ndex (DI), dB

Horizontal Vertical

100 1000 10000 20000

Frequency (Hz)

100

Directivity Factor (Q)

20 100 1000 10000 20000

Frequency (Hz)

Page 37

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

Horizontal coverage pattern

180°

150°

120°

90°

Attenuation in dB

60°

30°

0°

-30°

-60°

-90°

-120°

-150°

-180°

125 250 500 1k 2k 4k 8k 16K

f[Hz]

0-3

-3-0

-6--3

-9--6

-12--9

-15--12

-18--15

-21--18

Vertical coverage pattern

180°

150°

120°

90°

Attenuation in dB

60°

30°

0°

-30°

-60°

-90°

-120°

-150°

-180°

125 250 500 1k 2k 4k 8k 16K

f[Hz]

0-3

-3-0

-6--3

-9--6

-12--9

-15--12

-18--15

-21--18

Page 38

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

[

]

17. Dimensions

Flugpunkte ANCRA Jungfalk 120030-31

Kunststofffüße

Flugschiene ANCRA Jungfal 71202

1015 mm

[39.961"]

10 mm

[0.033"]

222 mm

[8.740"]

429 mm

[16.890"]

Stapelmulden

15°

81.6 mm [3.211"]

265.9 mm

10.467"

510 mm

[20.079"]

507.5 mm

214.6 mm [8.450"]

[19.980"]

Page 39

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

18. Accessories for the LINE 212 System

Click & Fly

Quick Release Pin

Connector 30° Connector 38.5° Connector 45°

Application examples Click & Fly® LINE 212

Single Stud Fitting Double Stud Fitting Rigging chain, adjustable (left / right)

Transport cover with castors

Page 40

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

19. Regulations for Disposal

19.1 Germany:

It is not allowed to dispose of used electrical equipment as domestic waste.

But please do not All Kling & Freitag products are plain business-to-business (B2B) products. Disposal of

Kling & Freitag products labelled with a waste bin sign have thus to be disposed of by Kling & Freitag alone. Please call Kling & Freitag at the number stated below if you have a Kling & Freitag product to be disposed. We will offer you a straightforward and professional disposal not affecting costs.

If there is no dustbin sign on one of your Kling & Freitag products, because they have been sold before March 2006 then by law the owner is in charge of the disposal. For these we will be happy to assist and offer you proper ways of disposal.

Telephone number to call about the disposal of used Kling & Freitag products: +49 (511)-96 99 7-0

Explanation: With the ElektroG (law relating to electrical and electronic equipment and appliances)

we have complied with the EU-directive on waste electrical and electronic equipment (WEEE, 2002/96/EC)

The Kling & Freitag AG has thus labelled all products mentioned in the WEEE from 03/24/2006 onwards with a sign with a crossed out waste bin and a white bar below. This sign indicates that the disposal into the domestic waste is prohibited and that the product has been put into circulation at the 03/24/2006 earliest.

The Kling & Freitag GmbH has been legally registered as a manufacturer with the registration office EAR. Our WEEE Registration-Nr. is: DE64110372

For the German Registration office EAR we have accredited that our products are sole B2B products.

dispose of them at official collecting points for recycling either!

19.2 EU, Norway, Island, and Liechtenstein (not Germany):

It is not allowed to dispose of used electrical equipment as domestic waste.

The Kling & Freitag AG has thus labelled all products coming from EU-Member countries as well as Norway, Island and Liechtenstein (except Germany) mentioned in the WEEE from 08/13/2005 onwards with a sign with a crossed out waste bin and a white bar below. This sign indicates that the disposal into the domestic waste is prohibited and that the product has been put into circulation at the 08/13/2005 earliest.

Unfortunately the European directive WEEE has been complied with implementing different national provisions of law throughout all member countries, which makes it impossible for us to offer consistent solutions for the disposal throughout Europe.

Responsible for complying with these provisions of law is the local distributor (importer) of each country.

For proper disposition of used products in accordance with these local provisions in the mentioned countries of the European Union (except Germany) please ask your local dealer or the local authorities.

19.3 Other countries

For proper disposition of used products in accordance with local provisions in other countries please ask your local dealer or the local authorities.

Page 41

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

20. Declaration of Conformity and International Certificates

20.1 Declaration of Conformity

DECLARATION OF CONFORMITY

EMC-Directive: 89 / 336 / EEC

Low Voltage Directive: 73 / 23 / EEC

We: KLING & FREITAG GMBH

Junkersstrasse 14

30179 Hannover Germany

declare on our own responsibility, that the products:

Kind of equipment: Loudspeaker systems with integrated amplifier(s)

Type-designation: CA 1001 - SP,

CA 1201 - SP, CA 1215-6 - SP, CA 1215-9 - SP, CA 1515-6 - SP, CA 1515-9 - SP, LINE 212-6 - SP, LINE 212-9 - SP, SW 112 - SP, SWi 112 - SP, SW 115D - SP, SWi 115D - SP, SW 115E - SP, SWi 115E - SP, SW

118E - SP, SWi 118E - SP

SW 215E - SP

are in compliance with following norms or documents:

60065:1998;

E9 05 05 50454 004

Hannover,03/23/06

date Managing Director

Accredited test laboratory: MIKESBABTPRODUCTSERVICEGmbH,Ohmstrasse2-4

D-94342 Strasskirchen

Jürgen Freitag

Page 42

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

20.2 EMV Certificate Directive 89 / 336 / EWG

Page 43

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

Page 44

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

20.3 TÜV Certificate for the USA and Canada (UL 6500)

Page 45

User’s Manual LINE 212-6 - SP / LINE 212-9 - SP

KLING & FREITAG LINE 212-6-SP, LINE 212-9-SP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1. General Safety Instructions

2. Introduction SP Loudspeakers

3. Connectors, Controls und Displays

4. Power Cord

5. Rigging Instructions for Line 212 Systems

5.1 Vertical Suspension

5.2 Horizontal Suspension

7.1 Mounting the Single Stud Fittings

7.2 Mounting the Double Stud Fitting

8.1 Changing the Coverage Pattern

9. Mounting Instructions for Speakers

9.1 Proper Arrangement of the Loudspeakers

9.2 Arrayed Speaker Systems (Cluster)

9.3 LINE 212 Systems on Top of SW 215E

10. Wiring

10.1 Avoiding Ground Loops

10.1.1 What is a Ground Loop?

10.1.2 Avoiding Ground Loops

10.2 Connecting the Power Connectors to the Connecting Terminal

11. Configurations and Connecting Diagrams

11.1 Operating the Systems without C2 Controller

11.1.1 Full-Range Mode

11.1.2 Full Range Mode with Subwoofer

11.2 Operating the Systems with C2 Controller

11.2.1 Full-Range Mode with K&F C2 Controller

11.2.2 2-Way Active Mode with K&F Controller C2

11.3 Maximum Configuration

12. Operating the Speakers

13. Touching Up Damage to Paint / Changing the Front Foam

14. Block Diagram LINE 212 - SP

15. Technical Specifications

15.1 LINE 212-6 - SP

15.2 LINE 212-9 - SP

16. Measuring Charts

16.1 LINE 212-6 - SP

16.2 LINE 212-9 - SP

17. Dimensions

18. Accessories for the LINE 212 System

19. Regulations for Disposal

19.1 Germany:

19.2 EU, Norway, Island, and Liechtenstein (not Germany):

19.3 Other countries

20. Declaration of Conformity and International Certificates

20.1 Declaration of Conformity

20.2 EMV Certificate Directive 89 / 336 / EWG

20.3 TÜV Certificate for the USA and Canada (UL 6500)
