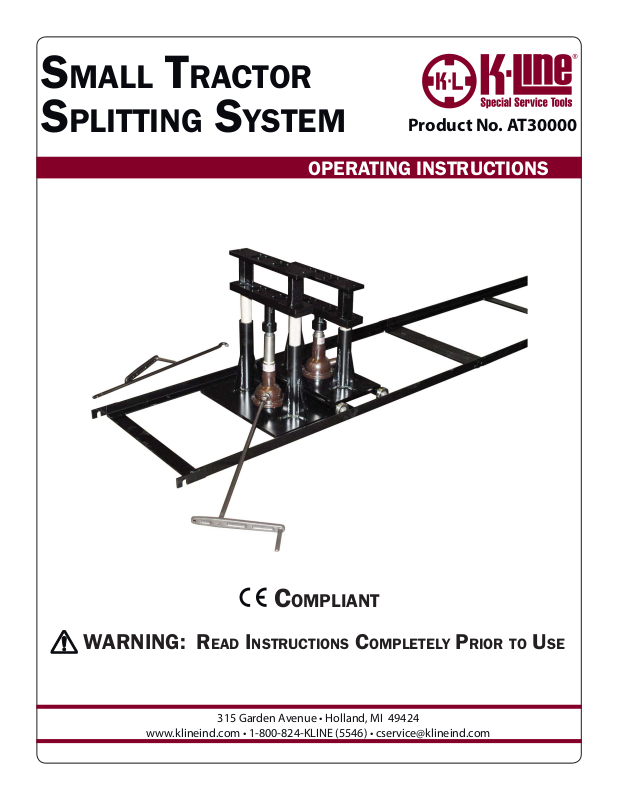

K-Line AT30000 Operating Instructions Manual

SMALL TRACTOR
SPLITTING SYSTEM

OPERATING INSTRUCTIONS

Product No. AT30000

COMPLIANT

WARNING: READ INSTRUCTIONS COMPLETELY PRIOR TO USE

315 Garden Avenue • Holland, MI 49424

www.klineind.com • 1-800-824-KLINE (5546) • [e-mail]

INTRODUCTION:

This manual contains information to help you to learn about the safe and proper use of the
AT30000 Small Tractor Splitting System. The instructions included in this manual are not
necessarily all-inclusive. K-Line® cannot anticipate all conceivable or unique situations.
You must make sure all conditions and procedures do not jeopardize your personal safety.

DISCLAIMER:

All information, images, and speci cations contained in this manual are

based on the latest information available at the time of publication. K-Line® reserves
the right to make changes at any time without notifying any person or organization of
such revisions or changes. K-Line® is not liable for incidental or consequential damages
(including lost pro ts) in connection with the furnishing, performance, or use of this
material. If necessary, obtain additional information from the vehicle manufacturer.

SAFETY PRECAUTIONS:

Before using the AT30000 Large Tractor Splitting System, read, understand, and follow
the safety precautions and operating instructions outlined in this manual. This equipment

must be operated by quali ed personnel. The operator must be familiar with the vehicle this
tool is being used on

 If the operator cannot read English, operating instructions and safety precautions

must be read and discussed in the operator’s native language.

 Si el operador no puede leer inglés, las instrucciones de operación y las precauciones

de seguridad deberán leerse y comentarse en el idioma nativo del operador.

 Si l’utilisateur ne peut lire l’anglais, les instructions et les consignes de sécurité doivent

lui être expliquées dans sa langue maternelle.

SAFETY ICON TERMINOLOGY

The following safety icons can be found within this manual.

Personal Protection/Important Information Hazard Avoidance

Read the Manual

Eye Protection

Ear Protection

Face Protection

Inspect Equipment

Prohibited Action

No Smoking

Do Not Weld

Crushing Hazard

Crushing Hazard (Foot)

Crushing Hazard (Hand)

Pinch Point

Fire Hazard

Safety Alert Symbol

Slipping Hazard

Tripping Hazard

2

PERSONAL PROTECTION/IMPORTANT INFORMATION

AZARD AVOIDANCE

H

WARNING

To avoid personal injury or death,
carefully read and understand all
instructions before attempting to

operate any equipment or tools. Do
not operate or work on a machine unless you read
and understand the instructions and warnings in
this and all other applicable manuals.

To prevent possible damage to your

hearing, always wear ear protection

when working around noise

generating tools.

To avoid eye injury, always
wear protective glasses
or face shield. Make sure

no one can be injured
by  ying objects or debris when using tools or
working on a component.

Clean up all leaked
or spilled  uids
immediately. Oil, fuel,
or cleaning  uid leaked

or spilled onto any hot
surfaces or electrical components can cause a  re,
resulting in personal injury or death.

Personal injury can
result from slips or falls.
DO NOT leave tools or

components laying
around the work area. Clean up all spilled  uids
immediately.

PROHIBITED ACTION

WARNING

Inspect prior to each use for dents,
cracks, bends, or worn parts. If
damage is found, discontinue use
until inspected and released by an

approved inspector at the dealership.

The complete AT30000
Small Tractor Splitting
System weighs approx-

imately 275 lbs.
Personal injury can result from dropped tooling.
Use caution when transporting, installing,
removing, and storing the tooling.

Personal injury can result from
pinch points. Use caution when
assembling, installing, and removing
the AT30000 Small Tractor Splitting
System.

Personal injury or
death can result from
improper use of this tool
and supporting of the

vehicle. Make sure the
AT30000 Small Tractor Splitting System is securely
attached to the vehicle before removing any
hardware and splitting the vehicle. Do not work
beneath any supported tool.

Potential pinch points. To avoid
serious injury, DO NOT place your
hand or any part of your body
between the AT30000 Small Tractor

Splitting System and the tractor components.

WARNING

To avoid serious or fatal injury,
only use the AT30000 Small Tractor
Splitting System for its intended
purpose, which is supporting speci c

tractor sections during removal and installation.

To avoid serious or fatal injury, do
not exceed the Working Load Limit
(WLL) of 4,000 lbs for any component
being supported by the AT30000

Small Tractor Splitting System.

To avoid damage to the tooling,
do not weld on the components.
Do not modify the AT30000 Small

Tractor Splitting System in any way by
welding, heating with a torch, drilling, machining,
or grinding.

3

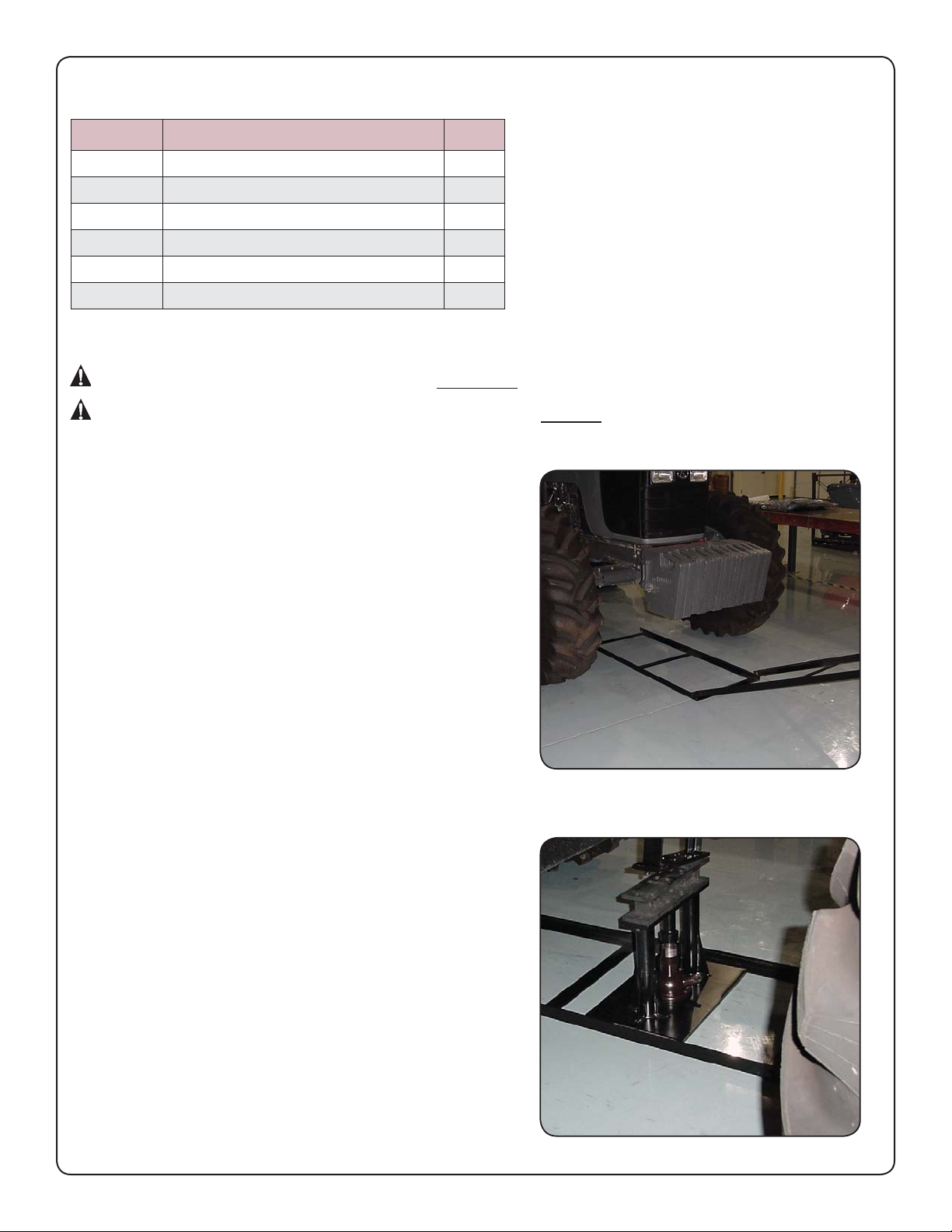

KIT CONTENTS:

PART #DESCRIPTION QTY

AT30001 Rail/Track Assembly (50” Long/ea.) 2
AT30002 Stationary Jackbase Assembly 1
AT30003 Rolling Jackbase Assembly 1
AT30004 Tall Spacers (5” Tall) 4
AT30005 Short Spacers (3” Tall) 2
AT30011 Ratchet Tiedown Straps 2

HEIGHT RANGE: 11.50” to 30”
LOAD LIMIT: 2 Tons per Jack (4,000 lbs.)

USE AND INSTRUCTIONS

WARNING: POTENTIAL CRUSH HAZARD! DO NOT WORK BENEATH LOAD.
WARNING: THE WORK AREA WHEN USING THIS SYSTEM MUST BE FLAT, SOLID, LEVEL, AND FREE

FROM DEBRIS AND FLOOR INCONSISTANCIES.

1. Slide one section of track under the tractor. The
hook end of the track should be pushed under
the tractor  rst.

Connect the second section of track to the  rst
by placing the hooks of the second track over
the pins of the  rst track so that they interlock
with each other. Center the two tracks under
the tractor and position the tracks to allow for
su cient distance to split the tractor as required.

(Image 1)

NOTE: Both track sections are identical. Order of
tracks under the tractor does not matter. The rails
of the track sections must be clean and free from
debris to allow for safe splitting of the tractor.

2. Place the stationary stand under the tractor in
between the rails of the track. Position this stand
as close as possible to the point where the tractor
will be split. (Image 2)

Add spacers as necessary to the stationary stand.
There are two tall spacers and one short spacer
for each stand. The tops of each spacer and stand
have slots and holes cut into them. These holes
and slots allow the user to bolt the spacer to
the stand, each other and to the bottom of the
tractor.

Image 1

Image 2

4

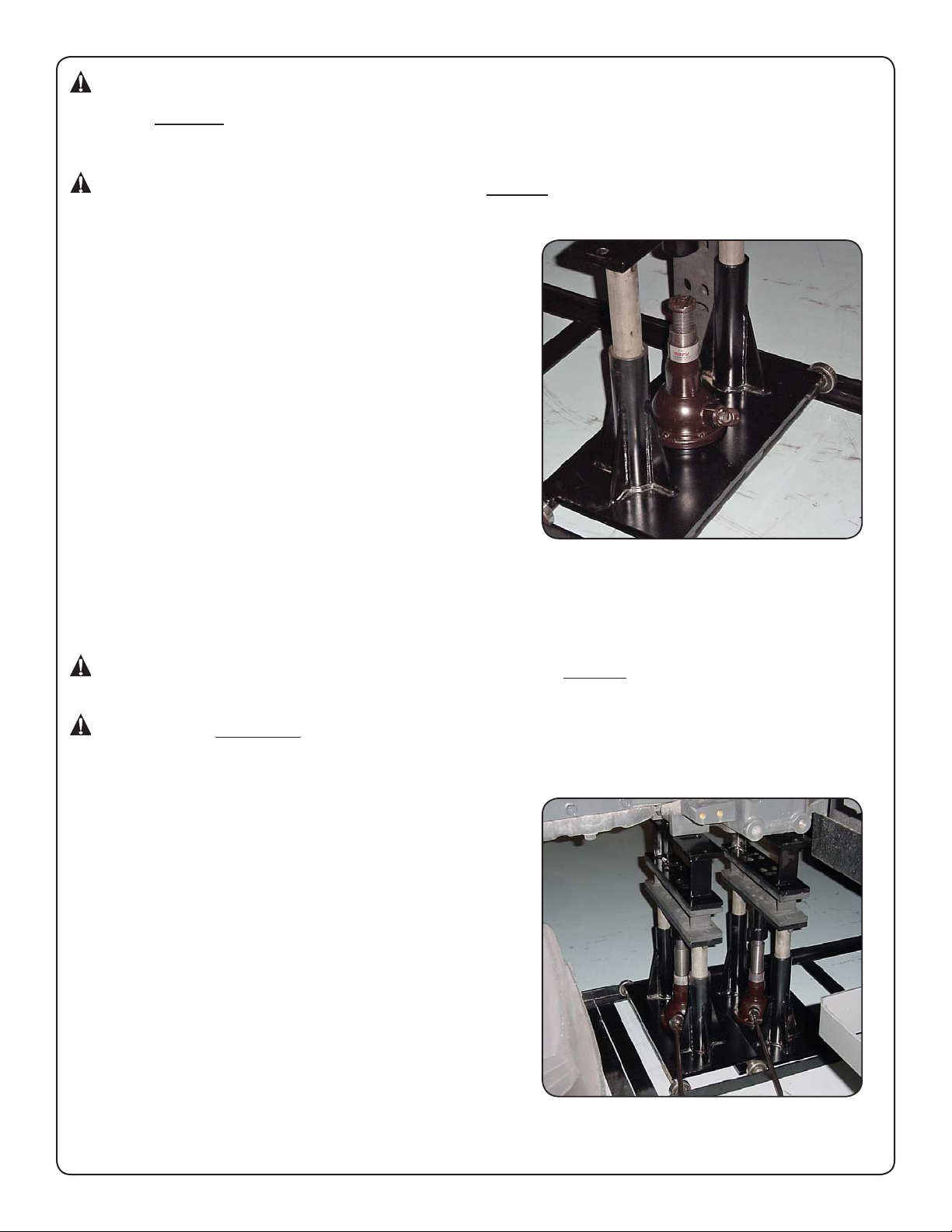

WARNING: ALWAYS INCREASE THE HEIGHT OF THE STAND AS MUCH AS POSSIBLE BY ADDING SPAC-

ERS FIRST. NEVER USE MORE THAN THREE (3) SPACERS PER STAND ASSEMBLY (TWO (2) TALL SPACERS
AND ONE (1) SHORT SPACER PER STAND).

WARNING: THE SPACERS AND STAND ASSEMBLY MUST BE SECURED TOGETHER USING THE PRO-

VIDED HARDWARE.

3. Repeat step 2 for the rolling stand. The wheels
of the rolling stand assembly are designed to
ride on the rails of the track to keep the stand
and tractor straight. Position the rolling stand as
close as possible to the point where the tractor
will be split, except on the opposite side of the
split point from the stationary stand. (Image 3)

NOTE: There are bolts in the side of the track
sections. These are to be used as stops for the rolling
stand. DO NOT remove these stops and allow the
rolling stand to roll o from the track.

4. Raise the jacks on both stands, by turning the
screw using the crank handles, until they make
contact with the underside of the tractor. If
available, bolt the stands/spacers to the bottom
of the tractor. (Image 4)

Image 3

WARNING: WHENEVER POSSIBLE, THE STANDS/SPACERS MUST BE BOLTED TO THE TRACTOR

FOR STABILITY. USE HIGH GRADE BOLTS (GRADE 8 RECOMMENDED) AND HARDENED WASHERS.

WARNING: DO NOT LIFT THE TRACTOR USING THIS SYSTEM. THIS SYSTEM IS DESIGNED TO

SUPPORT THE TRACTOR DURING SPLITTING, NOT TO LIFT THE TRACTOR.

5. Refer to the tractor service manual and proceed
with splitting the tractor. The rolling stand will
let you move the two sections of the tractor
apart and back together again when service is
complete. Always use extreme caution when
splitting a tractor and rolling the sections of
tractor apart.

6. When the tractor is reassembled following the
tractor service manual and service is complete,
the splitting stands can be removed. Lower the
stands and disassemble the splitting stands by
reversing these instructions.

Image 4

5

WARNING: ALWAYS USE EXTREME CAUTION WHEN WORKING

WITH LARGE TRACTORS AND SUBSTANTIAL WEIGHT AS IN THIS CIRCUMSTANCE.

K-LINE® IS NOT RESPONSIBLE FOR DAMAGE/INJURY

RESULTING FROM USE OF THIS PRODUCT.

6

NOTES

7

For product information or

to purchase replacement parts

CALL CUSTOMER SERVICE AT

1-800-824-K-LINE (5546)

Local [phone]

FAX [phone] or [phone]

[e-mail]

www.klineind.com

Copyright 2012 K-Line® Industries, Inc.

4430000-200 Rev. A
