Klimaire KCHD Series, KFWD Series Engineering Data

®

KFWD / KCHD System

8,500 Btu/h to 22,500 Btu/h

Cooling Only & Heat Pump - 50 Hz

ENGINEERING DATA

(18,000 Btu/h unit shown)

1

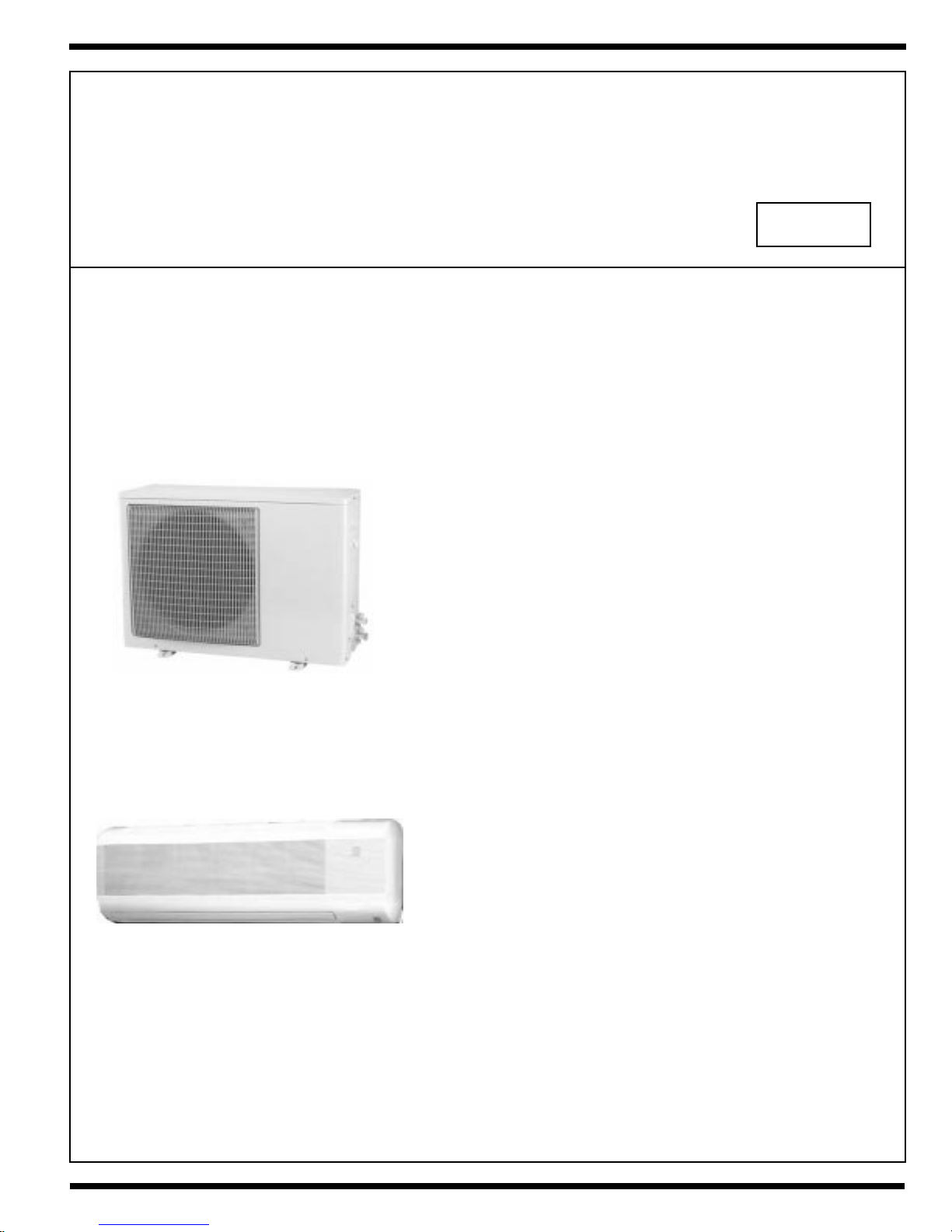

KCHD Series Outdoor Unit
KFWD Series Recessed Fan Coil Unit
Split System Cooling

Cooling: 8,500 to 22,500 Btu/h
220-240/50/1

The KCHD Series of high efficiency outdoor units offer
exceptional performance from a small compact package.
Units offer a full line of quality, split system air conditioners.
Units are ideally sized for slab or roof mounting in single,
multi-family and light commercial applications.

KCHD OUTDOOR UNIT

l High gloss polyester urethane powder coat finish.
l Heavy duty permanently lubricated ball bearing motor.
l Advanced energy saving compressor.
l Weather-tight easily, accessible electrical controls.
l Refrigerant connections with service valves.
l Coil fabricated with copper tubing and aluminum fins.
l Dynamically balanced fan motor assembly for low

outside noise levels and minimal vibration.

50 HZ

KCHB Outdoor Unit

(18,000 Btu/h unit shown)

KFWD Wall-mounted Fan Coil Unit

KFWD SERIES HIGH WALL FAN COIL UNIT

l Designed to be easily hung on a wall.
l Wireless microprocessor type remote control with

LCD digital display incorporates thermostat, 3 speed fan

switch, 24 hour auto on/off timer, auto fan function.

l Modern design cross-flow fans and special motors

assure ultra-quiet operation.

l Microprocessor operation makes dehumidification

possible when running the outdoor unit and the indoor

unit intermittently.

l Temperature and air flow are automatically controlled by

the microcomputer for maximum comfort.

2

MODEL IDENTIFICATION CODE

INDOOR UNIT

KF

Brand

K - Klimaire

F - Fan Coil Unit

W - Wall Mount

WW

D

Model Sequence

Digit

024

Capacity Code

C - Cooling Only
H - Heat Pump

C-

Electric Code

3 - 220/240-1-50
2 - 208/230-1-60

3

Major Design Changes

S

Minor Design Changes

K: Generation
S: Generation

O

Refrigerant Control

I - Capillary Tube Type
O - No Expansion Device
P - Accurator (Piston) Type
X - Thermo Expansion Valve

I

Control Type

I: Digital Infrared
Control

OUTDOOR UNIT

K

Brand

K : Klimaire

C : Condensing Unit

V : Vertical Discharge - SC
H : Horizontal Discharge - SC

CD

Model

H

Model Sequence Digit

024

Capacity Code

Heat Pump Defrost Timer

- : None
E : Electronic
L : By indoor LCD Control
M : Mechanical

C3R

-

Electric Code

3 : 220-240/1/50
4 : 380-420/3/50
6 : 220-240/3/50

Heating Capability
C : Cooling Only
H : Heat Pump

F

Compressor Type

R : Rotary
H : Hermetic
S : Scroll

IN

Electrical Controls

B : 220V Contactor Coil
C : Converter Kitw/24V
Contactor Coil
D : Dual Control Voltage
N : No Contactor
W : B with 24V Transformer
Z : 24V Contactor Coil
6 : 220V Control Signal

Refrigerant Control

I : Capillary Tube
O : No Expansion Device
P : Accurator (Piston)
X : Thermo Expansion Valve

Design Update

F : Type Assembly
K : Type Assembly
S : Type Assembly

3

PHYSICAL and ELECTRICAL DATA

MOD EL NUMBER KCHD009 KCHD01 2 KCHD01 8 KCHD02 0 KCHD02 4

Power suppl y V / Ph / Hz 220-240 / 1 / 50

Consumption (W) 910 1,230 1,950 2,000 2,280

Type Axial

Fan mot or A 0.20 0.20 0.55 0.57 0.9

W 26264545100

Fan Diamet er (in) 12.6 15.3 17.0

Nº of blades33334

Type Rotary

Compressor RLA 4.3 5.6 9.7 9.8 11.5

LRA 2125434452
Suc tion diam. in 3/8 1/2 5/8
Liquid diam . in 1/4 3/8
W eight Net (lb/ k g) 57/ 26 84/38 112/51 123/56

Shippi ng (lb/ kg) 64/29 88/40 119/54 130/59

INDOOR UNIT PERFORMANCE DATA

W all M ount F an Coil Unit

KFWD

Nominal Cooli ng Capaci ty (Bt u/ h) 8500 12000 17800 20500 22500
Nominal Heat ing (B t u/h) 8900 12500 19200 22000 24500
Air Flow (cfm) 220 325 440 500 525
Refrigerant Control Capillary tube

Number 11111

Fan Diam. x L (i n) 3.7 x 24.7 3.6 x 29 3.9 x 30 4.3 x 35.4

Motor Power (W) 4 0 40 70 120

Speed 1200/900 /700 1300/1200/900 930/830/660 1430/1380/1050 1430/1380/1050
Noise Level dB(A) 36 38 41 44 44
Suc tion Li ne in 3/8 1/2 5/8
Liquid Line i n 1/4 3/8
Drain Connecti on in 1/2
W eight lb (kg) 15.4 (7) 17. 6 (8) 32 (15) 37.5 (17)

009 012 018 020 024

* 240 V / 1 Ph units based on 0.87 power factor at nameplate current rating.

4

OUTDOOR UNIT

WITH THIS FAN COIL

MODEL MO DEL AIR F LOW

NUMBER NUMBER cfm

KCHD09-C3 KFWD009-C3 8,500 9.30 240
KCHD012-C3 KFWD012-C3 12,000 9.80 330
KCHD018-C3 KFWD018-C3 17,800 9.90 430
KCHD020-C3 KFWD020-C3 20,500 9.90 500
KCHB024-C3 KFWD024-C3 22,500 9.90 520

SEERBtu/h COOLING

Cooling : Based on 95°F air entering outdoor unit, 80°F DB & 67°F WB entering indoor unit.
Heating: Based on 47°F air entering outdoor unit, 70°F DB & 60°F WB entering indoor unit.

CFM CORRECTION MULTIPLIERS

Total Heat

-20 % -10 %

0.95 0.98 1.00 1.02 1.03

RATED

cfm

+10 % +20 %

Sensible Heat

ELECTRICAL

Voltage
Range

0.90 0.95 1.00 1.05 1.10

220-240 / 1 / 50

198 - 264

5

COOLING PERFORMANCE

KCHD009 WITH KFWD009

Outdoor Indoor Total Sensible Capacity @ E.D.B. Te m pera ture

D.B. T (ºF) W.B. T (ºF)

61 7.3 6.4 7.0 7.5 8.1 8.3 0.79

85 65 7.9 5.3 5.9 6.4 7.0 7.4 0.82

67 8.2 4.7 5.3 5.8 6.4 6.9 0.84
71 8.8 3.5 4.1 4.7 5.2 5.8 0.87
61 7.6 6.3 6.9 7.4 8.0 8.3 0.86

95 65 8.2 5.2 5.7 6.3 6.9 7.4 0.89

67 8.5 4.6 5.2 5.8 6.3 6.8 0.91
71 9.0 3.5 4.0 4.6 5.1 5.6 0.94
61 7.3 6.1 6.7 7.2 7.7 8.1 0.93

105 65 7.9 5.0 5.5 6.1 6.7 7.2 0.97

67 8.2 4.4 5.0 5.5 6.1 6.6 0.99
71 8.8 3.8 3.8 4.3 5.0 5.4 1.02
61 7.0 6.0 6.5 7.0 7.5 7.8 1.00

115 65 7.5 4.8 5.3 5.9 6.5 7.0 1.05

67 7.8 4.2 4.8 5.4 6.0 6.4 1.06
71 8.4 3.1 3.6 4.2 4.8 5.3 1.10
61 6.8 5.9 6.4 6.8 7.4 7.5 1.08

125 65 7.4 4.7 5.2 5.8 6.4 6.8 1.13

67 7.7 4.1 4.6 5.1 5.9 6.3 1.14
71 8.4 3.5 3.6 4.0 4.7 5.2 1.18

Capacity 72 74 76 78 80

kW

KCHD012 WITH KFWD012

Outdoor Indoor Total Sensible Capacity @ E.D.B. Te m pera ture

T (ºF) DB T (ºF) WB

61 11.1 9.1 9.9 10.6 11.4 11.7 1.07

85 65 12.0 7.5 8.3 9.1 9.9 10.5 1.11

67 12.4 6.6 7.5 8.2 9.0 9.8 1.13
71 13.3 5.0 5.8 6.5 7.4 8.1 1.18
61 10.8 8.9 9.7 10.5 11.2 11.7 1.16

95 65 11.7 7.3 8.1 8.9 9.7 10.4 1.21

67 12.1 6.5 7.4 8.1 8.8 9.6 1.23
71 12.9 4.9 5.6 6.4 7.2 7.9 1.27
61 10.3 8.6 9.4 10.1 10.8 11.3 1.26

105 65 11.2 7.0 7.8 8.6 9.4 10.2 1.31

67 11.6 6.2 7.0 7.7 8.6 9.3 1.34
71 12.4 5.4 5.4 6.1 7.0 7.6 1.38
61 9.9 8.4 9.1 9.8 10.5 10.9 1.36

115 65 10.7 6.7 7.6 8.3 9.1 9.9 1.42

67 11.1 5.9 6.8 7.5 8.4 9.0 1.44
71 12.0 4.3 5.1 5.9 6.7 7.4 1.49
61 9.7 8.3 9.0 9.5 10.3 10.5 1.46

125 65 10.5 6.6 7.5 8.2 9.0 9.7 1.53

67 11.0 5.8 6.5 7.2 8.3 8.9 1.54
71 11.9 4.9 5.1 5.6 6.7 7.3 1.59

Capacity 72 74 76 78 80

kW

W.B. - Wet Bulb T : Temperature kW -Total Power Input in kilo-Watts
E.D.B. - Entering Dry Bulb ºF: Fahrenheit degrees

6

COOLING PERFORMANCE

KCHD018 WITH KFWD018

Outdoor Indoor Total Sensible Capacity @ E.D.B. Te m pera ture

T (ºF) DB T (ºF) WB

61 16.4 11.8 13.0 14.0 14.9 15.4 1.63

85 65 17.7 9.8 10.8 11.8 13.0 13.8 1.70

67 18.2 8.8 9.8 10.8 11.8 12.8 1.73
71 19.7 6.5 7.6 8.5 9.7 10.7 1.88
61 15.9 11.7 12.7 13.7 14.6 15.4 1.73

95 65 17.1 9.7 10.7 11.7 12.7 13.7 1.77

67 17.8 8.5 9.7 10.7 11.7 12.7 1.80
71 19.1 6.3 7.3 8.4 9.4 10.5 1.87
61 15.2 11.3 12.3 13.3 14.2 14.9 1.84

105 65 16.4 9.1 10.1 11.1 12.1 13.1 1.92

67 17.1 8.1 9.0 10.0 11.0 12.0 1.96
71 18.2 6.9 6.9 7.9 8.9 9.9 2.04
61 14.6 11.0 12.0 12.9 13.8 14.5 2.01

115 65 15.8 9.0 10.0 11.0 12.0 13.0 2.08

67 16.4 7.8 9.0 9.9 10.9 11.9 2.11
71 17.5 6.1 6.7 7.7 8.7 9.7 2.18
61 14.3 10.5 10.6 12.4 13.3 13.6 2.15

125 65 15.6 8.4 9.4 10.4 11.5 12.3 2.24

67 16.1 7.7 8.5 9.4 10.4 11.4 2.26
71 17.2 6.0 6.5 7.4 8.5 9.3 2.33

Capacity 72 74 76 78 80

kW

KCHD020 WITH KFWD020

Outdoor Indoor Total Sensible Capacity @ E.D.B. Te m pera ture

T (ºF) DB T (ºF) WB

61 17.2 16.3 17.6 19.0 20.3 21.1 1.74

85 65 18.6 14.2 15.7 17.2 18.7 20.1 1.80

67 19.3 12.5 13.9 15.4 16.9 18.3 1.84
71 22.7 9.4 10.8 12.2 13.8 15.2 1.92
61 18.6 15.2 16.5 17.7 18.9 20.0 1.89

95 65 20.0 13.2 14.6 16.1 17.4 18.8 1.97

67 20.8 11.6 13.0 14.5 15.8 17.1 2.00
71 22.0 8.7 10.0 11.4 12.7 14.2 2.08
61 17.8 14.9 16.2 17.3 18.5 19.5 2.06

105 65 19.3 12.8 14.1 15.5 16.8 18.3 2.13

67 20.0 10.8 12.2 13.5 14.8 16.2 2.17
71 21.4 9.3 9.3 10.6 12.0 13.3 2.25
61 17.7 14.4 15.8 16.9 18.1 19.0 2.25

115 65 19.1 11.9 13.4 14.7 16.0 17.3 2.31

67 19.8 10.3 11.5 12.8 14.1 15.4 2.34
71 21.4 7.4 8.7 10.0 11.3 12.6 2.44
61 16.7 12.9 14.0 15.0 16.2 16.5 2.37

125 65 17.7 9.9 11.2 12.2 13.3 14.6 2.48

67 18.4 8.1 9.2 10.1 11.2 12.3 2.51
71 20.3 5.8 6.9 7.9 9.2 10.0 2.61

Capacity 72 74 76 78 80

kW

W.B. - Wet Bulb T : Temperature kW - Total Power Input in kilo-Watts
E.D.B. - Entering Dry Bulb ºF: Fahrenheit degrees

7

COOLING PERFORMANCE

KCHD024 WITH KFWD024

Outdoor Indoor Total Sensible Capacity @ E.D.B. Te m pera ture

T (ºF) DB T (ºF) WB

61 20.7 15.9 17.3 18.6 19.9 20.6 1.97

85 65 22.3 14.2 15.6 17.1 18.6 20.0 2.06

67 23.1 12.3 13.8 15.2 16.6 18.0 2.10
71 23.8 9.2 10.7 12.0 13.6 14.9 2.18
61 20.1 15.7 17.0 18.4 19.5 20.6 2.14

95 65 21.7 13.6 14.9 16.4 17.8 19.3 2.23

67 22.5 11.6 13.0 14.4 15.7 17.1 2.28
71 23.8 8.9 10.0 11.4 12.7 14.2 2.37
61 19.3 15.1 16.5 17.8 18.9 19.3 2.33

105 65 20.8 12.7 14.0 15.4 16.7 18.1 2.42

67 21.6 11.1 12.4 13.8 15.2 16.6 2.47
71 23.1 9.5 9.5 10.9 12.3 13.6 2.57
61 18.5 14.6 15.9 17.1 18.2 19.1 2.53

115 65 19.9 12.1 13.5 14.8 16.2 17.5 2.62

67 20.7 10.5 12.0 13.2 14.6 16.0 2.67
71 22.2 8.7 9.0 10.3 11.7 13.0 2.77
61 17.9 14.2 15.7 16.8 17.4 17.6 2.71

125 65 20.1 10.4 13.3 14.6 15.9 17.1 2.80

67 20.4 10.3 11.7 12.9 14.4 15.8 2.86
71 21.9 8.6 8.8 10.0 11.7 12.6 2.96

Capacity 72 74 76 78 80

kW

W.B. - Wet Bulb T : Temperature kW -Total Power Input in kilo-Watts
E.D.B. - Entering Dry Bulb ºF: Fahrenheit degrees

8

PACKING AND CONTAINER LOADING

Capacity

009 12.2 (310) x 9.0(230) x 32.0 (815 ) 21.0(535) x 12 . 6(3 20) x 30.0(76 3) 158 316
012 12.2 (310) x 9.0(230) x 32.0 (815 ) 23.8(605) x 13 . 2(3 35) x 36.8(93 5) 118 237
018 14. 5(370) x 11. 4(290) x 42. 0(1060) 27.0(690) x 16. 1(410) x 39. 2(995) 74 149
020 14. 9(380) x 11. 2(285) x 45. 0(1160) 27.0(690) x 16. 1(410) x 39. 2(995) 72 144
024 14. 9(380) x 11. 2(285) x 45. 0(1160) 30.0(765) x 16. 0(405) x 39. 0(990) 69 139

KFWD (indoor unit) KCHD (outdoor unit) 20' 40'

PACKING DIMENSIONS in (mm) QUANTITY

9

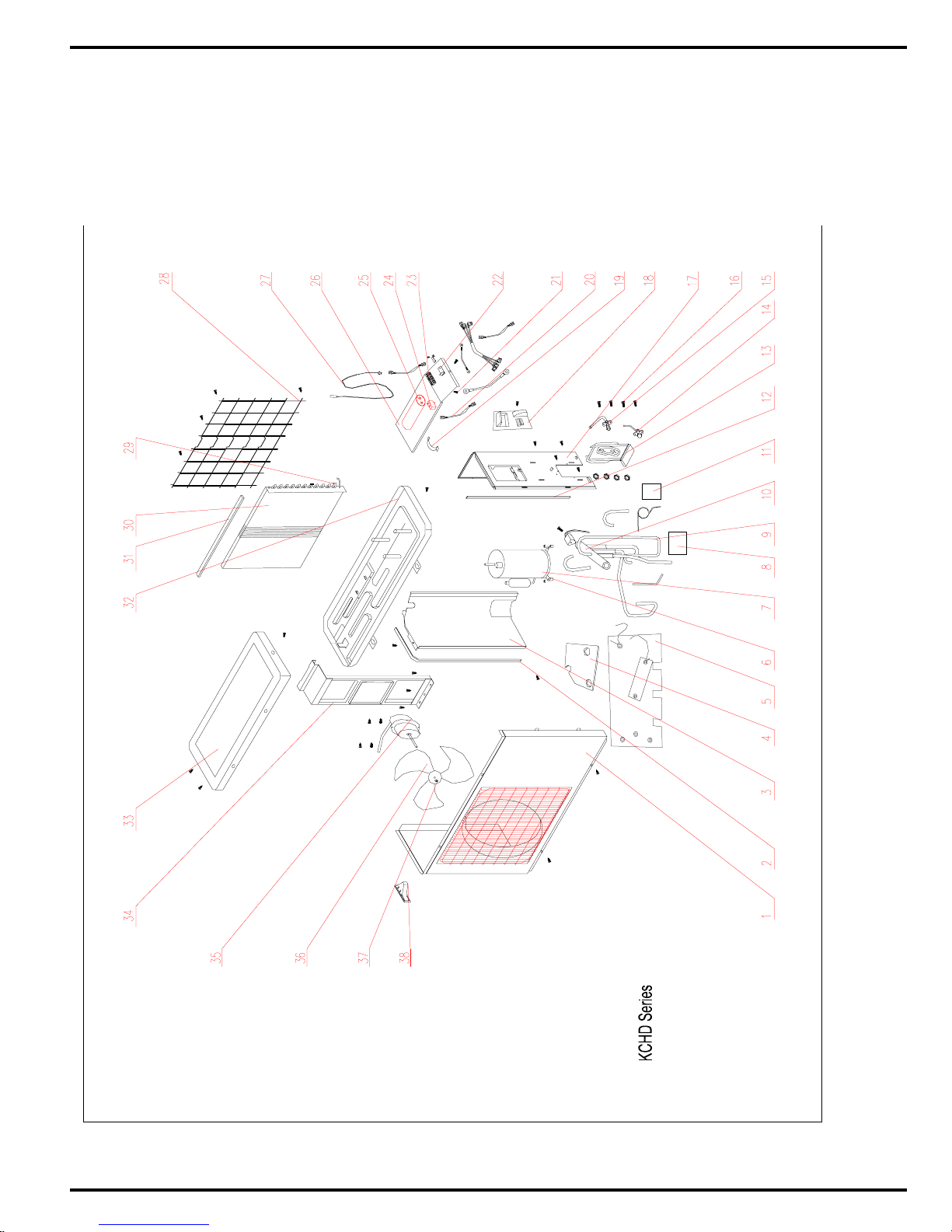

EXPLODED DIAGRAM

10

REPLACEMENT PARTS LIST

Item Part No. Description

1 1CD01523S0 Mounting plate 1 1
1 1WD00101S0 M ount i ng plate 1
1 1CD01524S0 Mounting plate 1 1
2 1CD01525S0 Chas s i s, pl as t i c 1 1
2 1WD00102S0 Chas sis, pl as tic 1
2 1CD01526S0 Chas s i s, pl as t i c 1 1
3 4CD01316S0 Fan bearing 1 1
3 4WD00401S0 F an bearing 1
3 4CD01317S0 Fan bearing 1 1
4 4CD01318S0 Fan bearing ring 1 1
4 4WD00402S0 F an bearing ring 1
4 4CD01319S0 Fan bearing ring 1 1
5 4WD00403S0 Fan 1 1
5 4WD00407S0 Fan 1
5 4WD00408S0 Fan 1 1
6 1WD00103S0 E vaporator locat i on cli p 1 1
6 1WD00106S0 E vaporator locat i on cli p 1
6 1CD01527S0 E vaporator locat i on c l i p 1 1
7 4CD01320A0 Left verti c al ai r vane assembl y 1 1
7 4WD00404A0 Left vertical ai r vane assembl y 1
7 4CD01321A0 Left verti c al ai r vane assembl y 1 1
8 1CD01521S0 A i r flow seat 1 1
8 1WD00104S0 A i r flow s eat 1
8 1CD01522S0 A i r flow seat 1 1

9 3WD00251S0 Drain hos e 1 1 1 1 1
10 0CD01763S0 Frame 1 1
10 0WD00390S0 Frame 1
10 0CD01764S0 Frame 1 1
11 0CD01762S0 S c rew c over 2 2
11 0WD00391S 0 S crew cover 2
11 0CD01786S0 S c rew c over 2 2
12 3CD01682S0 A ir filter 2 2
12 3WD00252S 0 A i r filt er 2
12 3CD01683S0 A ir filter 2 2
13 0CD01765S0 Upper air vane 1 1
13 0WD00392S 0 Upper air vane 1
13 0CD01766S0 Upper air vane 1 1
14 0CD01767S0 Lower air vane 1 1
14 0WD00393S 0 Lower air vane 1
14 0CD01768S0 Lower air vane 1 1
15 6WD21390S 0 P ower c ord 1 1 1 1 1
16 3CD11381A0 Remot e cont rol CO 1 1 1 1 1
16 3CD11380A0 Remot e cont rol HP 1 1 1 1 1
17 3CD01684S0 S ignal rec ei ver window 1 1
17 3WD00253S 0 S i gnal receiver window 1
17 3CD01685S0 S ignal rec ei ver window 1 1
18 0CD01769S0 Front panel 1 1
18 0WD00394S 0 Front panel 1

009 012 018 020 024

KFWD

11

REPLACEMENT PARTS LIST

Item Part No. Description

18 0CD01770S0 Front panel 1 1
19 5WD01424S0 Drai n cap 1 1 1 1 1
20 4WD21619S0 St epp in g m otor 1 1 1
20 4WD21620S0 St epp in g m otor 1 1
21 3CD01686A0 St epp in g m otion ass embly 1 1
21 3WD00254A0 St epp in g m oti on assemb ly 1
21 3CD01687A0 St epp in g m otion ass embly 1 1
22 4CD01313A0 Right vertic al air vane assem bl y 1 1
22 4WD00405A0 Ri ght vertic al air vane assem bl y 1
22 4CD01314A0 Right vertic al air vane assem bl y 1 1
23 0CD01761S0 Recei ver holder 1 1 1 1 1
24 6CD21177S0 Running indicat or 1 1
24 6WD20709S0 Running ind i cat or 1
24 6CD21178S0 Running indicat or 1 1
25 0CD01771S0 El ec tric box cover 1 1
25 0WD00396S0 Ele c tri c box c over 1
25 0CD01772S0 El ec tric box cover 1 1
26 6CD21179A0 El ec tronic c ont rol as sembly CO 1 1
26 6WD20710A0 Ele c troni c cont rol assem bl y CO 1
26 6CD21180A0 El ec tronic c ont rol as sembly CO 1 1
26 6CD21182A0 El ec tronic c ont rol as sembly HP 1 1
26 6WD20723A0 Ele c troni c cont rol assem bl y HP 1
26 6CD21183A0 El ec tronic c ont rol as sembly HP 1 1
27 3WD00255S0 Wi re cl i p 1 1 1 1 1
28 6WD20711S0 Termi nal boa rd CO 1 1 1 1 1
28 6WD20724A0 Termi nal boa rd HP 1 1 1 1 1
29 6CD01235S0 El ec tric box 1 1
29 6WD00837S0 Ele c tri c box 1
29 6CD01236S0 El ec tric box 1 1
30 2WD00247A0 Evaporator as sem bl y 1 1
30 2WD00249A0 Evaporator as sem bl y 1
30 2WD00250A0 Evaporator as sem bl y 1 1
31 0CD01772S0 Mot or cover 1 1
31 0WD00397S0 Mot or cover 1
31 0CD01773S0 Mot or cover 1 1
32 6CD21181A0 Fan motor 1 1
32 6WD20712A0 F an m o t or 1
32 6CD21182A0 Fan motor 1 1
33 3WD00256S0 In and out pi pe pressboard 1 1 1 1 1

009 012 018 020 024

KFWD

12

EXPLODED DIAGRAM

13

REPLACEMENT PARTS LIST

Item Part No. Description

1 0HD00398S0 Front panel 1
1 0HD00399S0 Front panel 1
1 0CD01774S0 Front panel 1 1
1 0HD00391S0 Front panel 1
2 0HD00392S0 Foam gask et 1 1
2 0CD01775S0 Foam gask et 1 1
2 0HD00400S0 Foam gask et 1
3 1HD00621S0 Separator 1 1
3 1CD01528S0 Separator 1 1
3 1HD00625S0 Separator 1
4 0HD00393S0 Noise damper, bott om 1 1
4 0CD01776S0 Noise damper, bott om 1 1
4 0HD00402S0 Noise damper, bott om 1
5 0HD00394S0 Noise damper 1 1
5 0CD01777S0 Noise damper 1 1
5 0HD00404S0 Noise damper 1
6 3CU02070S0 Hex agonal nut 3 3
6 3CU02071S0 Hex agonal nut 3 3 3
7 7HD20241A0 Compressor 1
7 7HD20242A0 Compressor 1
7 7HD20243A0 Compressor 1 1
7 7HD20244A0 Compressor 1
8 3CD01689S0 S hock abs orber 1 1
8 3CD01690S0 S hock abs orber 1 1 1
9 2CD01293A0 Compres sor lines as sembl y 1 1
9 2CD01294A0 Compres sor lines as sembl y 1 1

9 2HD00903A0 Compres sor lines as sembl y 1
10 2CD01295A0 4-way valve 1 1
10 2CD01296A0 4-way valve 1 1 1
11 3CD01691S0 S hoc k abs orber 1 1
11 3CD01692S0 S hoc k abs orber 1 1 1
12 0HD00395S0 Foam gas ket 1 1
12 0CD01778S0 Foam gas ket 1 1
12 0HD00405S0 Foam gas ket 1
13 0CD01779S0 V alve board 1 1
13 0CD01780S0 V alve board 1 1
13 0HD00396A0 V alve board 1
14 2CD01296S0 Liqui d valve 1 1
14 2CD01297S0 Liqui d valve 1 1 1
15 2HD00902S0 Gas valve 1
15 2HD00904S0 Gas valve 1
15 2CD01298S0 Gas valve 1 1 1
16 1CU02144S0 Hex agonal head bolt 30 30 30 30 30

009 012 018 020 024

KCHD

14

REPLACEMENT PARTS LIST

Item Part No. Description

17 1HD00622S0 Right s i de plate 1 1
17 1CD01529S0 Right s i de plate 1 1
17 1HD00627S0 Right s i de plate 1
18 0HD00397S0 Handle 1 1
18 0CD01781S0 Handle 1 1
18 0HD00408S0 Handle 1
19 3CU02072S0 Capaci t or brac ket 1 1
19 3CU02073S0 Capaci t or brac ket 1 1 1
20 6CD21158K0 Wiring 1 1
20 6CD21159K0 Wiring 1 1 1
21 1CU02145S0 Gasket 30 30 30 30 30
22 3CD01693S0 W i ri ng c l i p 1 1 1 1 1
23 6CD21157S0 Terminal bloc k CO 1 1 1 1 1
23 6CD21155S0 Terminal bloc k HP 1 1 1 1 1
24 6CD21156S0 Fan motor c apac i t or 1 1
24 6HD20647S0 Fan motor c apac i t or 1 1
24 6HD20649S0 Fan motor c apac i t or 1
25 6HD20811S0 Compressor c apac i tor 1
25 6HD20812S0 Compressor c apac i tor 1
25 6HD20813S0 Compressor c apac i tor 1 1
25 6HD20814S0 Compressor c apac i tor 1
26 1HD00623S0 Control board 1 1
26 1CD01530S0 Control board 1 1
26 1HD00629S0 Control board 1
27 2CD01299S0 Temperature sens or HP 1 1 1 1 1
28 0HD00408S0 Back gril l e 1 1
28 0CD01782S0 Back gril l e 1 1
28 0HD00410S0 Back gril l e 1
29 2CD01300S0 Temperature sens or, hol der 1 1 1 1 1
30 2HD00905S0 Condensi ng c oi l 1
30 2HD00906S0 Condensi ng c oi l 1
30 2HD00907S0 Condensi ng c oi l 1 1
30 2HD00909S0 Condensi ng c oi l 1
31 1HD00629S0 Condenser t op gas ket 1 1
31 1HD00630S0 Condenser t op gas ket
31 1CD01531S0 Condenser t op gas ket 1 1
31 1HD00631S0 Condenser t op gas ket 1
32 0HD00411S0 Cabinet base as sembl y 1 1
32 0CD01783S0 Cabinet base as sembl y 1 1
32 0HD00412S0 Cabinet base as sembl y 1
33 0HD00413S0 Upper cover plate 1 1
33 0CD01784A0 Upper cover plate 1 1
33 0HD00414S0 Upper cover plate 1
34 1HD00632S0 Mot or s upport 1 1
34 1CD01532S0 Mot or s upport 1 1

009 012 018 020 024

KCHD

15

REPLACEMENT PARTS LIST

Item Part No. Description

34 1HD00633S0 Mot or s upport 1
35 4CD21348A0 Fan motor 1 1
35 4CD21349A0 Fan motor 1 1
35 4HD20771A0 Fan motor 1
36 4HD00415S0 Axial fan 1 1
36 4CD01315S0 Axial fan 1 1
36 4HD00416S0 Axial fan 1
37 4CU02016S0 Hexagonal nut 1 1
37 4CU02017S0 Hexagonal nut 1 1
37 4CU02018S0 Hexagonal nut 1
38 0HD00417S0 Handle 1 1
38 0CD01785A0 Handle 1 1
38 0HD00418S0 Handle 1

009 012 018 020 024

KCHD

16

Klimaire Products, Inc.
Miami, FL 33166 USA
E-mail : [e-mail]

®

NOTE: SPECIFICATIONS AND PERFORMANCE DATA LISTED HEREIN ARE SUBJECT TO CHANGE WITHOUT NOTICE

17

E2WD0201
