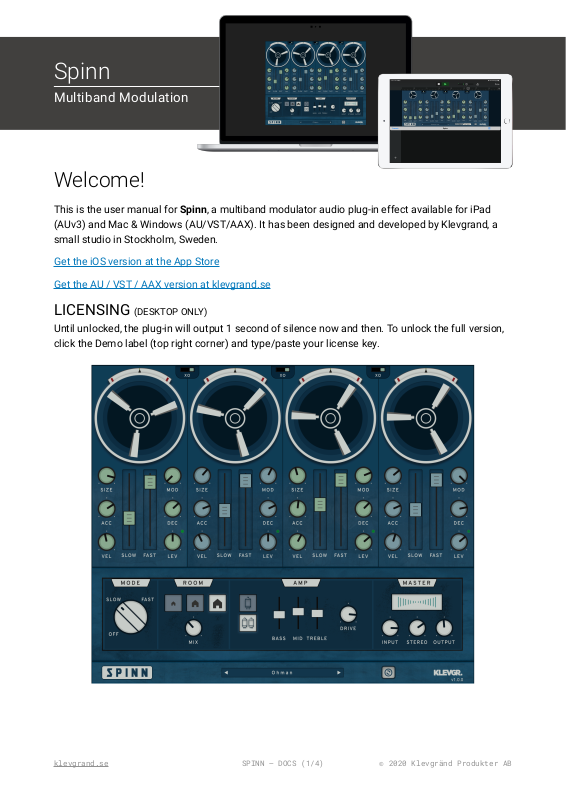

Page 1
Welcome!
This is the user manual for Spinn, a multiband modulator audio plug-in effect available for iPad
(AUv3) and Mac & Windows (AU/VST/AAX). It has been designed and developed by Klevgrand, a
small studio in Stockholm, Sweden.
Get the iOS version at the App Store
Get the AU / VST / AAX version at klevgrand.se
LICENSING (DESKTOP ONLY)
Until unlocked, the plug-in will output 1 second of silence now and then. To unlock the full version,
click the Demo label (top right corner) and type/paste your license key.
klevgrand.se
SPINN – DOCS ( / )1 4
© 2020 Klevgränd Produkter AB
Spinn
Multiband Modulation
Page 2
User Interface
1. MODE
Speed mode selector. Switching between different modes will cause acceleration/deceleration
effects on the bands.
2. ROOM MODE
Three different rooms (small/medium/large).
3. ROOM MIX
0 to 100%
The reverb mix.
4. AMP MODE
Clean or hot.
5. AMP EQ
-6 to 6 dB
Bass/Mid/Treble controls for the amp (pre amplification).
klevgrand.se
SPINN – DOCS ( / )2 4
© 2020 Klevgränd Produkter AB
1413101234578910101112161520191718
21
Page 3
6. AMP DRIVE
0 to 100%
Saturation amount.
7. INPUT
-12 to 12dB
Overall input level.
8. STEREO
0 to 100%
Stereo width of the processed signal.
9. OUTPUT
off to +6dB
The output level.
10. CROSSOVER FREQUENCY
Sets the crossover frequency for bands.
11. ANIMATIONS
Turns animations on/off to save CPU.
12. PRESETS
A collection of factory presets. Click the preset title for a dropdown list, or use the arrow buttons to
step through the presets.
Per-band parameters:
13. SIZE
0 to 100%
Adjusts the size of the rotor horn. This will have impact on the doppler effect caused by the
rotating motion, where greater values will cause a greater doppler effect.
14. MOD
0 to 100%
Controls a mixture of filter and gain modulation.
15. ACC
1 to 10 sec
Sets the time it should take for the rotor horn to accelerate from 0 to 10 Hz.
Crossover 1
Crossover 2
Crossover 3
80 Hz
140 Hz
220 Hz
350 Hz
520 Hz
800 Hz
1.7 kHz
4.5 kHz
8 kHz
klevgrand.se
SPINN – DOCS ( / )3 4
© 2020 Klevgränd Produkter AB
Page 4
16. DEC
1 to 10 sec
Sets the time it should take for the rotor horn to decelerate from 10 to 0 Hz.
17. SLOW
0 to 10 Hz
The rotor speed in slow mode.
18. FAST
0 to 10 Hz
The rotor speed in fast mode.
19. VEL
-100 to 100%
Velocity sensitivity. The band’s input level will affect the speed of the rotor. Negative values will
slow down at higher inputs, positive values speeds up. Zero means no velocity modulation of the
speed.
20. LEV
off to +6dB
The band's output level. The level LED indicates signal input to the band.
21. NEEDLE
Indicates the offset from the target speed.
Specifications / System requirements
Mac
Windows
iOS
64 bit AU/VST/AAX plug-in
64 bit VST/AAX plug-in
AUv3 plug-in
macOS 10.9+
OpenGL
Windows 7+ with SP1 or higher
iPad Air 2 or better
iOS 9.1+
klevgrand.se
SPINN – DOCS ( / )4 4
© 2020 Klevgränd Produkter AB
VST and VST3 are trademarks of Steinberg Media Technologies GmbH. AAX is a trademark of Avid Technology, Inc. AU and Audio Units are trademarks of Apple Inc.
