Klementz DUB DELAY User Manual

Download
Page 1
DUB DELAY BOX
- USER MANUAL -
Page 2
©
Copyright
2018
Klementz
.
All rights reserved
1
CONTENT
SAFETY INSTRUCTIONS ..................................................................................................................................................................2
CHECK LIST .....................................................................................................................................................................................2
QUICK START ..................................................................................................................................................................................3
OVERVIEWS ...................................................................................................................................................................................4
FRONT PANEL OVERVIEW ...........................................................................................................................................................4
BACK PANEL OVERVIEW .............................................................................................................................................................4
CONTROLS & USE ...........................................................................................................................................................................5
FRONT PANEL .............................................................................................................................................................................5
BACK PANEL ...............................................................................................................................................................................6
TYPICAL WIRING ............................................................................................................................................................................7
INSERT MODE ............................................................................................................................................................................7
EFFECT SEND/RETURN MODE.....................................................................................................................................................8
TECHNICAL SPECIFICATIONS...........................................................................................................................................................9
Page 3
©
Copyright
2018
Klementz
.
All rights reserved
2
SAFETY INSTRUCTIONS
1. Read these instructions.
2. Carefully keep these instructions.
3. Respect the warnings.
4. Follow all these instructions.
5. Do not use near a water source.
6. Clean only with a dry and clean cloth.
7. Don’t place near a heat source, that is near any equipment that produces heat.
8. Don’t use another Power Supply than the one that is provided with the purchase.
9. In case of lost or damage of the Power Supply, contact KLEMENTZ before using a new power supply.
10. Make sure that the Power Supply block is not getting trampled, neither on the transformer part, nor on the
cable or connector part.
11. Unplug this equipment during a thunderstorm or as soon as you have finished using it.
12. Please directly contact KLEMENTZ for any After Sale service. This is mandatory in case the equipment is
damaged : if the cable, the Power Supply or connectors of the equipment are damaged, if liquid has been knocked over it or if objects have fallen on it, if it has been exposed to rain or humidity, if it does not work correctly or if it has fallen.
13. Do not let the power supply block plugged in a socket when the equipment is not in use. The power supply
bloc is always powered even if the power switch of the unit is in OFF position. To completely disconnect the machine, remove the power supply block from the mains plug.
14. In any setup case, leave a sufficient space for the equipment to cool properly. You can arrange other
equipment on the top and/or on the bottom of the unit, but some (like amplifiers) may cause a buzz or generate too much heat, it may cause damage your equipment or degrade its performances.
15. In order to evaluate any risk of fire or electric chock, keep this equipment away from any source of
humidity and splash of any type. The equipment must also be kept away from any object filled with liquid (bottled drinks, vase, …)
First of all, thank you from all the KLEMENTZ team for buying this DUB DELAY.
These items are included in the box:
1 x DUB DELAY BOX 1 x POWER SUPPLY (12VDC)
CHECK LIST
Page 4
©
Copyright
2018
Klementz
.
All rights reserved
3
NOTE
On the cable described above, the 6.35mm JACK must be MONO. If it is STEREO, the sound will be transmitted only on the left channel of your sound system.
QUICK START
For a correct use of your DUB DELAY, please read the instructions below:
1. This DUB DELAY must be plugged into a LINE input of your mixer or preamp. An effect
processor can be plugged between your DUB DELAY and the LINE input of your mixer, only if the input of your effect processor is also a LINE type input. In any case, do not plug your DUB DELAY in a Microphone input or it may damage it. Please see the « more detailed description of the possible wirings.

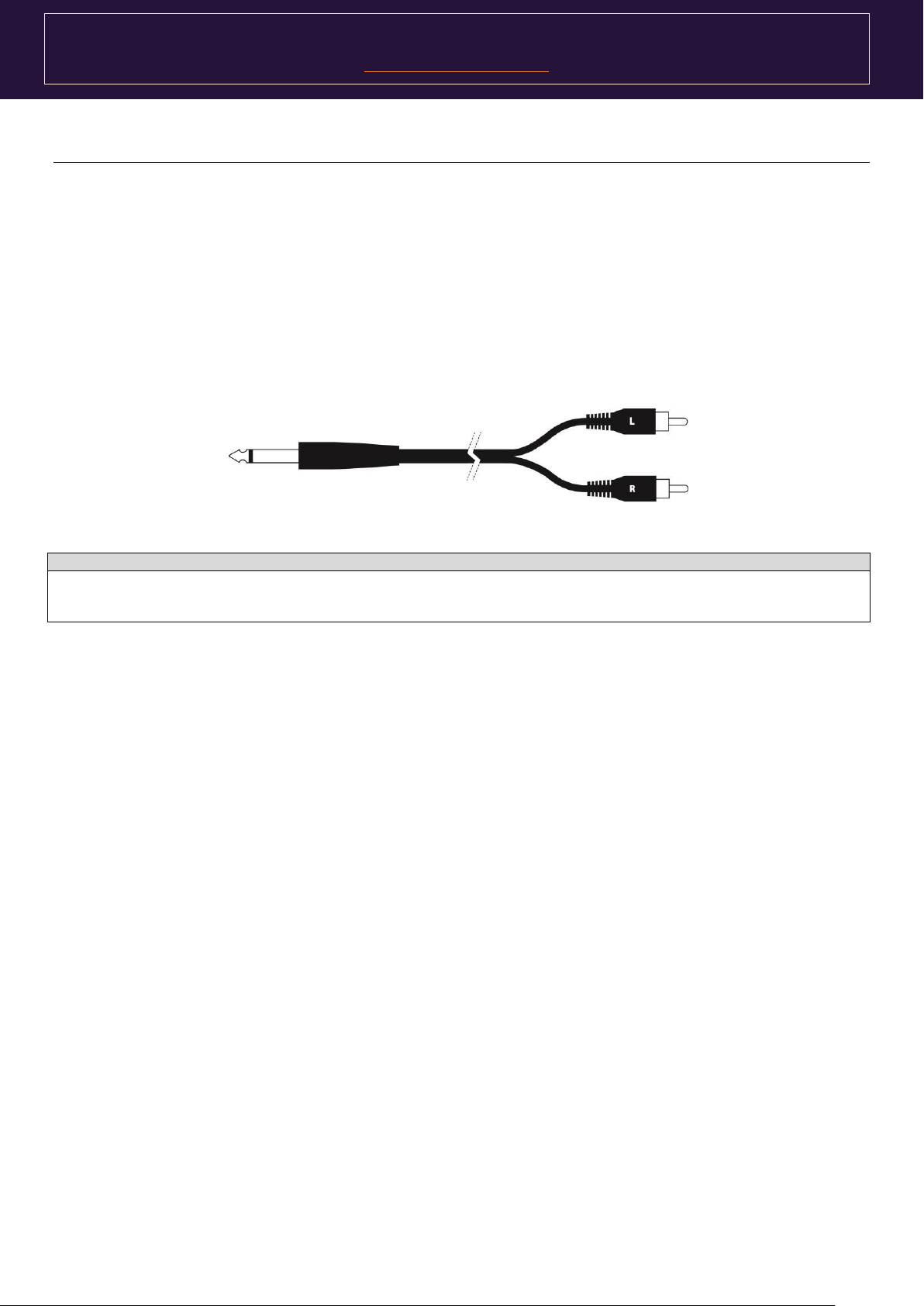

2. In you use the DUB DELAY with a DJ mixer, a [MONO JACK 6.35mm] to [2 x RCA (Cinch)] is
necessary.
Typical wiring
» section for a
3. Before powering the DUB DELAY, ensure that the Volume potentiometer is at the minimum
position. Put your DUB DELAY on, activate the trigger and progressively increase the volume until you have a sound.
4. Only use the provided power supply block.
Page 5
©
Copyright
2018
Klementz
.
All rights reserved
4
OVERVIEWS
FRONT PANEL OVERVIEW
BACK PANEL OVERVIEW
Page 6
©
Copyright
2018
Klementz
.
All rights reserved
5
FUNCTIONS
USAGE
DELAY TIME
Rotary potentiometer allowing setting the time between two repeats.
When in minimum setting (fully anti-clockwise), the time between two
repeats will be very short and thus the repeat time will be fast.
If it is at the maximum, the repeat time will be long and thus repeat
speed will be slow.
FEEDBACK
Rotary potentiometer allowing setting the gain between each repeat.
When set at minimum (full anti-clockwise), there will be only one repeat. When set at the maximum, the level will increase at each repeat.
DRY/WET
Rotary potentiometer allowing mixing between the effect (WET) and the original signal (DRY) that will be outputted.
If it is at the minimum (fully anti-clockwise), only the original signal
(DRY) will be outputted (on the AUDIO OUTPUT)
If set at maximum position, only the effected signal (WET) will be
outputted.
Between these two positions, a mix between DRY and WET will be on
the output of the machine.
FB CUT
Push button allowing cutting the feedback loop.
A short press on this button will insert a blank in the feedback loop. A long press will completely clear the feedback loop.
CUTOFF FILTER
This switch is used to set the cutoff frequency of the filter affecting each repeat.
FB CUT
CUTOFF
DELAY TIME
FEEDBACK
DRY/WET
CONTROLS & USE
FRONT PANEL
The table below explains the features of the controls above.
Page 7
©
Copyright
2018
Klementz
.
All rights reserved
6
FUNCTIONS
USAGE
AUDIO OUTPUT
6.35mm MONO JACK type unbalanced output connector (check the « Typical Wiring » section below).
AUDIO INPUT
6.35mm MONO JACK type unbalanced output connector (check the « Typical Wiring » section below).
DC JACK INPUT
DC JACK type power supply connector, with the following characteristics :
Centre positive Barrel type connector 2.5 x 5.5mm
ON/OFF SWITCH
Power On / Off switch.
When set in high position, the machine is not working (OFF) When set in low position, the machine is powered (ON)
AUDIO OUPUT
AUDIO INPUT
DC JACK INPUT
ON/OFF SWITCH

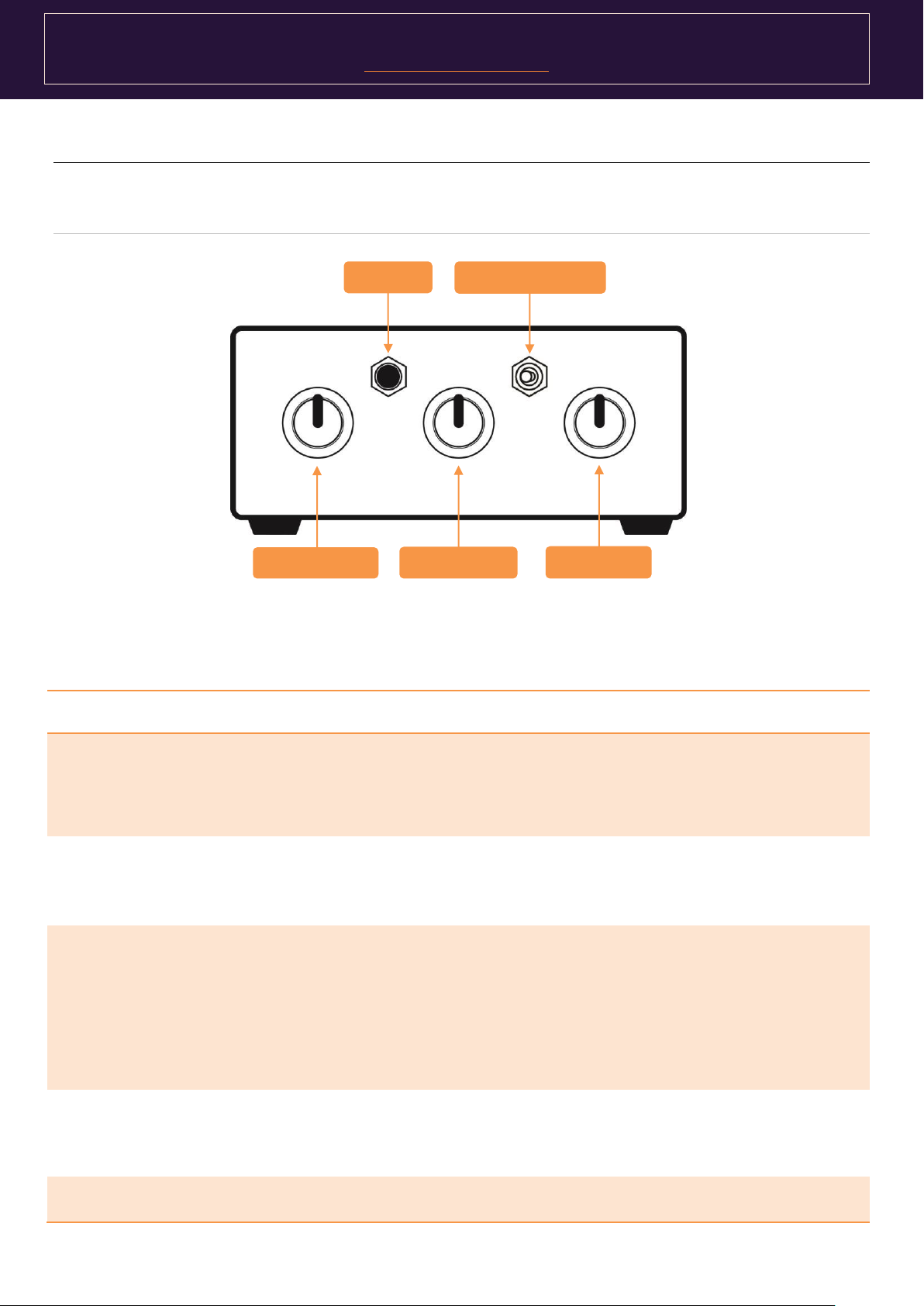

BACK PANEL
The table below explains the features of the connectors shown above.
Page 8
©
Copyright
2018
Klementz
.
All rights reserved
7
TYPICAL WIRING
INSERT MODE

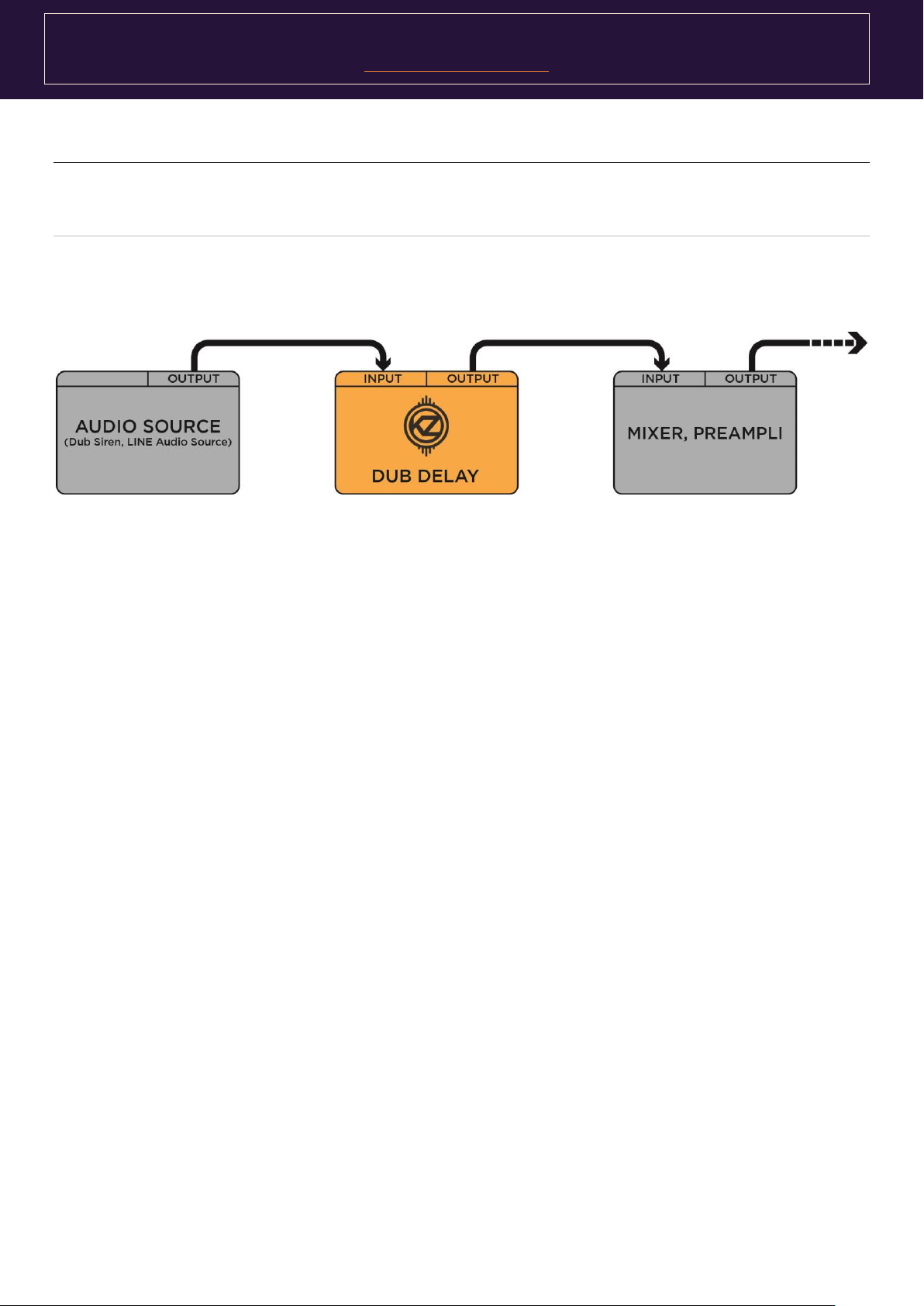

The simplest connection is the « Serial » one, meaning that the effect is inserted between the
source and the target. This example is drawn below:
This setup is the simplest, but does not allow using the effect on multiple sources in the same
time.
The “Dry/Wet” setting will allow, in this setup, to set the level of the effect and the level of the source signal. At the maximum position (fully clockwise), the setting will be on “Wet” and then the source signal will not be outputted anymore, on the contrary, in the “Dry” position, there will only be
the original source signal outputted, without effect.
Page 9
©
Copyright
2018
Klementz
.
All rights reserved
8
NOTE
In this setup, the “Dry/Wet” setting must be set at the maximum (fully clockwise), that is in the “Wet” position. Indeed the original signal must not be send into the mixing equipment because it is already
proceeding to the mix of the original sources signal on its “Master” way. Thus, the signal that is
outputted from the effect should only contain the effect signal WITHOUT the original signal.
EFFECT SEND/RETURN MODE
The effect loop wiring has the advantage of allowing the DUB DELAY to be used with multiple sources. In this way, effect can be added on multiple sources without having as many effect units as the number of sources you have. Only one effect unit can be used on multiple sources.

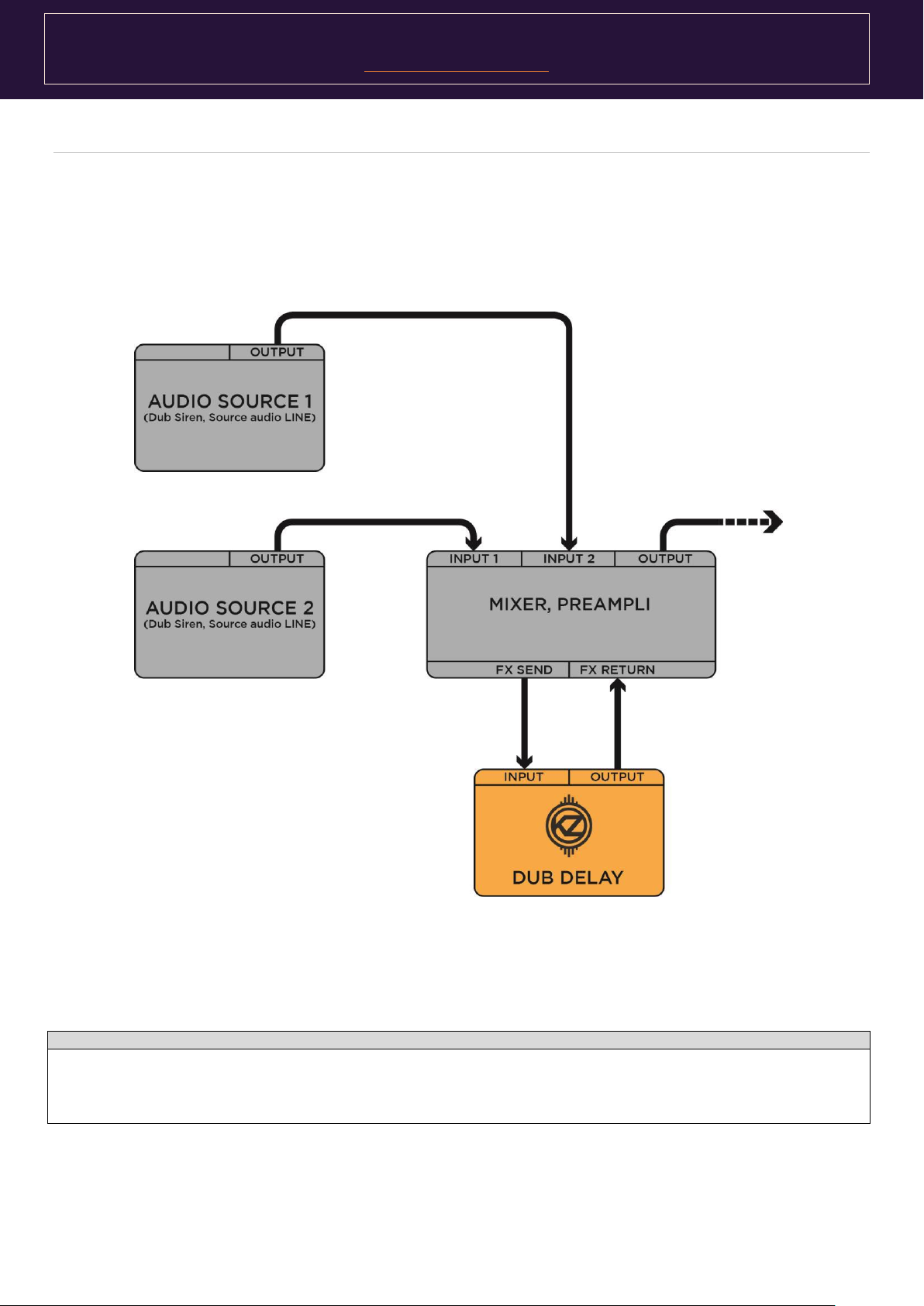

However, it is necessary to have a mixing equipment that has the Effect Loop feature (Effect Send [output] and Effect Return [input]). The wiring diagram for a such setup is presented below :
In this way, all the sources are mixed and managed directly by the mixing tool. It is the mixing
equipment that sends more or less of each source into the input of the effect by its “Effect Send”
output. It is then necessary to have a mixing desk have this feature to use it in such setup.
Page 10
©
Copyright
2018
Klementz
.
All rights reserved
9
POWER SUPPLY
12 VDC, Center positive, 2.5 x 5.5mm barrel type connector
CURRENT DRAW
Less than 200mA
AUDIO INPUT
1/4" unbalanced MONO Jack
AUDIO OUPUT
1/4" unbalanced MONO Jack
SIZE
127 x 106 x 47mm
TECHNICAL SPECIFICATIONS
Page 11
©
Copyright
2018
Klementz
.
All rights reserved
10
Designed and manufactured by
42 Rue de la Dutée
44800 Saint-Herblain
France
[email protected]
Made in France
