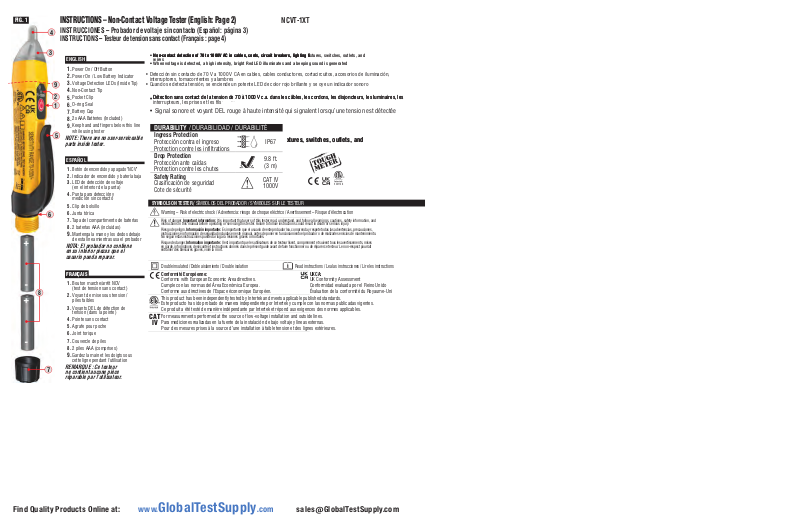

FIG. 1

INSTRUCTIONS – Non-Contact Voltage Tester (English: Page 2)

INSTRUCCIONES – Probador de voltaje sin contacto (Español: página 3)

4

INSTRUCTIONS –

Testeur de tension sans contact (Français : page 4)

NCVT-1XT

3

ENGLISH

Power On / Off Button

1.

Power On / Low Battery Indicator

2.

Voltage Detection LEDs (Inside Tip)

3.

9

Non-Contact Tip

4.

Pocket Clip

2

5.

O-ring Seal

6.

1

Battery Cap

7.

2x AAA Batteries (Included)

8.

Keep hand and fingers below this line

9.

while using tester

5

NOTE: There are no user-serviceable
parts inside tester.

ESPAÑOL

1.

Botón de encendido y apagado "NCV"

2. Indicador de encendido y batería baja

3. LED de detección de voltaje

(en el interior de la punta)

4. Punta para detección y

medición sin contacto

5. Clip de bolsillo

6. Junta tórica

6

7. Tapa del compartimento de baterías

8. 2baterías AAA (incluidas)

Mantenga la mano y los dedos debajo

9.

deesta línea mientras usa el probador

NOTA: El probador no contiene
en su interior piezas que el

• Non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting  xtures, switches, outlets, and

Non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting 

Non-contact detection of 70 to 1000V AC in cables, cords, circuit breakers, lighting 
wires

• When voltage is detected, a high intensity, bright Red LED illuminates and a beeping sound is generated

• Detección sin contacto de 70V a 1000V CA en cables, cables conductores, cortacircuitos, accesorios de iluminación,
interruptores, tomacorrientes y alambres

• Cuando se detecta tensión, se enciende un potente LED de color rojo brillante yse oye un indicador sonoro

Détection sans contact de la tension de 70 à 1000Vc.a. dans les câbles, les cordons, les disjoncteurs, les luminaires, les

Détection sans contact de la tension de 70 à 1000Vc.a. dans les câbles, les cordons, les disjoncteurs, les luminaires, les

Détection sans contact de la tension de 70 à 1000Vc.a. dans les câbles, les cordons, les disjoncteurs, les luminaires, les

•

interrupteurs, les prises et les fils

• Signal sonore et voyant DEL rouge à haute intensité qui signalent lorsqu’une tension est détectée

DURABILITY / DURABILIDAD / DURABILITÉ

Ingress Protection

Protección contra el ingreso

xtures, switches, outlets, and

xtures, switches, outlets, and

IP67

Protection contre les infiltrations

Drop Protection

Protección ante caídas
Protection contre les chutes

Safety Rating

Clasificación de seguridad
Cote de sécurité

SYMBOLS ON TESTER / SÍMBOLOS DEL PROBADOR / SYMBOLES SUR LE TESTEUR

Warning – Risk of electric shock / Advertencia: riesgo de choque eléctrico / Avertissement – Risque d'électrocution

Risk of danger. Important information: It is important that users of this tester read, understand, and follow all warnings, cautions, safety information, and
instructions in this manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.

Riesgo de peligro. Información importante: Es importante que el usuario de este probador lea, comprenda y respete todas las advertencias, precauciones,
instrucciones e información de seguridad incluidas en este manual, antes de poner en funcionamiento el probador o de realizarle servicios de mantenimiento.
No seguir estas instrucciones puede dar lugar a lesiones graves o mortales.

Risque de danger. Information importante: Il est important que les utilisateurs de ce testeur lisent, comprennent et suivent tous les avertissements, mises
en garde, informations de sécurité et instructions donnés dans le présent guide avant de faire fonctionner ou de réparer ce testeur. Le non-respect pourrait
entraîner des blessures graves, voire la mort.

9.8 ft.
(3 m)

CAT IV
1000V

5001748

usuario pueda reparar.

Double insulated / Doble aislamiento / Double isolation Read instructions / Lea las instrucciones / Lire les instructions

FRANÇAIS

1. Bouton marche/arrêt NCV

8

7

(test de tension sans contact)

2. Voyant de mise sous tension/

piles faibles

3. VoyantsDEL de détection de

tension(dans la pointe)

4. Pointe sans contact

5. Agrafe pour poche

6. Joint torique

7. Couvercle de piles

8. 2pilesAAA (comprises)

Gardez la main et les doigts sous

9.

cetteligne pendant l'utilisation

REMARQUE: Ce testeur
ne contient aucune pièce

Conformité Européenne:

Conforms with European Economic Area directives.
Cumple con las normas del Área Económica Europea.
Conforme aux directives de l’Espace économique Européen.

This product has been independently tested by Intertek and meets applicable published standards.
Este producto ha sido probado de manera independiente por Intertek y cumple con las normas publicadas vigentes.
Ce produit a été testé de manière indépendante par Intertek et répond aux exigences des normes applicables.

For measurements performed at the source of low-voltage installation and outside lines.

CAT

Para mediciones realizadas en la fuente de la instalación de bajo voltaje y líneas externas.

IV

Pour des mesures prises à la source d’une installation à faible tension et des lignes extérieures.

UKCA:

UK Conformity Assessment
Conformidad evaluada porelReino Unido
Évaluation de la conformité du Royaume-Uni

réparable par l’utilisateur.

Find Quality Products Online at: [e-mail]

www.GlobalTestSupply.com

ENGLISH

detect voltage if:

attempt to repair this tester. It contains no serviceable parts.

expose tester to extremes in temperature or high humidity.

GENERAL SPECIFICATIONS

The Klein Tools NCVT-1XT is a durable 70 to 1000V AC non-contact
voltage tester with IP67 rating and a 3m (9.8') drop protection.

• Environment: Indoor

• Measurement Range: 70 to 1000V AC

• Frequency Range: 50 to 500 Hz

• Batteries: 2x AAA 1.5V Alkaline

• Operating and Storage Altitude: Up to 6562 ft. (2000 m)

• Operating and Storage Temp: 14° to 122°F (-10° to 50°C)

• Relative Humidity: <95% non-condensing

• Dimensions: 5.34" x 1.08" x 0.97" (135.6 x 27.4 x 22.1 mm)

• Weight: 1.65 oz (46.7 g) with batteries

• Pollution degree: 2

• Safety Rating: CAT IV 1000V AC

• Drop Protection: 9.8 ft. (3 m)

• Ingress Protection: IP67

• Standards: EN61010-1:2010+A1: 2019,

EN IEC 61010-2-030:2021+A11:2021.
Conforms to UL STD. 61010-1, 61010-2-030

5001748

Certi ed to CSA STD. C22.2 No. 61010-1, 61010-2-030.

Specifications subject to change.

WARNINGS

To ensure safe operation and service of the tester, follow these
instructions. Failure to observe these warnings can result in severe
injury or death.

• Risk of electric shock and burn. Contact with live circuits could result in death
or serious injury.

• Use caution with voltages above 25V AC as a shock hazard may exist.

• A blinking LED or a steadily illuminated LED in the tip and audible beeps
indicate presence of voltage. If no indication, voltage could still be present.

NCV POWER ON/OFF BUTTON

Press and release the NCV Power button 1. The tester will emit a
single beep, the Power On Indicator 2 and green LED 3 in the tip
will illuminate. To power-OFF the tester, press and release the Power
On / Off button 1. The tester will emit a double beep.

NOTE: The tester will automatically power-OFF following 4 minutes of
inactivity to conserve battery life.

• Before and after each use, verify operation by testing a known working circuit
that is within the rating of this unit.

• Never assume neutral or ground wires are de-energized. Neutrals in multi­wire branch circuits may be energized when disconnected and must be
retested before handling.

• The tester WILL NOT detect voltage if:WILL NOT

WILL NOT

• The wire is shielded.

• The operator is not grounded or is otherwise isolated from an effective
earth ground.

• The voltage is DC.

• The tester MAY NOT detect voltage if:

• The user is not holding the tester.

• The user is insulated from the tester with a glove or other materials.

• The wire is partially buried or in a grounded metal conduit.

• The tester is at a distance from the voltage source.

• The field created by the voltage source is being blocked, dampened, or

CHECKING FOR THE PRESENCE OF AC VOLTAGE

1. Press the Power On / Off button. After performing a self-test, a
green LED3 will illuminate the tip when no voltage is detected.

2. Prior to use, test on a known live circuit to verify tester
functionality.

3. Place tip of the tester4 near AC voltage. If voltage is present,
the unit will emit audible beeps and the red LED3 in the tip will
illuminate.

SILENT OPERATION

To activate silent operation, power-ON by pressing and holding the
NCV Power-ON button 1 for more than 2 seconds. Power-ON in this
manner each time silent operation is desired.

otherwise interfered with.

• The frequency of the voltage is not a perfect sine wave between 50 and
500Hz.

• The tester is outside of operating conditions (listed in Specifications
section).

• Operation may be affected by differences in socket design and insulation
thickness and type; tester may not be compatible with some types of standard
or tamper resistant (TR) electrical outlets.

• In bright light conditions, the LED visual indicators will be less visible.

BATTERY REPLACEMENT

When the battery is low, the unit will power-on with a blinking red
LED2. When this happens, the batteries must be replaced:

1. Unscrew the battery cap7and remove/recycle spent batteries.

2. Install two new AAA batteries. Note proper polarity.

3. Screw battery cap tightly to ensure a tight seal with the O-Ring6.

• When powered-ON, one of the “power-ON” LED’s will be illuminated, and a
green light will illuminate the tip.

“POWER-ON” LEDs IS ILLUMINATED.

• Do not use if tester appears damaged or is not operating properly. If in doubt,

DO NOT USE TESTER UNLESS ONE OF THE

Be sure tester is turned off and wipe with a clean, dry lint-free

Do not use abrasive cleaners or solvents.

cloth.

replace the tester.

• Do not apply more than the rated voltage as marked on the tester (1000V).

• Do not apply to uninsulated hazardous live conductors.

• Detection above 70V AC is specified under "normal" conditions as detailed
below. The tester may detect at a different threshold at different conditions, or
may not detect at all unless:

• The tip of the tester is within 0.25" (6 mm) of an AC voltage source radiating

Remove the batteries when not in use for a prolonged period
of time. Do not expose to high temperatures or humidity. After
a period of storage in extreme conditions exceeding the limits
mentioned in the General Specifications section, allow the tester to
return to normal operating conditions before using.

unimpeded.

• The user is holding the body of the tester with his or her bare hand.

• The user is standing on or connected to earth ground.

• The air humidity is nominal (50% relative humidity – non-condensing).

• The tester is held still.

See this product’s page at www.kleintools.com for FCC compliance
information.

Canada ICES-003 (B) / NMB-003 (B)

• Always wear approved eye protection.

• Comply with local and national safety requirements.

• If this product is used in a manner not specified by the manufacturer,

protection provided by the product may be affected.

CAUTION

• DO NOT attempt to repair this tester. It contains no serviceable parts.DO NOT

DO NOT

• DO NOT expose tester to extremes in temperature or high humidity.DO NOT

DO NOT

FUNCTION BUTTONS

1

OPERATING INSTRUCTIONS

MAINTENANCE

CLEANING

STORAGE

FCC AND IC COMPLIANCE

DISPOSAL / RECYCLE

Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with local
