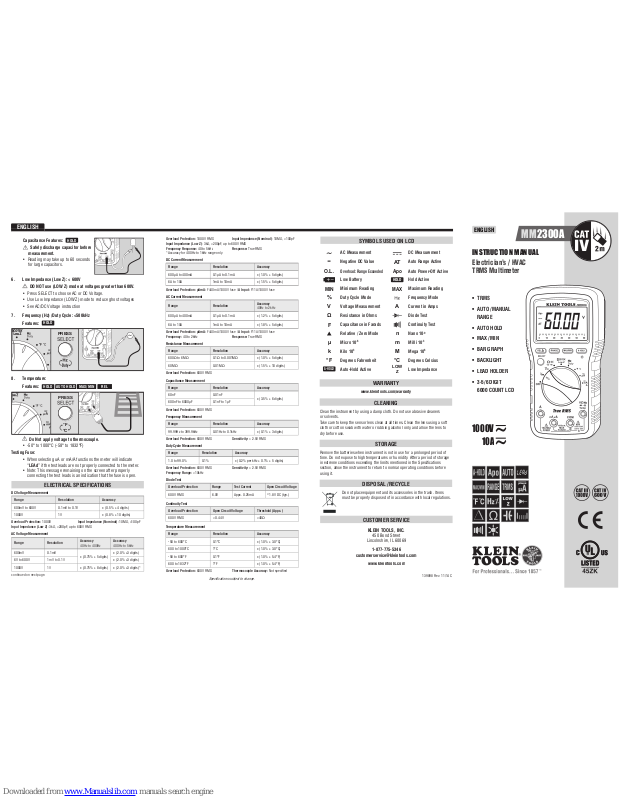

CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139898 Rev. 11/14 C
139898 Rev. 11/14 C
ENGLISH
•
TRMS
AUTO / MANUAL
RANGE
•
AUTO HOLD
•
MAX / MIN
•
BAR GRAPH
BACKLIGHT
LEAD HOLDER
•
3-5/6 DIGIT
6000 COUNT LCD
ENGLISH
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
600mV to 600V
0.1mV to 0.1V
± (0.5% + 4 digits)
1000V
± (0.8% + 10 digits)
Overload Protection:
1000V
Input Impedance (Nominal)
: 10MΩ, <100pF
Input Impedance (Low Z)
: 3kΩ, <200pF, up to 600V RMS
AC Voltage Measurement
Range Resolution
Accuracy
40Hz to 400Hz
Accuracy
400Hz to 5kHz
600mV
0.1mV
± (0.75% + 5 digits)
± (2.0% +3 digits)
6V to 600V
1mV to 0.1V
± (2.0% +3 digits)
1000V
1V
± (0.75% + 8 digits)
± (2.0% +3 digits)*
continued on next page.
Overload Protection:
1000V RMS
Input Impedance (Nominal):
10MΩ, <100pF
Input Impedance (Low Z)
: 3kΩ, <200pF, up to 600V RMS
Frequency Response:
40 to 5kHz
Response:
True RMS
*Accuracy for 400Hz to 1kHz range only.
DC Current Measurement
Range Resolution Accuracy
600µA to 400mA
0.1µA to 0.1mA
± (1.0% + 5 digits)
6A to 10A
1mA to 10mA
± (1.5% + 5 digits)
Overload Protection: µAmA: F440mA/1000V fuse / A Input: F11A/1000V fuse
AC Current Measurement
Range Resolution
Accuracy
40Hz to 2kHz
600µA to 400mA
0.1µA to 0.1mA
± (1.2% + 5 digits)
6A to 10A
1mA to 10mA
± (1.8% + 5 digits)
Overload Protection: µAmA: F440mA/1000V fuse / A Input: F11A/1000V fuse
Frequency:
40 to 2kHz
Response:
True RMS
Resistance Measurement
Range Resolution Accuracy
600Ω to 6MΩ0.1Ω to 0.001M
Ω
± (1.0% + 5 digits)
60M
0.01M
± (1.5% + 10 digits)
Overload Protection:
600V RMS
Capacitance Measurement
Range Resolution Accuracy
60nF
0.01nF
± (3.5% + 6 digits)
600nF to 6000µF
0.1nF to 1µF
Overload Protection:
600V RMS
Frequency Measurement
Range Resolution Accuracy
99.99Hz to 399.9kHz
0.01Hz to 0.1kHz
± (0.1% + 3 digits)
Overload Protection:
600V RMS
Sensitivity:
> 2.5V RMS
Duty Cycle Measurement
Range Resolution Accuracy
1.0 to 99.0%
0.1%
± (0.2% per kHz + 0.1% + 5 digits)
Overload Protection:
600V RMS
Sensitivity:
> 2.5V RMS
Frequency Range:
<10kHz
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
600V RMS
6.0V
Appx. 0.25mA
<
1.8V DC (typ.)
Continuity Test
Overload Protection Open Circuit Voltage Threshold (Appx.)
600V RMS
<
0.44V
<40
Ω
Temperature Measurement
Range Resolution Accuracy
-50 to 600°C
0.1°C
± (1.0% + 3.0°C)
600 to 1000°C
1°C
± (1.0% + 3.0°C)
-58 to 600°F
0.1°F
± (1.0% + 5.4°F)
600 to 1832°F
± (1.0% + 5.4°F)
Overload Protection:
600V RMS
Thermocouple Accuracy:
Not specified
Specifications subject to change.
Do Not apply voltage to thermocouple.
•
-50° to 1000°C (-58° to 1832°F)
8. Temperature:
Features:
Testing Fuse:
•
When selecting uA or mA/A functions the meter will indicate
LEAd
” if the test leads are not properly connected to the meter.
•
Note: This message remaining on the screen after properly
connecting the test leads is an indication that the fuse is open.
7. Frequency (Hz) / Duty Cycle: <500kHz
Features:
HOLD
6. Low Impedance (Low Z): < 600V
DO NOT use (LOW Z) mode at voltages greater than 600V.
•
Press SELECT to choose AC or DC Voltage.
•
Use Low Impedance (LOW Z) mode to reduce ghost voltages
See AC/DC Voltage instruction
Capacitance Features:
HOLD
Safely discharge capacitor before
measurement.
•
Reading may take up to 60 seconds
for large capacitors.
AUTO HOLD
MAX/MIN REL
HOLD
SYMBOLS USED ON LCD
AC Measurement
DC Measurement
Negative DC Value
AT
Auto Range Active
O
.L.
Overload: Range Exceeded
Apo
Auto Power-Off Active
Low Battery
HOLD
Hold Active
MIN
Minimum Reading
M
AX
Maximum Reading
%
Duty Cycle Mode Frequency Mode
V
Voltage Measurement
A
Current in Amps
Resistance in Ohms Diode Test
F
Capacitance in Farads Continuity Test
Relative / Zero Mode
n
Nano 10
-9
µ
Micro 10
-6
Milli 10
-3
Kilo 10
3
Mega 10
6
Degrees Fahrenheit
°C
Degrees Celsius
A-HOLD
Auto-Hold Active
LOW
Low Impedance
WARRANTY
www.kleintools.com/warranty
CLEANING
Clean the instrument by using a damp cloth. Do not use abrasive cleaners
or solvents.
Take care to keep the sensor lens clean at all times. Clean the lens using a soft
cloth or cotton swab with water or rubbing alcohol only, and allow the lens to
dry before use.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items
must be properly disposed of in accordance with local regulations.
1000V
10A
PRESS
PRESS
°F
°C
MM2300A
INSTRUCTION MANUAL
Electrician’s / HVAC
TRMS Multimeter
ENGLISH

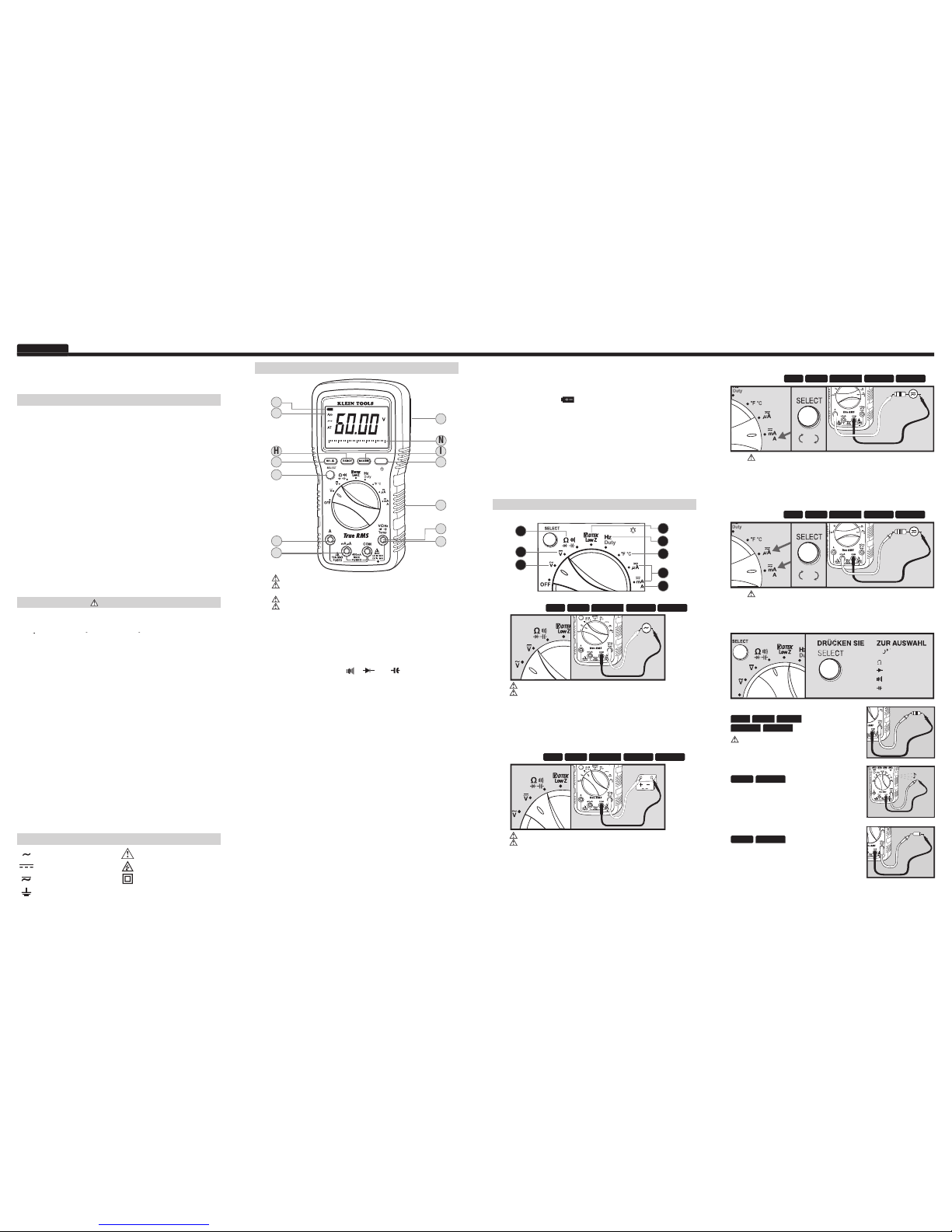

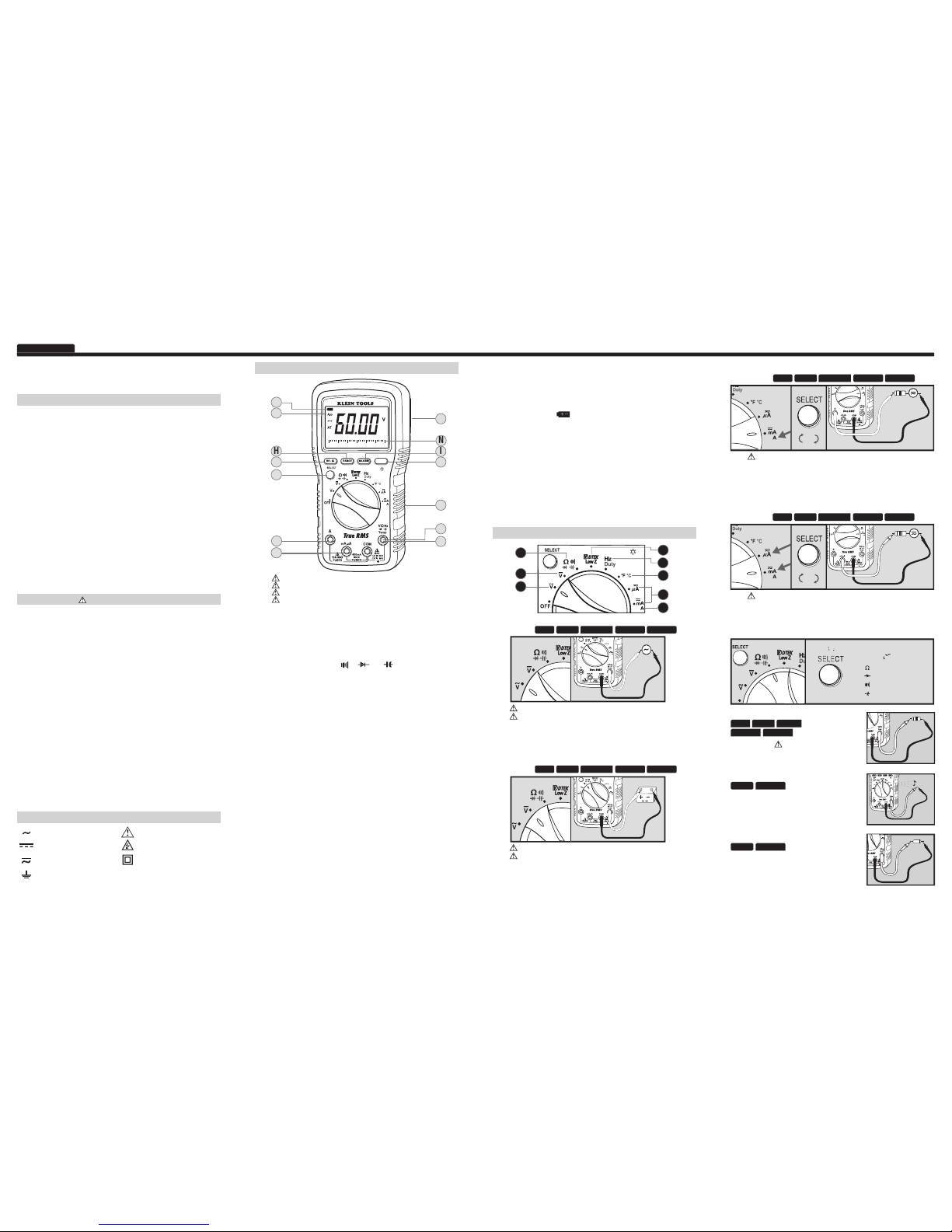

FEATURE DETAILS
MM2300A
Instruction Manual
Do not attempt to measure more than 1000V.
Do not attempt to measure more than 600V on (LOW Z) setting.
C.
Do not attempt to measure more than 400mA.
Do not attempt to measure more than 10A.
E. Auto Power-Off (Apo)
Device will power off after 30 minutes non-use.
Press the select button to wake.
Disabled during Max/Min function.
Holding Select button while turning on disables Auto Power-Off.
F. Select Functionality Button
•
Switch between AC and DC.
•
Switch between “
Ω
”, “
”, “
”, and “
”.
Switch between Hz and %.
Switch between °F and °C.
Wake meter during Auto Power Off.
G. Relative Reading Mode
Press to store current value.
Display shows the difference between the stored and live readings.
Press again to return to live reading.
H. Auto / Manual Range
Press repeatedly to cycle through manual ranges.
Press for 2 seconds to return to auto ranging mode.
AT is displayed on LCD only during auto ranging mode.
I. Max/Min Hold
Press to enter Max/Min mode; the largest and smallest values will be
saved while in this mode.
Press repeatedly to alternative between the maximum and minimum
readings.
Press for 2 seconds to return to live reading and clear the stored
maximum and minimum values.
J. Hold/Auto Hold/Backlight
•
Hold captures the current displayed value.
Auto Hold captures the first stable displayed value, until a new stable
value is measured. The meter will then capture the new value and emit
a beep (V, Ohm, Temperature and Amp functions).
Press to hold current input on the display.
•
Press again to enter Auto-Hold to capture stable values.
Press again to return to normal operation.
•
Press and hold to activate display backlight.
Using lights drains the battery significantly.
K. L. Battery/Fuse Replacement
When
indicator is displayed on the LCD, batteries must be replaced.
•
Remove rubber boot, back screw and replace 2 x AAA batteries.
This meter uses 440mA/1000V (69192) and 11A/1000V (69191)
fast blow fuses.
M. Magnetic Hanger Accessory
(Optional, sold separately)
•
Slide magnetic adapter into protective rubber boot.
Attach instruments to metal for hands-free use.
N. Bar Graph
The bar graph shows an approximate analog representation
of a measurement.
•
The bar graph responds much faster than the digital display.
The scale of the bar graph is zero to the maximum reading of
the selected range.
FUNCTION INSTRUCTIONS
1. AC Voltage: <1000V. (Low Z) < 600V
Features:
AUTO HOLD MAX/MINRANGEHOLDREL
DO NOT
attempt to measure more than 1000V
DO NOT use (LOW Z) mode at voltages greater than 600V.
•
Use Low Impedance (LOW Z) mode to reduce ghost voltages.
•
Rotate selector to "AC" Voltage position.
•
Attach red lead to “V” input.
2. DC Voltage: <1000V. (Low Z) < 600V
Features:
AUTO HOLD MAX/MINRANGEHOLDREL
4. AC/DC Current (small): < 400mA
Features:
AUTO HOLD
MAX/MINRANGE
HOLD
REL
DO NOT
attempt to measure more than 400mA.
•
Attach red lead to “mAμA” input.
•
Select AC or DC current source.
5. Resistance/Diode/Continuity/Capacitance
AUTO/HOLD
0 10 20 30 40 50 60
MM2300A
®
C
E
A
G
F
HJI
M
L
B
AUTO/HOLD
0102030405060
MM2300
®
5
1
8
3
4
6
7
2
DO NOT
attempt to measure more than 10A.
Start with this setting if current level is unknown.
Meter will automatically select "A" when red lead is connected to
"A" input. “
LEAd
” will show if connected but fuse is blown.
3. AC/DC Current (large): <10A
Features:
AUTO HOLD MAX/MINRANGEHOLDREL
DO NOT
attempt to measure more than 1000V.
DO NOT use (LOW Z) mode at voltages greater than 600V.
Use Low Impedance (LOW Z) mode to reduce ghost voltages.
•
Rotate selector to "DC" Voltage position.
•
Attach red lead to “V” input.
GENERAL SPECIFICATIONS
The Klein Tools MM2300A is an auto-ranging multimeter. It measures AC/
DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle,
and temperature. It can also test diodes and continuity.
•
Operating Altitude: 2000 m (6,562 ft.)
•
Relative Humidity: <75%
•
Operating Temperature: 0°C to 50°C (32°F to 122°F)
•
Storage temperature: -20°C to 60°C (-4°F to 140°F) <80% R.H.
•
Accuracy Temperature: 18°C to 28°C (64°F to 82°F)
•
Temperature Coef cient: 0.1*(specified accuracy)/ °C
•
Sampling Frequency: 3 samples per second
•
Dimensions: 178 mm x 89 mm x 48 mm (7" x 3.5" x 1.9")
•
Weight: 397 g (14 oz.)
•
Calibration: Accurate for one year
•
Accuracy: ± (% of reading + # of least significant digits)
•
Ingress Protection: IP20 Certified
•
Drop Protection: 2 m (6.6 ft.)
•
Safety Rating: CAT III 1000V, CAT IV 600V
•
Electromagnetic Environment: EN61326-1:2013 This equipment
meets requirements for use in basic and controlled electromagnetic
environments like residential properties, business premises, and
light-industrial locations.
Specifications subject to change.
WARNINGS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe theses warnings can result in severe injury or death.
•
Before each use, verify meter operation by measuring a known
voltage or current.
•
Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
•
Do not use the meter during electrical storms, or in wet weather.
•
Do not use the meter or test leads if they appear to be damaged.
•
Ensure meter leads are fully seated, and keep fingers away from the
metal probe contacts when making measurements.
•
Do not open the meter to replace batteries or fuses while the probes
are connected.
•
Use caution when working with voltages above 60V DC, or 25V AC
RMS. Such voltages pose a shock hazard.
•
To avoid false readings that can lead to electrical shock, replace
batteries if a low battery indicator appears.
•
Unless measuring voltage or current, shut off and lock out power
before measuring resistance or capacitance.
•
Always adhere to local and national safety codes. Use individual
protective equipment to prevent shock and arc blast injury where
hazardous live conductors are exposed.
SYMBOLS
AC Alternating Current Warning or Caution
DC Direct Current Dangerous levels
DC/AC Voltage or Current Double Insulated Class II
Ground
PRESS TO SELECT
Resistance
Diode
Continuity
Capacitance
MAX/MINHOLD
MAX/MINHOLD
HOLDREL
RANGE MAX/MIN
A- HOLD
measure resistance on a live circuit.
= < 60MΩ
www.kleintools.com
AUTOMÁTICO/
AUTORETENCIÓN
ESPAÑOL
Rango Resolución Precisión
Protección contra sobrecarga:
1000V
Impedancia de entrada (Nominal)
Impedancia de entrada (Low Z)
Rango Resolución
Precisión
40Hz a 400Hz
Precisión
400Hz a 5kHz
1mV a 0,1V
1V
Continúa en la página siguiente.
Protección contra sobrecarga:
1000V RMS
Impedancia de entrada (Nominal):
10MΩ, < 100pF
Impedancia de entrada (Low Z)
Respuesta de frecuencia:
40Hz a 5kHz
Respuesta:
RMS real
Rango Resolución Precisión
Protección contra sobrecarga: µAmA: Fusible F440mA/1000V/Entrada A: Fusible F11 A/1000 V
Rango Resolución
Precisión
40Hz a 2kHz
Protección contra sobrecarga: µAmA: Fusible F440mA/1000V/Entrada A: Fusible F11 A/1000 V
Frecuencia:
40Hz a 2kHz
Respuesta:
RMS real
Rango Resolución Precisión
Protección contra sobrecarga:
600VRMS
Rango Resolución Precisión
Protección contra sobrecarga:
Rango Resolución Precisión
Protección contra sobrecarga:
600V RMS
Sensibilidad:
> 2,5V RMS
Rango Resolución Precisión
Protección contra sobrecarga:
600V RMS
Sensibilidad:
Intervalo de frecuencia:
< 10kHz
Protección contra
sobrecarga
Rango Corriente de prueba
Voltaje de circuito
abierto
Aprox. 0,25mA
1,8VDC (típ.)
Protección contra
sobrecarga
Voltaje de circuito abierto Umbral (aprox.)
Rango Resolución Precisión
Protección contra sobrecarga:
600V RMS
Precisión del termopar:
no especificada
NO aplique voltaje al termopar.
•
AUTO HOLD
MAX/MIN REL
HOLD
•
•
HOLD
NO utilice el modo de baja impedancia (LOW Z)
•
•
fantasmas.
•
Funciones de capacitancia:
HOLD
Descargue el capacitor de manera
•
Medición de CA Medición de CD
Valor negativo de CD
AT
Rango automático
activo
Sobrecarga: rango
excedido
Apo
Apagado automático
activo
Batería baja
HOLD
Retención activa
Lectura mínima
Lectura máxima
Modo Ciclo de servicio Modo Frecuencia
Medición de voltaje
Corriente en amperios
Resistencia en ohmios Prueba de diodo
Capacitancia en faradios Prueba de continuidad
Modo relativo/cero
nano 10
-9
micro 10
-6
mili 10
-3
kilo 10
3
Mega 10
6
Grados Fahrenheit
Grados Celsius
A-HOLD
Autorretención activa
Z
Baja impedancia
www.kleintools.com/warranty
ALMACENAMIENTO
1000 V
10 A
MM2300A
Loading...
