Klein Tools MM100 User Manual

Digital Multimeter Fuse Replacement
BEFORE YOU START
1. Obtain the correct replacement fuse kit a. MM100 Replacement Fuse Kit – Part #: 69193 b. MM200 Replacement Fuse Kit – Part #: 69194 c. MM1000/1300/2000/2300/6000 F 440mA/1000V Fuse – Part #: 69192 d. MM1000/1300/2000/2300/6000 F 11A/1000V Fuse – Part #: 69191
2. Required Tools a. Small Phillips screwdriver – No. 1 Phillips
FUSE REPLACEMENT PROCEDURE (MM100 & MM200)
1. Ensure the meter is in the Off position and the unit is face up with the bottom of the unit facing away from you
2. Remove the rubber boot: a. Begin with the bottom of the unit and remove the bottom corners of the orange boot b. Next, remove the lip of the orange boot from the groove on each side of the meter c. Carefully remove the orange boot to prevent tearing as the boot may stick to the meter
(2a) (2b)
(2c) (2c)
Digital Multimeter Fuse Replacement
F10A
(MM100 & MM200)
F400mA
(MM200)
F250mA
(MM100)
(3a)
(3b)
(3b)
3. With the boot completely off: a. Remove the batter cover screw, disconnect and remove the battery b. Remove the two rear case cover screws c. Carefully separate the front and rear cases starting with the bottom of the unit. Note: the top of the unit
is secured with plastic tabs. Use care when sliding the top of the two cases apart
(3c)
4. Remove and replace defective fuses
(4)
Digital Multimeter Fuse Replacement
FUSE REPLACEMENT PROCEDURE (MM1000/MM1300/MM2000/MM2300/MM6000)

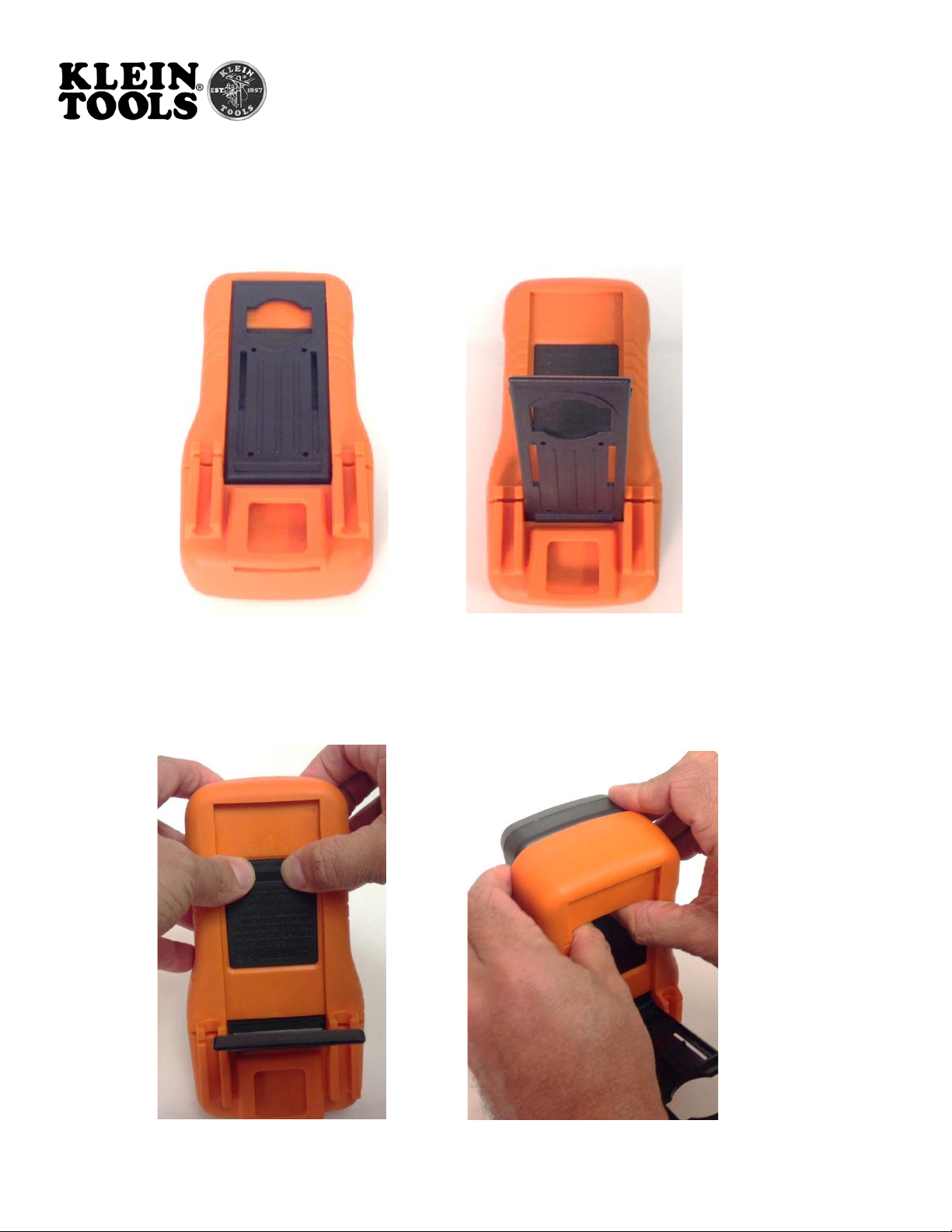

1. Ensure the meter is in the Off position. a. Place the unit face down with the bottom of the unit facing away from you b. Extend the meter kickstand
2. To remove the rubber boot: a. Place your thumbs on the back of the unit with your fingers firmly on the boot corners. b. While pulling back on the corners, press your thumbs against the unit, and continue until the boot is
completely removed.
(1a) (1b)
(2a) (2b)
Digital Multimeter Fuse Replacement
F11A
F440mA
3. Remove battery/fuse cover screw and battery door.
4. Remove and replace defective fuse.
(3) (4)
KLEIN TOOLS METER SUPPORT
Please contact Klein Tools Meter Support with any question at 1-877-775-5346.
