KLEIN TOOLS KLT NCVT-3P, KLT NCVT2P Datasheet [de]

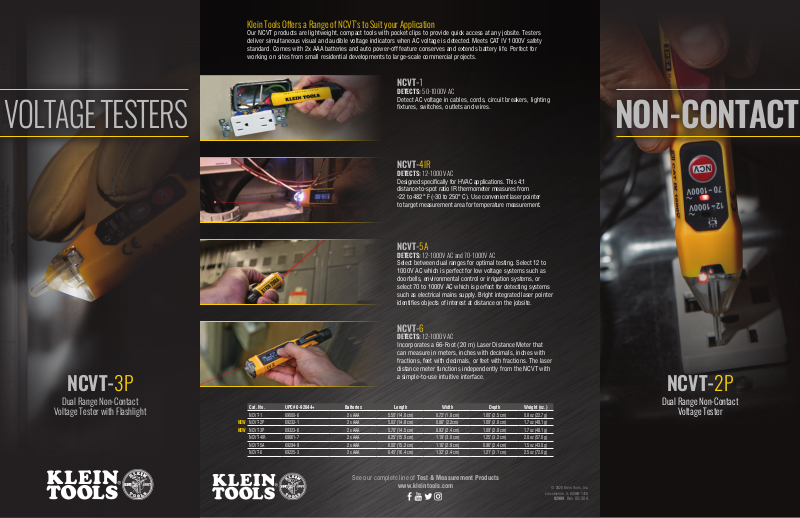

Klein Tools Oers a Range of NCVT’s to Suit your Application

Our NCVT products are lightweight, compact tools with pocket clips to provide quick access at any jobsite. Testers
deliver simultaneous visual and audible voltage indicators when AC voltage is detected. Meets CAT IV 1000V safety
standard. Comes with 2x AAA batteries and auto power-off feature conserves and extends battery life. Perfect for
working on sites from small residential developments to large-scale commercial projects.

NCVT-1

DETECTS: 50-1000V AC

Detect AC voltage in cables, cords, circuit breakers, lighting
fixtures, switches, outlets and wires.

VOLTAGE TESTERS

NON-CONTACT

NCVT-4IR

DETECTS: 12-1000V AC

Designed specifically for HVAC applications. This 4:1
distance-to-spot ratio IR thermometer measures from

-22 to 482° F (-30 to 250° C). Use convenient laser pointer
to target measurement area for temperature measurement.

NCVT-5A

DETECTS: 12-1000V AC and 70-1000V AC

Select between dual ranges for optimal testing. Select 12 to
1000V AC which is perfect for low voltage systems such as
doorbells, environmental control or irrigation systems, or
select 70 to 1000V AC which is perfect for detecting systems
such as electrical mains supply. Bright integrated laser pointer
identifies objects of interest at distance on the jobsite.

NCVT-3P

Dual Range Non-Contact

Voltage Tester with Flashlight

NCVT-6

DETECTS: 12-1000V AC

Incorporates a 66-Foot (20 m) Laser Distance Meter that
can measure in meters, inches with decimals, inches with
fractions, feet with decimals, or feet with fractions. The laser
distance meter functions independently from the NCVT with
a simple-to-use intuitive interface.

Cat. No. UPC# 0-92644+ Batteries Length Width Depth Weight (oz.)

NCVT-1 69000-6 2 x AAA 5.50" (14.0 cm) 0.72" (1.8 cm) 1.00" (2.5 cm) 0.8 oz (22.7 g)

NEW NCVT-2P 69232-1 2 x AAA 5.83" (14.8 cm) 0.86" (2.2cm) 1.09" (2.8 cm) 1.7 oz (48.1 g)
NEW NCVT-3P 69323-6 2 x AAA 5.70" (14.5 cm) 0.93" (2.4 cm) 1.09" (2.8 cm) 1.7 oz (48.1 g)

NCVT-4IR 69061-7 2 x AAA 6.25" (15.9 cm) 1.19" (3.0 cm) 1.25" (3.2 cm) 2.0 oz (57.0 g)
NCVT-5A 69294-9 2 x AAA 6.00" (15.2 cm) 1.16" (2.9 cm) 0.96" (2.4 cm) 1.5 oz (43.0 g)
NCVT-6 69225-3 2 x AAA 6.45" (16.4 cm) 1.32" (3.4 cm) 1.21" (3.1 cm) 2.5 oz (72.0 g)

See our complete line of Test & Measurement Products

www.kleintools.com

Lincolnshire, IL 60069-1418

NCVT-2P

Dual Range Non-Contact

Voltage Tester

© 2020 Klein Tools, Inc.

82909 Rev. 05/20 A

NCVT-2P

DUAL RANGE NON-COTACT VOLTAGE TESTER

NCV Sensing Tip

Flashlight

NCVT-3P

DUAL-RANGE NON-CONTACT VOLTAGE TESTER WITH FLASHLIGHT

The NCVT-2P is a dual range non-contact
voltage tester. The NCVT detects voltage from
70 to 1000V AV (in Range 1) or 12 to 1000V
AC (in Range 2). Updated screw-cap battery
compartment, heavy-duty pocket clip, and
recessed buttons increase product durability.
Enhanced LED interface makes the product
easy-to-understand; light indicator clearly
marks range being used for testing.

70 – 1000V AC

DUAL-RANGE

12 – 1000V AC

CAT IV

2 m IP54

1000V

NCVT-2P

Enhanced LED

Interface

Flashlight Power

On/Off Button

NCV Power

On/Off Button

Heavy-Duty
Pocket Clip

2x AAA
Included

Threaded Battery Cap

FEATURES

NCVT-3P

The NCVT-3P is a dual range non-contact voltage
tester with an integrated flashlight that can be used
indepentendent of the voltage detection function. The
NCVT can be set to detect voltage from 70 to 1000V AV
(in Range 1) or 12 to 1000V AC (in Range 2). Enhanced
LED interface makes the product easy-to-understand;
light indicator clearly marks range being used for testing.

70 – 1000V AC

DUAL-RANGE

12 – 1000V AC

CAT IV

2 m IP67

1000V

Enhanced LED Interface

Dual Range

Self-Test Function

Threaded Screw Cap

Heavy-Duty Pocket Clip

Range 1: 70-1000V AC
Range 2: 12-1000V AC

IP54 Ingress Protection IP67

CAT IV 1000V, CE Safety CAT IV 1000V, CE

50-500Hz Frequency Range 50-500Hz

–

2 x AAA Batteries Included 2 x AAA

RANGE INDICATORS POWER – ON 12 – 70V AC 70 – 1000V AC

Visual on Tip

Range 1

70 – 1000V

Visual on Tester

Audible Single Beep Continuous Beep

Voltage (Volts)

Audible and Visual Alarms

Auto-Power Off

Flashlight

No detection
in this range

Range 1: 70-1000V AC
Range 2: 12-1000V AC

QUICK START GUIDE

Range 2

12 – 1000V

Visual on Tip

Visual on Tester

Audible Single Beep Pulsing Beep Continuous Beep
