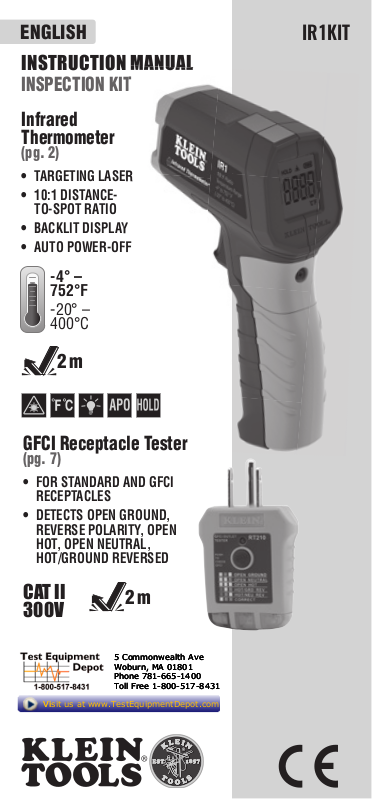

ENGLISH

INSTRUCTION MANUAL

INSPECTION KIT

Infrared
Thermometer

(pg. 2)

• TARGETING LASER

• 10:1 DISTANCE­TO-SPOT RATIO

• BACKLIT DISPLAY

• AUTO POWER-OFF

-4° –
752°F

-20° –
400°C

2m

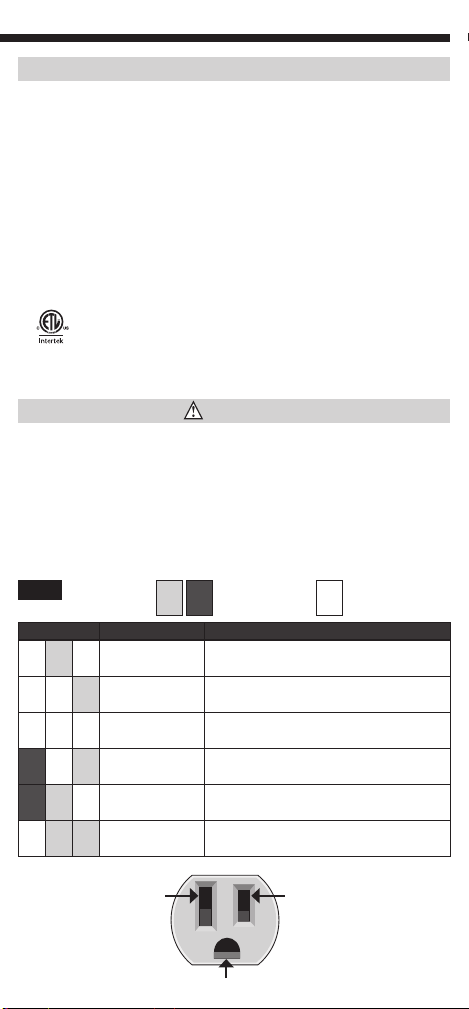

GFCI Receptacle Tester

(pg. 7)

••FOR STANDARD AND GFCI
RECEPTACLES

DETECTS OPEN GROUND,
REVERSE POLARITY, OPEN
HOT, OPEN NEUTRAL,
HOT/GROUND REVERSED

IR1KIT

CAT II

2m

300V

5 Commonwealth Ave5 Commonwealth Ave5 Commonwealth Ave5 Commonwealth Ave
Woburn, MA 01801Woburn, MA 01801Woburn, MA 01801Woburn, MA 01801
Phone [phone]Phone [phone]Phone [phone]Phone [phone]
TollTollTollToll Free 1-800-517-8431Free 1-800-517-8431Free 1-800-517-8431Free 1-800-517-8431

ViVisit us at www.TestEquipmentDepot.com

ENGLISH

GENERAL SPECIFICATIONS - IR1

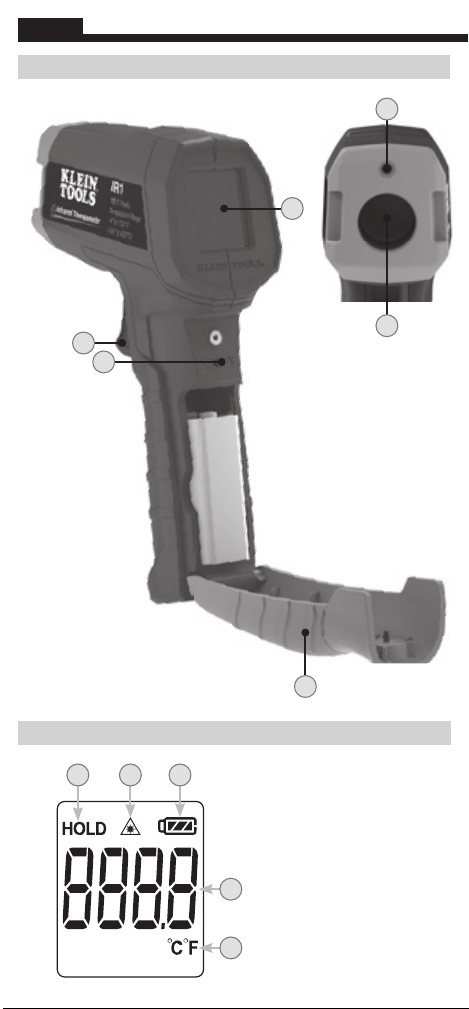

Klein Tools IR1 is an entry-level infrared thermometer with targeting
laser. It offers a wide measurement range, a 10:1 distance–to-spot
ratio, a targeting laser, and user-selectable from Fahrenheit to Celsius
temperature scales.

• Environment: Indoor or outdoor

• Operating Altitude: 6562 ft. (2000 m)

• Relative Humidity: <85% non-condensing

• Operating Temp: 32° to 122°F (0° to 50°C)

• Storage Temp: -4° to 140°F (-20° to 60°C)

• Measurement Range: -4° to 752°F (-20° to 400°C)

• Units: Settable to °F or °C

• Emissivity: 0.95 fixed

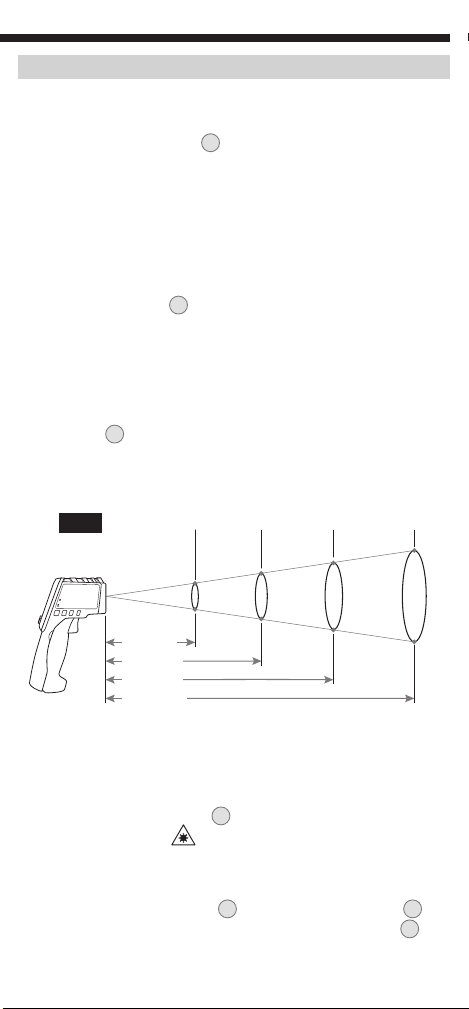

• Optical Resolution (Distance-to-spot): 10:1

• Dimensions: 6" x 4.1" x 1.7" (152 x 104 x 43 mm)

• Weight: 7.4 oz. (210 g) including battery

• Battery Type: 1 x 9V battery

• Battery Life: (Estimates assume 9V Zinc-Carbon Battery)

5 hours continuous use w/laser and backlight on.

• Display: Backlit LCD with white backlight

• Display Resolution: 0.1°F (0.1° C)

• Laser: FDA and IEC Class 2

• Wavelength: 630 – 670 nm

• Max Power: 1mW

• Beam Divergence: 1.5mrad

• Standards: Certified to IEC EN 61326-1:2013, EN 61326-2-3:2013,

IEC EN 60825-1:2014
Complies with 21 CFR PART 1040.10 and 1040.11

except for deviation pursuant to
Laser notice No.50,dated June 24, 2007

• Pollution degree: 2

• Drop Protection: 6.6 ft. (2m)

Specifications subject to change.

MEASUREMENT SPECIFICATIONS

• Response Time: <500ms

• Data hold: Yes

• Spectral Response: 8000-14000nm

≥32°F (≥0°C) ±4°F (±2°C) or ±2%, whichever is greater

°F

(<0°C)

<32

• Repeatability: ±1.0% of reading or ±2°F(±1°C)

• Temperature Correction Coefcient:

of reading (whichever is greater) when ambient temperature is above or
below 70 – 77°F (21 – 25°C).

Specifications subject to change.

2

±(4°F + 0.1°F per degree below 32°F)
±(2.0°C + 0.1°C per degree below 0°C)

(whichever is greater).

±0.1°F per °F (±0.1°C per °C), or ±0.2%

WARNINGS

To ensure safe operation and service of the tester, follow these
instructions. Failure to observe these warnings can result in severe
injury or death. Retain these instructions for future reference.

WARNING: LASER RADIATION. DO NOT STARE INTO BEAM.
Class II Laser.

• Exposing eyes to laser radiation can result in severe and permanent
eye injuries. NEVER look directly into the laser beam emitted by this
instrument.

• DO NOT use the instrument if the case is damaged in any way.

• DO NOT modify the instrument in any way, as to do so could result in
emission of hazardous laser radiation than could result in severe and
permanent eye injuries.

• DO NOT use optical equipment such as lenses, prisms, optical scopes,
etc. to transmit, retransmit, or view the laser beam as this could result in
severe and permanent eye injuries.

• This product should not be used in any location that could result in
somebody looking at or having their eyes inadvertently irradiated by the
laser beam as this could result in severe and permanent eye injuries.

• This product should not be used by untrained operators or operators who
have not read and fully understood the instructions.

• Thermometer is NOT intended for use on people or animals.

• DO NOT remove warning labels from this instrument as this could result
in serious personal injury and increases the risk of exposure to hazardous
laser irradiation.

• Discontinue using the instrument immediately if it is acting abnormally.

• Be cautious of infrared temperature measurements of reflective materials
as the instrument may indicate that these surfaces are cooler than their
actual temperature (see Emissivity section).

• There are no user serviceable parts in this instrument.

SAFE PRACTICES

This meter is designed for professionals who understand the hazards
associated with their trade. While this meter causes no foreseeable
dangers beyond its targeting laser, the objects being measured, as
well as the environment in which they reside, can be hazardous.
Common safety practices to follow when operating near temperature
critical environments are:

• Before using this meter, determine if an area is safe, verify correct operation
by measuring a known temperature value of a comparable object.

Warning label on side of thermometer
