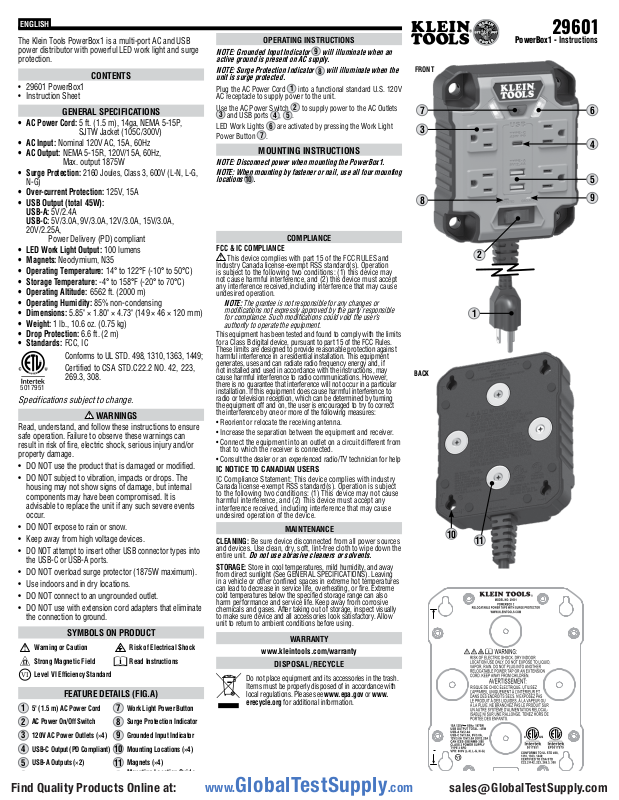

Klein Tools 29601 User manual

ENGLISH

The Klein Tools PowerBox1 is a multi-port AC and USB
power distributor with powerful LED work light and surge
protection.

CONTENTS

• 29601 PowerBox1

• Instruction Sheet

GENERAL SPECIFICATIONS

• AC Power Cord: 5 ft. (1.5 m), 14ga, NEMA 5-15P,

SJTW Jacket (105C/300V)

• AC Input: Nominal 120V AC, 15A, 60Hz

• AC Output: NEMA 5-15R, 120V/15A, 60Hz,

Max. output 1875W

• Surge Protection: 2160 Joules, Class 3, 600V (L-N, L-G,

N-G)

• Over-current Protection: 125V, 15A

• USB Output (total 45W):

OPERATING INSTRUCTIONS

NOTE: Grounded Input Indicator
active ground is present on AC supply.

NOTE: Surge Protection Indicator
unit is surge protected.

Plug the AC Power Cord 1 into a functional standard U.S. 120V
AC receptacle to supply power to the unit.

Use the AC Power Switch

3

and USB ports 4, 5.

LED Work Lights
Power Button 7.

6

are activated by pressing the Work Light

9

will illuminate when an

will illuminate when the

8

2

to supply power to the AC Outlets

MOUNTING INSTRUCTIONS

NOTE: Disconnect power when mounting the PowerBox1.
NOTE: When mounting by fastener or nail, use all four mounting

locations 10.

PowerBox1 - Instructions

FRONT

7

3

8

29601

6

4

5
9

USB-A: 5V/2.4A
USB-C: 5V/3.0A, 9V/3.0A, 12V/3.0A, 15V/3.0A,

20V/2.25A,

Power Delivery (PD) compliant

• LED Work Light Output: 100 lumens

• Magnets: Neodymium, N35

• Operating Temperature: 14° to 122°F (-10° to 50°C)

• Storage Temperature: -4° to 158°F (-20° to 70°C)

• Operating Altitude: 6562 ft. (2000 m)

• Operating Humidity: 85% non-condensing

• Dimensions: 5.85" × 1.80" × 4.73" (149 × 46 × 120 mm)

• Weight: 1 lb., 10.6 oz. (0.75 kg)

• Drop Protection: 6.6 ft. (2 m)

• Standards: FCC, IC

Conforms to UL STD. 498, 1310, 1363, 1449;
Certified to CSA STD.C22.2 NO. 42, 223,

269.3, 308.

5017951

Specifications subject to change.

WARNINGS

Read, understand, and follow these instructions to ensure
safe operation. Failure to observe these warnings can
result in risk of fire, electric shock, serious injury and/or
property damage.

•

DO NOT use the product that is damaged or modified.

•

DO NOT subject to vibration, impacts or drops. The
housing may not show signs of damage, but internal
components may have been compromised. It is
advisable to replace the unit if any such severe events
occur.

•

DO NOT expose to rain or snow.

•

Keep away from high voltage devices.

•

DO NOT attempt to insert other USB connector types into
the USB-C or USB-A ports.

•

DO NOT overload surge protector (1875W maximum).

•

Use indoors and in dry locations.

•

DO NOT connect to an ungrounded outlet.

•

DO NOT use with extension cord adapters that eliminate
the connection to ground.

FCC & IC COMPLIANCE

This device complies with part 15 of the FCC RULES and

Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received,including interference that may cause
undesired operation.

NOTE: The grantee is not responsible for any changes or
modifications not expressly approved by the party responsible
for compliance. Such modifications could void the user’s
authority to operate the equipment.

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

IC NOTICE TO CANADIAN USERS

IC Compliance Statement: This device complies with industry
Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operation of the device.

CLEANING: Be sure device disconnected from all power sources
and devices. Use clean, dry, soft, lint-free cloth to wipe down the
entire unit.

STORAGE: Store in cool temperatures, mild humidity, and away
from direct sunlight (See GENERAL SPECIFICATIONS). Leaving
in a vehicle or other confined spaces in extreme hot temperatures
can lead to decrease in service life, overheating, or fire. Extreme
cold temperatures below the specified storage range can also
harm performance and service life. Keep away from corrosive
chemicals and gases. After taking out of storage, inspect visually
to make sure device and all accessories look satisfactory. Allow
unit to return to ambient conditions before using.

Do not use abrasive cleaners or solvents.

SYMBOLS ON PRODUCT

Warning or Caution Risk of Electrical Shock
Strong Magnetic Field Read Instructions

VI

Level VI Efciency Standard

FEATURE DETAILS (FIG.A)

5' (1.5 m) AC Power Cord7Work Light Power Button

1

AC Power On/Off Switch

2

120V AC Power Outlets (×4)9Grounded Input Indicator

3

USB-C Output (PD Compliant)10Mounting Locations (×4)

4

USB-A Outputs (×2)

5

Work Lights (×2)

6

Find Quality Products Online at: [e-mail]

Surge Protection Indicator

8

Magnets (×4)

11

Mounting Location Guide

12

(see last page)

www.GlobalTestSupply.com

Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with
local regulations. Please see www.epa.gov or www.

erecycle.org for additional information.

COMPLIANCE

MAINTENANCE

WARRANTY

www.kleintools.com/warranty

DISPOSAL / RECYCLE

BACK

2

1

10

11

1

"

4½4½""

4

2

114 mm114 mm

29601

1

3½3½""

"

3

2

89 mm89 mm

12
