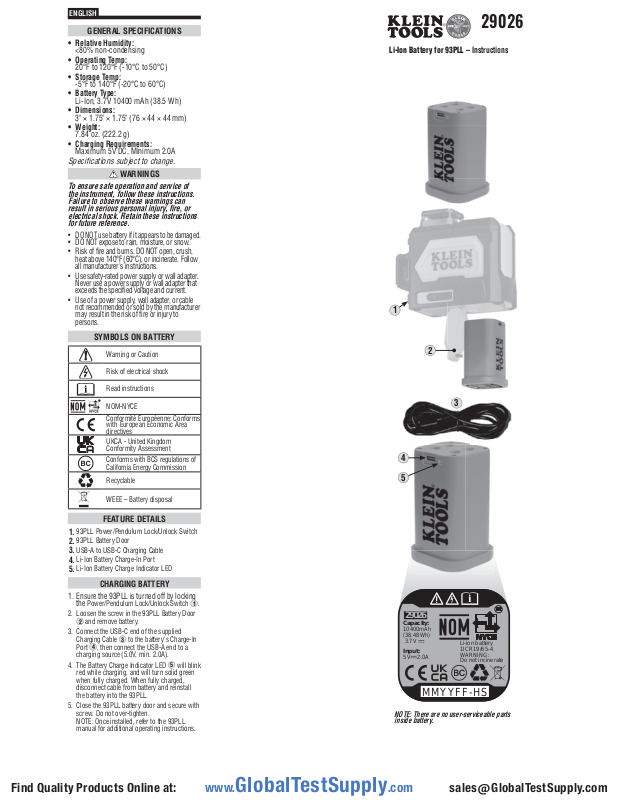

Klein Tools 29026 User manual

ENGLISH

.

0.25V.

REV

ECO

DESCRIPTION

1

FIRST RELEASE

DRAWING

NO.

NOTE: There are no user-serviceable parts
inside battery.

29026

Li-ion battery
1ICR19/65-4

MMYYFF-HS

WARNING:
Do not incinerate

Input:

5V 2.0A

Capacity:

10400mAh
(38.48Wh)

3.7V

Specifications subject to change.

To ensure safe operation and service of
the instrument, follow these instructions.
Failure to observe these warnings can

electrical shock. Retain these instructions
for future reference.

GENERAL SPECIFICATIONS

• Relative Humidity:

<80% non-condensing

• Operating Temp:

20°F to 120°F (-10°C to 50°C)

• Storage Temp:

-5°F to 140°F (-20°C to 60°C)

• Battery Type:

Li-Ion, 3.7V 10400 mAh (38.5 Wh)

• Dimensions:

3" × 1.75" × 1.75" (76 × 44 × 44 mm)

• Weight:

7.84 oz. (222.2 g)

• Charging Requirements:

Maximum 5V DC, Minimum 2.0A

WARNINGS

• DO NOT use battery if it appears to be damaged.

• DO NOT expose to rain, moisture, or snow.

• Risk of fire and burns. DO NOT open, crush,
heat above 140°F (60°C), or incinerate. Follow
all manufacturer's instructions.

• Use safety-rated power supply or wall adapter.
Never use a power supply or wall adapter that
exceeds the specified voltage and current.

• Use of a power supply, wall adapter, or cable
not recommended or sold by the manufacturer
may result in the risk of fire or injury to
persons.

SYMBOLS ON BATTERY

Warning or Caution

Risk of electrical shock

Read instructions

NOM-NYCE
Conformité Européenne: Conforms

with European Economic Area
directives

UKCA - United Kingdom
Conformity Assessment

Conforms with BCS regulations of
California Energy Commission

Recyclable

29026

Li-Ion Battery for 93PLL – Instructions

1

2

3

4

5

WEEE – Battery disposal

FEATURE DETAILS

93PLL Power/Pendulum Lock/Unlock Switch

1.

93PLL Battery Door

2.

USB-A to USB-C Charging Cable

3.

Li-Ion Battery Charge-In Port

4.

Li-Ion Battery Charge Indicator LED

5.
CHARGING BATTERY

1. Ensure the 93PLL is turned off by locking

Power/Pendulum Lock/Unlock Switch 1.

the

2. Loosen the screw in the 93PLL Battery Door

2

and remove battery.

3. Connect the USB-C end of the supplied
Charging Cable
Port
charging source (5.0V, min. 2.0A).

4. The Battery Charge Indicator LED

Find Quality Products Online at: [e-mail]

red while charging, and will turn solid green
when fully charged. When fully charged,
disconnect cable from battery and reinstall
the battery into the 93PLL.

5. Close the 93PLL battery door and secure with
screw. Do not over-tighten.
NOTE: Once installed, refer to the 93PLL
manual for additional operating instructions.

3

4

to the battery's Charge-In

, then connect the USB-A end to a

5

will blink

www.GlobalTestSupply.com

1390503 Rev. 04/20 A

CHAPDATE

WZB

10/24/201

9

ENGLISH

Do not use

abrasive cleaners or solvents.

MAINTENANCE

• Regularly inspect ports and charging
cable for any debris, dirt, damage, and
corrosion.

• DO NOT attempt to repair device or
cable; replace as needed.

Be sure instrument is turned off and
disconnected from all power sources. Wipe
with a clean, dry lint-free cloth.

RECHARGING

Recharge as needed. There are no pre­designated intervals at which to recharge
as long as you are using the unit regularly.
Avoid discharging completely on a regular
basis, as this can impact overall life.

CLEANING

STORAGE

If storing for more than one month, charge
completely before storage, and recharge
approximately every three months to avoid
full discharge. Store in cool temperatures,
mild humidity, and away from direct
sunlight (See GENERAL SPECIFICATIONS
section).

Leaving in a vehicle or other confined
spaces in extreme hot temperatures can
lead to decrease in service life, overheating,
or fire. Extreme cold temperatures below
the specified storage range can also harm
performance and service life. Keep away
from corrosive chemicals and gases.

After taking out of storage, inspect visually
to make sure device and all accessories
look satisfactory. Allow unit to return to
ambient conditions before recharging.

DISPOSAL / RECYCLE

Do not place equipment and its
accessories in the trash. Items
must be properly disposed
of in accordance with local
regulations. Please see
www.epa.gov/recycle for
additional information.
