Page 1
DRYER
P
A
R
T
S
&
L
A
B
O
U
R
W
A
R
R
A
N
T
Y
5 YEAR
M
G
U
A
R
A
N
T
E
E
M
O
N
E
Y
B
A
C
K
6 MONTH
collection

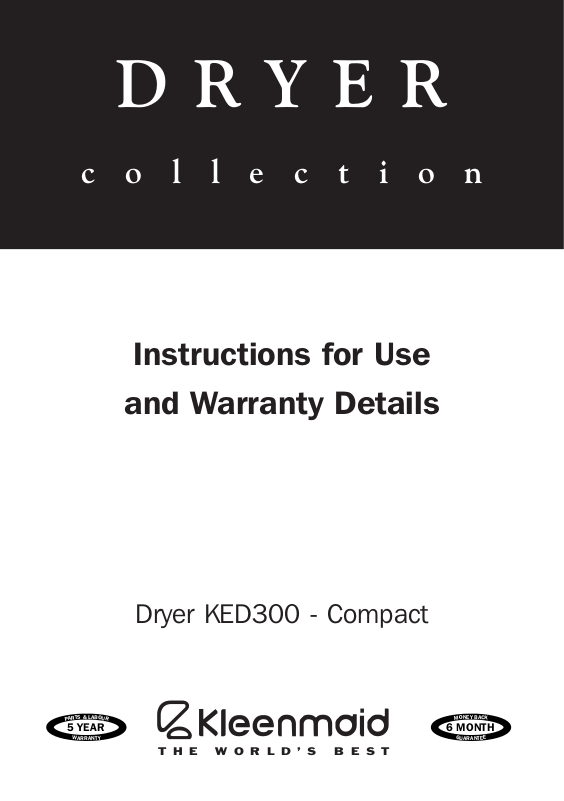

Instructions for Use
and Warranty Details
Dryer KED300 - Compact
THE WORLD’S BEST
Page 2
ongratulations on the purchase of your new
Kleenmaid appliance. This appliance has been
C
read the instructions on how to install your new appliance.
Correct installation will avoid delays and unnecessary service
calls.
Once installation is complete, read this booklet and get to
know the controls and the features of your new appliance.
We reserve the right to alter the specifications with no
influence on the operation of the appliance. This instruction
manual cannot be reason for claim.
designed and manufactured to give you years of
reliable performance. For best results, carefully
If you need further information call our
Customer Call Centre
1 800 072 144
Page 3
IMPORTANT USER INFORMATION
These notes are provided in the interest of safety. You must read them carefully before installing or using the
appliance.
— Children should not be allowed to tamper with the controls.
— This tumble dryer is intended for domestic use only.
— Any electrical work required to install the appliance should be carried out by a qualified person.
This tumble dryer should be serviced by an appointed service organisation and only genuine spare parts
—
sed.
u
— It is dangerous to alter or modify the product in any way, other than fitting authorised accessories.
— After each drying cycle it is important to clean the lint filter before removing the clothes.
— Under no circumstances should anything other than the recommended articles be placed in the tumble
dryer.
— Do not place articles which have been in contact with dry cleaning fluid or other inflammable substances
in the tumble dryer.
— Do not attempt to dry dripping wet articles or items containing foam rubber or rubber-like materials.
— Do not use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances should
you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause
serious injury. Consult your local appointed service engineer and insist on genuine spare parts.
— We recommend that the appliance is unplugged each time after use. It should always be disconnected
from the electricity supply if it is to be left unattended for long periods i.e. weekends, holidays etc.
— This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
— If this appliance is contected to a cord extension, this extension must be positioned so that it is not
subject to splashing or ingress of moisture.
— To minimize the risk of fire in the tumble dryer, the following should be observed:
— Items containing foam rubber (also known as latex foam) or similarly textured rubber, like material should
— Fabric softeners or similar products should not be used on a tumble dryer to eliminate the effects of static
— Undergarments that contain metal reinforcements should not be placed in a tumble dryer as damage to
- Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard
and should not be placed in a tumble dryer. Oil affected items can ignite spontaneously,
especially when exposed to heat.
- Items that have been previously cleaned in, washed in, soaked in or spotted with
petrol/gasoline, dry-cleaning solvents or other flammable or explosive substances should not be
placed in a tumble dryer. Highly flammable substances commonly used in domestic
environments include acetone, denatured alcohol, petrol/gasoline, kerosene, spot removers,
turpentine and wax removers.
not be dried in a tumble dryer on a heat setting. Foam rubber materials can, when heated, produce fire
by spontaneous combustion.
electricity unless specifically recommended by the manufacturer of the fabric softener or product.
the dryer can occur.
- Plastic articles such as shower caps or babies' waterproof napkin covers should not be placed
in a tumble dryer.
- Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubbercoated tennis shoes should not be placed in a tumble dryer.
2
Page 4
1 Installation
1.1 Make sure that the air inlets at the back are not blocked and do not allow fluff to
accumulate around your dryer.
1.2 If you wish to change the side on which your door opens see section 8 “To change
door opening”.
1.3 If your dryer is to be used with the control panel at the bottom see section 9 “To
change control panel”.
1.4 An optional wall-mounting kit is available from your dealer. If your dryer is to be
wall-mounted see section 10 “To wall mount”.
1.5 Remove any dust by wiping the drum and door with a damp cloth. Any initial smell
from the heater should disappear after the first period of heating.
1.6 WARNING: THIS APPLIANCE MUST BE EARTHED.
The dryer must be connected to its own socket. Do not use a “double” adaptor or
“power board”.
1.7 Ensure that the tumble dryer is installed in such a way that the full opening of the
dryer door is obtained.
2 Control Panel
A. The programme timer. Calibrated up to 120 minutes including 12 minutes cool
down at the end of each drying cycle. (Maximum drying time is the first increment
past 0 when turning the knob in a clockwise direction).
B. The low/high heat selector switch.
Press button in for full heat.
Press again to release for half heat.
C. The Anti-crease selector switch. Use this feature if you are not going to be present
to unload the dryer as soon as it has finished. It will then minimise garment
creasing caused by clothes lying for long periods in a stationary drum by
occasional drum rotation (10 seconds in every 6 minutes).
D. The “Dryer on” neon. Lights when the dryer is running. Also remains lit after end
of cycle if Anti-crease has been selected.
3
Page 5
3 Operation
3.1 Roll dripping wet articles in a towel to remove excess water.
Sort out the clothes into groups of similar fabrics and colours. Check the care label
inside the garment.
Delicate articles e.g. tights should be placed inside a pillowcase.
It is better to dry small and large articles together.
3.2 Open the door.
Load clothes loosely into the drum.
Load sheets first starting with one corner.
3.3. Close the door.
Dry your hands.
Check that the timer is in the “ ” position.
Plug in the machine.
3.4 Select correct heat position (see programme chart on control panel).Select Anticrease if required.
Set the timer to the correct position (see programme chart on control panel). The
drum will now begin to rotate and stop when the timer automatically reaches the
‘O’ position.
3.5 When drying large items such as sheets, we suggest you stop the dryer to
redistribute the load.
To stop the machine during the middle of the programme simply open the door;
the drum will stop rotating automatically and restart when you close the door. To
lengthen or shorten the programme, reset the timer knob.
3.6 Before removing the dried clothes clean the filter by removing any thread or fluff
by hand or with a soft brush or cloth. The filter is not removable.
3.7 Disconnect from the electricity supply.
4 Care labels you may find on your fabrics
‘Tumble drying beneficial’
‘Do not tumble dry’
‘Dry flat’
4
Page 6
5 Don’ts
Do not – Overload the dryer.
Do not – Dry articles individually as they tend to roll up and so increase drying time.
Do not – Dry woollen or wool mixture articles unless the article is labelled as
suitable.
Do not – Allow filter to become blocked.
Do not – Allow fluff to accumulate around the tumble dryer.
Do not – Drag your dryer over the floor as the rubber feet may come off. Please lift
the dryer when moving it.
6 Any problems?
If the clothes are not dry after normal drying time:
— Check that the filter is clean.
— Check that you used the correct heater setting.
— Check that you have not set the timer within a cool down period.
If your machine does not work check the following
before calling a service engineer:
— Check that there is a supply of electricity.
— Check that the machine is switched on and the door
properly closed.
— Your machine is fitted with a resettable cut out.
Check whether this has operated. There is a red
button on the back of your dryer. Press it lightly. If it
has operated then a sharp “click” will be heard. This
cut-out only operates if the airflow is severely
restricted so make sure the filter is clean and that all
other restrictions are removed before re-starting.
7 Technical Data:
7.1 Overall dimensions: height 850mm width 595mm depth 530mm
7.2 Maximum dry weight of cotton, linen 5 kg. synthetics 2.0 kg.
7.3 For electrical rating see plate on rear of machine.
7.4 This product is manufactured to comply with the radio interference requirements of
the Council directive 87/308/EEC - 89/336/EEC.
5
Page 7
8 To change door opening
Your dryer is fitted with a reversible door. To change the direction of opening
proceed as follows:
1
2
3
Open the door. Undo screw (A) remove
switch strike (B) and replace screw.
Remove screws (C) and latch plate (D).
Remove hinge block screws (E).
Remove door from hinge blocks.
Remove hinge screws (F) and hinge (G)
and refit to opposite side as shown.
Refit latch plate (D) with screws (C).
Remove screw (H) at top of door and
refit switch strike (B) as shown. Fit
door to hinge blocks and secure with
screws (E).
6
Page 8
9 To change control panel
Your dryer is supplied with the Control Panel at the top. An additional Panel Infill
is supplied which allows use of the dryer with the Control Panel at the bottom. This
may be fitted as follows:
Grip the timer knob and pull to remove it from the dryer.
Remove the fitted panel by gently levering its bottom edge away from the dryer
using a flat-bladed screwdriver. The panel is clipped at the four points indicated.*
*Clip points
Hook the top edge of the replacement panel into the dryer, and clip in the bottom
edge at the four points. Ensure that the three location pegs are engaged. Replace
the timer knob ensuring that its flat is aligned with the flat on the timer shaft.
10 To wall mount
The dryer may be wall mounted with the control panel at the top or at the bottom.
This will require a Wall Mount Kit. Please obtain this kit from your Kleenmaid
dealer. Instructions for its fitting will be enclosed.
7
Page 9
WARRANTY AND SERVICE
DOMESTIC WARRANTY - FULL FIVE YEAR WARRANTY
In addition to all statutory rights which you, the Consumer, have under the relevant laws in respect
of this appliance, during the first five years of ownership as the original purchaser of this Kleenmaid
appliance, we guarantee that any fault caused by faulty material or workmanship becoming
apparent will be rectified free of charge for parts and labour, provided that all service is performed
during normal working hours by Kleenmaid or their designated Agents. Where the appliance is
installed outside the normal servicing area of the above, the Purchaser must pay for the cost of
transporting the appliance to and from the Agent or the Agent’s travelling cost to and from the
Purchaser’s home.
COMMERCIAL WARRANTY - ONE YEAR WARRANTY
When this appliance is installed in a commercial application, you, the Consumer, have under the
relevant laws in respect of this appliance, during your first one year of ownership as the original
purchaser of the Kleenmaid appliance, we guarantee that any fault caused by faulty material of
workmanship becoming apparent, will be rectified free of charge for parts and labour, provided that
all service is performed during normal working hours by Kleenmaid or their designated Agents.
Where the appliance is installed outside the normal servicing area of the above, the Purchaser
must pay for the cost of transporting the appliance to and from the Agent of the Agent’s travelling
cost to and from the Purchaser’s home.
WHAT THESE WARRANTIES DO NOT COVER
We are not responsible for any damage or malfunction unless caused by a defect in material or
workmanship. This includes but is not limited to abuse, misuse, improper installation and
transportation damage. We are not responsible for any consequential damages from any
malfunction.
WARRANTY DOES NOT COVER REPLACEMENT OF LIGHT
GLOBES OR GLASS BREAKAGE DUE TO IMPACT
In case of fractured glass do not use your appliance.
WARRANTY REGISTRATION
Please complete the enclosed warranty card and post it to us or phone our Customer Call Centre.
SERVICE ASSISTANCE
To assist you when phoning our Customer Call Centre number to arrange a service call
please complete the following details and have them ready when you call.
Model Number: ______________________________ Date of purchase: ____________________
Kleenmaid Store purchased from: ______________ Date of installation: __________________
KLEENMAID CUSTOMER CALL CENTRE
CONTACT NUMBER
1 800 072 144
Page 10
Other products in Kleenmaid’s
range of world’s best appliances:
Washers
Dryers
Dishwashers
Ovens
Cooktops
Rangehoods
Sinks
Waste Disposals
Taps
Cookware
Refrigerators
Freezers
Vacuum Cleaners
For sales information on the full range of quality
kitchen and laundry appliances, phone
Kleenmaid Head Office:
Kleenmaid KED 300 4213 094 38149
PO Box 5560 MAROOCHYDORE B
13 13 08
C QLD 4558
Loading...
