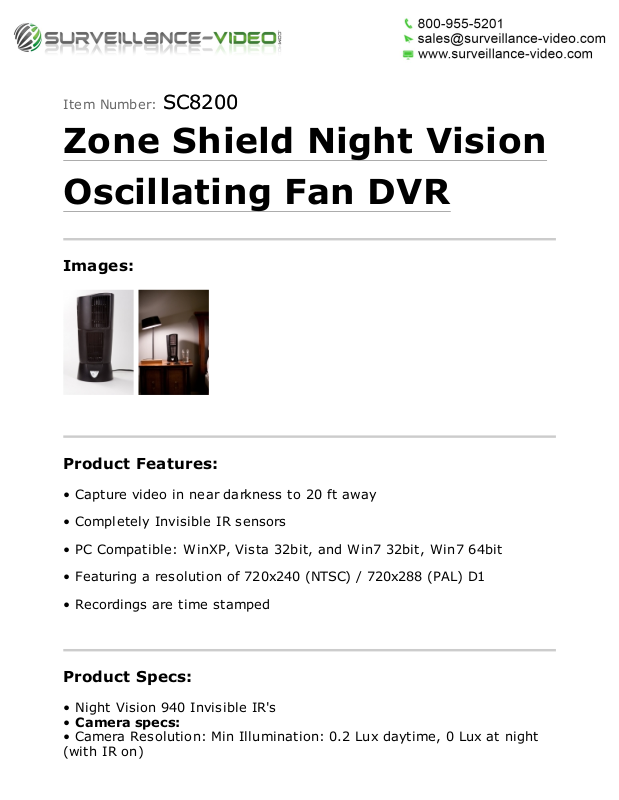

KJB SC8200 Specsheet

Item Number: SC8200SC8200

Zone Shield Night Vision
Oscillating Fan DVR

Images:

Product Features:

• Capture video in near darkness to 20 ft away

• Completely Invisible IR sensors

• PC Compatible: W inXP, Vista 32bit, and Win7 32bit, Win7 64bit

• Featuring a resolution of 720x240 (NTSC) / 720x288 (PAL) D1

• Recordings are time stamped

Product Specs:

• Night Vision 940 Invisible IR's

• Camera specs:

• Camera Resolution: Min Illumination: 0.2 Lux daytime, 0 Lux at night
(with IR on)

• Image Sensor: 1/4" micron sensor

• Resolution:740x480 pixels

• S/N Ratio: >45 db

• Sensitivity:>11.5V/lux-s @550nm

• Video System: NTSC

• White Balance: Auto Tracking

• Note: the picture can appear to look Black and white in low lighting
conditions. This is the design of a smart camera creating the best
possible picture.

• DVR Specs:

• Video Compression H.264

• Operation temperature 0~+50℃

• PC Compatible: W inXP, Vista 32bit, and Win7 32bit, Win7 64bit

• Playback Fast Forward, Backward: x2/ x4/ x8, Frame by Frame

• Video Recording Mode Schedule continuous, Schedule motion, Schedule
alarm, Panic

• Recording Storage Micro SD card (support SDHC) up to 32GB

• Time Date Stamp Format (1) yy-mm-dd, (2) dd-mm-yy, (3) mm-dd-yy, 3
formats selectable by

• Recording Quality 4 Levels adjustable (Super, High, Normal, Standard)

• Recording Frame Rate 6/8, 13/15, 25/30 fps

• Record Resolution 720x240 (NTSC) / 720x288 (PAL)

• Control IR remote control

• Playback mode via device itself or Secure Play back with bundled
software

• Playback Search By Time, By Event

• Firmware Upgrade through Micro SD card

Product Includes:

• Remote

• Unit

• Manual

• RCA Cables

• SD Card Reader

• 4GB SD Card
