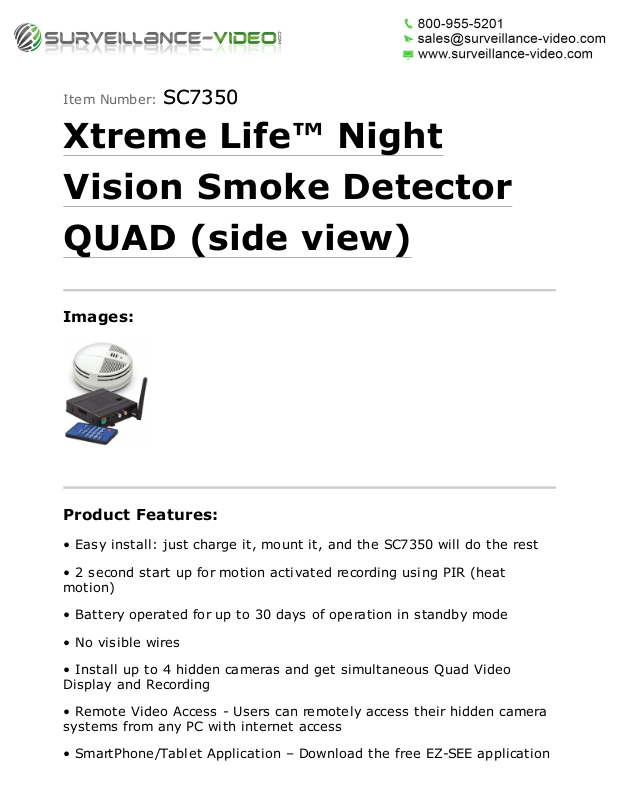

Item Number: SC7350SC7350
Xtreme Life™ Night
Vision Smoke Detector
QUAD (side view)
Images:
Product Features:
• Easy install: just charge it, mount it, and the SC7350 will do the rest
• 2 second start up for motion activated recording using PIR (heat
motion)
• Battery operated for up to 30 days of operation in standby mode
• No visible wires
• Install up to 4 hidden cameras and get simultaneous Quad Video
Display and Recording
• Remote Video Access - Users can remotely access their hidden camera
systems from any PC with internet access
• SmartPhone/Tablet Application – Download the free EZ-SEE application
Page 2
from Apple’s App Store and get instant remote video access on your
iPhone & iPad devices.
• 2 possible recording methods: Internal SD Card Recording via the
removeable SD card in the receiver(up to 32 GB SD capable) or PC based
recording with installation of APS4 software
Product Specs:
• A/V RCA
• Firmware Upgradable using SD card
• Frame Rate: 6/8,13/15,25/30
• Video Resolution 720 X 240
• IR remote control
• Micro SD card up to 32GB
• 3 Record Modes - Motion, Continuous and Scheduled
• Time and Date Stamp
• PIR function
• IR Function
• Playback Video from Device or Bundled Software EZ See application
• 940 Invisible IR’s
• Camera:
• 500TVL
• .01 LUX
• Color
• 720 x 480 pixels
• Auto White Balance
• 62 Degree Viewing Angle
• NTSC or PAL
• Battery:
• Rechargeable 2.7v Li Polymer Battery
• Charging Time 4-5 hours
• Blue indicator when fully charged
• Red indicator light when charging
• Receiver:
• Recording Resolution 620 x 480
• 4 Channel Hidden Camera Connectivity
• Recording Mode - Motion, Continuous, Scheduled Time and Date Stamp
• Up to 32GB SD Card Supported
• USB Interface for PC Recording and Remote Video Access Setup
• Transmission distance is approximately 450 feet line of sight
• Recording File Format TL4 playback with bundled ASP4 Software
• Transmitter
• Transmission distance is approximately 450 feet from hidden camera
• Power 12V
• Channels Hopping: 24 channels
• Frequency: 2408.625 ~ 2470.5 MHz
Page 3
• Resolution / Frame Rate: 640x480@30fps
• System Requirements:
• A dedicated PC for recording is required for Remote Video Access a PC
will need to be on at all times running the supplied ASP4 Software with
the Wireless Receiver connected to the USB port
• Browsers for Remote View: Internet Explorer 8 or higher, Chrome
• Memory: 1GB
• Display card: Independent display card and support DirectX 9.0 or
higher
• CPU: 2.0GHz or higher (only support x86 and x64)
• Recommend internet speed: 1 MB per second upload speed
• Microsoft Windows XP or Windows 7 (.NET Framework 3.5 higher)
• Power Consumption: 12V 270mA
• To use the remote viewing on iPhone/iPad, iPhone 3 or higher iPad iOS
4.3 or higher
Product Includes:
• Receiver (with LCD screen option on QUAD LCD models)
• Remote Control
• Power Supply
• USB Cable
• RCA Cable
