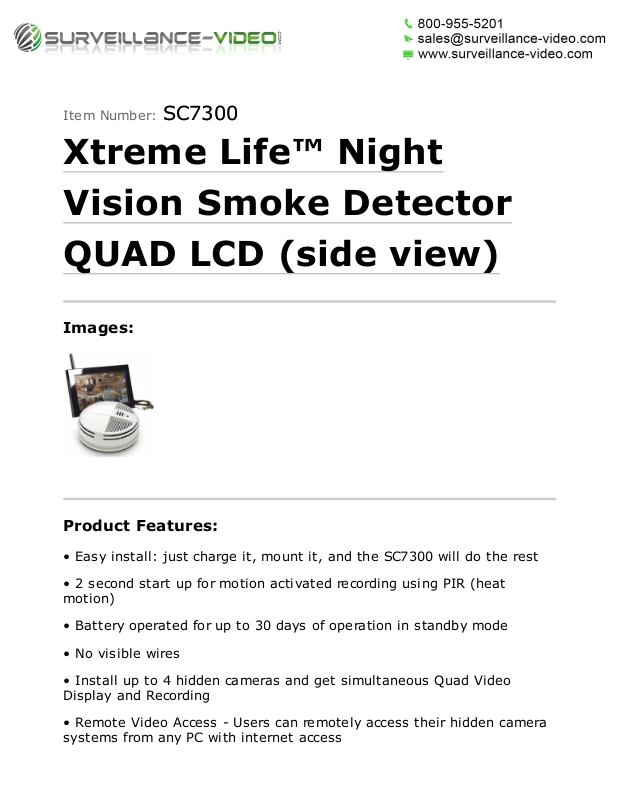

KJB SC7300 Specsheet

Item Number: SC7300SC7300

Xtreme Life™ Night
Vision Smoke Detector
QUAD LCD (side view)

Images:

Product Features:

• Easy install: just charge it, mount it, and the SC7300 will do the rest

• 2 second start up for motion activated recording using PIR (heat
motion)

• Battery operated for up to 30 days of operation in standby mode

• No visible wires

• Install up to 4 hidden cameras and get simultaneous Quad Video
Display and Recording

• Remote Video Access - Users can remotely access their hidden camera
systems from any PC with internet access

• SmartPhone/Tablet Application – Download the free EZ-SEE application
from Apple’s App Store and get instant remote video access on your
iPhone & iPad devices.

• 2 possible recording methods: Internal SD Card Recording via the
removeable SD card in the receiver(up to 32 GB SD capable) or PC based
recording with installation of APS4 software

Product Specs:

• A/V RCA

• Firmware Upgradable using SD card

• Frame Rate: 6/8,13/15,25/30

• Video Resolution 720 X 240

• IR remote control

• Micro SD card up to 32GB

• 3 Record Modes - Motion, Continuous and Scheduled

• Time and Date Stamp

• PIR function

• Playback Video from Device or Bundled Software EZ See application

• 940 Invisible IR’s

• Camera:

• 500TVL

• .01 LUX

• Color

• 720 x 480 pixels

• Auto White Balance

• 62 Degree Viewing Angle

• NTSC or PAL

• Battery:

• Rechargeable 2.7v Li Polymer Battery

• Charging Time 4-5 hours

• Blue indicator when fully charged

• Red indicator light when charging

• Receiver:

• Recording Resolution 620 x 480

• 4 Channel Hidden Camera Connectivity

• Recording Mode - Motion, Continuous, Scheduled Time and Date Stamp

• Up to 32GB SD Card Supported

• USB Interface for PC Recording and Remote Video Access Setup

• Transmission distance is approximately 450 feet line of sight

• Recording File Format TL4 playback with bundled ASP4 Software

• Transmitter

• Transmission distance is approximately 450 feet from hidden camera

• Power 12V

• Channels Hopping: 24 channels

• Frequency: 2408.625 ~ 2470.5 MHz
