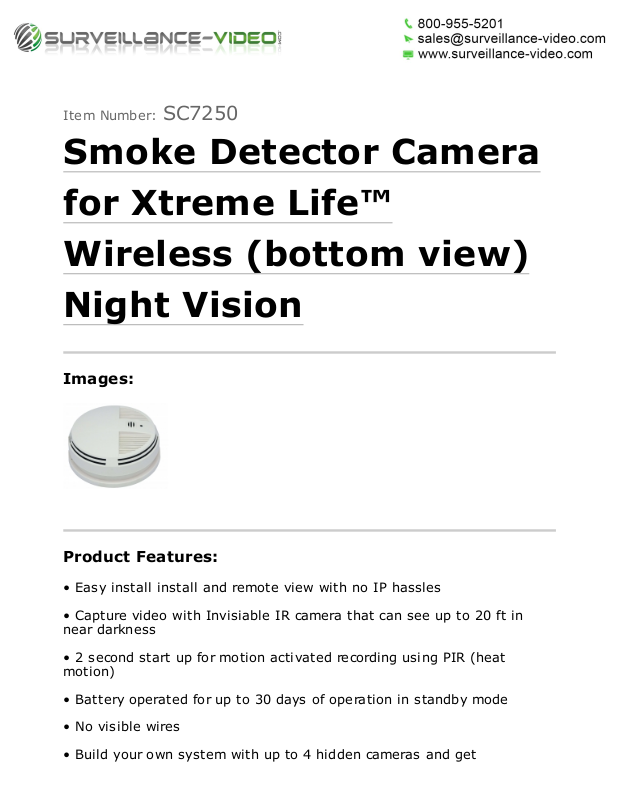

KJB SC7250 Specsheet
Item Number: SC7250
Smoke Detector Camera
for Xtreme Life™
Wireless (bottom view)
Night Vision
Images:
Product Features:
• Easy install install and remote view with no IP hassles
• Capture video with Invisiable IR camera that can see up to 20 ft in
near darkness
• 2 second start up for motion activated recording using PIR (heat
motion)
• Battery operated for up to 30 days of operation in standby mode
• No visible wires
• Build your own system with up to 4 hidden cameras and get
simultaneous Quad Video Display and Recording
• Remote Video Access - Users can remotely access their hidden camera
systems from any PC with internet access or their iPad or smartphone
using the fre EZ-See app
• 2 possible recording methods: Internal SD Card Recording via the
removable SD card in the receiver (up to 32 GB SD capable) or PC based
recording with installation of APS4 software
Product Specs:
• Camera
• .01 LUX
• Color
• 720 x 480 pixels
• Auto White Balance
• 62 Degree Viewing Angle
• NTSC or PAL
• 940 Invisiable IR's
• Battery
• Rechargeable 2.7v Li Polymer Battery
• Charging Time 4-5 hours
• Red indicator light when charging
• Blue indicator when fully charged
• Transmitter
• Channels Hopping: 24 channels
• Frequency: 2408.625 ~ 2470.5 MHz
• Power Consumption: 12V 270mA
• Resolution / Frame Rate: 640x480@30fps
• Transmission distance is approximately 450 feet line of sight
• System Requirements:
• A dedicated PC for recording is required for Remote Video Access a PC
will need to be on at all times running the supplied ASP4 Software with
the Wireless Receiver connected to the USB port
• Browsers for Remote View: Internet Explorer 8 or higher, Chrome
• CPU: 2.0GHz or higher (only support x86 and x64)
• Display card: Independent display card and support DirectX 9.0 or
higher
• Memory: 1GB
• Microsoft Windows XP or Windows 7 (.NET Framework 3.5 higher)
• Recommend internet speed: 1 MB per second upload speed
• To use the remote viewing on iPhone/iPad, iPhone 3 or higher iPad iOS
4.3 or higher
