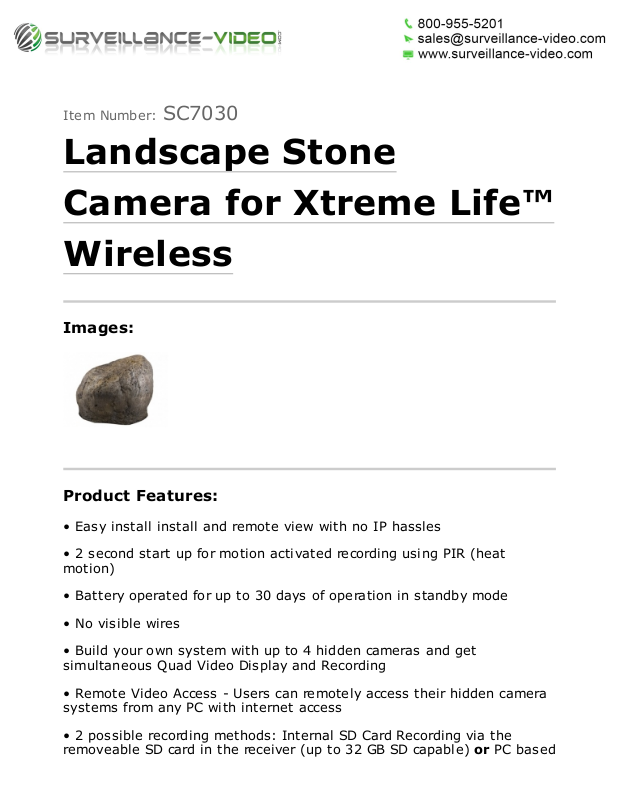

KJB SC7030 Specsheet

Item Number: SC7030

Landscape Stone
Camera for Xtreme Life™
Wireless

Images:

Product Features:

• Easy install install and remote view with no IP hassles

• 2 second start up for motion activated recording using PIR (heat
motion)

• Battery operated for up to 30 days of operation in standby mode

• No visible wires

• Build your own system with up to 4 hidden cameras and get
simultaneous Quad Video Display and Recording

• Remote Video Access - Users can remotely access their hidden camera
systems from any PC with internet access

• 2 possible recording methods: Internal SD Card Recording via the
removeable SD card in the receiver (up to 32 GB SD capable) or PC based

recording with installation of APS4 software

Product Specs:

• Camera

• .01 LUX

• Color

• 720 x 480 pixels

• Auto White Balance

• 62 Degree Viewing Angle

• NTSC or PAL

• Battery

• Rechargeable 2.7v Li Polymer Battery

• Charging Time 4-5 hours

• Red indicator light when charging

• Blue indicator when fully charged

• Transmitter

• Channels Hopping: 24 channels

• Frequency: 2408.625 ~ 2470.5 MHz

• Power Consumption: 12V 270mA

• Resolution / Frame Rate: 640x480@30fps

• Transmission distance is approximately 450 feet line of sight

• System Requirements:

• A dedicated PC for recording is required for Remote Video Access a PC
will need to be on at all times running the supplied ASP4 Software with
the Wireless Receiver connected to the USB port

• Browsers for Remote View: Internet Explorer 8 or higher, Chrome

• CPU: 2.0GHz or higher (only support x86 and x64)

• Display card: Independent display card and support DirectX 9.0 or
higher

• Memory: 1GB

• Microsoft Windows XP or Windows 7 (.NET Framework 3.5 higher)

• Recommend internet speed: 1 MB per second upload speed

• To use the remote viewing on iPhone/iPad, iPhone 3 or higher iPad iOS

4.3 or higher

Product Includes:

• Covert Camera and W ireless Transmitter
