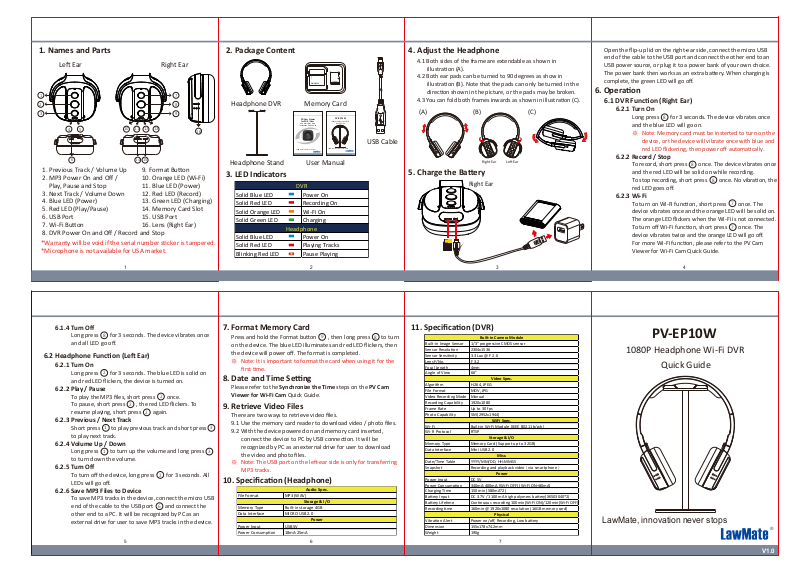

KJB PV-EP10W Quick Guide

1. Names and Parts

Recording an d playback vid eo（via smartphone）

340mA-400mA

(Wi-Fi OFF) (Wi-Fi ON+80mA)

Weight 190g

Misc.

Power

Physical

Built-in Camera Module

Video Spec.

WiFi Spec.

Storage & I/O

Power Consu mpon 18mA-25mA

Audio Spec.

Storage & I/O

Power

Blinking Red LED Pause Playing

DVR

Headphone

Le Ear

1

2

3

11

4

5

6

1. Previous Track / Volume Up

2. MP3 Power On and Off /
Play, Pause and Stop

3. Next Track / Volume Down

4. Blue LED (Power)

5. Red LED (Play/Pause)

6. USB Port

7. Wi-Fi Buon

8. DVR Power On and Off / Record and Stop

*Warranty will be void if the serial number scker is tampered.

*Microphone is not available for USA market.

10 13

14

9. Format Buon

10. Orange LED (Wi-Fi)

11. Blue LED (Power)

12. Red LED (Record)

13. Green LED (Charging)

14. Memory Card Slot

15. USB Port

16. Lens (Right Ear)

12

15

Right Ear

7

8

9

16

2. Package Content

Lock

Adapter

Headphone DVR

Memory Card

PV-Cam Viewer

for Wi-Fi Cam

App Store/Play Store

Installation Quick Guide

LawMate, innovation never stops

®

1080p Headphone Wi-Fi DVR

LawMate, innovation never stops

Headphone Stand User Manual

3. LED Indicators

Solid Blue LED Power On
Solid Red LED Recording On
Solid Orange LED Wi-Fi On
Solid Green LED Charging

Solid Blue LED Power On
Solid Red LED Playing Tracks

PV-EP10W

Quick Guide

4. Adjust the Headphone

4.1 Both sides of the frame are extendable as shown in

illustraon (A).

4.2 Both ear pads can be turned to 90 degrees as show in

illustraon (B). Note that the pads can only be turned in the
direcon shown in the picture, or the pads may be broken.

4.3 You can fold both frames inwards as shown in illustraon (C).

(A) (B)

(C)

Open the flip-up lid on the right-ear side, connect the micro USB

end of the cable to the USB port and connect the other end to an
USB power source, or plug it to a power bank of your own choice.

The power bank then works as an extra baery. When charging is
complete, the green LED will go off.

6. Operaon

6.1 DVR Funcon (Right Ear)

6.2.1 Turn On

Long press for 3 seconds. The device vibrates once

8

and the blue LED will go on.

※ Note: Memory card must be insterted to turn on the

device, or the device will vibrate once with blue and

red LED flickering, then power off automacally.

To record, short press once. The device vibrates once

8

and the red LED will be solid on while recording.

To stop recording, short press once. No vibraon, the

8

red LED goes off.

®

V1.0

USB Cable

5. Charge the Baery

Right Ear

Right Ear

Le Ear

6.2.2 Record / Stop

6.2.3 Wi-Fi

To turn on Wi-Fi funcon, short press once. The

device vibrates once and the orange LED will be solid on.

The orange LED flickers when the Wi-Fi is not connected.
To turn off Wi-Fi funcon, short press once. The
device vibrates twice and the orange LED will go off.
For more Wi-Fi funcon, please refer to the PV Cam

Viewer for Wi-Fi Cam Quick Guide.

7

7

1 2 3 4

6.1.4 Turn Off

Long press for 3 seconds. The device vibrates once

and all LED go off.

8

6.2 Headphone Funcon (Le Ear)

6.2.1 Turn On

Long press for 3 seconds. The blue LED is solid on

and red LED flickers, the device is turned on.

6.2.2 Play / Pause

To play the MP3 files, short press once.
To pause, short press , the red LED flickers. To

resume playing, short press again.

6.2.3 Previous / Next Track

Short press to play previous track and short press
to play next track.

6.2.4 Volume Up / Down

Long press to turn up the volume and long press
to turn down the volume.

6.2.5 Turn Off

To turn off the device, long press for 3 seconds. All
LEDs will go off.

6.2.6 Save MP3 Files to Device

To save MP3 tracks in the device, connect the micro USB
end of the cable to the USB port and connect the
other end to a PC. It will be recognized by PC as an
external drive for user to save MP3 tracks in the device.

2

2

1

1

7. Format Memory Card

Press and hold the Format buon , then long press to turn

9

on the device. The blue LED illuminates and red LED flickers, then
the device will power off. The format is completed.

※ Note: It is important to format the card when using it for the

first me.

8

11. Specificaon (DVR)

Built-in Image Senso r 1/3" progressive CMOS sensor
Sensor Resoluon 2304x1536
Sensor Sensi vity 3.3 Lux @ F 2.0
Lens F/No. F 3.2
Focal Length 4mm
Angle of View 66°

PV-EP10W

1080P Headphone Wi-Fi DVR

Quick Guide

8. Date and Time Seng

Please refer to the Synchronize the Time steps on the PV Cam

2

2

3

Viewer for Wi-Fi Cam Quick Guide.

9. Retrieve Video Files

There are two ways to retrieve video files.

9.1 Use the memory card reader to download video / photo files.

9.2 With the device powered on and memory card inserted,

connect the device to PC by USB connecon. It will be

3

recognized by PC as an external drive for user to download

the video and photo files.

※ Note: The USB port on the le-ear side is only for transferring

2

MP3 tracks.

10. Specificaon (Headphone)

File Format MP3 (WAV)

6

Memory Type Built-in storage 4GB
Data Interface MICRO USB 2.0

Power Input USB 5V

Algorithm H.264, JPEG
File Format MOV, JPG
Video Recording Mode Manual
Recording Capability 1920x1080
Frame Rate Up to 30 fps
Photo Capabi lity 5M (2952x1944)

Wi-Fi Built-in Wi-Fi Module (IEEE 802.11b/g/n)
Wi-Fi Protocol RTSP

Memory Type Memory Card (Supp ort up
Data Interface Mini USB 2.0

Date/Time Table YYYY/MM/DD, HH:MM:SS
Snapsho t

Power Input DC 5V
Power Consumpon
Charging Time 150 min (580mA*2)
Baery Input DC 3.7V / 1100 mA high po lymers baery(XK503040*2)
Baery Lifeme Connuous recording 100min(Wi-Fi ON)/120min(Wi-Fi OFF)
Recording me 160min @ 1920x1080 resoluon (16GB memory card)

Vibraon Alert Power on/off, Recording, Low baery
Dimension 155x178x74.2mm

to 32GB)
