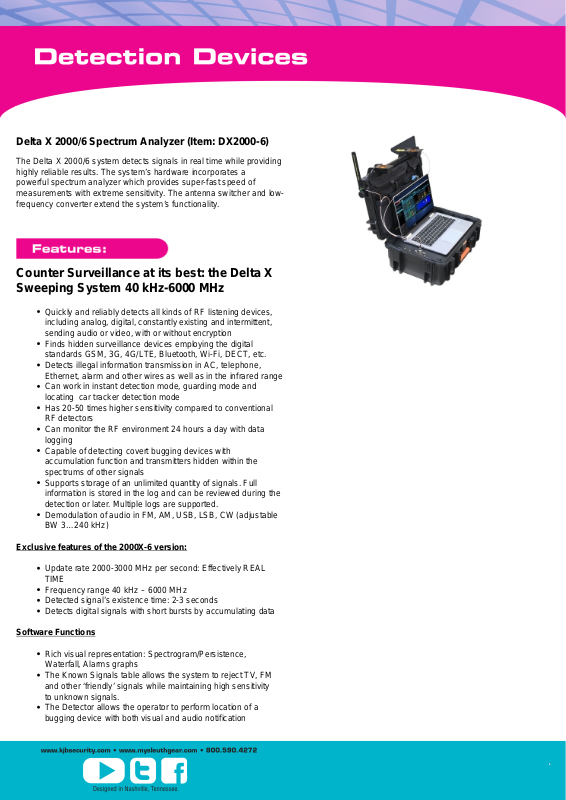

KJB DX2000-6 Specsheet
Delta X 2000/6 Spectrum Analyzer (Item: DX2000-6)
The Delta X 2000/6 system detects signals in real time while providing
highly reliable results. The system’s hardware incorporates a
powerful spectrum analyzer which provides super-fast speed of
measurements with extreme sensitivity. The antenna switcher and lowfrequency converter extend the system’s functionality.
Counter Surveillance at its best: the Delta X
Sweeping System 40 kHz-6000 MHz
Quickly and reliably detects all kinds of RF listening devices,
including analog, digital, constantly existing and intermittent,
sending audio or video, with or without encryption
Finds hidden surveillance devices employing the digital
standards GSM, 3G, 4G/LTE, Bluetooth, Wi-Fi, DECT, etc.
Detects illegal information transmission in AC, telephone,
Ethernet, alarm and other wires as well as in the infrared range
Can work in instant detection mode, guarding mode and
locating car tracker detection mode
Has 20-50 times higher sensitivity compared to conventional
RF detectors
Can monitor the RF environment 24 hours a day with data
logging
Capable of detecting covert bugging devices with
accumulation function and transmitters hidden within the
spectrums of other signals
Supports storage of an unlimited quantity of signals. Full
information is stored in the log and can be reviewed during the
detection or later. Multiple logs are supported.
Demodulation of audio in FM, AM, USB, LSB, CW (adjustable
BW 3…240 kHz)
Exclusive features of the 2000X-6 version:
Update rate 2000-3000 MHz per second: Effectively REAL
TIME
Frequency range 40 kHz – 6000 MHz
Detected signal’s existence time: 2-3 seconds
Detects digital signals with short bursts by accumulating data
Software Functions
Rich visual representation: Spectrogram/Persistence,
Waterfall, Alarms graphs
The Known Signals table allows the system to reject TV, FM
and other ‘friendly’ signals while maintaining high sensitivity
to unknown signals.
The Detector allows the operator to perform location of a
bugging device with both visual and audio notification
The Alarm Threshold decreases the false alarm rate
The Hold Max Danger feature selects and shows the strongest
signals for their location as the system is moved during
detection
The Update Mask procedure allows the operator to quickly
adjust the system to the local RF environment on order to
reject safe signals
Sorting and filtering is supported in the Signals table
The Report function allows the operator to export all obtained
information about the desired signals
Is easily localizable to any language
Comes in 3 models, DX100-12, DX100-4 & DX2000-6 to choose the
correct device see the comparison chart for your requirements
.
Computer not included.
• Fields of ‘Known Signals’ table:Frequency, BW, Name, Modulation
• Fields of ‘Bands’ table:Begin, End, Name, Type, Threshold,
Priority, Tracker detection
• Fields of ‘Signals’ table: Frequency, Bandwidth, Name, dbm Level,
dbm Peak Level, Danger Level, Peak Danger Level
• Detector’s modes: Wide-Range, Signal
• Update rate: 2000-3000 MHz/sec
• Frequency range: 40kHz-6000MHz
• Time to detect: 2-3 seconds
• Spectrum graphs: Waterfall and Spectrogram’s
• Spectrum resolution's 9kHz
• Displayed Dynamic range: 0.5, 1, 2, 5, 10, 25, 50, 100, 200, 500,
1000, 2000, 3000, 6000 MHz
• Systems Requirements: 3rd generation or newer Intel dual/quad
Core i-series, 1 x USB3.0 2 x USB2.0, Windows 7,8,10
• High Voltage probe
• Low Voltage probe
• In-line modular adapter
• infrared/VLF probe
• Extension cable
• Tripod
• Directional antenna
