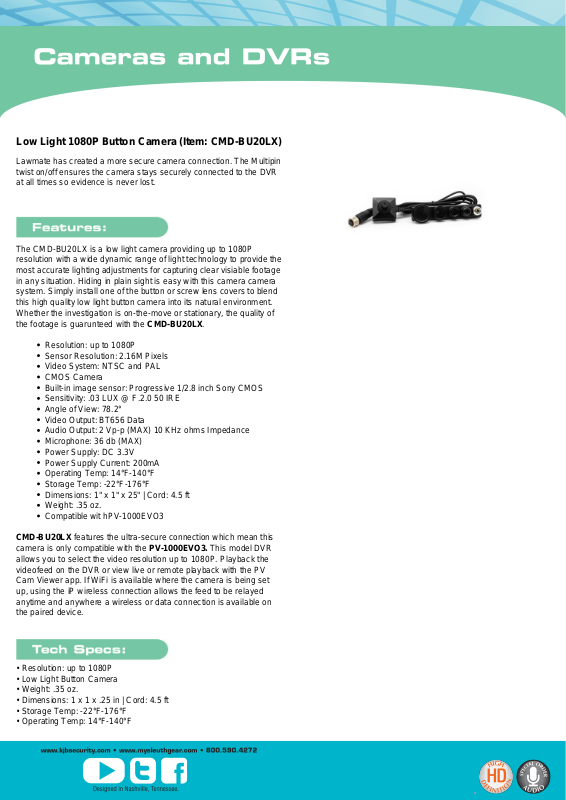

KJB CMD-BU20LX Specsheet

Low Light 1080P Button Camera (Item: CMD-BU20LX)

Lawmate has created a more secure camera connection. The Multipin
twist on/off ensures the camera stays securely connected to the DVR
at all times so evidence is never lost.

The CMD-BU20LX is a low light camera providing up to 1080P
resolution with a wide dynamic range of light technology to provide the
most accurate lighting adjustments for capturing clear visiable footage
in any situation. Hiding in plain sight is easy with this camera camera
system. Simply install one of the button or screw lens covers to blend
this high quality low light button camera into its natural environment.
Whether the investigation is on-the-move or stationary, the quality of
the footage is guarunteed with the CMD-BU20LX.

Resolution: up to 1080P
Sensor Resolution: 2.16M Pixels
Video System: NTSC and PAL
CMOS Camera
Built-in image sensor: Progressive 1/2.8 inch Sony CMOS
Sensitivity: .03 LUX @ F.2.0 50 IRE
Angle of View: 78.2°
Video Output: BT656 Data
Audio Output: 2 Vp-p (MAX) 10 KHz ohms Impedance
Microphone: 36 db (MAX)
Power Supply: DC 3.3V
Power Supply Current: 200mA
Operating Temp: 14°F-140°F
Storage Temp: -22°F-176°F
Dimensions: 1" x 1" x 25" | Cord: 4.5 ft
Weight: .35 oz.
Compatible wit hPV-1000EVO3

CMD-BU20LX features the ultra-secure connection which mean this
camera is only compatible with the PV-1000EVO3. This model DVR
allows you to select the video resolution up to 1080P. Playback the
videofeed on the DVR or view live or remote playback with the PV
Cam Viewer app. If WiFi is available where the camera is being set
up, using the iP wireless connection allows the feed to be relayed
anytime and anywhere a wireless or data connection is available on
the paired device.

• Resolution: up to 1080P

• Low Light Button Camera

• Weight: .35 oz.

• Dimensions: 1 x 1 x .25 in | Cord: 4.5 ft

• Storage Temp: -22°F-176°F

• Operating Temp: 14°F-140°F

• Power Supply Current: 200mA

• Power Supply: DC 3.3V

• Microphone: 36 db (MAX)

• Data Audio Output: 2 Vp-p (MAX) 10 KHz ohms Impedance

• Video Output: BT656

• Angle of View: 78.2°

• Sensitivity: .03 LUX @ F.2.0 50 IRE

• Built-in image sensor: Progressive 1/2.8 inch Sony CMOS

• CMOS Camera

• Video System: NTSC and PAL

• Sensor Resolution: 2.16M Pixels

• Button Camera

• Button Accessories
