KJB C3000SC Specsheet

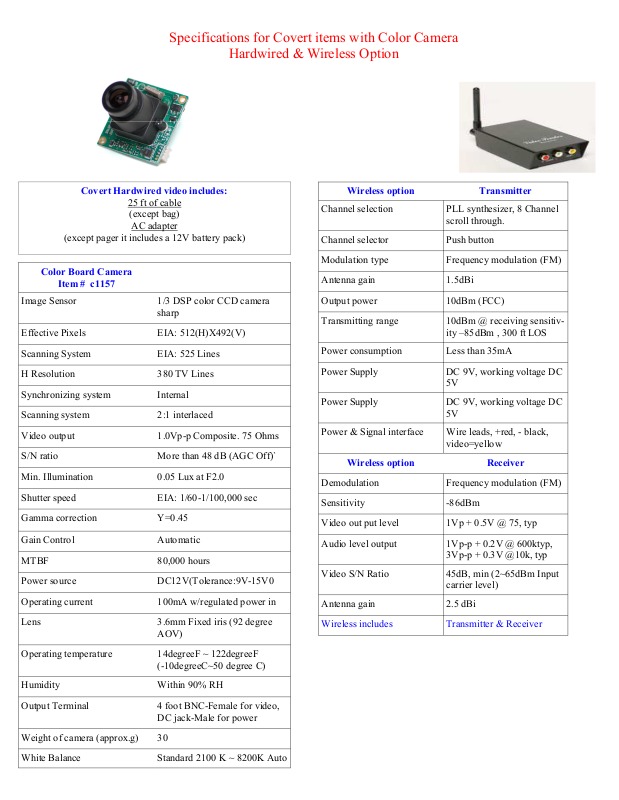

Specifications for Covert items with Color Camera
Hardwired & Wireless Option
Covert Hardwired video includes:
25 ft of cable
(except bag)
AC adapter
(except pager it includes a 12V battery pack)
Color Board Camera
Item # c1157
Image Sensor 1/3 DSP color CCD camera
Effective Pixels EIA: 512(H)X492(V)
Scanning System EIA: 525 Lines
H Resolution 380 TV Lines
Synchronizing system Internal
Scanning system 2:1 interlaced
Video output 1.0Vp-p Composite. 75 Ohms
S/N ratio More than 48 dB (AGC Off)`
Min. Illumination 0.05 Lux at F2.0
Shutter speed EIA: 1/60-1/100,000 sec
Gamma correction Y=0.45
Gain Control Automatic
MTBF 80,000 hours
Power source DC12V(Tolerance:9V-15V0
Operating current 100mA w/regulated power in
sharp
Wireless option Transmitter
Channel selection PLL synthesizer, 8 Channel
scroll through.
Channel selector Push button
Modulation type Frequency modulation (FM)
Antenna gain 1.5dBi
Output power 10dBm (FCC)
Transmitting range 10dBm @ receiving sensitiv-
ity –85dBm , 300 ft LOS
Power consumption Less than 35mA
Power Supply DC 9V, working voltage DC
5V
Power Supply DC 9V, working voltage DC
5V
Power & Signal interface Wire leads, +red, - black,
video=yellow
Wireless option Receiver
Demodulation Frequency modulation (FM)
Sensitivity -86dBm
Video out put level 1Vp + 0.5V @ 75, typ
Audio level output 1Vp-p + 0.2V @ 600ktyp,
3Vp-p + 0.3V @10k, typ
Video S/N Ratio 45dB, min (2~65dBm Input
carrier level)
Antenna gain 2.5 dBi
Lens 3.6mm Fixed iris (92 degree
AOV)
Operating temperature 14degreeF ~ 122degreeF
(-10degreeC~50 degree C)
Humidity Within 90% RH
Output Terminal 4 foot BNC-Female for video,
DC jack-Male for power
Weight of camera (approx.g) 30
White Balance Standard 2100 K ~ 8200K Auto
Wireless includes Transmitter & Receiver
Specifications for Covert items with Black & White Camera
Hardwired & Wireless Option
Covert Hardwired video includes:
25 ft of cable
(except Bag)
AC adapter
(except pager it includes a 12V battery pack)
B/W Board Camera Item #
C1156
Image sensor Standard resolution 1/3 bw
Effective Pixels EIA: 512(H)X492(V) CCIR:
Scanning System EIA: 525 Lines CCIR: 625
H Resolution 420 TV Lines
Synchronizing system Internal
Scanning system 2:1 interlaced
Video output 1.0Vp-p Composite. 75 Ohms
S/N ratio More than 48 dB (AGC Off)`
Min. Illumination 0.05 Lux at F2.0
Shutter speed EIA: 1/60-1/100,000 sec
Gamma correction Y=0.45
Gain Control Automatic
MTBF 80,000 hours
Power source DC12V(Tolerance:9V-15V0
Operating current 100mA w/regulated power in
Lens 2.9mm(120degree), 4.3mm
CCD camera
500(H)X582(V)
Lines
CCIR: 1/50-1/1000,000 sec
(78degree), 6mm (54degree)
Wireless option Transmitter
Channel selection PLL synthesizer, 4 channel
Channel selector Push button
Modulation type Frequency modulation (FM)
Antenna gain 1.5dBi
Output power 10dBm (FCC)
Transmitting range 10dBm @ receiving sensitiv-
ity –85dBm , *300– 700 ft
LOS approximate range
Power consumption Less than 35mA
Power Supply DC 9V, working voltage DC
5V
Power Supply DC 9V, working voltage DC
5V
Power & Signal interface Wire leads, +red, - black,
video=yellow
Wireless option Receiver
Channel 4 channel scroll through
Demodulation Frequency modulation (FM)
Sensitivity -86dBm
Video out put level 1Vp + 0.5V @ 75, typ
Audio level output 1Vp-p + 0.2V @ 600ktyp,
3Vp-p + 0.3V @10k, typ
Video S/N Ratio 45dB, min (2~65dBm Input
carrier level)
Antenna gain 2.5 dBi
Wireless includes Transmitter & Receiver
Operating temperature 14degreeF ~ 122degreeF
(-10degreeC~50 degree C)
Humidity Within 90% RH
Output Terminal 4 foot BNC-Female for video,
DC jack-Male for power
Weight of canera (approx.g) 21
*LOS is dependent upon obstructions and interference
from other wireless devices.
