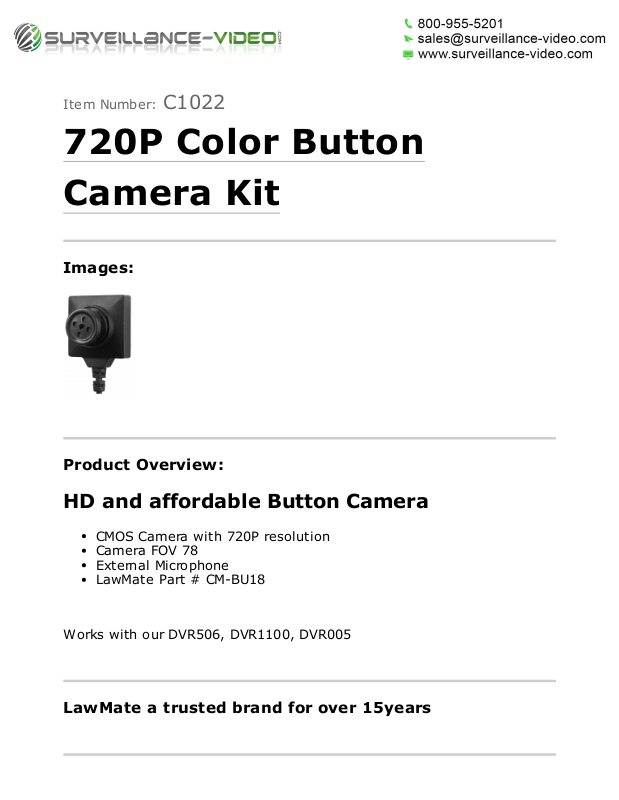

KJB C1022 Specsheet

Item Number: C1022

720P Color Button
Camera Kit

Images:

Product Overview:

HD and affordable Button Camera

CMOS Camera with 720P resolution
Camera FOV 78
External Microphone
LawMate Part # CM-BU18

Works with our DVR506, DVR1100, DVR005

LawMate a trusted brand for over 15years

Product Features:

The Miniture Size button design, makes this
camera perfect for disquise!

Built-in Interchangeable NTSC/PAL switch
Built-in Microphone
High resolution
Compatible with wire controller and remote controller
Miniature size
Button design to undergo disguise purpose
Works in the dark
Interchangeable covert head
Easy Installation with standard analog jack

Made by LawMate, supported by KJB - a
winning combination

Product Specs:

• Video Format: NTSC & PAL

• Dimensions: 21x21x11 mm

• Power Input: DC 5V

• Storage Temperature: -10º C to +60º C

• Operation Temperature: -10º C to +60º C

• Current Consumption: 0.5W

• Video Output: 1.0 v p-p 75

• Pixel Size: 5.6 µ m x 5.6 µ m

• S/N Ration: >45 dB

• Sensitivity: >11.5v/ Lux-s @ 550nm

• Angle Of View: 78º

• Focal Length: 4.3mm

• Sensor Sensitivity: 0.03 Lux @ F2.0

• Resolution: 480 TV Line

• Image Sensor: 1/4" CMOS

• Number Of Effective Pixels: NTSC 720H x 480V; PAL 720H x 576V

• Weight: 20g
