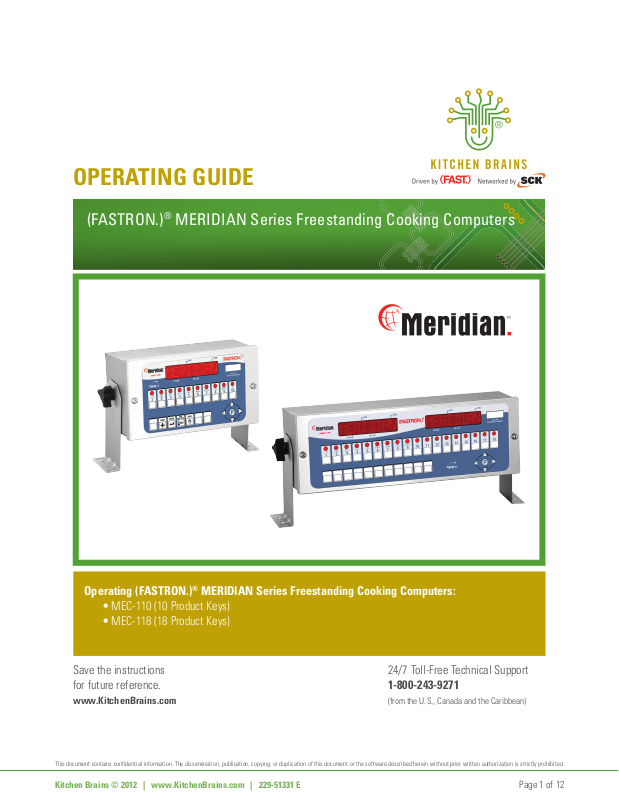

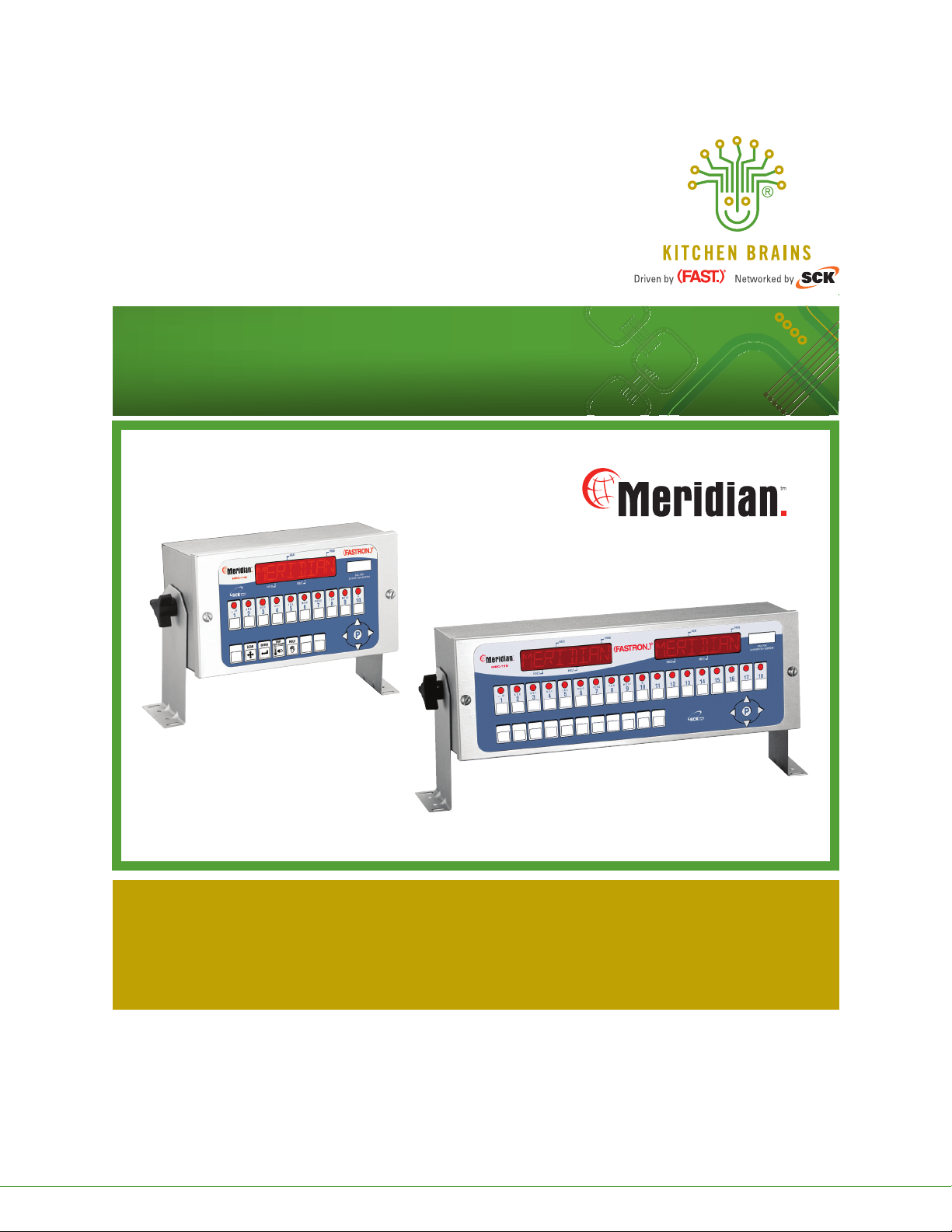

Kitchen Brains MEC-110, MEC-118 Manual

OPERATING GUIDE

(FASTRON.)® MERIDIAN Series Freestanding Cooking Computers

Operating (FASTRON.)® MERIDIAN Series Freestanding Cooking Computers:

•MEC-110 (10 Product Keys)

•MEC-118 (18 Product Keys)

Save the instructions for future reference.

www.KitchenBrains.com

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

24/7 Toll-Free Technical Support

1-800-243-9271

(from the U.S., Canada and the Caribbean)

Page 1 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

NOTICES

Before you start, please read entire manual.

Kitchen Brains is not liable for any use of product not in accordance with Kitchen Brains’ installation and operation instructions.

Before using this equipment, or for any questions on the operations of the appliance, consult and follow all instructions and safety warnings found in the appliance operator’s manual supplied from the manufacturer of the appliance.

Not all features are available on some models.

COOKING COMPUTER OPERATING ENVIRONMENT

The solid state components in this timer are designed to operate reliably in a temperature range up to 158°F/70°C. Before installing this timer, it should be verified that the ambient temperature at the mounting location does not exceed 158°F/70°C.

CLEANING THE COOKING COMPUTER

Using a clean damp cloth, wipe down your computer daily using a commercial quality foodservice-approved detergent.

Do not allow oil to build up on any part of the computer.

Required Tools Prior to Starting Installation:

• Straight Screwdriver

• Power Drill

• #29 High-Speed Drill Bit

• 10/32 Tap

• Center Punch

• Hammer

INSTALLATION

1. Turn appliance power OFF.

2. Choose your mounting location.

3. Attach 2 mounting brackets to the Meridian Cooking Computer using the 2 wing nuts provided. Be sure to put 1 star washer on each side of the mounting bracket.

4. Hold the computer against your mounting surface.

5. Mark 4 mounting holes.

6. Drill and tap the mounting holes.

7. Secure the Meridian Cooking Computer to the mounting surface using the 4 screws provided.

NEVER use chemical or abrasive cleaners on

your computer. The computer’s overlay may be damaged.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 2 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

(FASTRON.)® MERIDIAN COOKING COMPUTER FEATURES

Programming codes

Product Programming 1 7 2 4

System Programming 3 2 2 8

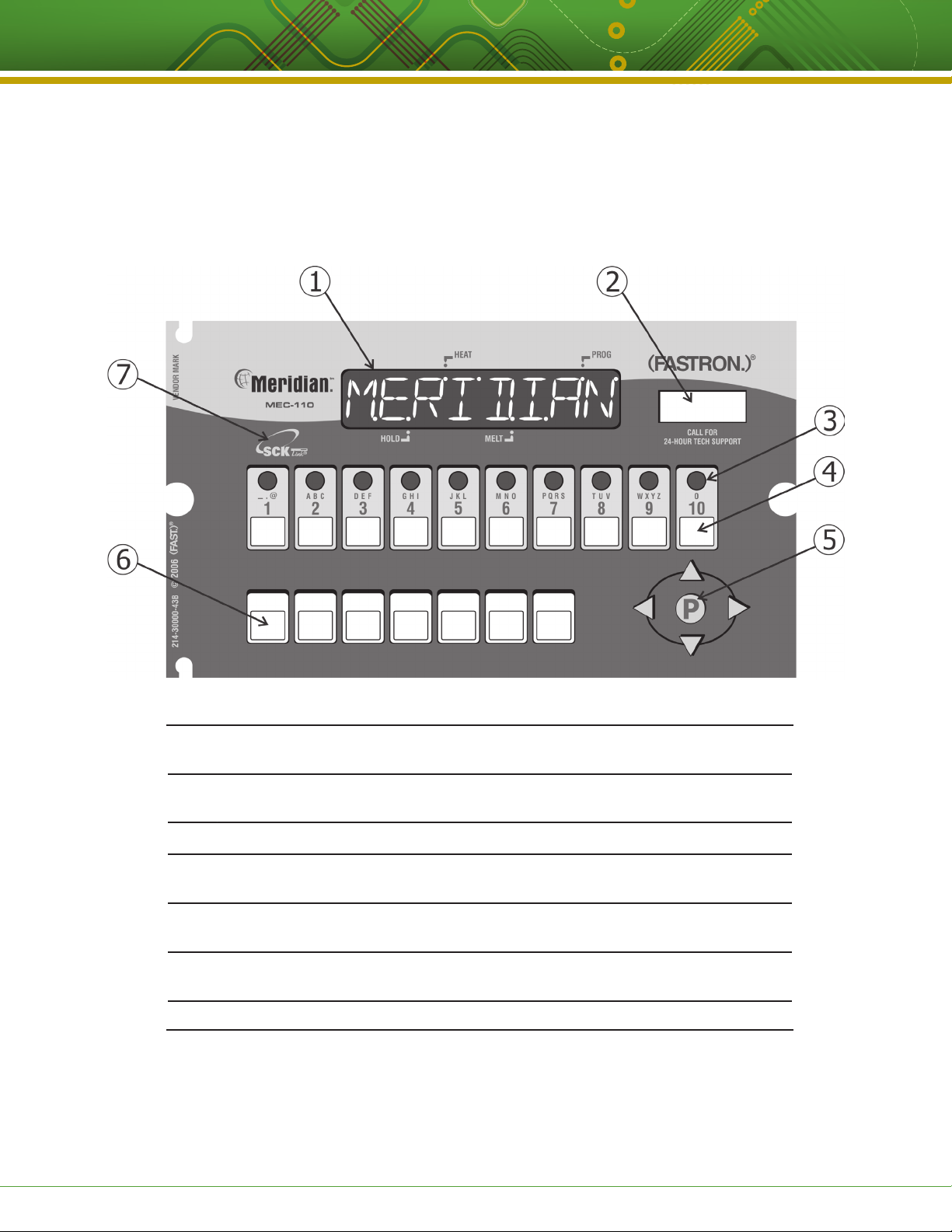

1 LARGE LED DISPLAY: 8-character, 14-segment. Displays programming and cook

cycle information.

2 SERVICE WINDOW: Locate the computer’s serial number and tech support phone

number easily.

3 INDICATOR LIGHTS: Lit when there’s an active cook cycle and in programming mode.

4 PRODUCT KEYS: Press to start a cook cycle. Also used in programming.

REPLACEABLE MENU STRIP: Make menu changes quickly and easily.

TM

5 PROGRAMMING CENTER: (FAST.Nav)

— Easy mobile phone-like programming with

predictive text. Access programming mode and change cooking parameters.

6 FEATURE KEYS: Used to access programming functions and computer features;

keys will vary by model.

7 SCK Link®: Signiﬁes that your control is communications-capable.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 3 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

FEATURES EXPLAINED

Programmable Action Alarms

Up to three action alarms can be programmed for each product key. An action alarm alerts the operator to perform some action at a pre-programmed time.

Fahrenheit or Celsius Temperature Display

The computer can be configured to display the temperature in degrees Fahrenheit or Celsius (accessible through System Programming mode).

Programmable (FAST.Flex)TM Timing Mode

To insure consistent, high-quality food product, flex time will adjust the actual cook time taking into consideration the temperature variation due to load size, initial product temperature, product moisture content, and other factors affecting the cycle.

OPERATING THE COMPUTER

Programmable Hold Time Linking

Each product key can be linked to an independent hold timer, or multiple product keys can be linked to a single hold timer.

Programmable Hold Times

Product key hold times can be programmed to track product quality through a specified holding period. The computer will sound an alarm when the product’s hold time has expired alerting the operator to discard the product.

Automatic Least Hold Display

Product with the least amount of hold time remaining will be shown in the display. Pressing and holding the HOLD key allows you to view each active product’s remaining hold time.

Programmable Operating Mode

The computer can be programmed to operate as either a computer or timer.

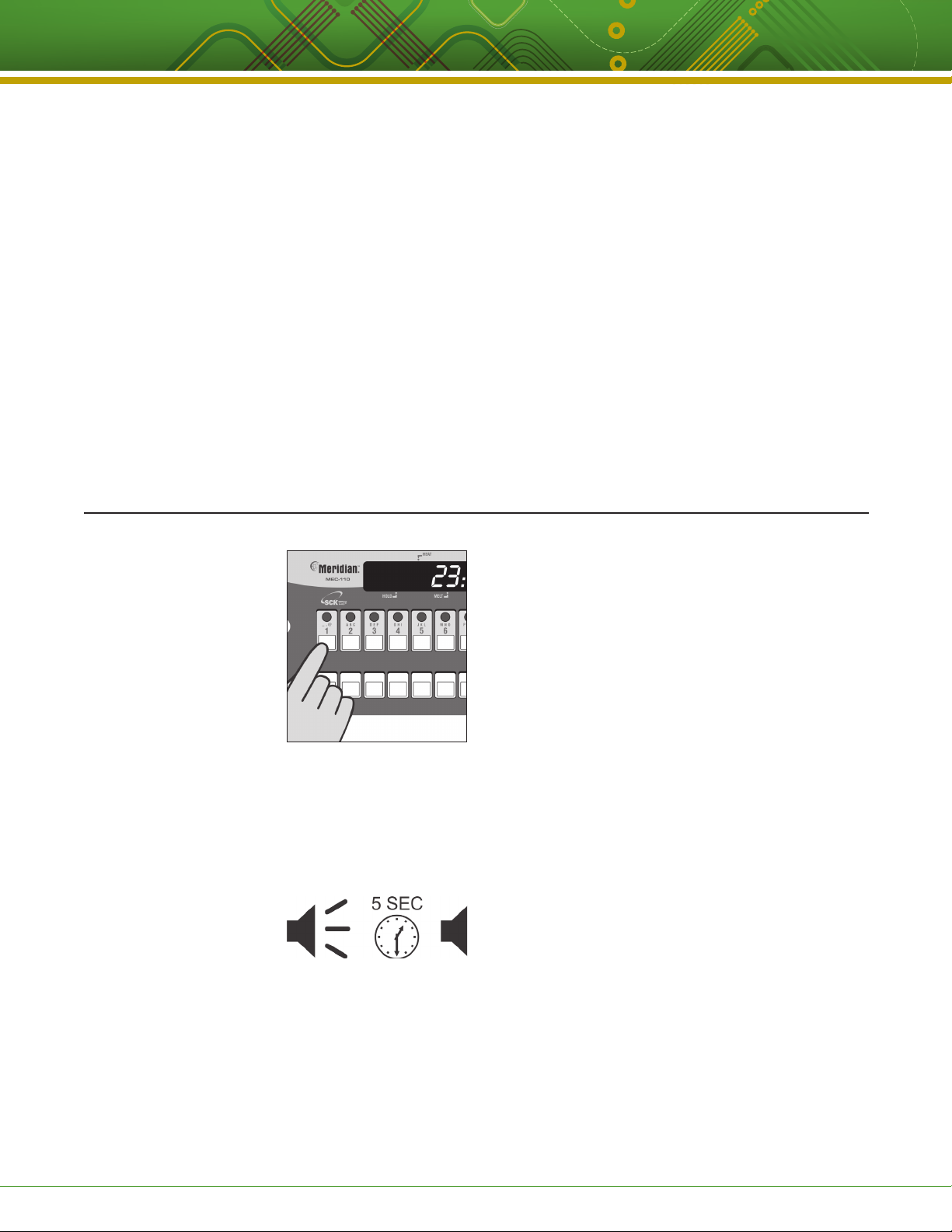

Start a Cook Cycle

Press any product key to start a cook cycle. If the key is programmed, the correct cooking time will be displayed and will immediately start to count down in minutes and seconds. DONE will display when the cook cycle has ended.

If DONE is displayed immediately and the unit starts to signal, the product key being pressed is not programmed.

Stop a Cook Cycle

Press and hold an active product key for 3 seconds. Timing will stop.

Respond to a DONE Alarm

Cancel the signal by pressing the same product key used to start the cook cycle.

Action Alarms

If the computer is programmed for action alarms, they will signal at a preset time during the cooking cycle. The signal, a dual-rhythm beeping, will last 5 seconds and then self-cancel. The display will flash the action alarm time and the computer will start counting toward 0:00.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 4 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

OPERATING THE (FASTRON.)® MERIDIAN COOKING COMPUTER

Holding Timers

When there are active hold times, the HOLD indicator light will be lit.

To View All Active Hold Times, press and hold the HOLD key. Upon expiration, the computer will display HOLD and pulse with an audible tone. Acknowledge time by pressing the HOLD key.

To Cancel a Hold, press the TOGGLE/CLEAR key, followed by the HOLD key, then the key you want to cancel.

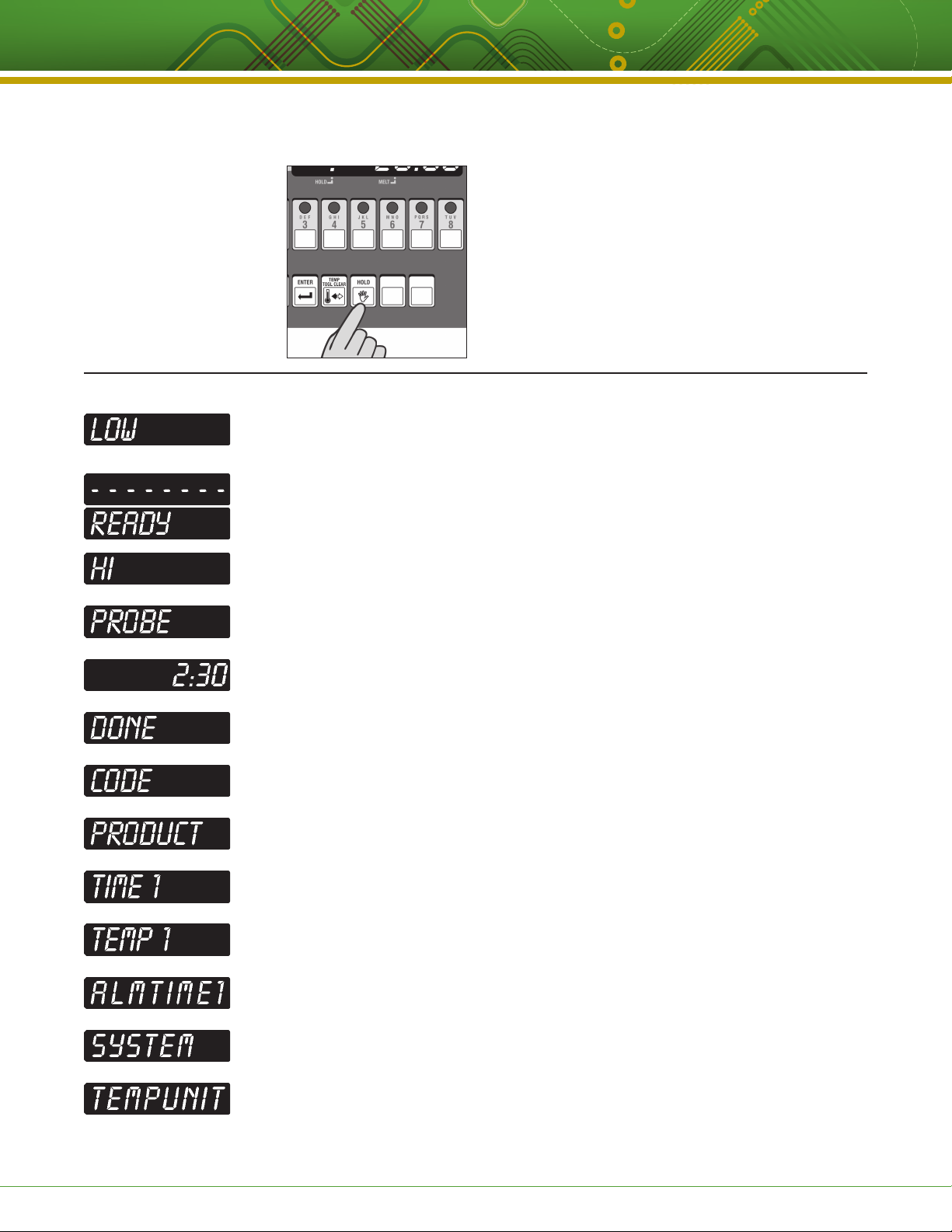

DISPLAY DESCRIPTIONS

Computer is in Operating Mode. Actual vat temperature is more than 10 degrees below the programmed vat temperature.

Computer is in Operating Mode. Actual vat temperature is within the proper cooking temperature range. The vat is ready to start a cook cycle.

Computer is in Operating Mode. The actual vat temperature is more than 40 degrees above the highest programmed vat temperature. A continuous audible alarm will sound.

Computer’s probe is either open or shorted. Display will be accompanied with an audible alarm if shorted. Check or replace the probe.

Computer is in Operating Mode and a cook cycle is in progress.

Computer is in Operating Mode and a cook cycle has been completed.

Computer is waiting for a pass code to be entered.

Computer is in Product Key Programming Standby mode.

Stage cooking time is displayed.

Stage cooking temperature is displayed.

Action alarm status is displayed.

Computer is in System Programming Standby Mode.

Computer is in Fahrenheit or Celsius Programming Mode.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 5 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

PROGRAMMING THE (FASTRON.)® MERIDIAN COMPUTER (STORE EMPLOYEE)

Product Key Programming

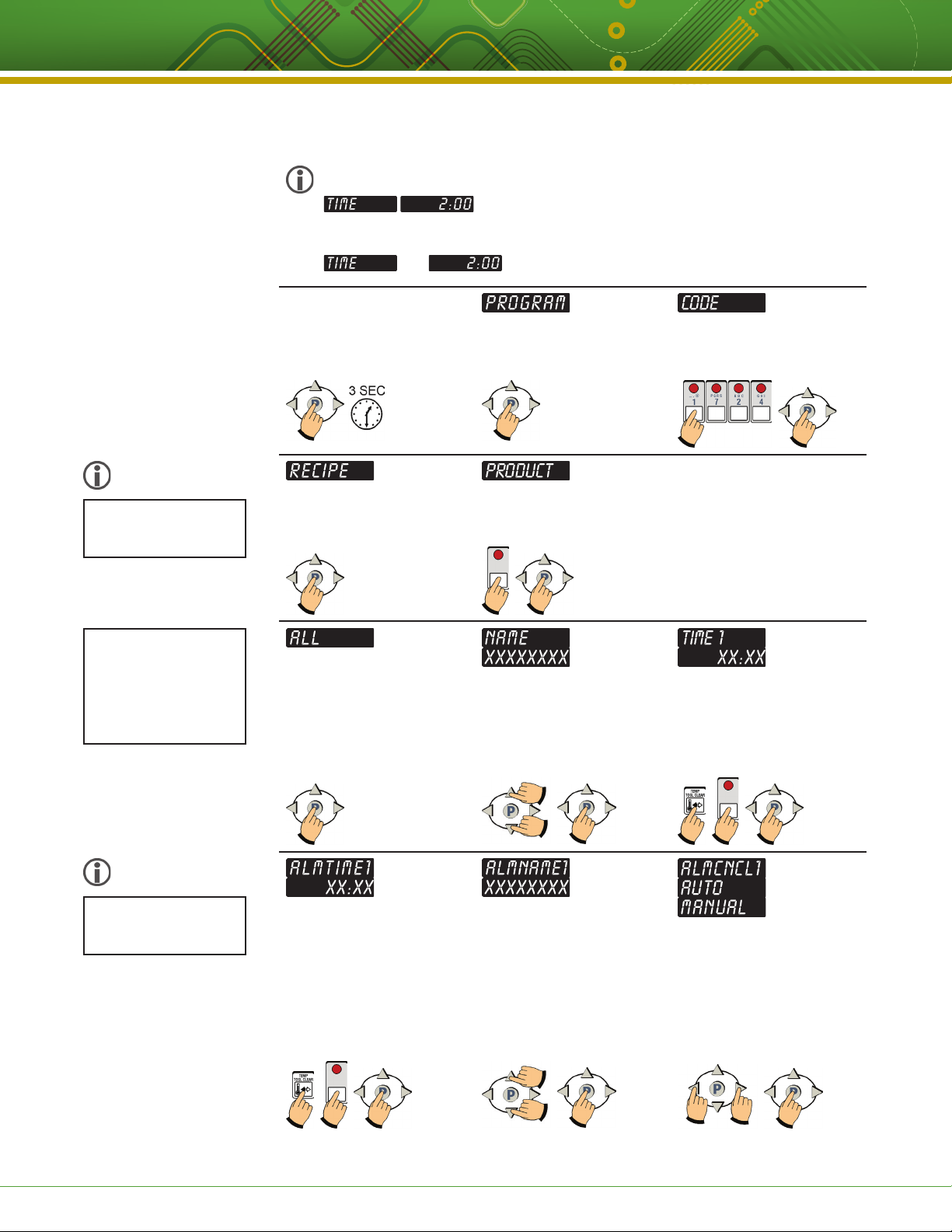

RECIPE 1724 STORE EMPLOYEE

18 button computers have two displays that show a full line of information;

for example:

10 button controllers have a single, dual-purpose display that will alternate information; for example:

ENTER PROGRAMMING MODE. Press and hold the P key for 3 seconds.

then

Press the P key. Type in 1 7 2 4 using the product

keys. Press the P key.

Some computers may have different options listed.

Depending on model, you can either press the P key to change all programmable settings or you can scroll using the arrow keys to any of the speciﬁc options.

Some models have up to 3 action alarms.

Press the P key. All product key LEDs will light up.

PROGRAM A PRODUCT KEY. Press the product key you want to program. Press the P key.

Press the P key. SET PRODUCT DISPLAY

NAME. Name will be displayed then the actual product name. Use the up and down arrow keys to scroll through the library. Press the P key to lock in your choice.

SET ACTION ALARM. Actual alarm time 1 will be displayed. To change, press toggle clear to change the time to zero. Type in a new time using the product keys. Press the P key.

SET ACTION ALARM NAME. ALMNAME1 will be displayed, then the actual action alarm name. Use the up and down arrow keys to scroll through the library. Press the P key to either go to next action alarm name, or continue through programming.

SET COOK TIME. Actual set time will be displayed. To change, press toggle clear to change the time to zero. Type in a new time using the product keys. Press the P key.

SET ALARM CANCEL. Use the left and right arrow keys to change from AUTO or MANUAL cancel. Then press the P key.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 6 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

PROGRAMMING THE (FASTRON.)® MERIDIAN COMPUTER (STORE EMPLOYEE) (CONTINUED)

SET ALARM TONE. Use the left

or right arrow keys to choose NONE, SHORT, MEDIUM, LONG, DOUBLE or LONG SHT as the alarm tone. Then press the P key.

Press the P key. Either press another product

SET HOLD TIME. Actual hold time will be displayed. To change, press toggle clear to change the time to zero. Type in a new time using the product keys. Press the P key.

key to program and repeat the programming instructions, or continue by pressing the down arrow key.

OR

Press the up arrow key.

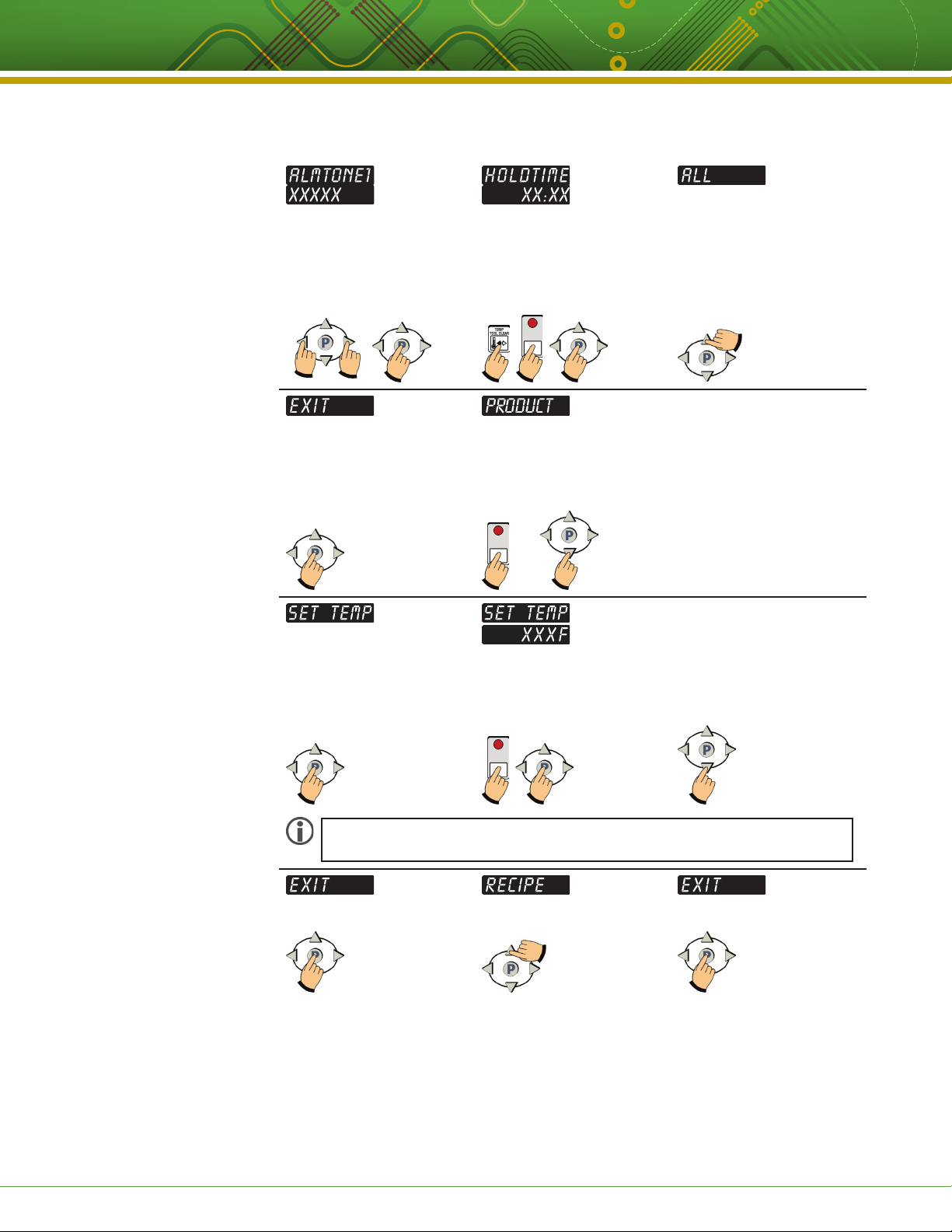

Press the P key. SET TEMP, then Actual Temp

NOTE: If you have a two-probe unit, the display will show SETTEMPL (Left) and then SETTEMPR (Right). You will have the option to change the temperature on both sides.

Press the P key. Press the up arrow key. Press the P key.

will be displayed. To change, use the number keys and then press the P key.

To Exit, press the down arrow key.

You are now out of programming mode and ready to use your Meridian Computer

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 7 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

PROGRAMMING THE (FASTRON.)® MERIDIAN COMPUTER (STORE MANAGER)

System Programming

SYSTEM 3228 STORE MANAGER

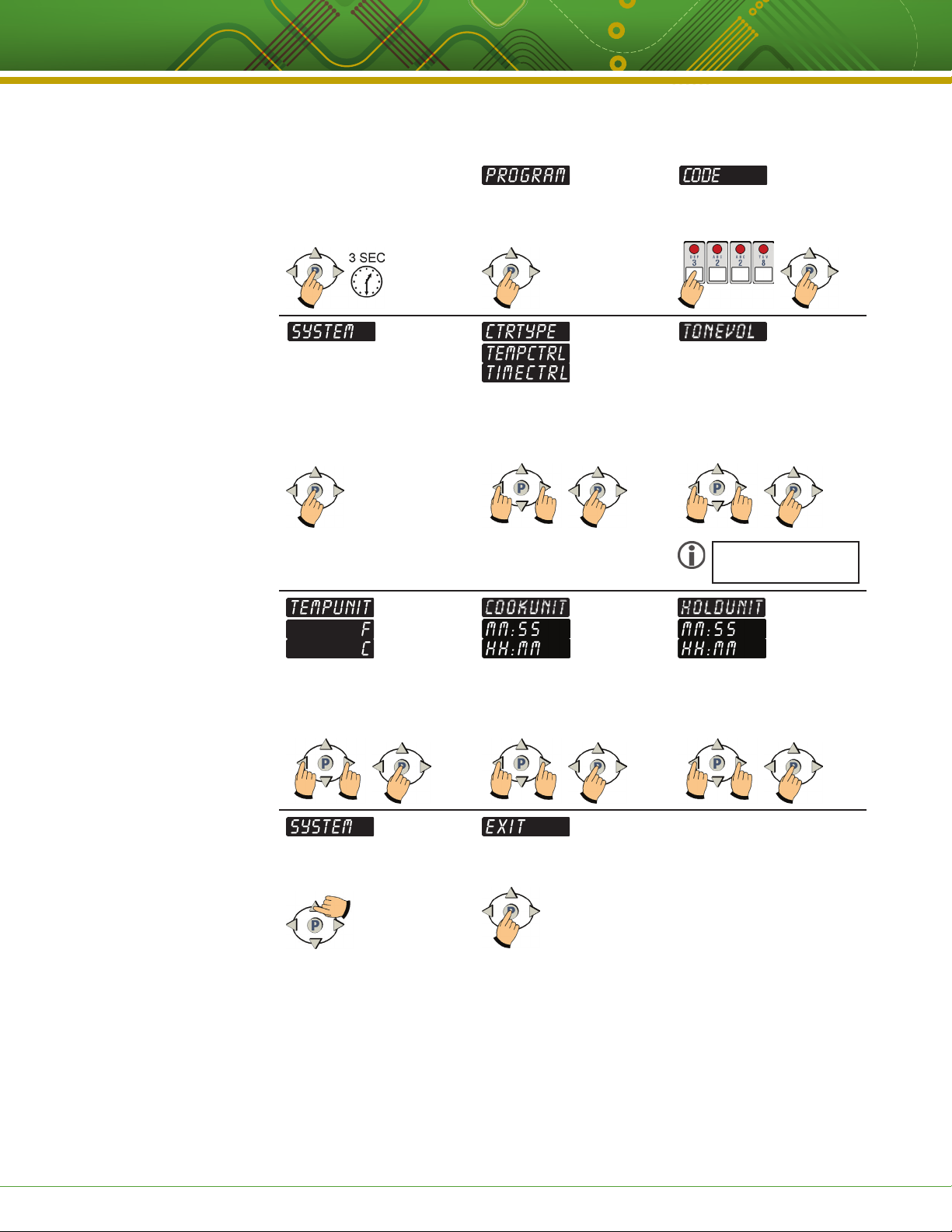

ENTER SYSTEM PROGRAMMING MODE.

Press and hold the P key for 3 seconds.

Press the P key. Type in 3 2 2 8 using the product

keys. Press the P key.

Press the P key SET CONTROL TYPE. Use the

SET TEMPERATURE SCALE. Use the left and/or right arrow keys to choose Fahrenheit (F) or Celsius (C). Press the P key.

left and/or right arrow keys to choose Temperature or Time Control. Press the P key.

SET TIME UNIT. Use the left and/or right arrow keys to choose Minutes/Seconds or Hours/Minutes. Press the P key.

SET TONE VOLUME. Use the left and/or right arrow keys to choose 1, 2, 3, 4 or NONE. Press the P key.

Not all models have this feature.

SET HOLD UNIT. Use the

left and/or right arrow keys to choose Minutes/Seconds or Hours/Minutes. Press the P key.

EXIT SYSTEM PROGRAMMING MODE. Press the up arrow key.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Press the P key.

Page 8 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

PROGRAMMING THE (FASTRON.)® MERIDIAN COMPUTER (STORE MANAGER) (CONTINUED)

Programming Custom Product and Action Alarm Names to the Library

SYSTEM 3228 STORE MANAGER

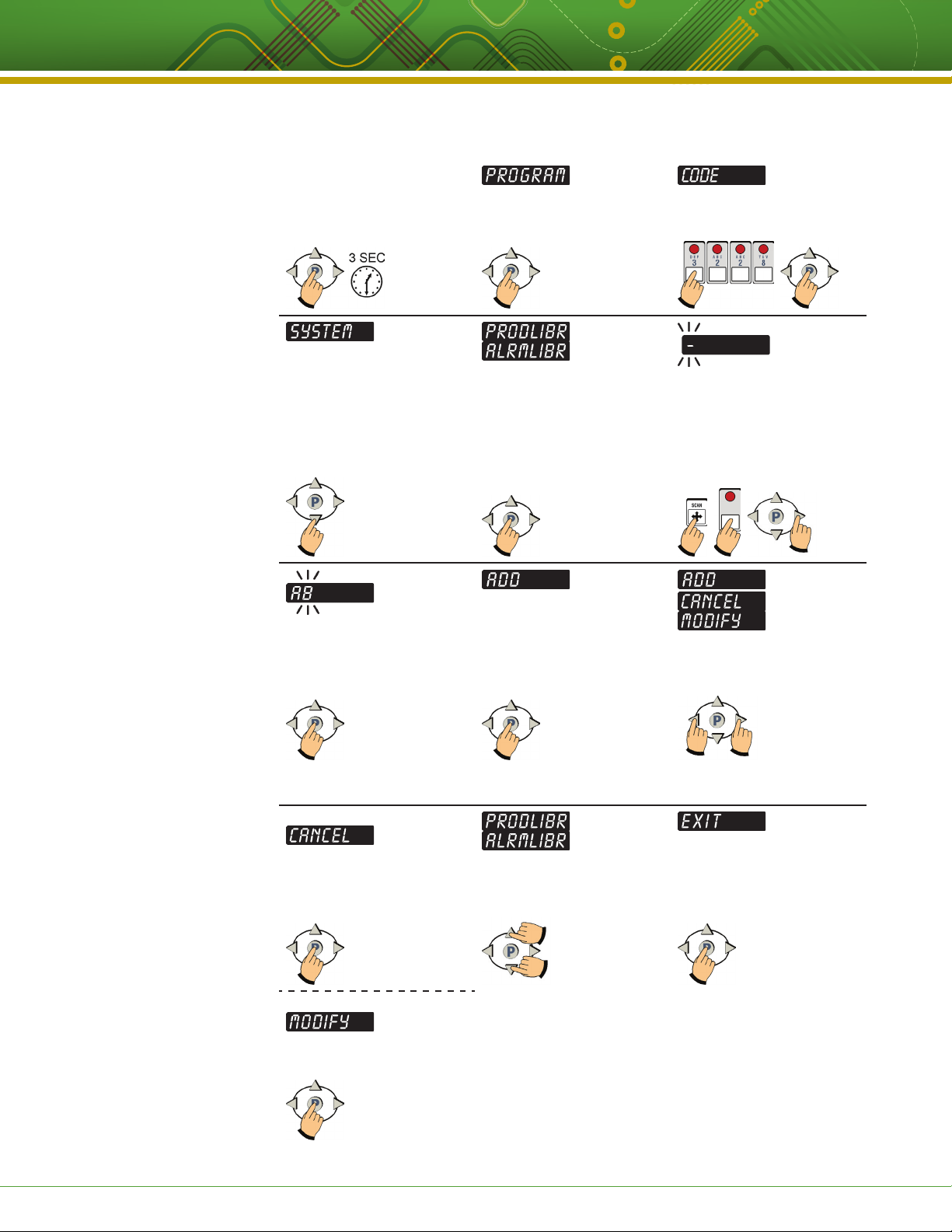

ENTER LIBRARY PROGRAMMING MODE.

Press and hold the P key for 3 seconds.

Press the P key. Type in 3 2 2 8 using the product

keys. Press the P key.

Press the down arrow key to select either PRODLIBR OR ALRMLIBR.

Continue spelling the word. When done, press the P key.

IF YOU CHOOSE CANCEL:

Choose either PRODLIBR (Product Library) or ALRMLIBR (Action Alarm Library) by pressing the P key.

TO SAVE WORD, press P again. Skip to Exit Library Programming.

TO CANCEL OR MODIFY, see next step.

A ﬂashing dash will be displayed. Press the SCAN key and use the product keys to spell a new word. Press the right arrow key to advance to the next character position.

TO CANCEL OR MODFY WORD, press the left or right arrow keys to select CANCEL or MODIFY.

Press the P key to EXIT and cancel the word.

IF YOU CHOOSE MODIFY:

Press the SCAN key to go back and modify the word.

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

EXIT LIBRARY PROGRAMMING. Press the up or down arrow keys until display reads EXIT.

Press the P key.

Page 9 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

HELPFUL INFO: TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

No Power Circuit breaker OFF Check and reset.

Applicance not plugged in Plug in cord.

Defective 24/VAC transformer Replace transformer.

Replace computer.

No Sound Inoperable speaker Replace computer.

Button Problem Frozen key Unplug computer. Hold down the

TOGGLE/CLEAR key as you plug computer back in.

Inoperable key Replace computer.

PROBE Is Displayed Defective temperature probe Replace temperature probe.

Probe not plugged in Plug in probe.

Reading Wrong Temperature Defective temperature probe Replace temperature probe.

Not Heating Defective element, relay, contactor or

gas valve

Defective computer Replace computer.

Replace defective part.

PARTS & ACCESSORIES

DESCRIPTION KITCHEN BRAINS™ PART NUMBER

Sheet Metal Bezel (Black) 214-50291

Sheet Metal Bezel (Stainless Steel) 214-50593

Slotted Round Head Screw, Black, 1/4-20 x 3/4” 150-10202

Slotted Round Head Screw, Stainless Steel, 1/4-20 x 3/4” 150-10188R

Mounting Kit 213-50432-01

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 10 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

INDEX

Cleaning the Cooking Computer .......................................................................................................................................... 2

Display Descriptions .............................................................................................................................................................. 5

Features

Cooking Computer ........................................................................................................................................................... 3

Explained .......................................................................................................................................................................... 4

Installation ............................................................................................................................................................................. 3

Notices .................................................................................................................................................................................. 2

Operating the Cooking Computer

Action Alarms ................................................................................................................................................................... 4

Done Alarm ...................................................................................................................................................................... 4

Holding Timers .................................................................................................................................................................. 5

View All Active Hold Times ........................................................................................................................................ 5

Start a Cook Cycle ............................................................................................................................................................ 4

Stop a Cook Cycle ............................................................................................................................................................ 4

Programming Codes.............................................................................................................................................................. 3

Programming: (LIBRARY)

Enter Library Programming .............................................................................................................................................. 9

Exit Library Programming ................................................................................................................................................. 9

Programming: (PRODUCT) Store Employee

Action Alarm ..................................................................................................................................................................... 6

Action Alarm Name .......................................................................................................................................................... 6

Alarm Cancel .................................................................................................................................................................... 6

Alarm Tone ........................................................................................................................................................................ 7

Cook Time ......................................................................................................................................................................... 6

Enter Programming Mode ................................................................................................................................................ 6

Hold Time ......................................................................................................................................................................... 7

Product Display Name ...................................................................................................................................................... 6

Product Key ...................................................................................................................................................................... 6

Programming: (SYSTEM) Store Manager

Control Type ...................................................................................................................................................................... 8

Cook Unit .......................................................................................................................................................................... 8

Enter System Programming ............................................................................................................................................. 8

Exit System Programming ................................................................................................................................................ 8

Temperature Scale ............................................................................................................................................................ 8

Tone Volume ..................................................................................................................................................................... 8

Support

Customer Service and Technical Assistance..................................................................................................................... 12

Free Program for Service Exchanges ............................................................................................................................... 12

Parts & Accessories ......................................................................................................................................................... 10

Troubleshooting ................................................................................................................................................................ 10

Warranty ........................................................................................................................................................................... 12

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 11 of 12

Operating 10 & 18 Product Key (FASTRON)® MERIDIAN Freestanding Cooking Computers

Want to learn more about

™

Kitchen Brains

products?

Visit our website:

www.KitchenBrains.com

SCK Link® is a registered trademark of Technology Licensing Corporation and use is subject to the appropriate license agreement.

Customer Service and Technical Assistance

Our customer service department is available for orders and questions Monday through Friday between the hours of 8 AM and 5 PM EST. Call us toll-free at 1-800-FASTRON (800-327-8766) if you’re in the US, Canada or the Caribbean, or at 203-378-6860 if you’re outside of these areas.

Toll-free technical assistance is available 24 hours a day, 365 days a year by calling 1-800-243-9271 (from the U.S., Canada and the Caribbean) when help is needed immediately.

You can also send an instant email message to a Kitchen Brains™ technician, Monday through Friday, 8am-5pm EST, by going to www.KitchenBrains.com, selecting the ‘Support’ link at the top of the page, and clicking on ‘Contact Tech Support.’

Free Program for Service Exchanges

Kitchen Brains provides an Exchange Program, at no extra cost, if a unit should fail. In the event of failure, you have the option of (1) receiving a replacement product from our factory, freight prepaid; (2) exchanging the failed product for a replacement product at one of our authorized local service centers; or (3) selecting on-site repair or replacement of the failed unit by one of our authorized local service centers.

To take advantage of this program, simply call our toll-free customer service number, 1-800-243-9271. If you elect to receive an exchange unit from the factory, a replacement unit will be sent immediately. Upon receipt of the replacement unit, simply return the failed unit to the factory, freight prepaid, using the same carton and packing material in which the replacement unit was shipped. The unit will be replaced free of charge, if still under warranty, and if the product shows no evidence of abuse or alteration. If the unit is not under warranty, you will pay repair charges and shipping costs to and from the factory.

Food Automation - Service Techniques, Inc.

905 Honeyspot Road, Stratford, CT 06615-7147 USA

Phone: +1-203-377-4414 Sales: 1-800-FASTRON Fax: +1-203-377-8187 International Callers: +1-203-378-6860

www.KitchenBrains.com

Toll-free technical support 24/7 from the U.S., Canada, and Caribbean: 1-800-243-9271

Any minor adjustment or calibration and any labor costs for the replacement of probes will be made at your expense.

The Kitchen Brains™ Exchange Program is available to any Domestic Customer whose account is current, and applies to all Kitchen Brains™ Timers, Computers and Controllers.

International offices are located in the United Kingdom, China and Singapore:

Europe, Middle East, Africa, South Asia

31 Saffron Court Southfields Business Park Basildon, Essex SS15 6SS ENGLAND Phone: +44 0 1268544000

Asia Pacific

1803, 18F, No 922 Hengshan Rd Shanghai 200030, CHINA Phone: +8613916 854 613

15-101, Block 290G, Bukit Batok St. 24 SINGAPORE 65629 Phone: +65 98315927

WARRANTY

Kitchen Brains warrants all new timers, computers, and controllers for 1 year from the date of purchase including computers, controllers, and timers. Kitchen Brains warrants all other items for a period of 90 days unless otherwise stated at the time of purchase.

PATENTS

The products manufactured by Kitchen Brains are protected under one or more of the following U.S. Patents: 5,331,575 5,539,671 5,711,606 5,723,846 5,726,424 5,875,430 6,142,666 6,339,930 6,401,467 6,581,391 7,015,433 7,650,833 7,877,291 8,060,408 Plus foreign patents and patents pending. Plus licensed patent 5,973,297

This document contains confidential information. The dissemination, publication, copying, or duplication of this document or the software described herein without prior written authorization is strictly prohibited.

Page 12 of 12
