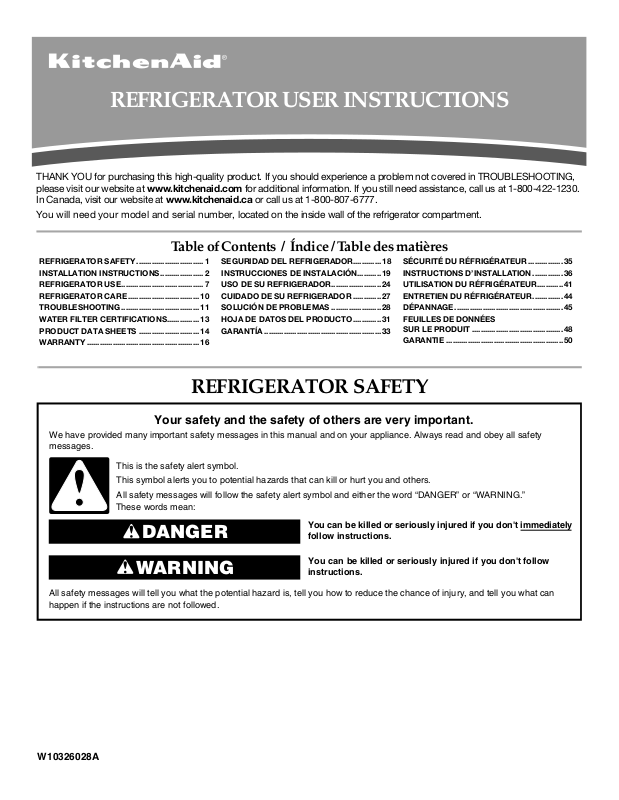

KitchenAid W10326028A User Manual

REFRIGERATOR USER INSTRUCTIONS

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING, please visit our website at www.kitchenaid.com for additional information. If you still need assistance, call us at 1-800-422-1230. In Canada, visit our website at www.kitchenaid.ca or call us at 1-800-807-6777.

You will need your model and serial number, located on the inside wall of the refrigerator compartment.

Table of Contents / Índice / Table des matières

REFRIGERATOR SAFETY ...............................1

INSTALLATION INSTRUCTIONS....................2

REFRIGERATOR USE......................................7

REFRIGERATOR CARE .................................10

TROUBLESHOOTING ....................................11

WATER FILTER CERTIFICATIONS...............13

PRODUCT DATA SHEETS ............................14

WARRANTY ....................................................16

REFRIGERATOR SAFETY

SEGURIDAD DEL REFRIGERADOR.............18

INSTRUCCIONES DE INSTALACIÓN...........19

USO DE SU REFRIGERADOR....................... 24

CUIDADO DE SU REFRIGERADOR .............27

SOLUCIÓN DE PROBLEMAS .......................28

HOJA DE DATOS DEL PRODUCTO.............31

GARANTÍA ......................................................33

SÉCURITÉ DU RÉFRIGÉRATEUR ................ 35

INSTRUCTIONS D’INSTALLATION .............. 36

UTILISATION DU RÉFRIGÉRATEUR............41

ENTRETIEN DU RÉFRIGÉRATEUR..............44

DÉPANNAGE ..................................................45

FEUILLES DE DONNÉES

SUR LE PRODUIT ..........................................48

GARANTIE ......................................................50

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

W10326028A

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

■

Plug into a grounded 3 prong outlet.

■

Do not remove ground prong.

■

Do not use an adapter.

■

Do not use an extension cord.

■

Disconnect power before servicing.

■

Replace all parts and panels before operating.

■

Remove doors from your old refrigerator.

To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

SAVE THESE INSTRUCTIONS

■

Use nonflammable cleaner.

■

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

■

Use two or more people to move and install refrigerator.

■

Disconnect power before installing ice maker (on ice maker kit ready models only).

■

Use a sturdy glass when dispensing ice (on some models).

■

Do not hit the refrigerator glass doors (on some models).

Proper Disposal of Your Old Refrigerator

WARNING

Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may not easily

climb inside.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.

Remove the Packaging

■ Remove tape and glue residue from surfaces before turning

on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

■ Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”

■ Dispose of/recycle all packaging materials.

Clean Before Using

After you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

Location Requirements

Electrical Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

To ensure proper ventilation for your refrigerator, allow for ¹⁄₂" (1.25 cm) of space on each side and at the top. Allow for 1" (2.54 cm) of space behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave 2¹⁄₂" (6.3 cm) minimum on the hinge side (some models require more) to allow for the door to swing open.

NOTE: It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source. Do not install the refrigerator in a location where the temperature will fall below 55°F (13°C).

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn Cooling OFF, and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and turn Cooling ON. See “Using the Controls.”

¹⁄₂" (1.25 cm)

2¹⁄₂" (6.3 cm)

Water Supply Requirements

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

TOOLS NEEDED:

■ Flat-blade screwdriver

■ ⁷⁄₁₆" and ¹⁄₂" Open-end or two

adjustable wrenches

IMPORTANT:

■ All installations must meet local plumbing code requirements.

■ Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve

which reduces water flow and clogs more easily.

■ Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain above freezing.

■ For models with water filters, the disposable water filter

should be replaced at least every 6 months.

■ ¹⁄₄" Nut driver

■ ¹⁄₄" Drill bit

■ Cordless drill

Water Pressure

A cold water supply with water pressure of between 35 and 120 psi (241 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.”

If you have questions about your water pressure, call a licensed, qualified plumber.

Connect the Water Supply

Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so the washer makes a watertight seal. Do not overtighten.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten or you may crush the copper tubing.

8. Place the free end of the tubing in a container or sink, and turn

ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe.

Connect to Refrigerator

1. Create a service loop (minimum diameter of 2 ft [61 cm]) with

the copper tubing. Avoid kinks when coiling the copper tubing.

2. Remove the plastic cap from water valve inlet port. Place a

compression nut and sleeve on the copper tubing.

3. Insert the end of the copper tubing into the water valve inlet

port. Shape tubing slightly so that the tubing feeds straight into the port to avoid kinks.

4. Slide the compression nut over the sleeve and screw into the

water valve inlet port.

B C

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Find a ¹⁄₂" to 1¹⁄₄" (12.7 mm to 31.8 mm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but the following procedure

must be followed: Drill on the top side of the pipe, not the bottom. This will help keep water away from the drill. This also keeps normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the rear of the refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" hole in the cold water pipe you

have selected.

A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut

A B

D E

F G

E. Compression sleeve F. Shutoff valve

G. Packing nut

A. Plastic water tubing B. Sleeve

C. Compression nut D. Copper tubing

5. Using an adjustable wrench, hold the nut on the plastic water

line to keep it from moving. Then, with a second wrench turn the compression nut on the copper tubing counterclockwise to completely tighten. Do not overtighten.

B C

A. Plastic water line B. Water valve inlet port

C. Compression nut

D. Copper tubing

E. “P” clamp

6. Check connection by pulling on copper tubing. Attach copper

tubing to refrigerator cabinet with a “P” clamp. Turn on water supply to refrigerator and check for leaks. Correct any leaks.

Complete the Installation

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

1. Plug into a grounded 3 prong outlet. NOTE: Allow 24 hours to produce the first batch of ice. Discard

the first three batches of ice produced. Allow 3 days to completely fill the ice container.

Refrigerator Door(s) and Drawer

Graphics are included later in this section.

Remove and Replace Handles

1. Using a ³⁄₃₂" or ¹⁄₈" hex key, loosen the two setscrews located

on the side of each handle. See Graphics 1 and 2.

2. Pull the handle straight out from the door. Make sure you keep

the screws for reattaching the handles.

3. To replace the handles, reverse the directions.

Remove Doors and Hinges

IMPORTANT:

■ Remove food and any adjustable door or utility bins from

doors.

■ All graphics referenced in the following instructions are

included later in this section after “Final Steps.”

TOOLS NEEDED: ⁵⁄₁₆", ³⁄₈", ¹⁄₄" hex-head socket wrench, #2 Phillips screwdriver, and a flat-blade screwdriver.

1. Unplug refrigerator or disconnect power.

2. Keep the refrigerator doors closed until you are ready to lift

them free from the cabinet. NOTE: Provide additional support for the refrigerator door

while the hinges are being removed. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Starting with the right-hand side door, remove the parts for the

top hinge as shown in Top Hinge graphic. Lift the refrigerator door from the bottom hinge pin.

NOTE: Remove the hinge pin cover from the bottom hinge pin and keep it for later use. See Bottom Hinge graphic.

4. Before removing the left-hand side door, disconnect the wiring

plug located on top of the top hinge by wedging a flat-blade screwdriver or your fingernail between the two sections. See Wiring Plug graphic.

5. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the left-hand side door from the bottom hinge pin. NOTE: Remove the hinge pin cover from the bottom hinge pin

and keep it for later use. See Bottom Hinge graphic.

Replace Doors and Hinges

1. Assemble the parts for the top hinge as shown in Top Hinge

graphic. Do not tighten the screws completely.

2. Replace the parts for the bottom hinge as shown in Bottom

Hinge graphic. Tighten screws. Replace the refrigerator door. NOTE: Provide additional support for the refrigerator door

while the hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Align the door so that the bottom of the refrigerator door

aligns evenly with the top of the freezer drawer. Tighten all screws.

4. Reconnect the wiring plug on top of the left-hand side

refrigerator door.

5. Replace the top hinge covers.

Remove and Replace Freezer Drawer Front

IMPORTANT: Two people may be required to remove and replace

the freezer drawer front. Graphics are included later in this section.

Remove Drawer Front

1. Open the freezer drawer to full extension.

2. Loosen the four screws attaching the drawer glides to the

drawer front. See Drawer Front Removal graphic. NOTE: Loosen screws three to four turns. Keep the screws in

the drawer front.

3. Lift drawer front upward and off the screws. See Drawer Front

Removal graphic.

Replace Drawer Front

1. Slide the drawer glides out of the freezer compartment. Insert

the screws in the top of the drawer front into the slots in the drawer brackets. See Drawer Front Replacement graphic.

2. Pull the drawer brackets toward you to position the two

screws in the bottom of the drawer front into the brackets. See Drawer Front Replacement graphic.

3. Completely tighten the four screws.

Final Steps

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Return all removable door parts to doors and food to

refrigerator.

Top Hinges

B C

A. Hinge Cover Screw B. Top Hinge Cover C. ⁵⁄₁₆" Hex-Head Hinge Screws D. Top Hinge

Bottom Hinges

Door Removal & Replacement

Hinge Pin Cover

B. Bottom Hinge C. Hinge Screws

Wiring Plug

Drawer Front Removal

³⁄₃₂

" or

¹⁄₈

³⁄₃₂

" or

¹⁄₈

" Setscrews

Drawer Front Replacement

A. Loosen 4 Door Bracket Screws

Adjust the Doors

IMPORTANT:

■ Your refrigerator has two adjustable, front leveling screws –

one on each side of the refrigerator base. If your refrigerator seems unsteady or you want the door to close easier, use the instructions below.

■ Before moving the refrigerator, raise the leveling screws so the

front rollers are touching the floor.

1. Remove the base grille. Grasp the grille firmly and pull it

toward you.

2. Raise or lower the cabinet.

Using a ¹⁄₄" hex driver, turn the leveling screw on each side to raise or lower that side of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws. This makes it easier to turn the screws. It may take several turns of the leveling screw to adjust the tilt of the refrigerator.

■ To raise, turn the leveling screw clockwise.

■ To lower, turn the leveling screw counterclockwise.

REFRIGERATOR USE

Opening and Closing Doors

There are two refrigerator compartment doors. The doors can be opened and closed either separately or together.

There is a vertically-hinged seal on the left refrigerator door.

■ When the left side door is opened, the hinged seal

automatically folds inward so that it is out of the way.

■ When both doors are closed, the hinged seal automatically

forms a seal between the two doors.

A. Hinged seal

A. Leveling screw

3. Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both screws the same amount.

4. Replace the base grille.

Using the Controls

The control center is located at the top front of the refrigerator compartment.

Temperature Controls

For your convenience, your temperature controls are preset at the factory. When you first install your refrigerator, make sure the controls are still set to the recommended set points as shown.

Recommended Settings

IMPORTANT:

■ The recommended settings should be correct for normal

household refrigerator use. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

■ When the power is on, the temperature display shows the

actual temperature of the compartment.

■ Wait 24 hours for your refrigerator to cool completely before

adding food. If you add food before the refrigerator has cooled completely, your food may spoil.

NOTE: Adjusting the refrigerator and freezer temperature controls to a colder than recommended setting will not cool the compartments any faster.

■ If the temperature is too warm or too cold in the refrigerator or

freezer, first check the air vents to be sure they are not blocked before adjusting the controls.

Cooling On/Off:

■ Cooling On/Off turns off cooling for both compartments. It

does not disconnect power to the refrigerator.

■ Press and hold Cooling On/Off for 3 seconds. The LED will

light up to indicate that cooling is Off. Press the button again to turn on the cooling. The LED will turn off.

Adjusting Controls

Sabbath Mode

The Sabbath Mode is designed for those whose religious observances require turning off the lights and dispensers.

ON - All interior lights and alarm tones will be disabled. OFF - All interior lights and alarm tones will be enabled.

■ Press and hold the Sabbath Mode touch pad for 3 seconds or

until the indicator light is lit to turn on this feature. Press and hold the Sabbath Mode touch pad again to turn off this feature.

The REFRIGERATOR control adjusts the refrigerator compartment temperature. The FREEZER control adjusts the freezer compartment temperature.

If you need to adjust the temperature in either the refrigerator or freezer compartment, use the settings listed in the chart as a guide.

To Adjust Set Point Temperatures:

The first touch of the (+) or (-) touch pad displays the current temperature set point.

■ Press the (+) or (-) touch pads until the desired temperature

set point is displayed. NOTE: Except when first turning on the refrigerator, do not

adjust either temperature control more than one setting at a time. Wait 24 hours between adjustments for the temperature to stabilize.

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR too warm REFRIGERATOR Control

1° lower

FREEZER too warm/too little ice Adjust FREEZER

Control 1° lower

REFRIGERATOR too cold Adjust REFRIGERATOR

Control 1° higher

Door Alarm

The Door Alarm feature sounds a chime every few seconds when the refrigerator door has been left open for 5 continuous minutes. The chime will sound until the door is closed or Door Alarm is turned off.

■ Press the Door Alarm to turn this feature ON or OFF. The

indicator light will be lit when the Door Alarm feature is on.

Max Cool

The Max Cool feature assists with periods of high refrigerator use, full grocery loads, or temporarily warm room temperatures.

■ Press Max Cool to set the freezer and refrigerator to the

lowest temperature settings. Press Max Cool again to return to the normal refrigerator set point.

NOTE: The Max Cool feature will automatically shut off in approximately 12 hours.

Filter Reset

The Filter Reset control allows you to restart the water filter status tracking feature each time you replace your water filter. See “Water Filtration System.”

■ Press and hold the Filter Reset touch pad for 3 seconds, until

the Order or Replace light turns off.

FREEZER too cold Adjust FREEZER

Control 1° higher

Additional Control Center Features

Humidity Control

The Humidity Control feature turns on a heater to help reduce moisture on the door hinge seal. Use in humid environments or when you notice moisture on the door hinge seal. The refrigerator uses more energy when Humidity Control is on.

■ Press Humidity Control when the environment is warm and

more humid, or if you notice moisture on the door hinge seal. The indicator light will be lit when humidity control is ON.

■ Press Humidity Control again to turn OFF and save energy

when the environment is less humid.

User Preferences

The control center allows you to set user preferences, if desired.

Temperature Display (F_C)

This preference allows you to change the temperature display. F - Temperature in degrees Fahrenheit C - Temperature in degrees Celsius

Alarm (AL)

This preference allows you to turn off the sound of all alarms. ON - You will hear the alarm sound. OFF - You will not hear the alarm sound.

To Access the User Preferences Menu:

1. Press and hold the Door Alarm touch pad for 3 seconds. The

preference name will appear in the Freezer display and the preference status (F or C) or (ON or OFF) will appear in the Refrigerator display.

2. Use the Freezer (+) or (-) touch pads to scroll through the

preference names. When the desired preference name is displayed, press the Refrigerator (+) or (-) touch pads to change the preference status.

3. Set your preferences by pressing and holding the Door Alarm

touch pad for 3 seconds, or by shutting the refrigerator compartment door.

Crisper Humidity Control

You can control the amount of humidity in the moisture-sealed crisper. Depending on your model, adjust the control to any setting between FRUIT and VEGETABLES or LOW and HIGH.

FRUIT / LOW (open) for best storage of fruits and vegetables with skins.

VEGETABLES / HIGH (closed) for best storage of fresh, leafy vegetables.

Ice Maker

IMPORTANT: Flush the water system before turning on the ice maker. See “Water Dispenser.”

Turning the Ice Maker On/Off

To turn the ice maker ON, simply lower the wire shutoff arm. To manually turn the ice maker OFF, lift the wire shutoff arm to the

OFF (arm up) position and listen for the click. NOTE: Your ice maker has an automatic shutoff. As ice is made,

the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position. Do not force the wire shutoff arm up or down.

Remember

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

■ The quality of your ice will be only as good as the quality of the

water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.

■ Do not store anything on top of the ice maker or in the ice

storage bin.

Water Dispenser

IMPORTANT:

■ After connecting the refrigerator to a water source or replacing

the water filter, flush the water system. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser paddle (5 seconds on, 5 seconds off) until a total of 4 gal. (15 L) has been dispensed. This will flush air from the filter and water dispensing system, and prepare the water filter for use. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser.

NOTE: After 5 minutes of continuous dispensing, the dispenser will stop dispensing water to avoid flooding. To continue dispensing, press the dispenser paddle again.

■ Allow 24 hours for the refrigerator to cool down and chill

water. Dispense enough water every week to maintain a fresh supply.

Dispensing Water

1. Hold a container under the dispenser spout while pressing the

dispenser pad.

2. Release the dispenser pad to stop dispensing.

Auto Ice Storage Bin

Your ice storage bin has a lever which allows the storage bin to slide out with the drawer when it is pulled open or to stay in place.

■ Move the lever to the right to attach the ice storage bin to the

freezer drawer.

■ Move the lever to the left to release the ice storage bin from

the freezer drawer.

A. Ice storage bin lever

Ice Production Rate

■ The ice maker should produce a complete batch of ice

approximately every 3 hours.

■ To increase ice production, lower the freezer and refrigerator

temperature. See “Using the Controls.” Wait 24 hours between adjustments.

Water Filtration System

The water filter is located in the upper right-hand corner of the refrigerator compartment.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Water Filter Status Lights

The water filter status lights will help you know when to change the water filter. When the Order light is on, it is almost time to change the water filter. When the Replace light is on, a new water filter should be installed.

After replacing the water filter, press and hold Filter Reset for 3 seconds until the Order or Replace light turns off. See “Using the Controls.”

Replacing the Water Filter

To purchase a replacement water filter, model 67003523 Part Number 4396395, contact your dealer or call 1-800-442-9991 U.S.A. or 1-800-807-6777 Canada.

IMPORTANT: Air trapped in the water system may cause water and filter to eject. Always dispense water for at least 2 minutes before removing the filter or blue bypass cap.

1. Turn filter counterclockwise to remove.

2. Remove sealing label from replacement filter and insert the

filter end into the filter head.

3. Turn the filter clockwise until it stops. Snap the filter cover

closed.

4. Flush the water system. Depending on your model, see

“Water Dispenser” or “Water and Ice Dispensers.”

NOTE: The dispenser feature may be used without a water filter installed. Your water will not be filtered. If this option is chosen, replace the filter with the blue bypass cap.

IMPORTANT: This cleaner is for stainless steel parts only! Do not allow the Stainless Steel Cleaner and Polish to come

into contact with any plastic parts such as the trim pieces, dispenser covers or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.

4. There is no need for routine condenser cleaning in normal

home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.

If you need to clean the condenser:

■ Remove the base grille.

■ Use a vacuum cleaner with a soft brush to clean the grille,

the open areas behind the grille and the front surface area of the condenser.

■ Replace the base grille when finished.

5. Plug in refrigerator or reconnect power.

REFRIGERATOR CARE

Cleaning

WARNING

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window

sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

3. Wash stainless steel and painted metal exteriors with a clean

sponge or soft cloth and a mild detergent in warm water.

■ To keep your stainless steel refrigerator looking like new

and to remove minor scuffs or marks, it is suggested that you use the manufacturer’s approved Stainless Steel Cleaner and Polish, Part Number 4396920. To order the cleaner, call 1-800-442-9991 U.S.A. or 1-800-807-6777 Canada.

Changing the Light Bulb

NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with an appliance bulb of the same size, shape, and wattage (no greater than 40 watts).

Changing the Refrigerator Light Bulb

1. Unplug the refrigerator or disconnect power.

2. Slide the light shield toward the back of the compartment to

release it from the light assembly.

3. Replace burned-out bulb(s) with appliance bulb(s) no greater

than 40 watts.

4. Replace the light shield by inserting the tabs on the shield into

the liner holes on each side of light assembly. Slide the shield toward the front until it locks into place.

NOTE: To avoid damaging the light shield, do not force the shield beyond the locking point.

5. Plug in refrigerator or reconnect power.

Changing the Freezer Light Bulb

1. Unplug refrigerator or disconnect power.

2. Remove the burned-out bulb and replace it with an appliance

bulb no greater than 40 watts.

3. Plug in refrigerator or reconnect power.

TROUBLESHOOTING

First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)

to possibly avoid the cost of a service call.

In the U.S.A., www.kitchenaid.com In Canada, www.kitchenaid.ca

Refrigerator Operation

The refrigerator will not operate

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

The refrigerator seems noisy

Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with explanations.

■ Buzzing - heard when the water valve opens to fill the ice

maker

■ Pulsating - fans/compressor adjusting to optimize

performance

■ Hissing/Rattling - flow of refrigerant, movement of water

lines, or from items placed on top of the refrigerator

■ Sizzling/Gurgling - water dripping on the heater during

defrost cycle

■ Popping - contraction/expansion of inside walls, especially

during initial cool-down

■ Water running - may be heard when ice melts during the

defrost cycle and water runs into the drain pan

■ Creaking/Cracking - occurs as ice is being ejected from the

ice maker mold.

■ Power cord unplugged? Plug into a grounded 3 prong outlet.

■ Is outlet working? Plug in a lamp to see if the outlet is

working.

■ Household fuse blown or circuit breaker tripped? Replace

the fuse or reset the circuit breaker. If the problem continues, call an electrician.

■ Are controls on? Make sure the refrigerator controls are on.

See “Using the Control(s).”

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely. NOTE: Adjusting the temperature controls to coldest setting

will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.

The doors will not close completely

■ Door blocked open? Move food packages away from door.

■ Bin or shelf in the way? Push bin or shelf back in the correct

position.

The doors are difficult to open

WARNING

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

■ Gaskets dirty or sticky? Clean gaskets and contact surfaces

with mild soap and warm water. Rinse and dry with soft cloth.

Temperature and Moisture

Temperature is too warm

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

■ Door(s) opened often or left open? Allows warm air to enter

refrigerator. Minimize door openings and keep doors fully closed.

■ Large load of food added? Allow several hours for

refrigerator to return to normal temperature.

■ Controls set correctly for the surrounding conditions?

Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Control(s).”

There is interior moisture buildup

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

■ Water shutoff valve not fully open? Turn the water shutoff

valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Water filter installed on the refrigerator? Remove filter and

operate ice maker. If ice quality improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

■ Questions remain regarding water pressure? Call a

licensed, qualified plumber.

NOTE: Some moisture buildup is normal.

■ Humid room? Contributes to moisture buildup.

■ Door(s) opened often or left open? Allows humid air to enter

refrigerator. Minimize door openings and keep doors fully closed.

Ice and Water

The ice maker is not producing ice or not enough ice

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Ice maker turned on? Make sure wire shutoff arm or switch

(depending on model) is in the ON position.

■ New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice production.

■ Freezer door closed completely? Firmly close the freezer

compartment door. If the freezer compartment door will not close all the way, see “The doors will not close completely,” earlier in this section.

■ Large amount of ice recently removed? Allow 24 hours for

ice maker to produce more ice.

■ Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

■ Water filter installed on the refrigerator? Remove filter and

operate ice maker. If ice volume improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

Off-taste, odor or gray color in the ice

■ New plumbing connections? New plumbing connections

can cause discolored or off-flavored ice.

■ Ice stored too long? Discard ice. Wash ice bin. Allow

24 hours for ice maker to make new ice.

■ Odor transfer from food? Use airtight, moisture proof

packaging to store food.

■ Are there minerals (such as sulfur) in the water? A water

filter may need to be installed to remove the minerals.

■ Water filter installed on the refrigerator? Gray or dark

discoloration in ice indicates that the water filtration system needs additional flushing. Flush the water system before using a new water filter. Replace water filter when indicated. See “Water Filtration System.”

The water dispenser will not operate properly

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

■ Kink in the water source line? Straighten the water source

line.

■ New installation? Flush and fill the water system. See “Water

Dispenser.”

■ Is the water pressure at least 35 psi (241 kPa)? The water

pressure to the home determines the flow from the dispenser. See “Water Supply Requirements.”

■ Water filter installed on the refrigerator? Remove filter and

operate dispenser. If water flow increases, the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.

■ Refrigerator door closed completely? Close the door firmly.

If it does not close completely, see “The doors will not close completely,” earlier in this section.

■ Recently removed the doors? Make sure the water

dispenser wire/tube assembly has been properly reconnected. See “Refrigerator Door(s) and Drawer.”

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

Water is leaking from the dispenser system

Water from the dispenser is warm

NOTE: One or two drops of water after dispensing is normal.

■ Glass not being held under the dispenser long enough?

Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever.

■ New installation? Flush the water system. See “Water

Dispenser.”

■ Recently changed water filter? Flush the water system. See

“Water Dispenser.”

■ Water on the floor near the base grille? Make sure the water

dispenser tube connections are fully tightened. See “Refrigerator Door(s) and Drawer.”

WATER FILTER CERTIFICATIONS

NOTE: Water from the dispenser is only chilled to 50°F (10°C).

■ New installation? Allow 24 hours after installation for the

water supply to cool completely.

■ Recently dispensed large amount of water? Allow 24 hours

for water supply to cool completely.

■ Water not been recently dispensed? The first glass of water

may not be cool. Discard the first glass of water.

■ Refrigerator connected to a cold water pipe? Make sure

the refrigerator is connected to a cold water pipe. See “Water Supply Requirements.”

PRODUCT DATA SHEETS

Interior Water Filtration System

Model UKF8001AXX-750 Capacity 750 Gallons (2839 Liters)

System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Atrazine, Benzene, p-Dichlorobenzene, Carbofuran, Toxaphene, Cysts, Turbidity, Asbestos, Tetrachloroethylene and Lindane.

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI

Substance Reduction Aesthetic Effects

Chlorine Taste/Odor Particulate Class I

Contaminant Reduction

Lead: @ pH 6.5 Lead: @ pH 8.5

Mercury: @ pH 6.5 Mercury: @ pH 8.5

Benzene 0.005 mg/L 0.0133 mg/L 0.015 mg/L ± 10% 0.0005 mg/L 0.0005 mg/L 96.10% 96.30% p-Dichlorobenzene 0.075 mg/L 0.210 mg/L 0.225 mg/L ± 10% < 0.0005 mg/L < 0.0005 mg/L >99.80% >99.80% Carbofuran 0.040 mg/L 0.0753 mg/L 0.08 mg/L ± 10% 0.027 mg/L 0.008 mg/L 64.60% 73.45% Toxaphene 0.003 mg/L 0.015 mg/L 0.015 ± 10% < 0.001 mg/L < 0.001 mg/L >93.3% >93.3% Atrazine 0.003 mg/L 0.0102 mg/L 0.009 mg/L ± 10% 0.0027 mg/L 0.00105 mg/L 76.30% 89.40% Asbestos >99% 126.5 MF/L 10 Live Cysts

Turbidity Lindane 0.0002 mg/L 0.0019 mg/L 0.002 ± 10% < 0.00016 mg/L 0.000035 mg/L 91.80% 97.90% Tetrachloroethylene 0.005 mg/L 0.015 mg/L 0.015 mg/L ± 10% < 0.0005 mg/L < 0.0005 mg/L >96.6% >96.6%

‡

NSF Reduction Requirements

50% reduction 85% reduction

NSF Reduction Requirements

0.010 mg/L

0.002 mg/L

>99.95%

0.5 NTU

Average Influent

2.00 mg/L 14,000,000 #/mL

Average Influent

0.150 mg/L

0.006 mg/L

0.0059 mg/L

122,500 #/L

10.5 NTU

†

Influent Challenge Concentration

2.0 mg/L ± 10% At least 10,000 particles/mL

Influent Challenge Concentration

0.15 mg/L ± 10%

0.006 mg/L ± 10%

to 108 fibers/L††< 0.17 MF/L < 0.17 MF/L >99.99% >99.99%

50,000/L min. 11 ± 1 NTU

Standards 42 and 53.

Maximum Effluent

0.06 mg/L 370,000 #/mL

Maximum Effluent

< 0.001 mg/L < 0.001 mg/L

0.0005 mg/L

0.0018 mg/L

‡

< 1 #/L

0.30 NTU

Average Effluent

0.050625 mg/L

196,666 #/mL

Average Effluent

< 0.001 mg/L < 0.001 mg/L

0.0003 mg/L

0.00073 mg/L

< 1 #/L

0.125 NTU

Minimum% Reduction

97.00%

97.40%

Minimum% Reduction

>99.30% >99.30%

91.70%

69.20%

‡

>99.99%

97.30%

Average% Reduction

97.52%

99.00%

Average% Reduction

>99.30% >99.30%

95.00%

88.10%

>99.99%

98.80%

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.78 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F ± 5°F (20°C ± 3°C).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to perform as advertised.

■ The disposable water filter should be replaced at least every

■ Refer to the “Water Filtration System” section for the

Manufacturer’s name and telephone number.

■ Refer to the “Warranty” section for the Manufacturer’s limited

warranty.

6months.

■ The filter monitor system measures the amount of water that

passes through the filter and alerts you to replace the filter. When 90% of the filter’s rated life is used, the yellow (Order) light comes on. When 100% of the filter’s rated life is used, the red (Replace) light comes on, and it is recommended that you replace the filter. For models without filter status lights,

Application Guidelines/Water Supply Parameters

Water Supply Water Pressure Water Temperature Service Flow Rate

City or Well 35 - 120 psi (241 - 827 kPa) 33

° - 100°F (1° - 38°C)

0.78 gpm (2.9 L/min.) @ 60 psi

replace the filter every 6 months. Use replacement filter model UKF8001AXX-750. 2009 suggested retail price of $44.99 U.S.A./$49.95 Canada. Prices are subject to change without notice.

■ The product is for cold water use only.

■ Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Class I particle size: >0.5 to <1 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

†

These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.

††

Fibers greater than 10 um in length

‡

Based on the use of Cryptosporidium parvum oocysts

® NSF is a registered trademark of NSF International.

Interior Water Filtration System

Model UKF8001AXX-200 Capacity 200 Gallons (757 Liters)

Substance Reduction Aesthetic Effects

Chlorine Taste/Odor Particulate Class I

Contaminant Reduction

Lead: @ pH 6.5 Lead: @ pH 8.5

Mercury: @ pH 6.5 Mercury: @ pH 8.5

Turbidity Lindane 0.0002 mg/L 0.0019 mg/L 0.002 ± 10% < 0.00016 mg/L 0.000035 mg/L 91.80% 97.90% Tetrachloroethylene 0.005 mg/L 0.015 mg/L 0.015 mg/L ± 10% < 0.0005 mg/L < 0.0005 mg/L >96.6% >96.6% O-Dichlorobenzene 0.6 mg/L 1.7 mg/L 1.8 mg/L ± 10% < 0.5 mg/L < 0.5 mg/L >99.9% >99.9% Ethylbenzene 0.7 mg/L 2.2 mg/L 2.1 mg/L ± 10% 0.0048 mg/L 0.11 mg/L 99.80% 99.90% Chlorobenzene 0.1 mg/L 2.0 mg/L 2.0 mg/L ± 10% 0.0038 mg/L 0.0008 mg/L 99.80% 99.90% Endrin 0.002 mg/L 0.007 mg/L 0.006 mg/L ± 10% 0.0004 mg/L 0.0002 mg/L 94.30% 96.80%

‡

NSF Reduction Requirements

50% reduction 85% reduction

NSF Reduction Requirements

0.010 mg/L

0.002 mg/L

>99.95%

0.5 NTU

Average Influent

2.00 mg/L 14,000,000 #/mL

Average Influent

0.150 mg/L

0.006 mg/L

0.0059 mg/L

122,500 #/L

10.5 NTU

†

Influent Challenge Concentration

2.0 mg/L ± 10% At least 10,000 particles/mL

Influent Challenge Concentration

0.15 mg/L ± 10%

0.006 mg/L ± 10%

to 108 fibers/L††< 0.17 MF/L < 0.17 MF/L >99.99% >99.99%

50,000/L min. 11 ± 1 NTU

Standards 42 and 53.

Maximum Effluent

0.06 mg/L 370,000 #/mL

Maximum Effluent

< 0.001 mg/L < 0.001 mg/L

0.0005 mg/L

0.0018 mg/L

‡

< 1 #/L

0.30 NTU

Average Effluent

0.050625 mg/L

196,666 #/mL

Average Effluent

< 0.001 mg/L < 0.001 mg/L

0.0003 mg/L

0.00073 mg/L

< 1 #/L

0.125 NTU

Minimum% Reduction

97.00%

97.40%

Minimum% Reduction

>99.30% >99.30%

91.70%

69.20%

‡

>99.99%

97.30%

Average% Reduction

97.52%

99.00%

Average% Reduction

>99.30% >99.30%

95.00%

88.10%

>99.99%

98.80%

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.78 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F ± 5°F (20°C ± 3°C).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to perform as advertised.

■ The disposable water filter should be replaced at least every

■ Refer to the “Water Filtration System” section for the

Manufacturer’s name and telephone number.

■ Refer to the “Warranty” section for the Manufacturer’s limited

warranty.

6months.

■ The filter monitor system measures the amount of water that

Application Guidelines/Water Supply Parameters

Water Supply Water Pressure Water Temperature Service Flow Rate

City or Well 35 - 120 psi (241 - 827 kPa)

° - 100°F (1° - 38°C)

0.78 gpm (2.9 L/min.) @ 60 psi

replace the filter every 6 months. Use replacement filter model UKF8001AXX-200. 2009 suggested retail price of $44.99 U.S.A./$49.95 Canada. Prices are subject to change without notice.

■ The product is for cold water use only.

■ Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Class I particle size: >0.5 to <1 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

†

These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.

††

Fibers greater than 10 um in length

‡

Based on the use of Cryptosporidium parvum oocysts

® NSF is a registered trademark of NSF International.

KITCHENAID® REFRIGERATOR WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “KitchenAid”) will pay for factory specified parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be provided by a KitchenAid designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this limited warranty.

On models with a water filter: 30 day limited warranty on water filter. For 30 days from the date of purchase, when this filter is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for a replacement water filter to correct defects in materials and workmanship.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON CAVITY LINER AND SEALED REFRIGERATION SYSTEM

LIMITED WARRANTY

In the second through fifth year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for replacement or repair of the refrigerator/freezer cavity liner (including labor costs) if the part cracks due to defective materials or workmanship that existed when this major appliances was purchased. Also, in the second through fifth year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts and repair labor for the following components to correct defects in materials or workmanship in the sealed refrigeration system that existed when this major appliance was purchased: compressor, evaporator, condenser, dryer, and connecting tubing.

SIXTH THROUGH TENTH YEAR LIMITED WARRANTY ON SEALED REFRIGERATION SYSTEM

In the sixth through tenth year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified parts for the following components to correct defects in materials or workmanship in the sealed refrigeration system that existed when this major appliance was purchased: compressor, evaporator, condenser, dryer, and connecting tubing.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in

a manner that is inconsistent to published user or operator instructions and/or installation instructions.

2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair

house fuses, or to correct house wiring or plumbing.

3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty

coverage.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance

with electrical or plumbing codes, or use of products not approved by KitchenAid.

5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results

from defects in materials or workmanship and is reported to KitchenAid within 30 days from the date of purchase.

6. Any food or medicine loss due to refrigerator or freezer product failures.

7. Pickup and delivery. This major appliance is intended to be repaired in your home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an

authorized KitchenAid servicer is not available.

10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with

KitchenAid's published installation instructions.

11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot

be easily determined.

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

DISCLAIMER OF IMPLIED WARRANTIES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

If outside the 50 United States and Canada, contact your authorized KitchenAid dealer to determine if another warranty applies. 6/08

+ 36 hidden pages
