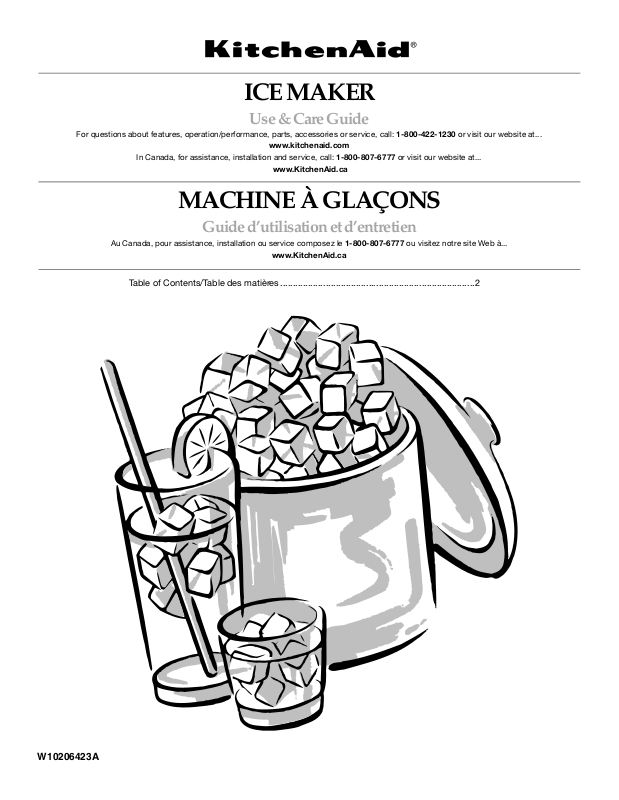

KitchenAid W10206423A User Manual

ICE MAKER

Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230 or visit our website at...

In Canada, for assistance, installation and service, call: 1-800-807-6777 or visit our website at...

www.kitchenaid.com

www.KitchenAid.ca

MACHINE À GLAÇONS

Guide d’utilisation et d’entretien

Au Canada, pour assistance, installation ou service composez le 1-800-807-6777 ou visitez notre site Web à...

www.KitchenAid.ca

Table of Contents/Table des matières.............................................................................2

W10206423A

TABLE OF CONTENTS

ICE MAKER SAFETY......................................................................3

INSTALLATION INSTRUCTIONS..................................................4

Unpack the Ice Maker..................................................................4

Location Requirements................................................................4

Electrical Requirements ...............................................................5

Water Supply Requirements........................................................5

Leveling ........................................................................................5

Connect Water Supply.................................................................6

Drain Connection .........................................................................7

Ice Maker Door.............................................................................7

Normal Sounds ............................................................................9

ICE MAKER USE ............................................................................9

How Your Ice Maker Works .........................................................9

Using the Controls .....................................................................10

TABLE DES MATIÈRES

SÉCURITÉ DE LA MACHINE À GLAÇONS................................16

INSTRUCTIONS D’INSTALLATION ............................................17

Déballage de la machine à glaçons...........................................17

Exigences d'emplacement.........................................................17

Spécifications électriques..........................................................18

Spécifications de l’alimentation en eau.....................................18

Nivellement.................................................................................19

Raccordement à la canalisation d’eau ......................................19

Raccordement au drain de vidange...........................................20

Porte de la machine à glaçons ..................................................21

Sons normaux ............................................................................23

UTILISATION DE LA MACHINE À GLAÇONS............................23

Fonctionnement de la machine à glaçons.................................23

Utilisation des commandes........................................................24

ICE MAKER CARE........................................................................10

Cleaning......................................................................................10

Vacation and Moving Care.........................................................12

TROUBLESHOOTING ..................................................................13

Ice Maker Operation...................................................................13

Ice Production ............................................................................13

Ice Quality...................................................................................14

Plumbing Problems....................................................................14

ASSISTANCE OR SERVICE.........................................................14

In the U.S.A. ...............................................................................14

In Canada ...................................................................................14

WARRANTY ..................................................................................15

ENTRETIEN DE LA MACHINE À GLAÇONS..............................24

Nettoyage ...................................................................................24

Précautions à prendre avant les vacances

ou un déménagement ................................................................27

DÉPANNAGE.................................................................................28

Fonctionnement de la machine à glaçons.................................28

Production de glaçons ...............................................................28

Qualité des glaçons....................................................................29

Problèmes de plomberie............................................................29

ASSISTANCE OU SERVICE.........................................................30

GARANTIE.....................................................................................31

ICE MAKER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING : To reduce the risk of fire, electric shock, or injury when using your ice maker, follow these basic

precautions

■ Plug into a grounded 3 prong outlet.

■ Do not remove ground prong.

■ Do not use an adapter.

■ Do not use an extension cord.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

■ Disconnect power before cleaning.

■ Disconnect power before servicing.

■ Replace all parts and panels before operating.

■ Use two or more people to move and install ice maker.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Unpack the Ice Maker

WARNING

Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury.

Removing Packaging Materials

Remove tape and glue from your ice maker before using.

■ To remove any remaining tape or glue from the exterior of the

ice maker, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

■ Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. Do not use chlorine bleach on the stainless steel surfaces of the ice maker. These products can damage the surface of your ice maker.

Cleaning Before Use

After you remove all of the packaging materials, clean the inside of your ice maker before using it. See the cleaning instructions in the “Ice Maker Care” section.

Location Requirements

■ To ensure proper ventilation for your ice maker, the front side

must be completely unobstructed. The ice maker may be closed-in on the top and three sides, but the installation should allow the ice maker to be pulled forward for servicing if necessary.

■ Installation of the ice maker requires a cold water supply inlet

of ¹⁄₄" (6.35 mm) OD soft copper tubing with a shutoff valve and either a gravity-drain system or condensate pump to carry the water to an existing drain.

■ Choose a well ventilated area with temperatures above 55°F

(13°C) and below 110°F (43°C). Best results are obtained between 70°F (21°C) and 90°F (32°C).

■ The ice maker must be installed in an area sheltered from the

elements, such as wind, rain, water spray, or drip.

■ When installing the ice maker under a counter, follow the

recommended opening dimensions shown. Place electrical and plumbing fixtures in the recommended location as shown.

NOTES:

■ Be sure the power supply cord is not pinched between

the ice maker and the cabinet.

■ Be sure the water supply line is not pinched between the

ice maker and the cabinet.

■ Be sure the drain line (on some models) is not pinched

between the ice maker and the cabinet.

11¹⁄₂"

(29.2 cm)

34"

(86.4 cm)

Min.

¹⁄₂"

(87.6 cm)

Max.

(60.1 cm)

A. Recommended location for electrical

and plumbing fixtures

B. Floor level

■ Choose a location where the floor is even. It is important for

3¹⁄₂" (8.9 cm)

24"

(38.1 cm)

9" (22.9 cm)

15"

28¹⁄₂"

(72.4 cm)

the ice maker to be level in order to work properly. If needed, you can adjust the height of the ice maker by changing the height of the leveling legs. See “Leveling.”

Electrical Requirements

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Before you move your ice maker into its final location, it is important to make sure you have the proper electrical connection:

A 115 Volt, 60 Hz., AC only, 15- or 20-amp electrical supply, properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.

It is recommended that a separate circuit, serving only your ice maker, be provided. Use a receptacle which cannot be turned off by a switch or pull chain.

IMPORTANT: If this product is connected to a GFCI (Ground Fault Circuit Interrupter) equipped outlet, nuisance tripping of the power supply may occur, resulting in loss of cooling. Ice quality may be affected. If nuisance tripping has occurred, and if the condition of the ice appears poor, dispose of it.

Recommended grounding method

The ice maker must be grounded. The ice maker is equipped with a power supply cord having a 3 prong grounding plug. The cord must be plugged into a mating, 3 prong, grounding-type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounded, 3 prong wall receptacle installed by a qualified electrician.

Water Supply Requirements

A cold water supply with water pressure of between 30 and 120 psi (207 and 827 kPa) is required to operate the ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT:

■ Reverse osmosis water filtration systems can be used only

with ice maker installations that have a gravity drain. A reverse osmosis system is not recommended for ice makers that have a drain pump installed.

■ The pressure of the water supply coming out of a reverse

osmosis system going to the water inlet valve of the ice maker needs to be between 30 and 120 psi (207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

NOTE: The reverse osmosis system must provide 1 gal. (3.8 L) of water per hour to the ice maker for proper ice maker operation. If a reverse osmosis system is desired, only a whole-house capacity reverse osmosis system, capable of maintaining the steady water supply required by the ice maker, is recommended. Faucet capacity reverse osmosis systems are not able to maintain the steady water supply required by the ice maker.

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

If you have questions about your water pressure, call a licensed, qualified plumber.

Leveling

It is important for the ice maker to be level in order to work properly. Depending upon where you install the ice maker, you may need to make several adjustments to level it. You may also use the leveling legs to lower the height of the ice maker for undercounter installations.

Tools needed:

Gather the required tools and parts before starting installation.

■ 9" level

■ Adjustable wrench

NOTE: It is easier to adjust the leveling legs if you have another person to assist you.

1. Move the ice maker to its final location. NOTE: If this is a built-in installation, move the ice maker as

close as possible to the final location.

2. Place the level on top of the product to see if the ice maker is level from front to back and side to side.

3. Push up on the top front of the ice maker, and then locate the leveling screws that are on the bottom front of the ice maker.

4. Using an adjustable wrench, change the height of the legs as follows:

■ Turn the leveling leg to the right to lower that side of the

ice maker.

■ Turn the leveling leg to the left to raise that side of the ice

maker.

NOTE: The ice maker should not wobble. Use shims to add stability when needed.

5. Push up on the top rear of the ice maker and locate the leveling legs that are on the bottom rear of the ice maker.

6. Follow the instructions in Step 4 to change the height of the legs.

7. Use the level to recheck the ice maker to see that it is even from front to back and side to side. If the ice maker is not level, repeat steps 2 to 5. If the ice maker is level, go to the “Connect Water Supply” section.

Connect Water Supply

A B

Read all directions before you begin.

IMPORTANT:

■ Plumbing shall be installed in accordance with the

International Plumbing Code and any local codes and ordinances.

■ Use copper tubing or Whirlpool supply line, Part Number

8212547RP, and check for leaks.

■ Install tubing only in areas where temperatures will remain

above freezing.

Tools needed:

Gather the required tools and parts before starting installation.

■ Flat-blade screwdriver

■ ⁷⁄₁₆" and ¹⁄₂" open-end wrenches or two adjustable wrenches

■ ¹⁄₄" nut driver

NOTE: Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve which reduces water flow and clogs more easily.

Connecting the Water Line

1. Turn off main water supply. Turn on nearest faucet long

enough to clear line of water.

2. Using a ¹⁄₂" copper supply line with a quarter-turn shutoff

valve or the equivalent, connect the ice maker as shown. NOTE: To allow sufficient water flow to the ice maker a

minimum ¹⁄₂" size copper supply line is recommended.

4. Place the free end of the tubing into a container or sink, and turn on main water supply and flush out tubing until water is clear. Turn off shutoff valve on the water pipe.

NOTE: Always drain the water line before making the final connection to the inlet of the water valve to avoid possible water valve malfunction.

5. Bend the copper tubing to meet the water line inlet which is located on the back of the ice maker cabinet as shown. Leave a coil of copper tubing to allow the ice maker to be pulled out of the cabinet or away from the wall for service.

REAR VIEW

A. Water supply tube clamp B. Vent hose (drain pump models only) C. Inlet water tube clamp and supply

line connector

D. Drain hose (drain pump models only)

A. Bulb B. Nut

3. Now you are ready to connect the copper tubing. Use ¹⁄₄"

(6.35 mm) OD soft copper tubing for the cold water supply.

■ Ensure that you have the proper length needed for the

job. Be sure both ends of the copper tubing are cut square.

■ Slip compression sleeve and compression nut on copper

tubing as shown. Insert end of tubing into outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

B CA

A. Compression sleeve B. Compression nut

C. Copper tubing

6. Remove and discard the short, black plastic tube from the end of the water line inlet.

7. Thread the nut onto the end of the tubing. Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten.

NOTE: To avoid rattling, be sure the copper tubing does not touch the cabinet’s side wall or other parts inside the cabinet.

DA B C

A. Line to ice maker B. Nut (purchased)

C. Ferrule (purchased) D. Supplied line from ice maker

8. Install the water supply tube clamp around the water supply line to reduce strain on the coupling.

9. Turn shutoff valve ON.

10. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

Drain Connection

Gravity Drain System

Connect the ice maker drain to your drain in accordance with all state and local codes and ordinances. If the ice maker is provided with a gravity drain system, follow these guidelines when installing drain lines. This will help keep water from flowing back into the ice maker storage bin and potentially flowing onto the floor causing water damage.

■ Drain lines must have a minimum of ⁵⁄₈" (15.88 mm) inside

diameter.

■ Drain lines must have a 1" drop per 48" (2.54 cm drop per

122 cm) of run or ¹⁄₄" drop per 12" (6.35 mm per 30.48 cm) of run and must not have low points where water can settle.

■ The floor drains must be large enough to accommodate

drainage from all drains.

■ The ideal installation has a standpipe with a 1¹⁄₂" (3.81 cm) to

2" (5.08 cm) PVC drain reducer installed directly below the outlet of the drain tube as shown. You must maintain a 1" (2.54 cm) air gap between the drain hose and the standpipe.

■ It may be desirable to insulate the drain line thoroughly up to

the drain inlet.

SIDE VIEW

Connecting the Drain

After ensuring that the drain system is adequate, follow these steps to properly place the ice maker:

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

WARNING

1⁷⁄₈" (4.8 cm)

23"

(58.4 cm)

2" - 1¹⁄₂"

(5 cm - 3.8 cm)

A. Drain hose B. 1" (2.54 cm) air gap C. PVC drain reducer D. Center of drain should be 23" (58.4 cm) from front of door,

with or without the ³⁄₄" (1.91 cm) panel on the door. The drain should also be centered from left to right (7 [18.56 cm] from either side of the ice maker).

1" (2.54 cm)

⁵⁄₁₆

Drain Pump System (on some models)

Connect the ice maker drain to your drain in accordance with the International Plumbing Code and any local codes and ordinances.

NOTE: If the drain hose becomes twisted and water cannot drain, your ice maker will not work.

Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury.

2. Style 1 - For gravity drain system, push the ice maker into

position so that the ice maker drain tube is positioned over the PVC drain reducer. See “Gravity Drain System.” Style 2 - For drain pump system connect the drain pump outlet hose to the drain. See “Drain Pump System.”

3. Recheck the ice maker to be sure that it is level. See

“Leveling.”

4. If it is required by your local sanitation code, seal the cabinet

to the floor with an approved caulking compound after all water and electrical connections have been made.

Ice Maker Door

Tools needed:

Gather the required tools and parts before starting installation.

■ ⁵⁄₁₆" wrench ■ Flat putty knife

■ ¹⁄₄" wrench ■ Phillips screwdriver

Hinge pin

⁵⁄₁₆" Hex head hinge screw

Handle screw End Cap screw

Remove Door

Replace Door

1. Unplug ice maker or disconnect power.

2. Remove the handle screws and handle (on some models).

Keep the parts together and set them aside.

3. Remove the hinge pin from the top hinge.

4. Remove the door from the hinges and screw the top hinge pin

back into the top hinge.

5. Reverse the door end caps as follows:

■ Remove the screw and end cap from the top corner.

Move it diagonally to the opposite side's bottom corner, keeping the straight side of the end cap facing the front of the ice maker.

■ Remove the screw and end cap from the bottom corner.

Move it diagonally to the opposite side's top corner, keeping the straight side of the end cap facing the front of the ice maker.

1. Place plastic hinge pin sleeve in the top hinge hole on the

door. Align the door with the top hinge hole and replace the top hinge pin.

2. Replace the handle and handle screws.

Top Hin g e

A. Hinge pin B. Hinge pin sleeve

C. Hinge D. Hex head hinge screw

Bottom Hinge

A. Top corner open (no end cap) B. Beginning top corner end cap C. Beginning bottom corner end cap D. Bottom corner open (no end cap)

6. Set the door aside.

Reverse Hinges

1. Unscrew and remove the top hinge. Replace the screws in

the empty hinge holes.

2. Remove the screws from the bottom of the opposite side of

the ice maker cabinet. Turn the top hinge upside down so that the hinge pin points up. Place the hinge on the bottom opposite side of the ice maker and tighten screws.

3. Remove the plastic hinge pin sleeve from the “old” bottom

hinge and replace it on the new bottom hinge pin.

4. Remove the “old” bottom hinge screws and hinge. Replace

the screws in the empty hinge holes.

5. Remove the screws from the top of the opposite side of the

ice maker cabinet. Turn the hinge upside down so that the hinge pin points down. Place the hinge on the top opposite side of the ice maker and tighten the screws.

6. Remove the top hinge pin.

A. Hex head hinge screw B. Hinge pin sleeve

C. Hinge D. Hinge pin

Reverse Door Catch

1. Remove the hole plugs from the opposite side of the door

and set aside.

2. Remove the screws from the magnetic door catch and

replace it on the opposite side of the door.

3. Push the hole plugs into place on the opposite side of the

door.

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

ICE MAKER USE

How Your Ice Maker Works

When you first start your ice maker, the water pan will fill and the system will rinse itself before starting to make ice. The rinsing process takes about 5 minutes.

Under normal operating conditions, the ice maker will cycle at preset temperatures. The ice level sensor located in the ice storage bin will monitor the ice levels.

IMPORTANT:

■ If the water supply to the ice maker is turned off, be sure to

set the ice maker control to OFF.

■ The ice maker is designed to make clear ice from the majority

of water sources on a daily basis. If your results are unsatisfactory, your water may need to be filtered or treated.

The Ice Making Process

4. Plug into a grounded 3 prong outlet.

Normal Sounds

Your new ice maker may make sounds that are not familiar to you. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces such as floors, walls and cabinets can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them.

■ You will hear a buzzing sound when the water valve opens to

fill the water reservoir for each cycle.

■ Rattling noises may come from the flow of the refrigerant or

the water line. Items stored on top of the ice maker can also make noises.

■ The high-efficiency compressor may make a pulsating or high

pitched sound.

■ Water running over the evaporator plate may make a

splashing sound.

■ Water running from the evaporator plate to the water reservoir

may make a splashing sound.

■ As each cycle ends, you may hear a gurgling sound due to

the refrigerant flowing in your ice maker.

■ You may hear air being forced over the condenser by the

condenser fan.

■ During the harvest cycle, you may hear a “thud” when the ice

sheet slides from the evaporator onto the cutter grid.

■ When you first start the ice maker, you may hear water

running continuously. The ice maker is programmed to run a rinse cycle before it begins to make ice.

1. Water is constantly circulated over a freezing plate. As the

water freezes into ice, the minerals in the water are rejected. This produces a sheet of ice with a low mineral content.

2. When the desired thickness is reached, the ice sheet is

released and slides onto a cutter grid. The grid divides the sheet into individual cubes.

3. The water containing the rejected minerals is drained after

each freezing cycle.

4. Fresh water enters the machine for the next ice making cycle.

5. Cubes fall into the storage bin. When the bin is full, the ice

A B

maker shuts off automatically and restarts when more ice is needed. The ice bin is not refrigerated, and some melting will occur. The amount of melting varies with room temperature.

NOTE: As the room and water temperatures vary, so will the amount of ice produced and stored. This means that higher operating temperatures result in reduced ice production.

Using the Controls

1. To start ice production, press ON.

2. To stop ice maker operation, press OFF.

NOTES:

■ Pressing the On/Off switch does not shut off power to the ice

maker.

■ Allow 24 hours to produce the first batch of ice. Discard the

first batch produced.

Holiday Mode

The Holiday Mode feature is designed for those whose religious observances require turning off the lights and the ice maker. By selecting this feature, ice production will be disabled and the interior lights will turn off.

Press and hold the HOLIDAY MODE button to turn on the Holiday Mode feature. Press and hold the button again to turn off the feature.

Service

The service light indicates when service is needed. If the service light turns on, turn the ice maker off and back on. If the service light turns on again, call for service.

ICE MAKER CARE

Cleaning

The ice making system and the air cooled condenser need to be cleaned regularly for the ice maker to operate at peak efficiency and to avoid premature failure of system components. See the “Ice Maker System” and the “Condenser” sections.

Exterior Surfaces

Wash the exterior enamel surfaces and gaskets with warm water and mild soap or detergent. Wipe and dry. Regular use of a good household appliance cleaner and wax will help maintain the finish. Do not use abrasive cleaners on enamel surfaces as they may scratch the finish.

For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Do not use chlorine bleach on the stainless steel surfaces.

Ice Maker System

Minerals that are removed from water during the freezing cycle will eventually form a hard scaly deposit in the water system. Cleaning the system regularly helps remove the mineral scale buildup. How often you need to clean the system depends upon how hard your water is. With hard water of 15 to 20 grains/gal. (4 to 5 grains/liter), you may need to clean the system as often as every 6 months.

NOTE: Use one 16 oz (473 mL) bottle of approved ice maker cleaner. To order, call 1-800-442-9991 and ask for Part Number

4396808. In Canada, call 1-800-807-6777.

1. Press the OFF control.

2. Wait 5 to 10 minutes for the ice to fall into the storage bin.

Remove all ice from the storage bin.

3. Unscrew the drain cap from the bottom of the water pan

located inside the storage bin as shown. Allow the water to drain completely.

4. Replace the drain cap securely on the water pan. If the drain

cap is loose, water will empty from the water pan and you will have either thin ice or no ice.

5. Read and follow all handling information on the cleaner bottle

before completing the steps below. Use one 16 oz (473 mL) bottle of approved ice maker cleaner.

6. Pour one bottle of solution into the water pan. Fill the bottle

twice with tap water and pour it into the water pan.

Clean/Reset

The Cleaning/Reset Status light will help you know when it is time to clean your ice maker. The light will change from green to yellow. This tells you it is almost time to clean your ice maker. It is recommended that you clean the ice maker when the status light changes to red OR ice production decreases significantly. To clean your ice maker, see “Ice Maker System” in the “Cleaning” section.

A. Water pan B. Water pan thumb screws C. Drain cap

+ 22 hidden pages
