KitchenAid KUIS18NNTB2, KUIS18NNTS2, KUIS18NNTW2, KUIS18NNTT2 User Manual

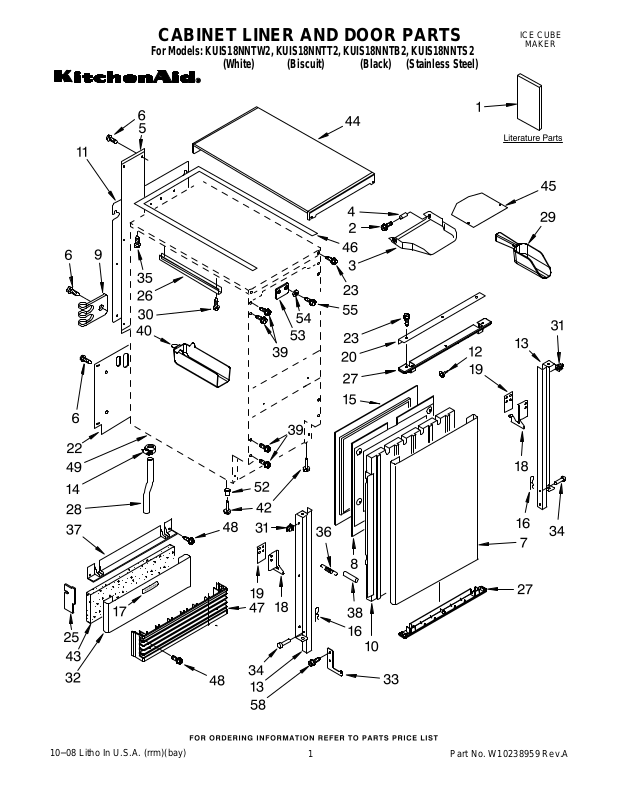

CABINET LINER AND DOOR PARTS
For Models: KUIS18NNTW2, KUIS18NNTT2, KUIS18NNTB2, KUIS18NNTS2
ICE CUBE
MAKER
(White) (Biscuit) (Black) (Stainless Steel)
10−08 Litho In U.S.A. (rrm)(bay)
1
Part No. W10238959 Rev.A
CABINET LINER AND DOOR PARTS
For Models: KUIS18NNTW2, KUIS18NNTT2, KUIS18NNTB2, KUIS18NNTS2
(White) (Biscuit) (Black) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10136157
W10263556
2 3400886 Screw 8−18 x 1 1/4
3 2208354 Bin, Door
4 2185678 Spacer
5 2217394 Cover, Wiring
6 489442 Screw
7 Panel, Exterior
2208352W White
2208352T Biscuit
2208352B Black
2208352S Stainless Steel
8 2217298 Panel, Interior
9 2208136 Clamp−Tube
10 2208377 Insulation
11 2217227 Ballast−Back, I.M.
12 941839 Hole Plug
13 Bracket, Door
2217466 (Left Side)
2217465 (Right Side)
14 489503 Clamp
15 2217295 Gasket, Door
16 2208535 Clip
17 Nameplate
W10046670
W10046700
W10046640
W10046610
Use & Care Guide
Service &
Wiring Sheet
White
Biscuit
Black
Grey
Illus. Part
No. No. DESCRIPTION
18 Hinge
2208425 (Left Side)
2208426 (Right Side)
19 2208401 Shim, Hinge
20 Handle, Icemaker
2208440W White
2208440T Biscuit
2208440B Black
W10136200
22
23 Screw, Handle
8281188 White
8281187 Biscuit
8281186 Black
25 2217225 Pad, Foam
26 2185691 Channel, Wiring
27 Endcap, Door
2208350W White
2208350T Biscuit
2208350B Black
28 2208453 Tube, Drain
29 2208386 Scoop
30 3400884 Screw 8−18 x 5/8
31 692400 Nut, Push−In
32 Panel, Wrap Lower
2208382W White
2208382T Biscuit
2208382B Black
2208382S Stainless Steel
33 2208487 Bracket, Spring
34 2208417 Pin, Hinge
Assembly,
Unit Cover
Illus. Part
No. No. DESCRIPTION
35 489048 Screw, Ground
36 2208480 Spring, Hinge
37 Endcap, Panel
2208383W White
2208383T Biscuit
2208383B Black
38 2208529 Dampener, Spring
39 8281265 Screw
40 2208449 Holder, Scoop
42 3374849 Leg, Leveler (4)
43 2208384 Insulation
44 Top
2929701W White
2929701T Biscuit
2929701B Black
45 2185690 Shield, Electrical
W10163531
46
47 Grill, Front
2217206W White
2217206T Biscuit
2217206B Black
48 489474 Screw 8−18 x 1
49 Cabinet & Liner
52 3400240 Nut,
53 2208434 Strike, Magnet
54 3400916 Washer
55 8281191 Screw
58 488208 Screw
Gasket, Top Panel
(NOT SERVICED)
Leg Leveler
2
W10238959
EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
For Models: KUIS18NNTW2, KUIS18NNTT2, KUIS18NNTB2, KUIS18NNTS2
(White) (Biscuit) (Black) (Stainless Steel)
W10238959
3
