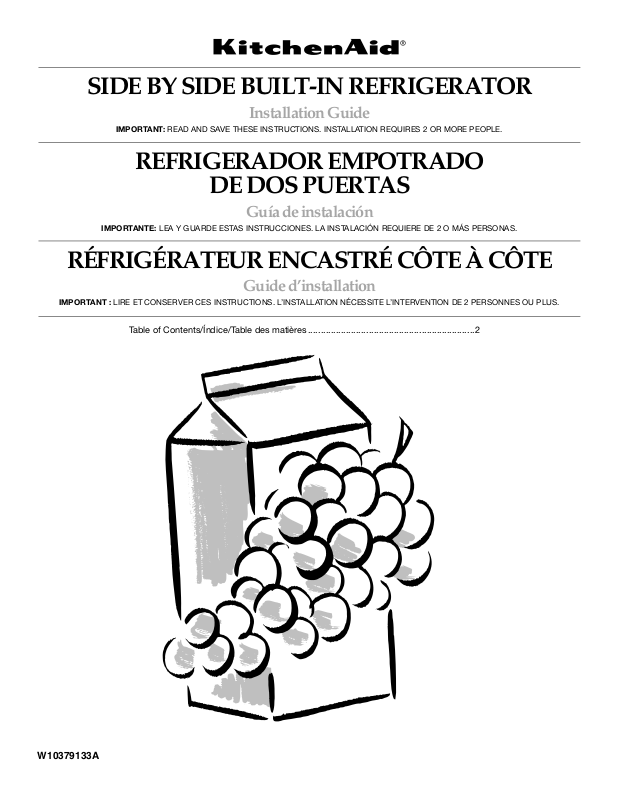

KitchenAid KSSC42FTS, KSSC48FTS, KSSS36FTX, KSSS42FTX, KSSS48FTX Installation Instructions

SIDE BY SIDE BUILT-IN REFRIGERATOR

Installation Guide

IMPORTANT: READ AND

SAVE

THESE INSTRUCTIONS. INSTALLATION REQUIRES 2 OR MORE PEOPLE.

REFRIGERADOR EMPOTRADO

DE DOS PUERTAS

Guía de instalación

IMPORTANTE: LEA Y GUARDE ESTAS INSTRUCCIONES. LA INSTALACIÓN REQUIERE DE 2 O MÁS PERSONAS.

RÉFRIGÉRATEUR ENCASTRÉ CÔTE À CÔTE

Guide d’installation

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS. L’INSTALLATION NÉCESSITE L’INTERVENTION DE 2 PERSONNES OU PLUS.

Table of Contents/Índice/Table des matières..................................................................2

W10379133A

TABLE OF CONTENTS

REFRIGERATOR SAFETY...........................................................................3

MODELS....................................................................................................... 4

INSTALLATION REQUIREMENTS .............................................................6

Tools and Parts.........................................................................................6

Location Requirements.............................................................................6

Electrical Requirements............................................................................7

Water Supply Requirements..................................................................... 8

Tipping Radius..........................................................................................8

Product Dimensions .................................................................................9

Door Swing Dimensions .........................................................................10

Overlay Series Door Panel and Cabinetry Clearance ............................11

Overlay Series Custom Panels and Handle Kits ....................................13

Classic Series Factory Panels and Kits.................................................. 15

Classic Series Custom Panels................................................................16

Classic, Architect

Overlay Series Custom Side Panels.......................................................18

®

and Complete Series Custom Side Panels .............18

ÍNDICE

SEGURIDAD DEL REFRIGERADOR........................................................28

MODELOS..................................................................................................29

REQUISITOS DE INSTALACIÓN ..............................................................31

Piezas y herramientas.............................................................................31

Requisitos de ubicación .........................................................................31

Requisitos eléctricos...............................................................................32

Requisitos del suministro de agua .........................................................33

Arco de vuelco........................................................................................33

Medidas del producto.............................................................................34

Medidas de oscilación de las puertas.................................................... 35

Espacio para el panel de la puerta y

para los armarios de la serie Overlay ..................................................... 36

Paneles a la medida y juegos de agarraderas de la serie Overlay ........38

Paneles y juegos de fábrica de la serie Classic .....................................40

Paneles a la medida para la serie Classic..............................................41

Paneles laterales a la medida para las
series Classic, Architect

Paneles laterales a la medida para la serie Overlay...............................44

®

y Complete ....................................................43

INSTALLATION INSTRUCTIONS .............................................................19

Unpack the Refrigerator ......................................................................... 19

Reduce Tipping Radius .......................................................................... 20

Move the Refrigerator into House ..........................................................20

Install Anti-Tip Boards ............................................................................ 20

Connect the Water Supply ..................................................................... 21

Plug in Refrigerator................................................................................. 22

Move Refrigerator to Final Location....................................................... 22

Level and Align Refrigerator ................................................................... 23

Install Classic Series Custom Panels ..................................................... 23

Install Overlay Series Custom Panels .................................................... 24

Adjust Doors ........................................................................................... 25

Install Side Panel .................................................................................... 26

Install Base Grille ....................................................................................26

Complete Installation.............................................................................. 27

Water System Preparation .....................................................................27

INSTRUCCIONES DE INSTALACIÓN...................................................... 45

Desempaque el refrigerador...................................................................45

Cómo reducir el arco de vuelco ............................................................. 45

Cómo hacer entrar el refrigerador en la casa ........................................45

Cómo instalar los tableros antivuelco .................................................... 46

Conexión del suministro de agua...........................................................46

Cómo enchufar el refrigerador ............................................................... 48

Cómo mover el refrigerador a su ubicación final ................................... 48

Nivelación y alineamiento del refrigerador ............................................. 48

Cómo instalar los paneles a la medida para la serie Classic................. 49

Cómo instalar los paneles a la medida para la serie Overlay ................ 50

Ajuste las puertas ................................................................................... 51

Cómo instalar el panel lateral .................................................................52

Cómo instalar la rejilla de la base...........................................................52

Cómo terminar la instalación..................................................................53

Preparación del sistema de agua...........................................................53

TABLE DES MATIÈRES

SÉCURITÉ DU RÉFRIGÉRATEUR ...........................................................54

MODÈLES ..................................................................................................55

EXIGENCES D’INSTALLATION................................................................57

Outillage et pièces ..................................................................................57

Exigences d’emplacement .....................................................................57

Spécifications électriques ...................................................................... 58

Spécifications de l’alimentation en eau.................................................. 59

Rayon de basculement...........................................................................59

Dimensions du produit............................................................................60

Dimensions pour l'ouverture des portes ................................................ 61

Série Overlay - Panneau de porte et placard - espace libre.................. 62

Panneaux personnalisés et poignées de la série Overlay......................64

Ensembles de panneaux d'origine de la série Classic...........................66

Panneaux personnalisés de la série Classic ..........................................67

Panneaux latéraux personnalisés
des séries Classic, Architect

Panneaux latéraux personnalisés de la série Overlay............................70

2

®

et Complete............................................. 69

INSTRUCTIONS D’INSTALLATION ......................................................... 70

Déballage du réfrigérateur...................................................................... 70

Réduction du rayon de basculement .....................................................71

Faire entrer le réfrigérateur dans le domicile.......................................... 71

Installation de planches antibasculement..............................................72

Raccordement à l'alimentation en eau...................................................72

Brancher le réfrigérateur......................................................................... 74

Déplacement du réfrigérateur à l'emplacement final............................. 74

Réglage de l'aplomb et alignement du réfrigérateur.............................. 74

Installation des panneaux personnalisés de la série Classic................. 75

Installation des panneaux personnalisés de la série Overlay ................ 76

Ajustement des portes............................................................................77

Installation du panneau latéral................................................................ 78

Installation de la grille de la base ........................................................... 78

Achever l’installation...............................................................................79

Préparation du système d’eau ...............................................................79

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.

WARNING

follow instructions.

can be killed or seriously injured if you don't

You
instructions.

follow

Tip Over Hazard

Refrigerator is top heavy and tips easily when not
completely installed.

Keep doors taped closed until refrigerator is
completely installed.

Use two or more people to move and install
refrigerator.

Failure to do so can result in death or serious injury.

3

Side by Side Non-Dispensing Refrigerators

MODELS

Architect® Series

Features wraparound styling that complements the contoured
door handles. This series provides a warm commercial-looking
built-in refrigerator.

KSSC36FTS KSSC42FTS KSSC48FTS

Classic Series

Features factory-installed, traditional style trim to provide a
“framed” look. This series requires the installation of custom
panels that are not included.

KSSS36FTX KSSS42FTX KSSS48FTX

Overlay Series

Features factory-installed, overlay style trim to provide a
“frameless” look. This series requires the installation of custom
panels, handles, and standoffs.

KSSO36FTX KSSO42FTX KSSO48FTX

4

Side by Side Dispensing Refrigerators

Architect® Series

Features wraparound styling that complements the contoured
door handles. This series provides a warm commercial-looking
built-in refrigerator.

KSSC36QTS KSSC42QTS KSSC48QTS

Classic Series

Features factory-installed, traditional style trim to provide a
“framed” look. This series requires the installation of custom
panels that are not included.

KSSS36QTB KSSS42QTB KSSS48QTB
KSSS36QTW KSSS42QTW KSSS48QTW
KSSS36QTX KSSS42QTX KSSS48QTX

Overlay Series

Features factory-installed, overlay style trim to provide a
“frameless” look. This series requires the installation of custom
panels, handles, and standoffs.

KSSO36QTB KSSO42QTB KSSO48QTB

Complete Series

Features factory-installed stainless steel trim and panels to create
a sleek, contemporary look.

KSSP36QTS KSSP42QTS KSSP48QTS

5

INSTALLATION REQUIREMENTS

Tool s a nd Par ts

IMPORTANT:

■ Installer: Leave Installation Instructions with the homeowner.

■ Homeowner: Keep Installation Instructions for future

reference. Save these Installation Instructions for the local
electrical inspector’s use.

TOOLS NEEDED:

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.

■ Cordless drill

■ Drill bits

■ Two adjustable

wrenches

■ Phillips screwdriver

■ Small level

■ Appliance dolly

■ To rx

■ ¹¹⁄₃₂" Nut driver

■ ³⁄₈" and ¹⁄₂" Open-end wrenches

■ ⁵⁄₃₂" Hex key

■ ¹⁄₄" and ⁵⁄₁₆" Socket drivers

■ Tap e m ea su re

■ Utility knife

PARTS NEEDED:

■ Six #8 x 3" (7.6 cm) wood screws (longer screws may be needed)

■ One or two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) wood board(s)

■ Order factory panels, make custom panels or consult a

qualified cabinetmaker or carpenter to make the panels.
Classic Series: Order factory panels, make custom panels, or

consult a qualified cabinetmaker or carpenter to make the
panels. See “Classic Series Custom Panels” for more
information.

Overlay Series: Make custom panels, or consult a qualified
cabinetmaker or carpenter to make the panels. See “Overlay
Series Custom Panels and Handle Kits” for more information.

®

Architect

■ If you are connecting the water line directly to copper tubing

and Complete Series are shipped complete.

and not to a shutoff valve, you need a ferrule, a union, and a
¹⁄₄" (6.35 mm) compression fitting.

®†

T27 screwdriver

Location Requirements

The refrigerator can be recessed in an opening between cabinets
or installed at the end of a cabinet run using a side panel to
enclose the refrigerator.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as
gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

IMPORTANT:

■ Observe all governing codes and ordinances.

■ It is recommended that you do not install the refrigerator near

an oven, radiator, or other heat source.

■ Do not install in a location where the temperature will fall

below 55°F (13°C).

■ Floor must support the refrigerator weight, more than 600 lbs

(272 kg), door panels and contents of the refrigerator.

■ Ceiling height must allow for side tipping radius. See “Tipping

Radius.”

■ Location should permit door to open fully. See “Door Swing

Dimensions.”

■ Location must permit top grille removal. See “Opening

Dimensions.”

Opening Dimensions

■ To avoid tipping during use, the solid soffit must be within 1"

(2.5 cm) maximum above the refrigerator. If the solid soffit is
higher than 1" (2.5 cm) or one is not available, then the
refrigerator must be braced.

If the anti-tip boards are needed, they must be attached to the
rear wall studs 80" to 90" (203 cm to 229 cm) above the floor.
See “Install Anti-Tip Boards” for more information.

NOTE: A clearance of ¹⁄₂" (1.3 cm) must be maintained above
the top grille in order for the top grille to be removed.

†®TORX is a registered trademark of Saturn Fasteners, Inc.

6

¹⁄₂"

(1.3 cm)

■ A grounded 3 prong electrical outlet should be located within

a specified number of inches from the right-hand side
cabinets or end panel. See the chart following the graphic for
the number of inches required for your model. For more
information, see “Electrical Requirements.”

■ The water shutoff should be located in the base cabinet on

either side of the refrigerator or some other easily accessible
area. If the water shutoff valve is not in the cabinets, the
plumbing for the water line can come through the floor or the
back wall. See “Water Supply Requirements” for more
information.

80" - 90"

(203-229 cm)

83¹⁄₂" (212.1 cm) min.

³⁄₄" (215 cm) max.

84
to bottom of solid soffit

A

Width

(see chart following)

B

Dimension

77"
(196 cm)

6"

(15.2 cm)

Electrical Requirements

WARNING

Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,

fire, or electrical shock.

Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 volt, 60 Hz., AC only, 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.

IMPORTANT: If this product is connected to a GFCI (Ground Fault
Circuit Interrupter) protected outlet, nuisance tripping of the
power supply may occur, resulting in loss of cooling. Food quality
and flavor may be affected. If nuisance tripping has occurred, and
if the condition of the food appears poor, dispose of it.

NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, remove the top grille and turn the master
power switch to OFF or disconnect power at the circuit breaker
box.

When you are finished, turn ON the master power switch or
reconnect power at the circuit breaker box. Then reset the control
to the desired setting.

1"

24"

(2.54 cm)

6"

(15.2 cm)

6"

(15.2 cm)

(60.96 cm) min.

Model Width A (as shown above) Dimension B

(as shown
above)

36
42
48

35¹⁄₂" (90.2 cm) to 35³⁄₄" (90.8 cm)
41¹⁄₂" (105.4 cm) to 41³⁄₄" (106.1 cm)
47¹⁄₂" (120.7 cm) to 47³⁄₄" (121.3 cm)

4" (10.2 cm)
10" (25.4 cm)
16" (40.6 cm)

NOTE: Flooring under refrigerator must be at same level as
the room. Face of cabinetry must be plumb.

7

Water Supply Requirements

■ All installations must meet local plumbing code requirements.

■ The water shutoff should be located in the base cabinet on

either side of the refrigerator or some other easily accessible
area. The right-hand side is recommended. The access hole
through the cabinet must be within ¹⁄₂" (12.7 mm) of the rear
wall.

NOTE: If the water shutoff valve is in the back wall behind the
refrigerator, it must be at an angle so that the tube is not
kinked when the refrigerator is pushed into its final location.

6"

(15.2 cm)

6"

(15.2 cm)

■ If the water shutoff valve is not in the cabinets, the plumbing

24"

(60.96 cm) min.

for the water line can come through the floor. A ¹⁄₂" (12.7 mm)
hole for plumbing should be drilled at least 6" (15.2 cm) from
the right or left hand side cabinet or panel. On the floor, the
hole should be no more than 1" (2.54 cm) away from the back
wall. See “Connect the Water Supply.”

■ If additional tubing is needed, use copper tubing and check

for leaks. Install the copper tubing only in areas where the
household temperatures will remain above freezing.

■ Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve

which reduces water flow and clogs more easily.
NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄"

(6.35 mm) saddle-type shutoff valve, a union, and copper
tubing. Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.

1"

(2.54 cm)

6"

(15.2 cm)

Water Pressure

A cold water supply with water pressure between 30 and 120 psi
(207 and 827 kPa) is required to operate the water dispenser and
ice maker. If you have questions about your water pressure, call a
licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi
(207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter cartridge, it may further

reduce the water pressure when used in conjunction with a
reverse osmosis system. Remove the water filter cartridge.

If you have questions about your water pressure, call a licensed,
qualified plumber.

Tipping Radius

Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.

■ The dolly wheel height must be added to the tipping radius

when a dolly is used.

■ If needed, the tipping radius can be reduced. See “Reduce

Tipping Radius.”

Side Tipping Radius

The side tipping radius varies depending upon the width of the
model. Use the chart provided to determine the side tipping
radius.

NOTE: Tip on side only.

A

Model Tipping Radius A

36
42
48

90¹⁄₂" (229.9 cm)
93" (236.2 cm)
96" (243.8 cm)

8

Product Dimensions

Side View

■ The depth from the front of the top grille to the back of the

refrigerator cabinet is 25³⁄₈" (64.5 cm).

■ The power cord is 84" (213 cm) long.

■ The water line attached to the back of the refrigerator is 5 ft

(1.5 m) long.

■ Height dimensions are shown with leveling legs extended ¹⁄₈"

(3 mm) below the rollers.

25³⁄₈"

(64.5 cm)

23¹⁄₂"

(59.7 cm)

*83³⁄₈"

(211.8 cm)

84" (213.4 cm)
Power Cord

Front View

■ Width dimensions were measured from trim edge to trim

edge.

■ Height dimensions are shown with leveling legs extended ¹⁄₈"

(3 mm) below the rollers.

*83³⁄₈"
(211.8 cm)

¹⁄₂" (8.9 cm)

*3

*When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below

rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.

Top Vi ew

A

25³⁄₈"
(64.5 cm)

Model Width A

36
42
48

35" (88.9 cm)
41" (104.1 cm)
47" (119.4 cm)

(see chart following)

A

Model Width A

(Trim edge to trim edge)

36
42
48

36¹⁄₄" (92.1 cm)
42¹⁄₄" (107.3 cm)
48¹⁄₄" (122.6 cm)

*When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below

rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.

9

Door Swing Dimensions

)

(

)

)

(

The location must permit both doors to open to a minimum of 90°.
Allow 4¹⁄₂" (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.

NOTE: More clearance may be required if you are using overlay
panels, custom handles, or extended handles on a Classic model.

To adjust the door swing, see “Adjust Doors.”

42" (106.7 cm) Models

⁵⁄₈"

12

(32.1 cm)

36" (91.4 cm) Models

10

⁷⁄₈"

(27.6 cm)

¹⁄₂"

35

(90.2 cm)

⁷⁄₈"

38

98.7 cm)

90˚

110˚

130˚

110˚

130˚

90˚

14

³⁄₈"

(36.5 cm)

39"

(99.1 cm)

(112.7 cm

44³⁄₈"

¹⁄₄"

37

(94.6 cm)

41

³⁄₈"

(105.1 cm)

90˚

110˚

48" (121.9 cm) Models

³⁄₈"

14

(36.5 cm)

39"

(99.1 cm)

⁷⁄₈"

43

111.4 cm)

90˚

110˚

130˚

130˚

110˚

130˚

110˚

130˚

90˚

90˚

⁷⁄₈"

16

(42.9 cm)

¹⁄₄"

19

(48.9 cm)

41¹⁄₂"

(105.4 cm)

47⁷⁄₈"

(121.6 cm

44"

(111.8 cm)

51³⁄₈"

(130.5 cm

10

Overlay Series Door Panel and Cabinetry Clearance

The custom door panels and adjacent cabinetry must be designed so that there is sufficient clearance for the doors to swing open. If
the refrigerator is to be installed close to the wall, see “Door Swing 90°” on next page.

Door Swing 110˚

Actual Size

Refrigerator to

Cabinetry Clearance

Refrigerator
Side Trim

1

1

/2"

(3.8 cm)

1

1

/4"

(3.2 cm)

1"

(2.5 cm)

Cabinetry

1

/4" (6.35 mm)

Hinge

1

/2" (1.3 cm)

3

/4" (1.9 cm)

NOTE: For Overlay Series models, rout the
hinge side of the custom door panels to a
radius that is equal to at least half the
thickness of the panel if a 130˚ door swing is
desired. See “Adjust Doors.”

Door

1

/2"

(1.3 cm)

Backer Panel

3

/4"

(1.9 cm)

Overlay Panel

(2.5 cm)

Spacer Panel

1"

1" (2.5 cm)

NOTE: Allow ¹⁄₂"
(1.3 cm) clearance
between overlay
panel and cabinetry.

1

/4"

1
(3.2 cm)

1

/2"

1
(3.8 cm)

When the doors are closed the refrigerator will extend beyond the face of the adjacent cabinetry to some degree.

11

90˚ Door

Stop Position

Hinge

Door Swing 90˚
Actual Size

Refrigerator to
Cabinetry Clearance

Refrigerator
Side Trim

3

/4"

(1.9 cm)

1

/2"

(1.3 cm)

Cabinetry

1"

(2.5 cm)

1

/4" (6.35 mm)

1

/2" (1.3 cm)

3

/4" (1.9 cm)

1" (2.5 cm)

1

/2"

(1.3 cm)

3

/4"

(1.9 cm)

1"

(2.5 cm)

1

1

Door

Backer Panel

Overlay Panel

/4"

(3.2 cm)

1

/2"

1

(3.8 cm)

Spacer Panel

Allow a minimum of 4¹⁄₂" (11.4 cm) of space between the side of the refrigerator and a corner wall. More clearance may be needed if
thicker custom panels or custom handles are used. Do not overlook baseboards.

12

Overlay Series Custom Panels and Handle Kits

Custom overlay panels allow you to blend the exterior of your
refrigerator into the overall kitchen décor, and to use custom
handles for additional design flexibility.

The custom panels must have backer panels attached in order to
mount them to the refrigerator. It is most common to work with
three panels, as shown in the following graphic: a decorative
overlay panel, a ¹/₈" (3.18 mm) spacer panel or spacer strips and a
¹/₄" (6.35 mm) backer panel.

In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimension and placement instructions to be sure that the
custom overlay panels will fit properly.

IMPORTANT:

■ The weight of the refrigerator door overlay panel cannot

exceed 50 lbs (23 kg).

■ The weight of the freezer door overlay panel cannot exceed

40 lbs (18.1 kg).

■ The weight of the top grille overlay panel cannot exceed

10 lbs (4.5 kg).

To minimize panel weight, you may use 2" (5.08 cm) spacer strips
around the perimeter in place of full-sheet solid spacer panels.
The spacer strips must be set in at least 1" (2.54 cm) from the top,
bottom and sides edges of the backer panel. If you use spacer
strips, it is also recommended that you use two 2" (5.08 cm) strips
horizontally centered for added support.

Overlay Panel

Spacer Panel

Spacer Panel

1

/8"

(3.18 mm)

Overlay Panel

Decorative Overlay Panel

(18.4 cm)

Freezer

⁷⁄₈"

Door Panel
(Dispenser)

*

⁷⁄₈"

10

(27.6 cm)

Dispenser
cutout is
centered
left-to-right

72

(183.5 cm)

Preferred

Radius

¹⁄₂"

(1.27 cm)

14¹⁄₄"

(36.2 cm)

33

(86.0 cm)

7

¹⁄₄"

¹⁄₄"

Door Panel

(Non-Dispenser)

AA

Freezer

C

Grille Panel

B

Refrigerator

Door Panel

5

/8" to 3/4"

(15.88 to

19.05 mm)

1

/8"

(3.18 mm)

Backer Panel

1

/4"

(6.35 mm)

Backer Panel

1" minimum
(2.54 cm)

Offset Dimension

Door/Grille Trim

Model A B C
36 14³/₄" (37.47 cm) 19³/₄" (50.17 cm) 34³/₄" (88.27 cm)
42 17¹/₄" (43.82 cm) 23¹/₄" (59.06 cm) 40³/₄" (103.51 cm)
48 19³/₄" (50.17 cm) 26³/₄" (67.95 cm) 46³/₄" (118.75 cm)

*Represents placement of dispenser frame.

13

Backer Panels

B

Dispenser Frame (dispenser models only)

NOTES:

■ Dashed lines represent placement of backer panels on overlay

panels.

■ Illustration shows backer panels placed on decorative

overlays.

C

³⁄₁₆"

6

22"
(55.9 cm)

A

(15.7 cm)

Top Offset

⁵⁄₈" (4.13 cm)

1

70¹⁄₂"
(179.1 cm)

Bottom Offset

¹⁄₂" (1.27 cm)

Handle-

Side Offset

¹⁄₄"

(6.4 mm)

70
(179.1 cm)

Side Offset

¹⁄₂" (12.7 mm)

¹⁄₂"

The dispenser frame attaches to the panel with 4 screws.

To remove the dispenser frame:

1. Remove the four screws attaching the frame.

2. Pull the dispenser frame from the decorative panel.

3. To replace the frame, hold the frame to the panel and replace

the screws.

A

C

¹⁄₄"

33
(84.5 cm)

ABA

Bottom Offset

¹⁄₈" (3.2 mm)

Bottom Offset

¹⁄₈" (3.2 mm)

Model D E F
36 14¹/₄" (36.20 cm) 19¹/₄" (48.90 cm) 33³/₄" (85.73 cm)
42 16³/₄" (42.55 cm) 22³/₄" (57.79 cm) 39³/₄" (100.97 cm)
48 19¹/₄" (48.90 cm) 26¹/₄" (66.68 cm) 45³/₄" (116.21 cm)

A. Decorative panel
B. Refrigerator door
C. Dispenser frame

The dispenser frame overlaps the dispenser cutout by ⁵⁄₁₆"
(0.78 cm) on each side and ¹⁄₂" (1.27 cm) on the top and bottom.

A A

¹⁄₂

" (1.27 cm) Overlap

A.

14

Overlay Series Door Handle Kits

Architect® Series

The following handle styles are available. Contact your KitchenAid
dealer or KitchenAid Parts and Accessories at
1-800-442-9991. In Canada, call 1-800-807-6777.

AB C D

A. Architect® Series handle (4396103)
B. Flat end straight handle (4396776) with stainless steel

clamshell standoffs (4396775)

C. Round end arc handle (4396779) with bronze bullet

standoffs (4396778)

D. Round end semicircle (4396777) with stainless steel

cylinder standoffs (4396782)

Handles

These handles can be installed on side-by-side and bottom­freezer refrigerators that require overlay panels.

PART NO. DESC RIPTION

4396776 Flat End Straight - 21" (53.3 cm) Length,

Satin Stainless Steel

4396781 Flat End Straight - 45" (114.3 cm) Length,

Satin Stainless Steel

4396777 Round End Semicircle,

Satin Stainless Steel*

4396779 Round End Arc,

Satin Stainless Steel*

*Available for non-dispensing models only.

Standoffs

The kit includes screws to support ³/₄" applications.
Standoffs can be installed on side-by-side and bottom-freezer

refrigerators that require overlay panels.

NOTES:

■ Two standoffs must be ordered for each handle.

■ Handles and standoffs may be combined to meet your

individual decorating needs.

PART NO. DESC RIPTION

4396775 Clamshell, Satin Stainless Steel
4396780 Clamshell, Satin Bronze
4396774 Bullet, Satin Stainless Steel
4396778 Bullet, Satin Bronze
4396782 Cylinder, Satin Stainless Steel
4396773 Cylinder, Satin Bronze

Handles

PART NO. COLOR

4396103 Stainless Steel
8171760 Biscuit
4396105 White
4396106 Black

Classic Series Factory Panels and Kits

All factory parts are available through your KitchenAid dealer or by
calling KitchenAid Parts and Accessories at 1-800-442-9991. In
Canada, call 1-800-807-6777.

Factory Door Panel Kits

Three kits containing colored acrylic or stainless steel door and
top grille panels are available. Follow the kit instructions for
installing the panels.

NOTE: Panel kits are not required for factory-installed stainless
steel panel models.

Door Panel Part Numbers for Non-dispenser Models

Color 364248

White #2325136 #2325137 #2325138
Black #2325139 #2325140 #2325141
Stainless Steel #2325142 #2325143 #2325144

Door Panel Part Numbers for Dispenser Models

Color 36 42 48

White #2325127 #2325128 #2325129
Black #2325130 #2325131 #2325132
Stainless Steel #2325133 #2325134 #2325135

Extended Door Handle Kits

Use extended door handles when additional finger clearance is
needed between the door handles and custom panel. Follow the
kit instructions for installing the door handles.

Color Part Number

White #4387990
Black #8171418
Stainless Steel #4388062
Matte Aluminum #4387989

15

Classic Series Custom Panels

If you plan to install custom wood panels, you will need to create
the panels yourself or consult a qualified cabinetmaker or
carpenter. See dimension drawings for panel specifications.

IMPORTANT: Panels weighing more than recommended may
cause damage to your refrigerator.

NOTE: Dimensions shown have a (±)¹⁄₁₆" (1.5 mm) tolerance.
Panels that are more than ¹⁄₄" (6.35 mm) thick must be routed. If
panels are less than ¹⁄₄" (6.35 mm) thick, install a filler panel
between the doors and decorative panels.

Top Grille Panel

The top grille panel should not weigh more than 10 lbs (4.5 kg).
NOTE: The dashed lines in the illustration represent the location

and offsets of raised wood panel.

A

Door Panels for Non-dispenser Models

The freezer panel should not weigh more than 40 lbs (18.1 kg).
The refrigerator panel should not weigh more than 50 lbs (23 kg).

A

¹⁄₂"

(1.27 cm)

Freezer

Door

(Non-Dispenser)

B

¹⁄₂"

(1.27 cm)

Refrigerator

Door

⁷⁄₁₆"

(1.1 cm)

(17.78 cm)

7"

¹⁄₄" thick

plywood

Top & Bottom Offsets

¹¹⁄₁₆" (1.75 cm)

Model A

36
42
48

34¹⁄₄" (87.0 cm)
40¹⁄₄" (102.2 cm)
46¹⁄₄" (117.5 cm)

Side Offsets

⁷⁄₁₆" (1.11 cm)

70⁷⁄₁₆"

(178.9 cm)

¹⁄₄" thick

plywood

3¹⁄₄"
(8.3 cm)

3¹⁄₄"

(8.3 cm)

⁷⁄₁₆"

(1.1 cm)

(1.27 cm)

Location and offsets

¹⁄₂"

of raised wood panel

¹⁄₂"

(1.27 cm)

Model A B

36
42
48

14¹⁄₄" (36.2 cm)
16³⁄₄" (42.6 cm)
19¹⁄₄" (48.9 cm)

19¹⁄₄" (48.9 cm)
22³⁄₄" (57.8 cm)
26¹⁄₄" (66.7 cm)

NOTES:

■ If the standard handle is used, the handle side offset of

both panels should be 3¹⁄₄" (8.25 cm) to all for finger
clearance.

■ If an extended handle is used, the handle side offset of

both panels should be ⁷⁄₁₆" (1.1 cm). Make sure the
refrigerator location allows the doors with extended
handles to open to 90 degrees. See “Door Swing
Dimensions.”

■ The dashed lines in the illustration represent the location

and offsets of raised wood panel.

¹⁄₄" thick

plywood

16

Door Panels for Dispenser Models

Dispenser Frame (Classic series dispenser models)

The freezer panel should not weigh more than 40 lbs (18.1 kg).
The refrigerator panel should not weigh more than 50 lbs (23 kg).

B

¹⁄₂"

(1.27 cm)

Refrigerator

Door

⁷⁄₁₆"

(1.1 cm)

¹⁄₄" thick

plywood

3¹⁄₄"
(8.3 cm)

(1.27 cm)

¹⁄₄" thick

plywood

14¹⁄₄"

(36.2 cm)

33

(85.7 cm)

³⁄₄"

¹⁄₂"

A

Freezer

Door

(Dispenser)

10⁷⁄₈"

(27.6 cm)

Dispenser
cutout is
centered
left-to-right

3¹⁄₄"

(8.3 cm)

⁷⁄₁₆"

70

(178.9 cm)

The dispenser frame attaches to the panel with 4 screws.

To remove the dispenser frame:

1. Remove the four screws attaching the frame.

2. Pull the dispenser frame from the decorative panel.

3. To replace the frame, hold the frame to the panel and replace

the screws.

A

⁷⁄₁₆"

(1.1 cm)

(1.27 cm)

Location and offsets

¹⁄₂"

of raised wood panel

¹⁄₂"

(1.27 cm)

Model A B

36
42
48

14¹⁄₄" (36.2 cm)
16³⁄₄" (42.6 cm)
19¹⁄₄" (48.9 cm)

19¹⁄₄" (48.9 cm)
22³⁄₄" (57.8 cm)
26¹⁄₄" (66.7 cm)

NOTES:

■ Dispenser cutout is centered left-to-right.

■ If the standard handle is used, the handle side offset of

both panels should be 3¹⁄₄" (8.25 cm) to all for finger
clearance.

■ If an extended handle is used, the handle side offset of

both panels should be ⁷⁄₁₆" (1.1 cm). Make sure the
refrigerator location allows the doors with extended
handles to open to 90 degrees. See “Door Swing
Dimensions.”

■ The dashed lines in the illustration represent the location

and offsets of raised wood panel.

A. Dispenser frame

The dispenser frame overlaps the dispenser cutout by ⁵⁄₁₆"
(0.78 cm) on each side and ¹⁄₂" (1.27 cm) on the top and bottom.

A A

A.

¹⁄₂

" (1.27 cm) Overlap

17

Classic, Architect® and Complete Series

Custom Side Panels

Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an Inset, Flush, or Recessed Inset panel installation.

Refrigerator and Side Trim Dimensions

The width and height of a side panel are determined by the type of
installation you are planning.

NOTES:

■ The dimensions shown are actual product dimensions and

may not reflect the needed panel installation dimensions.

■ The side panel should be a minimum of ½" (1.27 cm) thick

to avoid warping.

■ If the opening depth is 25" (63.5 cm) or more, you may

want to install a support board on rear wall.

Refrigerator

24¹⁄₈"

(61.3 cm)

23¹¹⁄₁₆"

(60.3 cm)

¹⁄₂"

23

(59.7 cm)

Inset Installation Dimensions

1. Measure the distance from point A (as shown) to the back

wall. Add ⁷⁄₃₂" (5.6 mm) to this measurement to allow the side
panel to fit into the trim.

2. If the panel is more than ¹⁄₄" (6.35 mm) thick, route the front

edge to allow the side panel to fit into the trim.

A

Flush Installation Dimensions

1. Measure the distance from point A (as shown) to the back

wall.

2. Attach the support board with a screw or adhesive that is

compatible with aluminum and wood.

Side Trim

¹⁄₄"

(6.35 mm)

³⁄₁₆"

(4.7 mm)

⁷⁄₃₂"

(5.5 mm)

¹³⁄₃₂" (10 mm)

⁵⁄₈"

(15.7 mm)

¹¹⁄₆₄"

(4.5 mm)

A

Recessed Inset Installation Dimensions

1. Measure the distance from point A (as shown) to the back

wall.

2. Route the front edge of the support board or attach a ¹⁄₄"

(6.35 mm) board to hold the panel in the cabinet side trim.

A

Overlay Series Custom Side Panels

Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an Inset or Recessed Inset panel installation.

Refrigerator and Side Trim Dimensions

18

The width and height of a side panel are determined by the type of
installation you are planning.

NOTES:

■ The dimensions shown are actual product dimensions and

may not reflect the needed installation dimensions.

■ The side panel should be a minimum of ½" (1.27 cm) thick

to avoid warping.

■ If the opening depth is 25" (63.5 cm) or more, you may

want to install a support board on rear wall.

Refrigerator

Side Trim

³⁄₈"

(9.7 mm)

Overlay

23¹¹⁄₁₆"

(60.16 cm)

³⁄₁₆"

(4.5 mm)

Recessed Inset Installation Dimensions

1. Measure the distance from point A (as shown) to back wall.

2. Route the front edge of the support board or attach a ³⁄₈"

(9.5 mm) board to hold the panel in the cabinet side trim.

A

INSTALLATION
INSTRUCTIONS

Unpack the Refrigerator

WARNING

¹⁄₁₆"

(1.5 mm)

³⁄₃₂"

(2.38 mm)

Inset Installation Dimensions

1. Measure the distance from point A (as shown) to the back

wall. Add ¹⁄₃₂" (0.8 mm) to this measurement to allow the side
panel to fit into the trim.

2. If the panel is more than ³⁄₈" (9.5 mm) thick, route the front

edge to allow the side panel to fit into the trim.

A

Tip Over Hazard

Refrigerator is top heavy and tips easily when not
completely installed.

Keep doors taped closed until refrigerator is
completely installed.

Use two or more people to move and install
refrigerator.

Failure to do so can result in death or serious injury.

IMPORTANT:

■ Do not remove the film covering until the refrigerator is in its

operating location.

■ All four leveling legs must contact the floor to support and

stabilize the full weight of the refrigerator.

■ Keep the cardboard shipping piece or plywood under the

refrigerator until it is installed in the operating location.

1. Remove and save the literature package bag taped to the side

of the refrigerator and the parts bag behind the grille. Remove
the four brackets (two on each side) that attach the shipping
base to the refrigerator bottom.

NOTE: Do not remove tape and door bracing until the
refrigerator is in its final location.

2. If necessary, reduce the tipping radius. See “Tipping Radius”

for ceiling height requirements or “Reduce Tipping Radius” for
step-by-step instructions. If you do not need to reduce the
tipping radius, proceed to “Move the Refrigerator into House.”

19

Reduce Tipping Radius

(if required)

Before bringing the refrigerator into the home, be sure there is
adequate ceiling height to stand the refrigerator upright. See
“Tipping Radius” in the “Installation Requirements” section for
more information.

If you do not have adequate ceiling height to stand the refrigerator
upright, the tipping radius can be reduced by removing the top
grille and side trims (see the following chart).

Model Reduced Tipping Radius

36 88" (223.5 cm)
42 88¹⁄₂" (224.8 cm)
48 89¹⁄₄" (226.7 cm)

NOTE: Pass the dolly strap under the handles for the
Architect

®

Series.

1. Grasp both ends of the top grille.

2. Push the top grille straight up; then pull straight out. Lay the

grille on a soft surface.

B BA

A. Top grille
B. Cabinet side trim

3. Remove the six screws attaching each cabinet side trim to the

refrigerator and remove the side trims.

Move the Refrigerator into House

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not
completely installed.

Keep doors taped closed until refrigerator is
completely installed.

Use two or more people to move and install
refrigerator.

Failure to do so can result in death or serious injury.

2. Place pieces of the shipping carton on the floor when rolling

the dolly and refrigerator into the house. Move the refrigerator
close to the built-in opening.

3. Place top of cardboard carton or plywood under refrigerator.

4. Stand the refrigerator up. First, place the left bottom edge of

the refrigerator on the floor, stand the refrigerator upright and
then lower the right-hand side of the refrigerator to the floor.

5. Reassemble the trim and top grille after the dolly has been

removed from the refrigerator.

Install Anti-Tip Boards

IMPORTANT:

■ To avoid tipping during use, the solid soffit must be within

1" (2.5 cm) maximum above the refrigerator. If the solid soffit is
higher than 1" (2.5 cm) or one is not available, then the
refrigerator must be braced.

■ It is recommended that board(s) be installed before the

refrigerator is installed.

■ Board(s) must be long enough to fully cover the width of the

compressor cover.

■ Locate the board(s) so the bottom surface(s) of the board(s)

is(are) 84" (213 cm) from the floor.

■ During installation, raise the refrigerator up so there is

¹⁄₄" (6.35 mm) maximum between the top of the refrigerator
and the bottom of the anti-tip board(s). Do not crush the
compressor cover when raising the rear leveling legs.

To Install Anti-tip Boards

1. Mark the stud locations on rear wall 80" to 90" (203 cm to

229 cm) above floor.

1. Place an appliance dolly under the left side of the refrigerator

as shown. Place the corner posts from the packing materials
over the trims and handles as appropriate to avoid damage.
Slowly tighten the strap.

20

2. Securely attach one or two 2" x 4" x 32" (5 cm x 10 cm x

C

A
B

C

81 cm) boards to wall studs behind refrigerator. Use six
#8 x 3" (7.6 cm) (or longer) wood screws. The wood screws
must be screwed into the studs at least 1½" (3.8 cm). The
board(s) must overlap the compressor cover.

BA

2" (5 cm)

D

A. Center board

B. Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards
C. Attach to studs with six #8 x 3" (7.6 cm) screws
D. Compressor cover

¹⁄₄

" (6.35 mm) max. above refrigerator

Connect the Water Supply

Read all directions before you begin.
IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

Connect to Water Line

3. Place the end of the tubing into a bucket, and turn shutoff

valve ON.

4. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

Style 2 - Copper Line Connection

NOTE: If there is a water supply line that meets the specifications

in “Water Supply Requirements,” proceed to “Connecting to
Refrigerator.” If not, use the following instructions to connect to
the household cold water supply.

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Locate a ½" to 1¹⁄₄" (1.25 cm to 3.18 cm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but drill on the top side of the

pipe, not the bottom. This will help keep water away from
the drill and keep normal sediment from collecting in the
valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the lower left rear of refrigerator to the
water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄"
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure both
ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" (6.35 mm) hole in the cold

water pipe you have selected.

A

G

B

C

Parts Needed:

■ Minimum 7 ft (2.13 m) flexible, codes approved water

supply line

Style 1 - Shutoff Valve Connection

NOTE: If your water line connection does not look like Style 1, see

“Style 2 - Copper Line Connection.”

1. Unplug refrigerator or disconnect power supply.
IMPORTANT: Before attaching the tubing to shutoff valve, flush

the main water supply line to remove particles and air in the water
line. Allow enough flow so that water becomes clear. Flushing the
water line may help avoid filters and/or water valves from
becoming clogged.

2. Connect the flexible, codes approved water supply line to the

water shutoff valve by threading the provided nut onto the
shutoff valve as shown.

NOTE: The shutoff valve shown is in the side cabinet as
recommended.

A. Bulb
B. Nut
C. Water tubing

DEF

A. Cold water pipe

B. Pipe clamp
C. Copper tubing
D. Compression nut

E. Compression sleeve
F. S hu to ff v al ve

G. Packing nut

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" (6.35 mm)
drilled hole in the water pipe and that the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe clamp
screws slowly and evenly so washer makes a watertight seal.
Do not overtighten.

IMPORTANT: Before attaching the tubing to shutoff valve, flush
the main water supply line to remove particles and air in the water
line. Allow enough flow so that water becomes clear. Flushing the
water line may help avoid filters and/or water valves from
becoming clogged.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten the
clamp or the sleeve. This will crush the copper tubing.

8. Turn off the shutoff valve on the water pipe. Coil the copper

tubing.

9. Connect the flexible, codes approved water supply line to the

water shutoff valve by threading the provided nut onto the
shutoff valve.

10. Place the end of the tubing into a bucket, and turn shutoff

valve ON.

11. Check for leaks around the saddle valve. Tighten any nuts or

connections (including connections at the valve) that leak.

21

Connect to Refrigerator

A

B

C

D

E

F

G

Parts Supplied:

■ ¹⁄₄" to ¹⁄₄" (6.35 mm to 6.35 mm) male-to-male coupling

1"

7"
(17.78 cm)

NOTE: The flexible, codes approved water supply line can
connect to the supply valve through the floor or through the side
cabinets, as indicated by the gray boxes above.

1. Unplug the refrigerator or disconnect power.

2. Connect the 7 ft (2.13 m) flexible codes approved water tube

to the water supply valve.

3. Flush the main water supply line to remove particles and air in

the water line. Allow enough flow so that water becomes clear.

4. Tape the 7 ft (2.13 m) flexible codes approved water supply

line to the floor, 7" (17.78 cm) from the left side of the
refrigerator. Tape along the length of the tubing, which will
allow it to pass beneath the refrigerator without interference.

NOTE: Allow a minimum of 26" (66.04 cm) of flexible codes
approved water supply line to be loose at the front of the
refrigerator for connecting to the refrigerator.

5. Connect the 7 ft (2.13 m) flexible codes approved water

supply line to the refrigerator.
NOTE: If the main water shutoff valve is behind the

refrigerator, a secondary water shutoff valve may be installed
in line with the water supply line at the front of the product.

(2.54 cm)

Plug in Refrigerator

WARNING

Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,

fire, or electrical shock.

1. Set control switch at top of cabinet to the OFF position.

2. Plug into a grounded 3 prong outlet.

Move Refrigerator to Final Location

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not
completely installed.

Keep doors taped closed until refrigerator is
completely installed.

Use two or more people to move and install
refrigerator.

Failure to do so can result in death or serious injury.

IMPORTANT: To avoid floor damage, make sure levelers are
raised (not touching floor) and refrigerator is on rollers before
moving.

1. Place top of cardboard carton or plywood under refrigerator.

Remove dolly.

2. Do not remove film or cover.

3. Move the refrigerator straight back and evenly into the

opening. Be sure that the refrigerator side trims are not
interfering with the door opening. Also, be sure that the water
tubing is not kinked and the power supply cord is on top of the
refrigerator.

A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
D. Coupling

6. Turn on the water supply valve and check all connections for

leaks.

E. Bulb
F. N u t

G. Refrigerator water tubing

22

Level and Align Refrigerator

A
B

A

WARNING

NOTE: If an anti-tip board has been used, adjust the leveling
legs until the top of the refrigerator is within ¹⁄₄" (6.35 mm) of
the bottom of the anti-tip board as shown. Do not crush the
compressor cover.

BA

C

Tip Over Hazard

Refrigerator is top heavy and tips easily when not
completely installed.

Keep doors taped closed until refrigerator is
completely installed.

Use two or more people to move and install
refrigerator.

Failure to do so can result in death or serious injury.

IMPORTANT: All four leveling legs must contact the floor to
support and stabilize the full weight of refrigerator. Rollers are for
moving refrigerator and not for permanent support.

After moving the refrigerator to its final location:

1. Use a ⁵⁄₁₆" socket driver to turn the leveling bolts clockwise to

extend the legs to the floor as shown. The rollers should be off
the floor.

A B

A. Rear leveling bolt
B. Front leveling bolt

2. Adjust the leveling legs to level and align the refrigerator from

left to right and front to back so that the refrigerator is level
and aligned with the cabinetry. The cabinetry surface must be
plumb for the ideal fit of the refrigerator side trim.

3. Continue adjusting all of the leveling legs to raise the

refrigerator until the top is within at least 1" (2.54 cm) of the
top soffit.

¹⁄₄" (6 mm)

max.

2" (5 cm)

D

A. Center board
B. Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards
C. Attach to studs with six #8 x 3" (7.6 cm) screws
D. Compressor cover

IMPORTANT: Adjust in small increments to keep from
damaging the cabinet trim and causing problems with the
door alignment or top grille fit. To avoid damage to the cabinet
or leveling legs, do not apply more than 50 inch-pounds
(5.65 Nm) of torque to the leveling bolts. The leveling legs can
be extended to a maximum of 1¹⁄₄" (3.18 cm) below the rollers.

4. For Classic and Overlay models, additional adjustments may

be needed after the custom panels are installed.

¹⁄₄

" (6.35 mm) max. above refrigerator

Install Classic Series Custom Panels

IMPORTANT: KitchenAid is not responsible for the removal or
addition of molding or decorative panels that would not allow
access to the refrigerator for service.

Door Panels

1. Remove all tape and door bracing from the refrigerator and

freezer doors.

2. Remove the screws that attach the handles to the door frame.

3. Slide the decorative door panels into the door frames.

4. If needed, route the door panels or install a filler panel

between the doors and the decorative panels. See the
“Classic Series Custom Panels” section in “Installation
Requirements.”

A

A. Panels

23

5. Replace the door handles. Install the top screw on each

A

A

handle first. Be sure that the top of both door handles are
aligned.

6. If the door handles are not aligned, loosen all handle screws

and adjust door handles up or down. Tighten the screws.

7. Check refrigerator level and adjustment. Adjust if needed.

Top Grille Panel

1. Grasp both ends of the top grille.

2. Push straight up, then pull straight out. Place the top grille

panel-side down on a soft working surface.

B BA

A. Top grille
B. Cabinet side trim

3. Remove one end cap by loosening the nuts and sliding off the

end cap.

A

Install Overlay Series Custom Panels

IMPORTANT:

■ Install the custom handles prior to installing the panels on the

refrigerator. For more information on KitchenAid custom
handle selection, refer to the KitchenAid Catalog, visit
www.kitchenaid.com, or call 1-800-442-9991. In Canada,
visit www.KitchenAid.ca, or call 1-800-807-6777.

■ Create custom door overlay panels according to the

specifications in the “Overlay Series Custom Panels” section.

■ KitchenAid is not responsible for the removal or addition of

molding or decorative panels that would not allow access to
the refrigerator for service.

Door Panel Installation

1. Remove all tape and door bracing from the refrigerator and

freezer doors.

2. Open the refrigerator and freezer compartment doors.

3. Remove the handle-side and top trims.

A

C

B

D

A. Bottom rail
B. Nuts

C. End cap
D. Top rail

4. Slide the backer panel into the top grille channel and reattach

the end cap.

A

A. Backer panel

5. Replace the top grille in the cabinet side trims and pull the

panel down slightly to lock it into place.

B BA

A. Trims

4. Slide the custom panels into the bottom and hinge side trims

on the refrigerator compartment and freezer compartment
doors, making sure that the backer panel fits into the hinge
side trims.

A

24

A. Top grille
B. Cabinet side trim

A. Panels
