INTERNATIONAL PART NUMBERS ITALICIZED
MIXER
VARIATIONS
OF
K5SS, KSM5, KP50P, KPM5,
KSM50P, KSMC50S, AND KPM50
SOLID STATE
c
2003 KITCHENAID
This Parts List Supercedes All Previous K5SS, KSM5, KP50P, KPM5, KSM50P, KSMC50S,AND KPM50 Parts Lists
11−03 Litho in U.S.A. (bd)
Updates Required Only on Page 2.
Part No. 4176922 Rev. M
For Models:K5SS, KSM5, KP50P, KPM5, KSM50P, KSMC50S, AND KPM50
4162086 White
4169509 Cobalt Blue
4176086 Imperial Gray
4176185 Almond Creme
4173581 Gloss Black
4176132 Empire Green
4176315 Empire Red
4176316 Majestic Yellow
9704025 Metallic Chrome
240291−15
4176176 KPM50 Model
9702637 K5SSWH Model
9704880 KSMC50S Model
9706869 KSM50P Model
9701262 White on White
9707107 Professional Model
9706975 5KPM5 Model
9706977 5KPM50 Model
9705172 (International)
9705184 (Japan)
4162075 White
4169508 Cobalt Blue
4176089 Imperial Gray
4176187 Almond Creme
4173584 Gloss Black
4176133 Empire Green
4176321 Empire Red
4176322 Majestic Yellow
4176338 Metallic Chrome
4176226 Royal Crimson
4162015 White
4169505 Cobalt Blue
4176092 Imperial Gray
4176188 Almond Creme
240160−11
4176140 Empire Green
9702423 Empire Red
9702424 Majestic Yellow
9702422 Metallic Chrome
4176222 Royal Crimson
Royal Crimson
Gloss Black
COLOR VARIATION PARTS
Domestic and
International
4162055 White
4169506 Cobalt Blue
4176087 Imperial Gray
4176190 Almond Creme
4173583 Gloss Black
4176134 Empire Green
4176318 Empire Red
4176319 Majestic Yellow
4176339 Metallic Chrome
4176224 Royal Crimson
3179869 KPM50 Model
4162129 White
9701508 White
4176000 Cobalt Blue
4176088 Imperial Gray
4176186 Almond Creme
4173582 Gloss Black
4176173 Empire Green
4176177 Professional Mdl.
9704500 Empire Red
9704502 Majestic Yellow
9704027 Metallic Chrome
240354−48
4162128 KSMC50S Model
9701512 KPM50 Model
240148−4 White
9701109 White
4169504 Colbalt Blue
4176149 Imperial Gray
240148−17
4173585 Gloss Black
4176141 Empire Green
9702393 Empire Red
9702394 Majestic Yellow
9702392 Metallic Chrome
240148−16
240148−14
4162202 White
4169511 Cobalt Blue
4176090 Imperial Gray
4176189 Almond Creme
240493−13
4176142 Empire Green
3179299 Empire Red
9704505 Majestic Yellow
3179298 Metallic Chrome
4176223 Royal Crimson
9705145 KSMC50S Model
9701516 KPM5 Model
(International)
Royal Crimson
(International)
Almond Creme
Royal Crimson
KSMC50S Model
Gloss Black
41769224176922
2
BASE AND PEDESTAL UNIT
For Models:K5SS, KSM5, KP50P, KPM5, KSM50P, KSMC50S, AND KPM50
Domestic and
International
Illus. Part
No. No. DESCRIPTION
1 Base & Foot
Supports
2 9703414 Foot, Rubber (4)
3
4
5 3182857 Latch, Bowl Spring
6 4162874 Arm, Bowl Lift
7 4159620 Rod, Bowl Lift
8 9704608 Cotter Pin
9 4159514 Washer
10 4159622 Spring
11 4159092 Nut, 1/4−28
12 4159615 Handle, Bowl Lift
13 9703442 Roll Pin
14 4162116 Bowl (5 Qt)
4176043 KSMC50S Model
4176144 Professional Mdl.
15 9707670 Beater, Flat
4176045 KSMC50S Model
4176182 Professional Mdl.
16 9707672 Dough Hook
3183236 KSMC50S Model
3183233 KSM50P Model
9708033 International
17 9704309 Wire Whip
4176306 International
18 4162022 Bracket, Bowl Lift
19 4162028 Pin, Bowl
20 3400018 Screw, 10−24 X 1/2
21 4162403 Screw, Special
22 3400024 Screw, 10−24
23 4159349 Screw, #8 X 3/8
24 3182904 Screw, Dbl. Ended
25 4176184 Plug
26 4176453 Pouring Shield
3177975 KPM5 Model
27 9706633 Pouring Shield
28 3177925 Cover, Bowl(2)
Column Assembly
Bowl Support
5/64 X 1/2 (2)
(2 Bowls)
Model
Model
Locating
5/16−18 X 3/4
Pan Head (4)
X 1/4 Machine
Round Head
Phil. Rd. Hd.
Type B
One−Piece
(International)
Professional Mdl.
LITERATURE PARTS
Refer to Page 2
Color Variation Parts
3
LIT4176922
LIT9706634
LIT9705170 Use & Care Guide
LIT9706978 KPM50 & 5K5SS
Repair Parts List
Use & Care Guide
(International)
4176922
CASE, GEARING AND PLANETARY UNIT
For Models:K5SS, KSM5, KP50P, KPM5, KSM50P, KSMC50S, AND KPM50
Domestic and
International
4176922
4
CASE, GEARING AND PLANETARY UNIT
For Models:K5SS, KSM5, KP50P, KPM5, KSM50P, KSMC50S, AND KPM50
Domestic and
International
Illus. Part
No. No. DESCRIPTION
1
2 4159709 Ring, Attachment
3 Cap, Attachemnt
4159713 Chrome
4176209 White
4 Thumb Screw
4162142 Black
4176211 White (Storm Gray)
5
6 246132 Screw
7 9701129 Microswitch
8 9701014 Bowl Actuator
9 9701663 Seal, Reset
11 3180161 Washer, Fiber
12 4162897 Worm Gear (23T)
13 3180161 Washer, Fiber
14 4162099 Worm Gear Bracket
15 3400022 Screw And L.W.
17 4162037 Shaft & Pinion
Gearcase Motor
Housing
Hub
Hub
Band, Trim
(International)
(International)
Assembly
(International)
Button
(.031" Thick)
And Bearing
Assy.
#10−24 X 7/16"
Phil. Fil. Hd.
(3)
(10T)
Illus. Part
No. No. DESCRIPTION
18 9705444 Pin
19 4161956 Shaft, Vertical
Center
20 9703907 Gear, Attachment
Hub Bevel (23T)
21 9703905 Bevel Pinion
(19T) & Center
Gear (62T)
22 4161950 Pin (Vertical
Center Shaft)
23 3180163 Washer, Fiber
25 9705443 Pin
26 4162324 Gasket,
Transmission
Case
27
31 9703904 Gear, Internal
32 4160595 Screw, Special
33
40 4176067 Agitator Shaft
4176082 KSMC50S Model
3184052 Agitator Shaft
41 4161950 Pin (Agitator
42 4162074 Ring, Planetary
45 3180160 Washer, Shim
47 9703903 Pinion, Gear
Lower Gear Case
(59T)
(5)
Planetary
(Incls Illus. 61)
(Includes Cup)
(International)
Shaft Pinion
Drip
(18T) (Agitator
Shaft)
(International)
Illus. Part
No. No. DESCRIPTION
52 3400025 Screw
10−24 X 1
Fil. Head (2)
53 4159817 "O" Ring
54 4159430 Screw, Self
Tapping
6−32 X 1/4"
Phil. Pan Hd.
Type F
55
56 4162914 Screw, 6−32 X 3/8
57 4176183 Pin−Guard
58 4162101 Worm Gear Bracket
60 3400026 Machine Screw
61 9703438 Ring, Retaining
62 4176099 Circuit Breaker,
63 9705132 RF Filter
64 9701105 Jumper Wire
65 9702311 Lead, Circuit (2)
9702309 KPM50 Model
Cover, End
Phil. Oval Hd.
(International)
And Gear (10 T &
23 T) (Incls.
Illus 11 thru 14
17 & 18)
10−24 X 1 3/4
Fil. Hd. (2)
(5KPM50 Model)
110/230 V
(International)
Breaker to Board
(International)
(International)
Refer to Page 2
Color Variation Parts
5
4176922

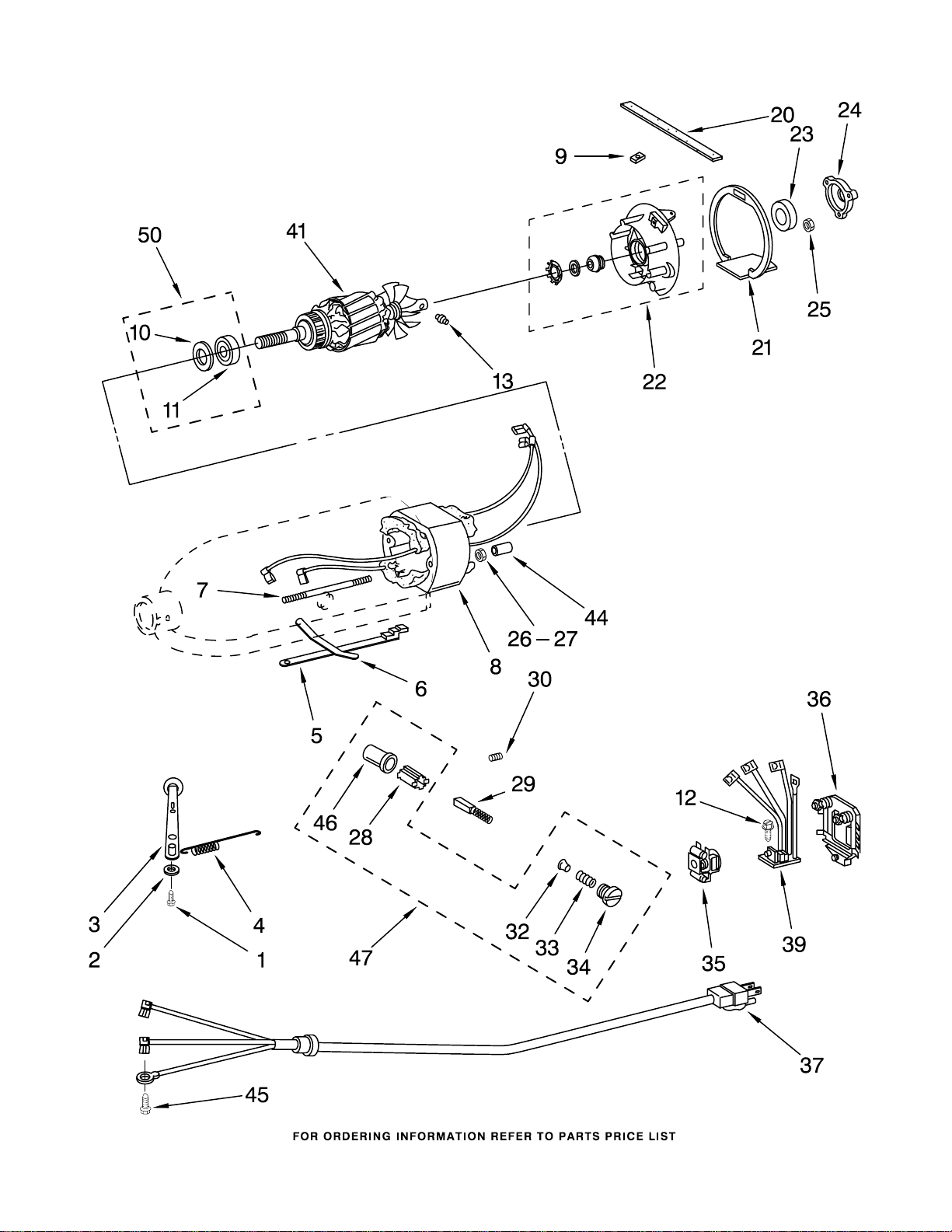

MOTOR AND CONTROL PARTS
For Models:K5SS, KSM5, KP50P, KPM5, KSM50P, KSMC50S, AND KPM50
Domestic and
International
4176922
6
MOTOR AND CONTROL PARTS
For Models:K5SS, KSM5, KP50P, KPM5, KSM50P, KSMC50S, AND KPM50
Illus. Part
Illus. Part
No. No. DESCRIPTION
No. No. DESCRIPTION
Domestic and
Illus. Part
Illus. Part
No. No. DESCRIPTION
No. No. DESCRIPTION
International
Illus. Part
Illus. Part
No. No. DESCRIPTION
No. No. DESCRIPTION
1 4160965 Screw, Pivot
2 4161697 Washer, Spring
3 Switch Lever
And Stud
3184193 Black
3184194 White (Storm Gray)
4 3183680 Spring, Control
Plate
5 3184176 Speed Link & Cam
6 4162035 Spring, Flat
7 4162344 Screw, Stator
8 9702695 Field Assembly
(115 Volts) Must
Use With Item 41)
294046 (KSMC50S Model)
9701670 Field Assembly
(220 Volts)
(Must use with
Item 41)
4176215 100 Volt
(Japan Only)
9 9701584 Seal, Screw
(KPM5 & KPM50
Models Only)
10 9704324 Washer, Ball
Bearing (Front)
11 4159001 Ball Bearing
SKF−6200ZJ
12 3400402 Screw, Self Tapping
4−40 X 5/16"
Phil. Pan Hd.
Type TT
13 4159662 Stud, Governor
Drive
20 9701104 Seal
(International)
9701584 KPM5 & KPM50
21 4162351 Seal, End
3184356 International
22 3180526 Bracket, Bearing
Assembly
23 3180238 Washer, Felt
24 4162347 Cap, Motor
Bearing
25 8533905 Nut, Machine
Hex (10−24)
26 8533905 Nut, Hex Machine
(10−24)
27 3400900 Lock Washer
#10 Ext. Shake−
proof
28 4162320 Insert, Brush
Holder
29 9706416 Brush & Spring
Assembly
30 4159262 Set Screw,
10−24 X 1/4"
Hdls. Cup Pt
32 4161745 Cap, Spring
Seat
33 4161746 Spring, Cap
34 Cap, Brush Holder
3184212 Black
3184211 White
35 4159675 Governor Assembly
36 4162402 Control Plate
Assembly
37 Cord & Plug
110 Volt
9701025 White
9701044 KSMC50S Model
9702318 White
(International)
9702314 KPM5 Model
9703280 KPM50 Model
9701026 Black
9702319 Cord & Plulg
(220 Volts)
3180059 2−Wire Cord
(International)
39 9706595 Phase Control
Board
(115 Volt)
9706596 Phase Control
Board (220 Volts)
41 4162959 Armature &
Bearing (115 V.)
Incls. Illus 11)
(Must use with
Illus. 8)
241991−4 Armature &
Bearing
(220 Volts)
Inclds. Illus. 11
(Must Use With
Illus. 8)
4176214 Armature
(100 Volts)
(Japan Only)
44 4162634 Sleeve, Motor
Stud
45 3184609 Screw, Self
Tapping (10−24
X 1/2") Phil.
46 3179908 Housing, Brush
Holder
47 4162546 Brush Holder
(Incls. Illus.
28, 32, 33, 34,
& 46)
50 4176025 Ball Bearing
And Washer Kit
Following Parts Not Illustrated
OPTIONAL ATTACHMENTS,
ACCESSORIES AND
SERVICE ITEMS
4164778 Mixer Attachment
Pak (Includes Food
Grinder (FG−A),
Food Strainer
(FVSP), And
Vegetable Slicer,
(RVS−A)
(FPP−A)
4164749 Food Grinder
(FG−A)
4164751 Grain Mill
(GM−A)
4164768 Pasta Maker And
Food Grinder
(Includes SNP
Pasta Maker
Plates)
(SN/FG−A)
4164775 Fruit/Vegetable
Strainer Parts (Use
With FG−A Model
Only) (FVSP)
4164750 Rotor Slicer/Shredder
(With 4 Standard
Cones) Fine Shredder,
Coarse Shredder,
Thick Slicer, And
Thin Slicer (RVS−A)
3177975 Pouring Shield
(KPS2CL)
9701671 Pouring Shield
(International)
4164824 Pasta Maker Plates
(SNP−A)
4164774 Fruit/Vegetable
Strainer And Food
Grinder (FVS/FG−A)
3180616 Cover, Decorative
(Cotton Polyester)
4162838 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer
Kit (SSA)
4162154 Water Jacket
(K5AWJ)
3177925 Bowl Cover, Plastic
Non−Sealing
4176100 5 Qt. Bowl,
Polished Stainless
Steel
4164839 Speed Disc
(Service Tool)
4160588 Grease, Planetary
7
