This Data Sheet Includes Information On

KitchenAid

• Product Model Number (s): •

36" Retractable Downdraft Vent System:

KIRD862HSS

Kit: KPED890T

• Dimensions (Actual Size) •

2 1/8"Vent overall depth:

Vent overall width:

Vent cutout depth:

Vent cutout width:

Raised vent distance:

Vent height below countertop:

36"
1 7/8"
33 1/2"
8 1/4"
26 1/8"

• Additional Information •

• Electrical requirements: Voltage 115, single phase,

60Hz. AC. Ampere 15. Grounded circuit required.
Locate power supply junction box at lower right corner
of cabinet.

• KitchenAid exterior power system, Part No.

KPED890, is required to complete this system.

• Installation location should be away from strong draft

areas, such as windows doors and strong heating
vents. Before making cutout, check that vent and
cooktop location will clear cabinet walls, backsplash
and rear wall studs inside cabinet.

• All openings in wall or floor where vent is to be

installed must be sealed.

• See cooktop manufacturer's installation instructions

for cooktop cutout depth and width.

• NOT approved for use in mobile homes.

• 36" minimum base cabinet is required. 3 1/2" depth

clearance from countertop to top of cabinet drawers (or
other obstructions in base cabinet) is required.

• Cabinet drawer may need to be removed and

permanent drawer front installed.

• Use either 9" round (recommended) or 3 1/4" x 10"

ductwork. Maximum length of ductwork for both 9"
round and 3 1/4" x 10" is 55 feet.

• Stainless Steel finish.

2 1/8"

Vent
Raised

Countertop

Cabinet Floor

1 7/8"

33 1/2"

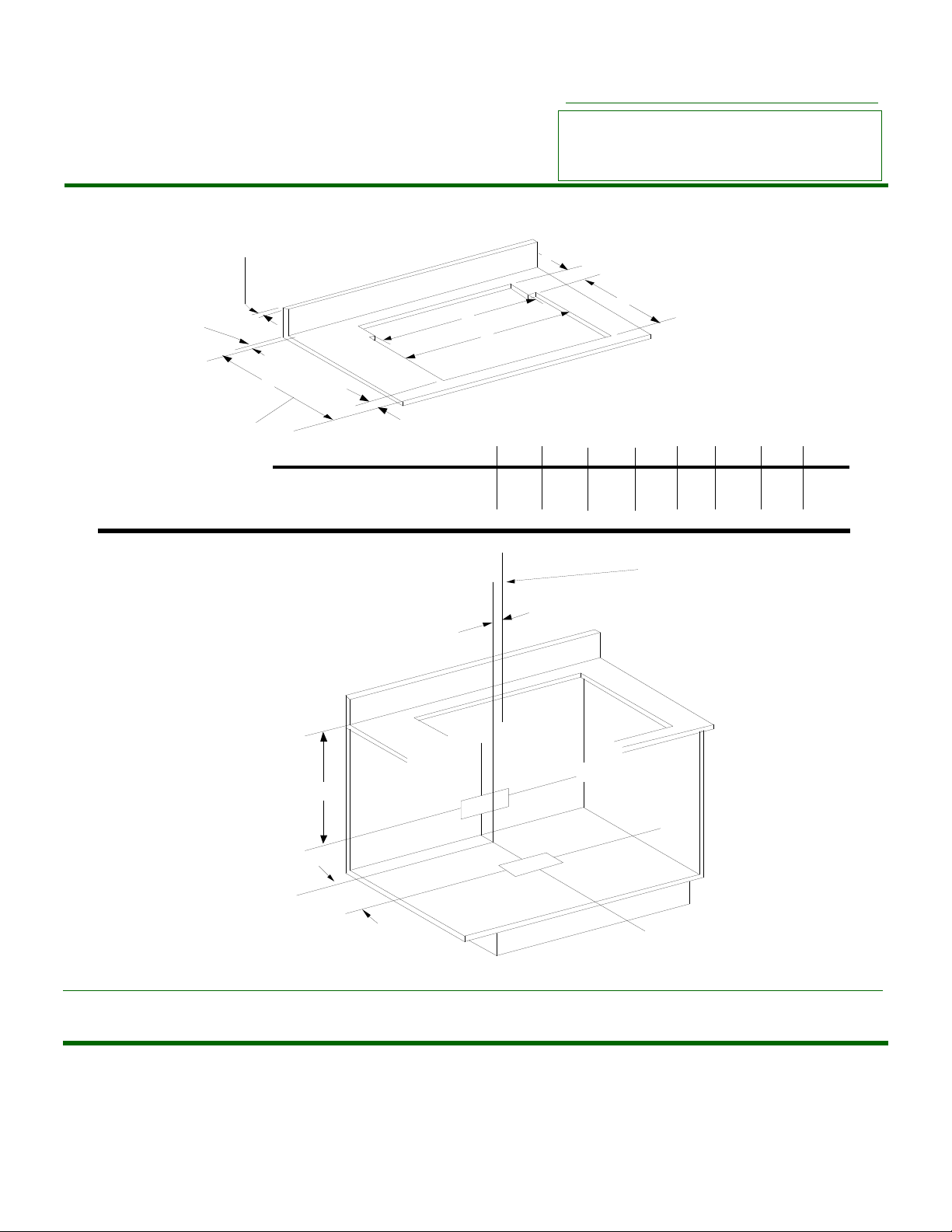

Cutout vent dimensions
Overall vent dimensions
Cooktop

36"

Vent Intake

36"

Backsplash

Countertop front edge

Wall View

(not to scale)

8 1/4"

26 1/8"

Vent Junction Box

See pages 2-3 for additional information

Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter­mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2000.

• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of odd numbered months at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.

284

Cooktop

BN53 • A284B149C116 • 11751 • 001311 • 215841 • 52906

Vent Intake

www.dexpress.com

DIMENSION EXPRESS

Fax on Demand [phone]

Additional Information:

Venting Requirements:

• Unit is to be used with KitchenAid external blower kit KPED890T.

• Ductwork needed for installation is not supplied. Wall cap is NOT

provided. Ductwork can extend either through the wall or roof. The
length of the ductwork and number of elbows should be kept to a
minimum to provide efficient performance. The size of the duct work
should be uniform. Do NOT install two elbows together. Flexible
ductwork is NOT recommended. If it is used, calculate each foot of
flexible ductwork as two feet of straight metal ductwork. Flexible
elbows count twice as much as standard elbows. Use metal ductwork
only. Make sure there is proper clearance within the wall of floor for
exhaust duct before making cutouts.

1/4"

Page 2

This Data Sheet Includes Information On

KitchenAid

• Product Model Number (s): •

36" Retractable Downdraft Vent System:

KIRD862HSS

Kit: KPED890T

• For best performance, use no more than three 90° elbows. If more
than one elbow is used, make sure that there is a minimum of 24" of
straight duct between any two elbows. It is recommended that you
use round duct instead of rectangular duct, especially if elbows are
required. If rectangular duct is required, it should be transitioned to
9" round as soon as possible. To calculate the length of system you
need, add the equivalent feet for each duct piece used in the system.

• Recommended standard fitting equivalents:
3 1/4" x 10" 90° elbow = 5 feet straight.
3 1/4" x 10" 45° elbow = 7 feet straight.
3 1/4" x 10" wall cap = 0 feet straight.
3 1/4" x 10" 90° flat elbow = 12 feet straight.

2 1/8" 1 7/8"

Vent Lid Cross Section

3/8"

1 3/4" cutout depth

Overall vent depth: 2 1/8"
Vent lid depth: 1 7/8"
Cooktop overlap: 3/8"
Min. Distance from vent lid to backsplash: 1/4"
