KitchenAid KPCG100PM1, KPCG100NP1, KPCG100ER1, 4KPCG100ER1, 4KPCG100PM1 User Manual

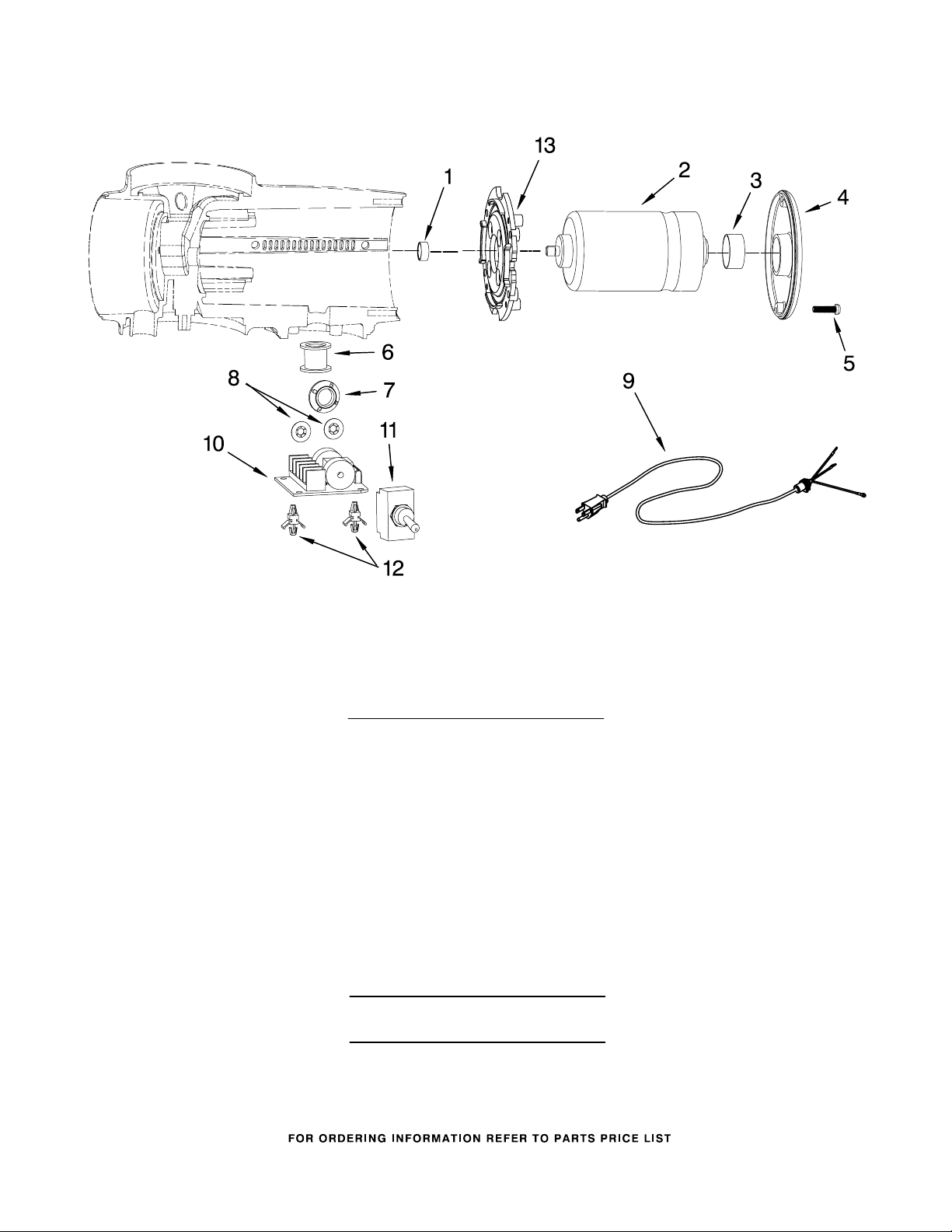

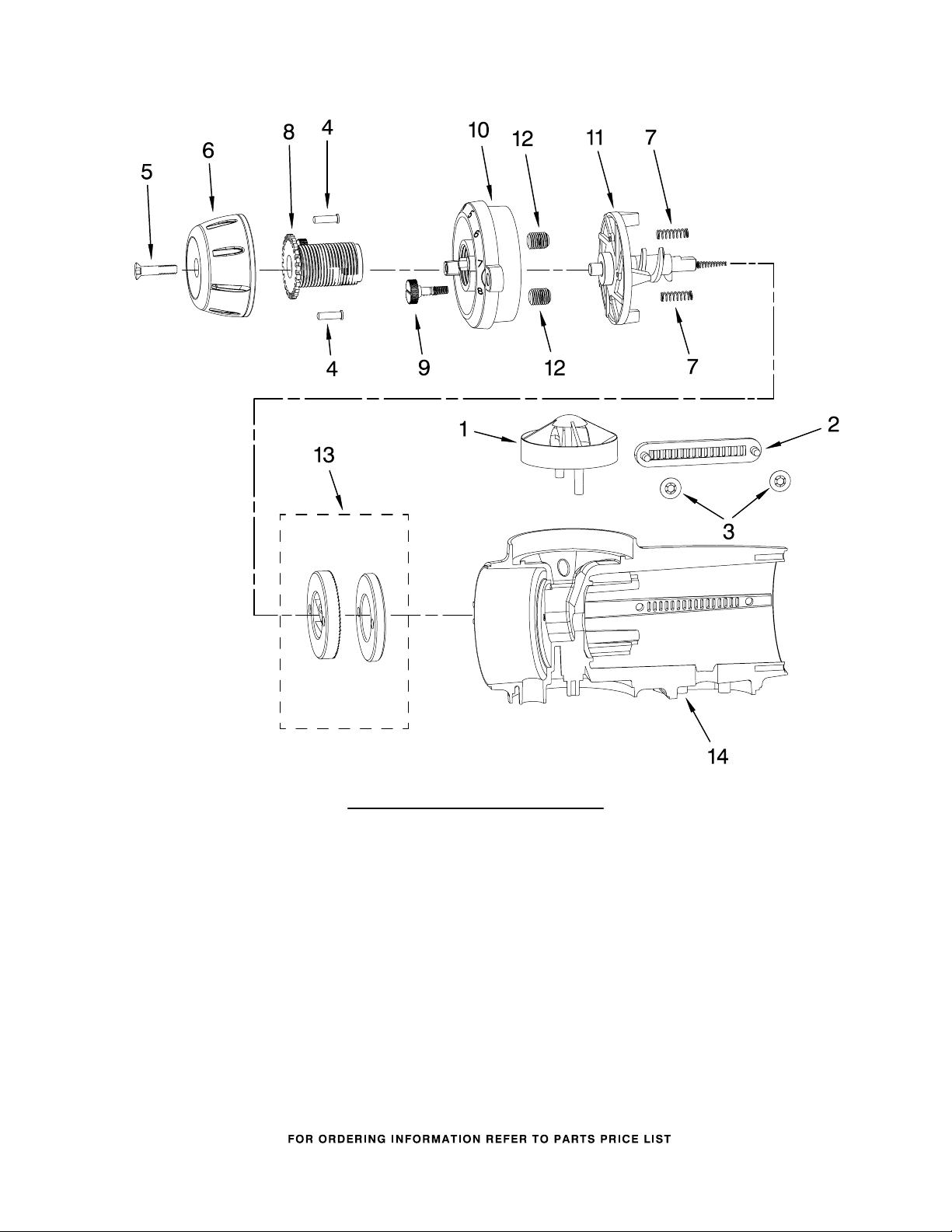

PRO LINE COFFEE GRINDER

MODELS:

KPCG100PM1 (Pearl Metallic) KPCG100NP1 (Nickel Pearl) KPCG100ER1 (Empire Red)

4KPCG100PM1 (Pearl Metallic) 4KPCG100ER1 (Empire Red)

6−06 Litho in U.S.A. (skr)

2006 KITCHENAID

Part No. 8212130 Rev. B

PEDESTAL JAR ASSEMBLY PARTS

For Models: KPCG100_ _1, 4KPCG100_ _1

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

4176735 Use and Care Guide

8212130 Repair Parts List 2 4176717 Lid, Bean Jar 3 4176731 O−Ring, Lid 4 4176730 Jar, Bean 5 4176729 Seal, Bean Jar 6 4176723 Nozzle, Holder 7 4176715 Spring, Housing 8 4176721 Cover, Nozzle 9 4176728 Jar, Coffee Ground

10 4176722 Ring, Abrasion 11 4176703 Cover, Baseplate 12 4176760 Screw 13 4176701 Nameplate 14 4176713 Lockwasher 15 Base Assembly

4176700 Pearl Metallic

8212152 Nickel Pearl

8212322 Empire Red

16 4176725 Foot, Rubber

(Incl Nameplate)

8212130
