KitchenAid KPCB348SPM0 Parts List

PROLINE CHEF’S BLENDER

3−SPEED HOUSEHOLD/STAINLESS STEEL JAR

MODELS:

KPCB348SPM0 (Pearl Metallic)

4KPCB348SPM0 (Pearl Metallic)

4−06 Litho in U.S.A. (skr)

c

2006 KITCHENAID

Part No. 8204589 Rev. C

JAR ASSEMBLY PARTS

For Models: KPCB348S_ _0, 4KPCB348S_ _0

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8204582 U.S.
8212224 Canada

8204589 Repair Parts List
2 8212228 Cap, Ingredient
3 8211478 Lid Assembly
4 8212231 Jar, Stainless

5 8212281 Blade Assembly

Use & Care Guide

(Incl Blade Assy)

8204589

2

MOTOR AND HOUSING PARTS

For Models: KPCB348S_ _0, 4KPCB348S_ _0

Illus. Part

No. No. DESCRIPTION

1 4176868 Coupler, Lower
2 4176869 Housing
3 4176870 Cord, Power
6 4176873 Seal, Motor
7 4176874 Motor
8 4176875 Screw, 10 x 16
9 4176876 Base

10 4176877 Screw, 10 x 16
11 4176878 Screw, 8 x 3/8
12 4176879 Foot, Pedestal
13 4176880 Cover, Base
16 8211663 Sensor, Hall

Effect

3

8204589

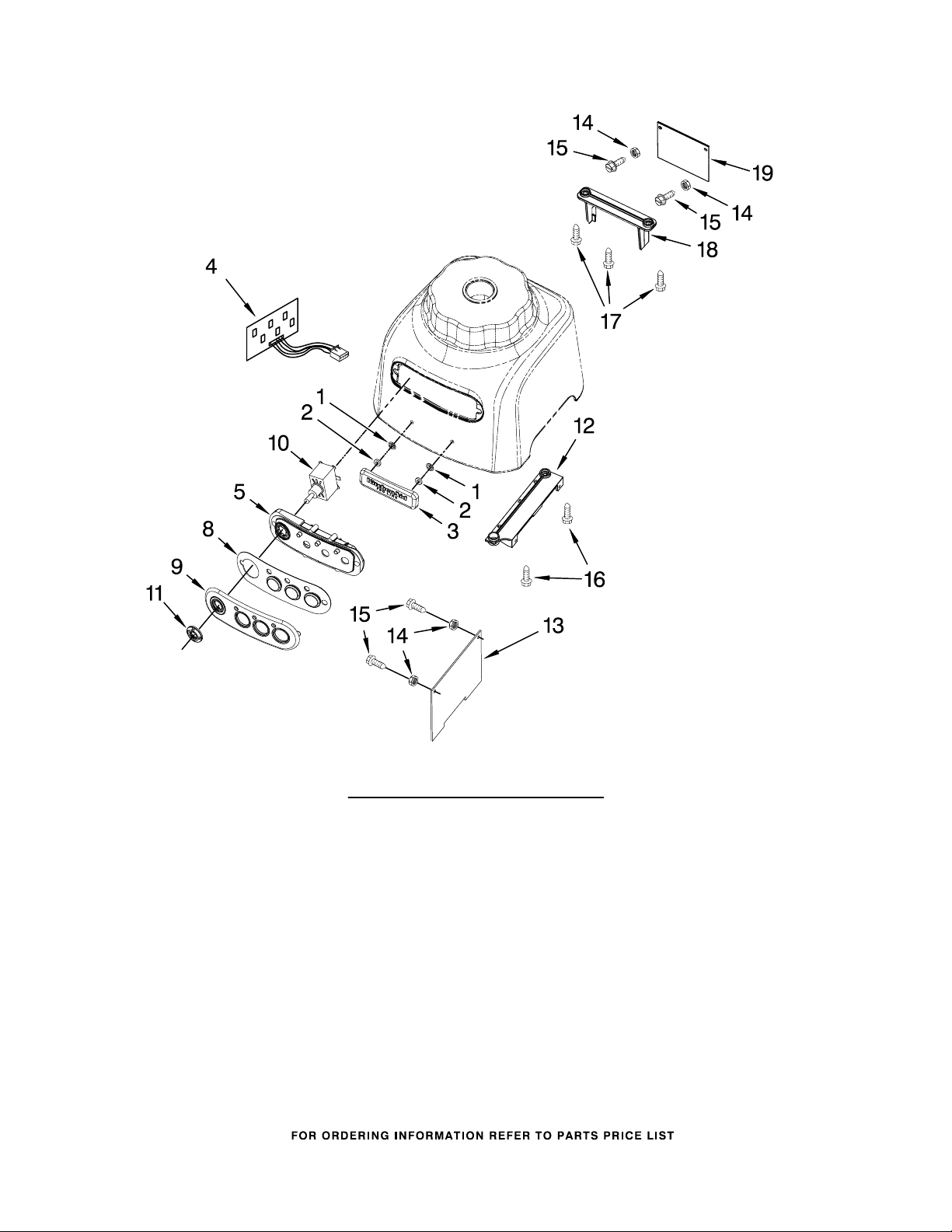

ESCUTCHEON AND CONTROL PARTS

For Models: KPCB348S_ _0, 4KPCB348S_ _0

Illus. Part

No. No. DESCRIPTION

1 4176866 Seal, Nameplate
2 4176867 Nut, Washer
3 4176865 Nameplate
4 4176884 Control PCB Assy

3−Speed
5 4176864 Switch, Mount
8 4176861 Seal, Escutcheon
9 4176860 Escutcheon

10 4176859 Switch, On/Off
11 4176858 Bezel, Switch
12 4176883 Mount, Main PCB
13 4176882 Main PCB
14 4176897 Nut, Plastic
15 4176881 Screw, Plastic
16 4176875 Screw, PCB Mount
17 4176877 Screw 10 x 16
18 4176871 EMC Mount
19 4176872 EMC−PC Board

48204589
