KitchenAid KHEV01RSS User Manual

PRO LINE®FRONT-LOADING

ELECTRIC DRYER

Use &Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230

or visit our website at...

www.kitchenaid.com

Table of Contents............................................................................................................2

3957654

TABLE OF CONTENTS

DRYER SAFETY..............................................................................3

INSTALLATION INSTRUCTIONS..................................................4

Tools and Parts ............................................................................4

Options.........................................................................................4

Location Requirements................................................................5

Electrical Requirements ...............................................................6

Make Electrical Connection .........................................................8

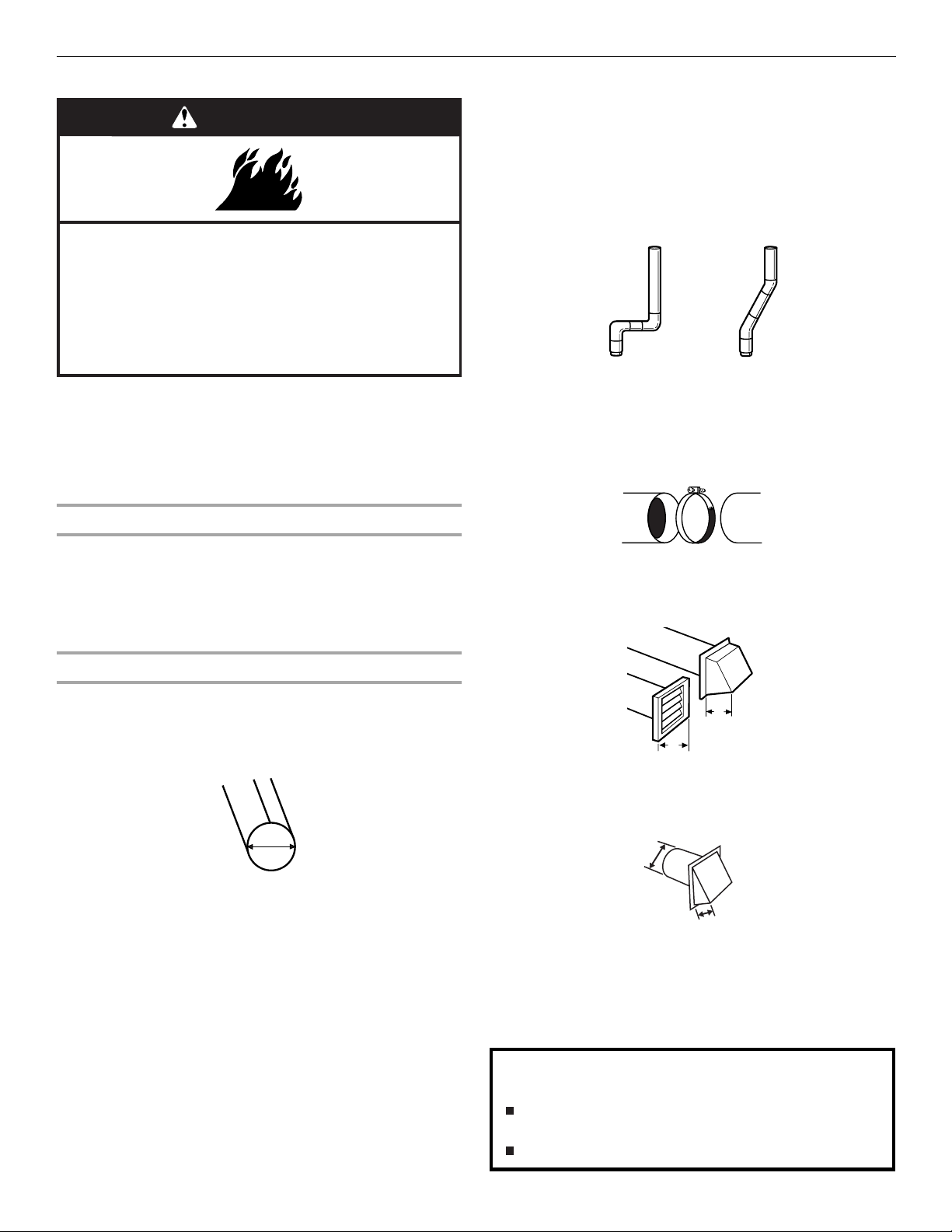

Venting Requirements................................................................13

Plan Vent System.......................................................................14

Install Vent System.....................................................................15

Connect Vent..............................................................................15

Level Dryer .................................................................................15

Complete Installation .................................................................15

DRYER USE ..................................................................................16

Starting Your Dryer.....................................................................16

Stopping Your Dryer ..................................................................17

Pausing or Restarting.................................................................17

Control Locked...........................................................................17

Drying and Cycle Tips ................................................................17

Status Display.............................................................................17

Cycles.........................................................................................18

Additional Features ....................................................................19

Temperature ...............................................................................19

Drying Rack ................................................................................19

DRYER CARE...............................................................................20

Cleaning the Dryer Location.......................................................20

Cleaning the Lint Screen............................................................20

Cleaning the Dryer Interior .........................................................21

Cleaning the Dryer Exterior ........................................................21

Removing Accumulated Lint......................................................21

Vacation and Moving Care.........................................................21

TROUBLESHOOTING ..................................................................22

ASSISTANCE OR SERVICE.........................................................23

WARRANTY ..................................................................................24

DRYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

including the following:

■

Read all instructions before using the dryer.

■

Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

■

Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, drycleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.

■

Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.

■

Before the dryer is removed from service or discarded, remove the door to the drying compartment.

■

Do not reach into the dryer if the drum is moving.

■

Do not install or store the dryer where it will be exposed to the weather.

■

Do not tamper with controls.

To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,

follow instructions.

can be killed or seriously injured if you don't

You instructions.

■

Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Use and Care Guide or in published user-repair instructions that you understand and have the skills to carry out.

■

Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

■

Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

■

Clean lint screen before or after each load.

■

Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

■

The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.

■

See installation instructions for grounding requirements.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

■ Flat-blade screwdriver

■ #3 Phillips screwdriver

■ ⁹⁄₁₆" (14 mm) open-end

wrench (for adjusting dryer feet)

■ Level

■ Wire stripper (direct wire

installations)

■ Vent clamps

Parts Supplied

Remove parts package from dryer drum. Check that all parts were included.

A. Door handle B. Plastic washers (2) C. Screws (2)

■ Caulking gun and

compound (for installing new exhaust vent)

■ Tin snips (new vent

installations)

■ ¼" nut driver

(recommended)

■ Tape measure

■ Wood block (for adjusting

dryer feet)

■ For close-clearance installations between 33" (83.8 cm) and

38" (96.5 cm), see “Plan Vent System” section for venting requirements.

38"

(96.5 cm)

Mobile home installations require metal exhaust system hardware available for purchase from the dealer from whom you purchased your dryer. For further information, please refer to the “Assistance or Service” section of this manual.

Options

Pedestal

Are you placing the dryer on a pedestal? You may purchase a pedestal separately for this dryer. This pedestal will add about 11" (27.9 cm) to the height of your dryer for a total height of approximately 53" (134.6 cm).

For a garage installation, you will need to place the pedestal at least 7" (17.8 cm) above the floor.

Remove Decorative Mat

Remove the optional decorative mat (included) from the top of the dryer and set aside.

Attach Door Handle

1. Insert the 2 screws through the holes in the door.

2. Place the plastic washers onto the screws.

3. Attach the handle by hand tightening the screws, first the top

then the bottom.

4. Push the handle against the door. Using a Phillips

screwdriver, tighten the screws.

NOTE: Do not overtighten.

Parts needed

Check local codes. Check existing electrical supply and venting. See “Electrical Requirements” and “Venting Requirements” before purchasing parts.

Optional pedestal

To order, call the dealer from whom you purchased your dryer or refer to the “Assistance or Service” section of this manual. Ask for Part Number LAV2701RSS.

Door Reversal Kit

Would you like to change your dryer door swing from a right-side opening to a left-side opening? To do so, you will need to purchase a Door Reversal Kit.

To order, call the dealer from whom you purchased your dryer or refer to the “Assistance or Service” section of this manual. Ask for Part Number 8182652.

WARNING

LocationRequirements

Dryer Dimensions

57"

(144.8 cm)

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Place dryer at least 18 inches (46 cm) above the floor for a garage installation.

Failure to do so can result in death, explosion, or fire.

You will need

■ A location that allows for proper exhaust installation. See

“Venting Requirements.”

■ A separate 30 amp circuit.

■ If you are using a power supply cord, a grounded electrical

outlet located within 2 ft (61 cm) of either side of the dryer. See “Electrical Requirements.”

■ A sturdy floor to support the total dryer weight of 250 lbs

(113.4 kg). The combined weight of accessories, clothes loads and companion appliances should also be considered.

■ A level floor with a maximum slope of 1" (2.5 cm) under entire

dryer. Clothes may not tumble properly and automatic sensor cycles may not operate correctly if dryer is not level.

■ For a garage installation, you will need to place the dryer at

least 18" (46 cm) above the floor. If using a pedestal, you will need an additional 7" (17.8 cm).

Do not operate your dryer at temperatures below 45ºF (7ºC). At lower temperatures, the dryer might not shut off at the end of an automatic cycle. This can result in longer drying times.

The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes or sleeping quarters. Contact your local building inspector.

Installation spacing

The following spacing dimensions are recommended for this dryer. This dryer has been tested for spacing of 0" (0 cm) clearance on the sides, front and rear. Recommended spacing should be considered for the following reasons:

■ The location must be large enough to allow the dryer door to

open fully.

■ Additional spacing should be considered for ease of

installation and servicing.

■ Additional clearances might be required for wall, door and

floor moldings.

■ Additional spacing should be considered on all sides of the

dryer to reduce noise transfer.

■ Companion appliance spacing should also be considered.

NOTE: This dryer cannot be stacked on the washer.

42"**

(106.7 cm)

33"*

(83.8 cm)

27"

(68.6 cm)

*Includes the door handle.

**Includes the feet extended 1" (2.5 cm). The optional decorative

mat (included) will add approximately ½" (1.3 cm) to the height. NOTE: Most installations require a minimum 5" (12.7 cm)

clearance behind the dryer for the exhaust vent with elbow. See “Venting Requirements.”

Recommended installation spacing for custom undercounter installation, dryer only

1" (2.5 cm)

42" min. (106.7 cm)

1" (2.5 cm)

27" (68.6 cm)

1" (2.5 cm)

Recommended installation spacing for recessed or closet installation, with or without a pedestal

■ For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.

3"*

(7.6 cm)

3"*

(7.6 cm)

1" (2.5 cm)

27"

(68.6 cm)

(2.5 cm)

*Required spacing

48 in.

(310 cm2)

24 in.

(155 cm2)

33"

(83.8 cm)

(12.7 cm)

(2.5 cm)

A. Front view B. Side view - closet or confined area C. Closet door with vents

Recommended installation spacing for cabinet installation, with or without a pedestal

■ For cabinet installation, with a door, minimum ventilation

openings in the top of the cabinet are required.

7"* (17.8 cm)

(2.5 cm)

27"

(68.6 cm)

(2.5 cm)

7"* (17.8 cm)

33"

(12.7 cm)

(88.8 cm)

(2.5 cm)

A. Front view B. Side view C. Cabinet with vents

*Required spacing

Mobile home - Additional installation requirements

This dryer is suitable for mobile home installations. The installation must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280).

Mobile home installations require:

■ Metal exhaust system hardware, which is available for

purchase from your dealer.

■ Special provisions must be made in mobile homes to

introduce outside air into the dryer. The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening.

Electrical Requirements

It is your responsibility

■ To contact a qualified electrical installer.

■ To be sure that the electrical connection is adequate and in

conformance with the National Electrical Code, ANSI/NFPA 70-latest edition and all local codes and ordinances.

The National Electric Code requires a 4-wire supply connection for homes built after 1996, dryer circuits involved in remodeling after 1996, and all mobile home installations.

A copy of the above code standards can be obtained from: National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269.

■ To supply the required 3 or 4 wire, single phase, 120/240 volt,

60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical supply, if specified on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect to an individual branch circuit. Do not have a fuse in the neutral or grounding circuit.

■ Do not use an extension cord.

■ If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the ground path is adequate.

Electrical Connection

To properly install your dryer, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

■ This dryer is manufactured ready to install with a 3-wire

electrical supply connection. The neutral ground wire is permanently connected to the neutral conductor (white wire) within the dryer. If the dryer is installed with a 4-wire electrical supply connection, the neutral ground wire must be removed from the external ground conductor screw (green screw), and secured under the neutral terminal (center or white wire) of the terminal block. When the neutral ground wire is secured under the neutral terminal (center or white wire) of the terminal block, the dryer cabinet is isolated from the neutral conductor.

■ If local codes do not permit the connection of a neutral

ground wire to the neutral wire, see “Optional 3-wire connection” section.

■ A 4-wire power supply connection must be used when the

appliance is installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral is prohibited for (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductors.

If using a power supply cord:

Use a UL listed power supply cord kit marked for use with clothes dryers. The kit should contain:

■ A UL listed 30-amp power supply cord, rated

120/240 volt minimum. The cord should be type SRD or SRDT and be at least 4 ft (1.22 m) long. The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends.

■ A UL listed strain relief.

If your outlet looks like this:

4-wire receptacle (14-30R)

Then choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire power supply cord, at least 4 ft (1.22 m) long, must have four 10-gauge copper wires and match a 4-wire receptacle of NEMA Type 14-30R. The ground wire (ground conductor) may be either green or bare. The neutral conductor must be identified by a white cover.

If your outlet looks like this:

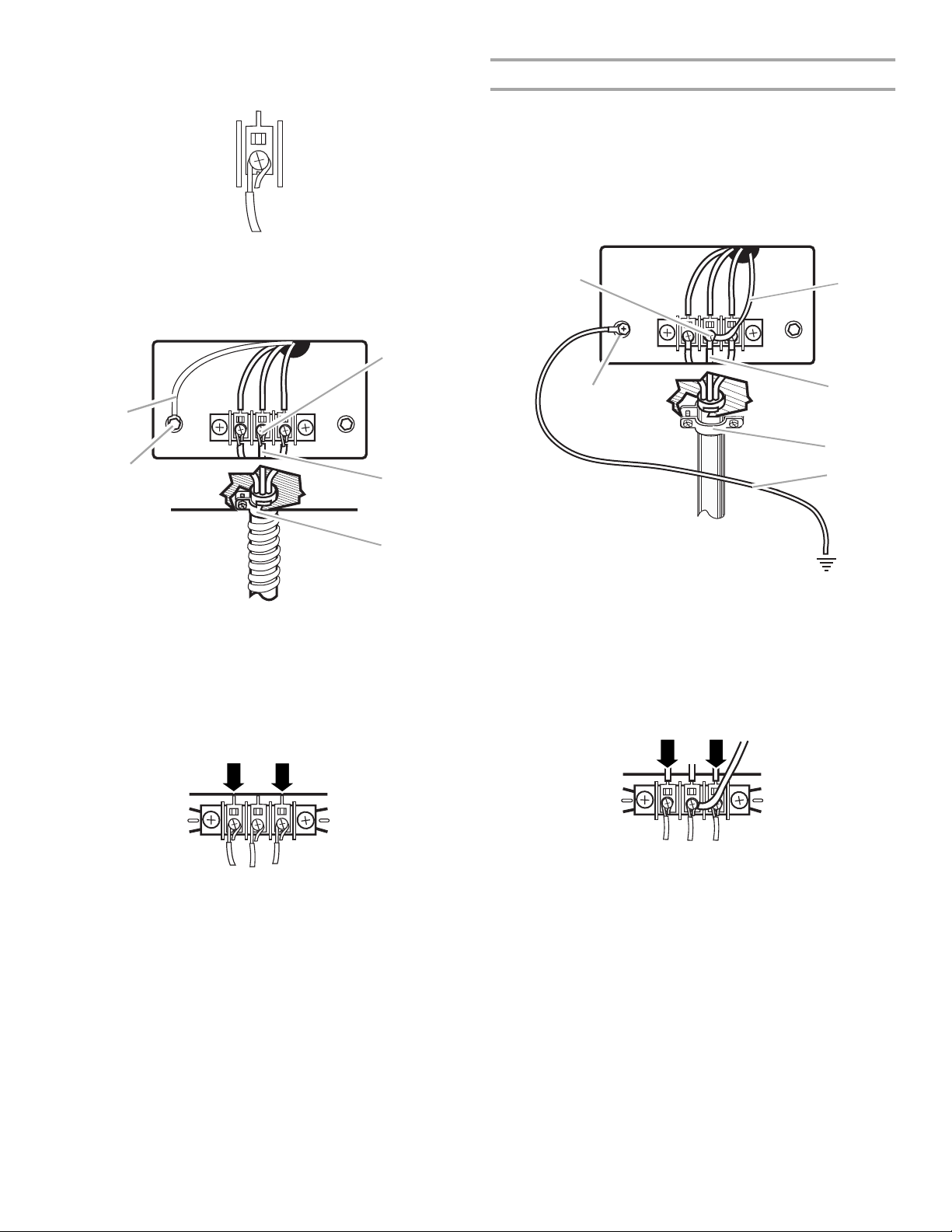

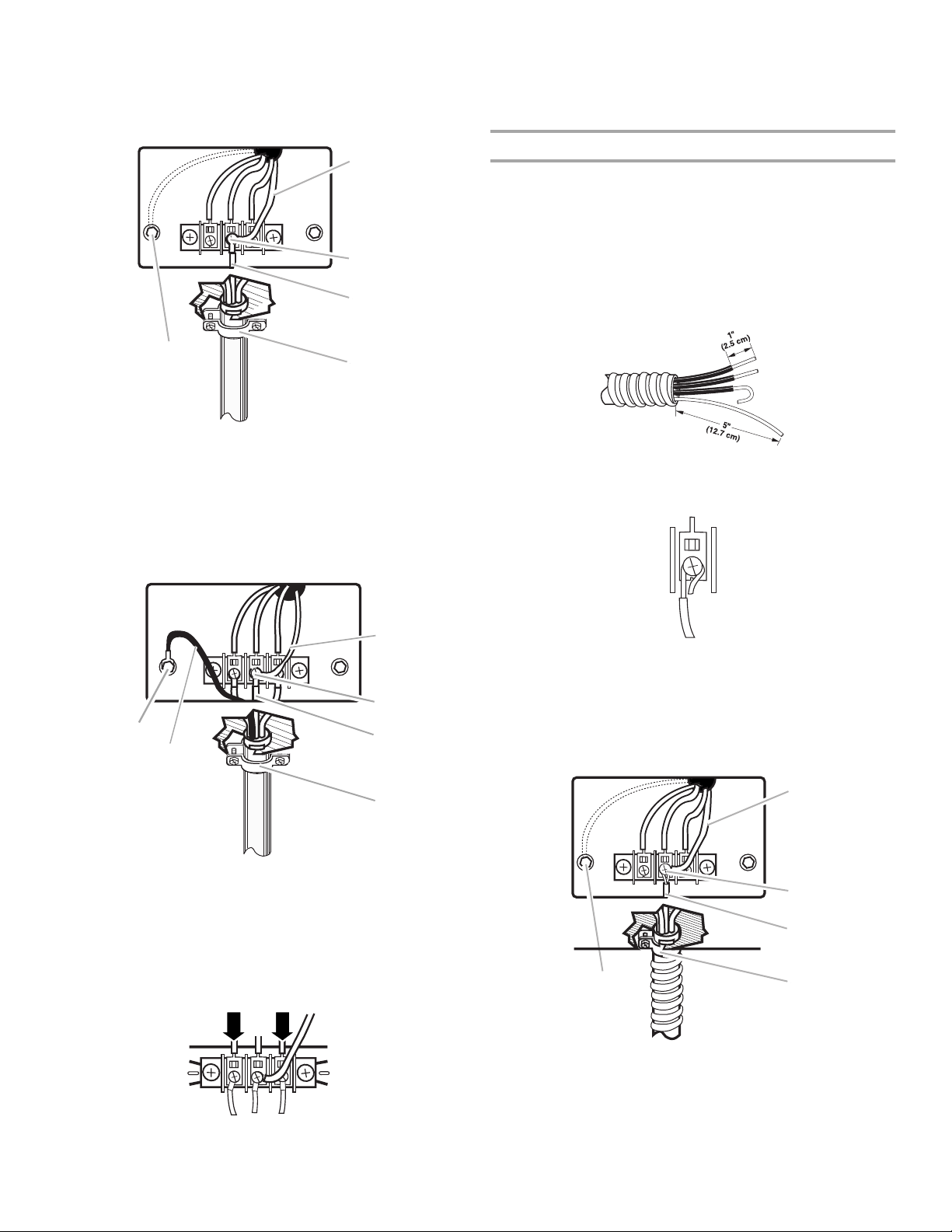

If connecting by direct wire:

Power supply cable must match power supply (4-wire or 3-wire) and be:

■ Flexible armored cable or nonmetallic sheathed copper cable

(with ground wire), protected with flexible metallic conduit. All current-carrying wires must be insulated.

■ 10-gauge solid copper wire (do not use aluminum).

■ At least 5 ft (1.52 m) long.

GROUNDING INSTRUCTIONS

■

For a grounded, cord-connected dryer: This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer uses a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

■

For a permanently connected dryer: This dryer must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dryer.

3-wire receptacle (10-30R)

Then choose a 3-wire power supply cord with ring or spade terminals and UL listed strain relief. The 3-wire power supply cord, at least 4 ft (1.22 m) long, must have three 10-gauge copper wires and match a 3-wire receptacle of NEMA Type 10-30R.

WARNING:

Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug on the power supply cord: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

Make ElectricalConnection

C D

Power Supply Cord Direct Wire

WARNING

Fire Hazard Use a new UL listed 30 amp power supply cord. Use a UL listed strain relief. Disconnect power before making electrical connections. Connect neutral wire (white or center wire) to center

terminal (silver). Ground wire (green or bare wire) must be connected to

green ground connector. Connect remaining 2 supply wires to remaining

2 terminals (gold). Securely tighten all electrical connections. Failure to do so can result in death, fire, or

electrical shock.

1. Disconnect power.

WARNING

Excessive Weight Hazard Use two or more people to move and install dryer. Failure to do so can result in back or other injury.

WARNING

Fire Hazard Use 10 gauge solid copper wire. Use a UL listed strain relief. Disconnect power before making electrical connections. Connect neutral wire (white or center wire) to center

terminal (silver). Ground wire (green or bare wire) must be connected to

green ground connector. Connect remaining 2 supply wires to remaining

2 terminals (gold). Securely tighten all electrical connections. Failure to do so can result in death, fire, or

electrical shock.

4. Install strain relief. Style 1: Power supply cord strain relief

■ Remove the screws from a ³⁄₄" (1.9 cm) UL listed strain

relief (UL marking on strain relief). Put the tabs of the two clamp sections into the hole below the terminal block opening so that one tab is pointing toward you and the other is pointing away from you, and hold in place. Tighten strain relief screws just enough to hold the two clamp sections together.

2. Position the dryer so that the rear of the dryer is within 4 ft

(1.2 m) of its final location.

3. Remove the hold-down screws and terminal block cover.

A. Neutral ground wire

B. External ground conductor screw C. Center, silver-colored terminal block screw D. Terminal block cover and hold-down screws

A. Strain relief tab pointing up B. Hole below terminal block opening C. Clamp section D. Strain relief tab pointing down

+ 16 hidden pages
