COOKTOP, BURNER AND GRATE PARTS
For Models: KGCS105GBL05, KGCS105GWH05, KGCS105GBT05, KGCS105GSS05
(Black) (White) (Biscuit) (Stainless Steel)
30" GAS COOKTOP
10−03 Litho in U.S.A. (cre)
1
Part No.8186149
COOKTOP, BURNER AND GRATE PARTS
For Models: KGCS105GBL05, KGCS105GWH05, KGCS105GBT05, KGCS105GSS05
Illus. Part
No. No. DESCRIPTION
(Black) (White) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 LITERATURE PARTS
LIT4455834
LIT3193071
LIT3192098
LIT3191638
LIT3192742
2 Collar, Knob
3192165 White
3192164 Black
3192167 Biscuit
4 Nameplate
3191516 White
3191514 Black
3191920 Biscuit
5 Cooktop
3191246 White
3191245 Black
3191294 Biscuit
3191248 Stainless Steel
6 Cap, (RF)
3191729 White
3191728 Black
3191730 Biscuit
3192486 Use w/Stainless
Installation
Instructions
Use & Care Guide
Wiring Diagram
Safe Cooking Tips
LP Conversion
Instructions
Steel Model
7 Cap, (LR)
3191732 White
3191731 Black
3191733 Biscuit
3192487 Use w/Stainless
Steel Model
8 Cap, (RR)
3191735 White
3191734 Black
3191736 Biscuit
3192488 Use w/Stainless
Steel Model
9 Cap, (LF)
3191738 White
3191737 Black
3191739 Biscuit
3192489 Use w/Stainless
Steel Model
10 Grate, Burner
4456436 White
4456435 Black
4456437 Biscuit
4456438 Use w/Stainless
Steel Model
11 Grate, Filler
4456440 White
4456439 Black
4456441 Biscuit
4456442 Use w/Stainless
Steel Model
12 Knob, Control (4)
3191923 White
3191922 Black
3191925 Biscuit
15 Holder, Orifice
4456622 Turbi
4456620 Semi Rapid
4456621 Auxi
4456619 Rapid
16 Head, Burner
4455979 (6K)
4455980 (9K)
4455981 (12K)
4455849 (Turbi)
18 4449809 Screw
20 3368921 Screw
2
8186149

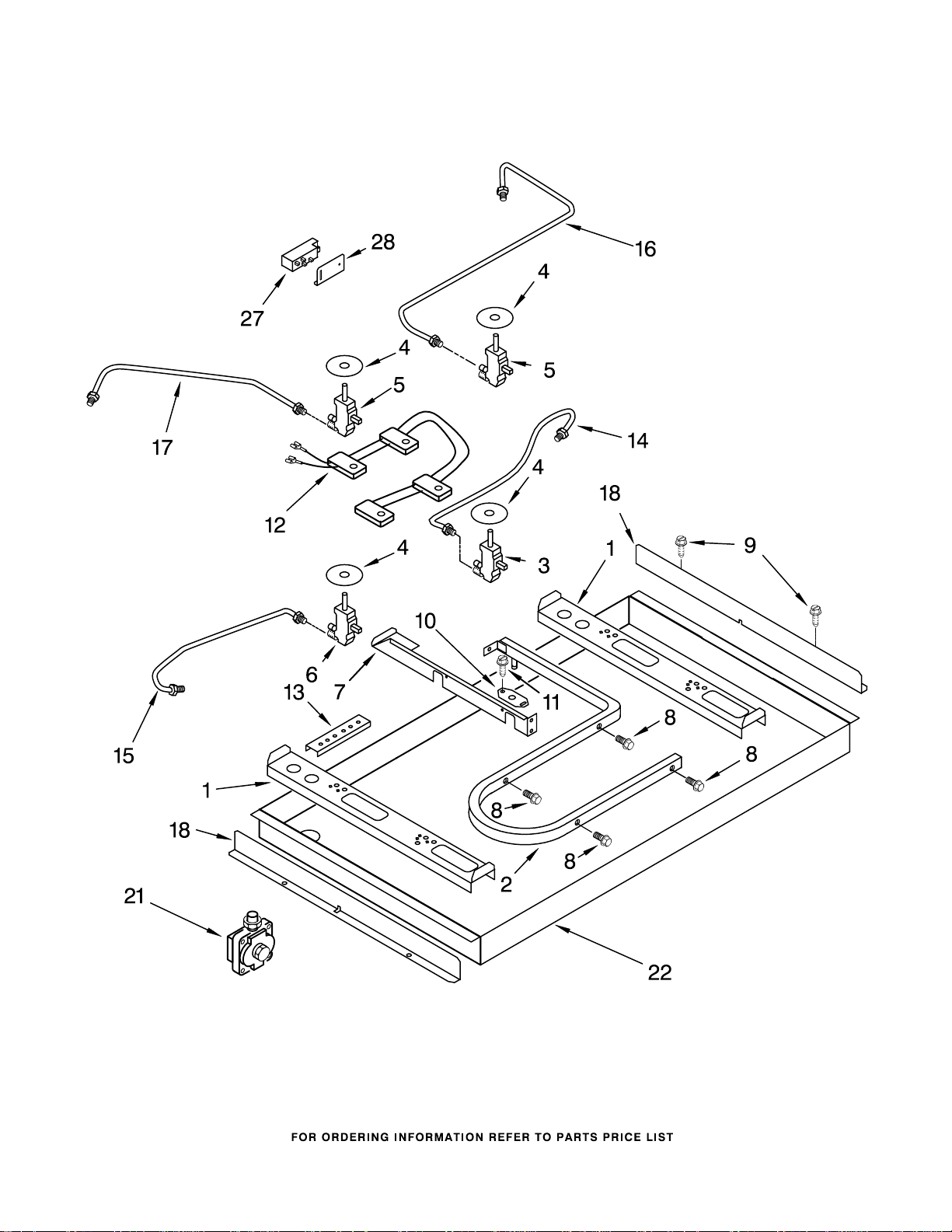

BURNER BOX, GAS VALVES, AND SWITCHES
For Models: KGCS105GBL05, KGCS105GWH05, KGCS105GBT05, KGCS105GSS05
(Black) (White) (Biscuit) (Stainless Steel)
8186149
33
BURNER BOX, GAS VALVES, AND SWITCHES
For Models: KGCS105GBL05, KGCS105GWH05, KGCS105GBT05, KGCS105GSS05
(Black) (White) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 3191557 Rail, Burner
2 6610011 Pipe, Manifold
3 3191292 Valve, Gas Burner
Burner, (RF)
4 3191387 Seal, Shaft
5 3191293 Valve, Gas Burner
(RR & LR)
6 3192157 Valve, Gas
Burner (LF)
7 3192819 Rail, Center
Illus. Part
No. No. DESCRIPTION
8 3185829 Bolt, Gas Valve
9 3400843 Screw
10 3192491 Bracket, Mainfold
11 3196160 Screw
12 4456702 Harness & Switches
13 4455917 Bracket, Mounting
3400093 Screw
14 3191324 Tubing, Gas
Burner (RF)
15 3191326 Tubing, Gas
Burner (LF)
Illus. Part
No. No. DESCRIPTION
16 3191325 Tubing, Gas
17 3191327 Tubing, Gas
18 3191462 Shield, Heat (2)
21 3177120 Regulator, Pressure
22 4456785 Burner Box
27 8522423 Module Spark
28 4455837 Bracket, Spark
PARTS NOT ILLUSTRATED
Illus. Part
No. No. DESCRIPTION
Burner (RR)
Burner (LR)
Module
Following Parts Not Illustrated
3192231 Cord, Power
4173634 Bushing
3177991 Screw
3183401 Bracket, Mounting
4167077 Tinnerman Nut
Miscellaneous
3188310 Hardware, Mounting
3192741 Conversion Kit
Natural Gas To L.P.
WIRING HARNESS PARTS
4456626 Harness,
Ignitor 15" (2)
4456627 Harness,
Ignitor 28" (2)
