Page 1
COOKTOP, BURNER AND GRATE PARTS
For Models: KGCC566RBL00, KGCC566RWW00, KGCC566RBB00
(Black) (Pure White) (Pure Biscuit)
CERAN COOKTOP
36" GAS GLASS
12−05 Litho in U.S.A. (cre)
1
Part No.8186323 Rev. A
Page 2
COOKTOP, BURNER AND GRATE PARTS
For Models: KGCC566RBL00, KGCC566RWW00, KGCC566RBB00
(Black) (Pure White) (Pure Biscuit)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8286304 Installation
Instructions
8286305 Use & Care Guide
3192099 Wiring Diagram
9759133 Safe Cooking Tips
8286314 L.P. Conversion
Instructions
2 Grommet, Glass
3180081 White
3180079 Black
3191817 Biscuit
3 Bezel, Cooktop
(RF)(LR)
9753602CG
9753602BL
9753602MS
4 Bezel, Cooktop
8285779CG
8285779BL
8285779MS
Cumberland Grey
Black
Moleskin
(LF)
Cumberland Grey
Black
Moleskin
Illus. Part
No. No. DESCRIPTION
5 Bezel, Cooktop
(RR)(Center)
9753601CG
9753601BL
9753601MS
6 Cap, (RF)(LR)
8286155CG
8286155BL
8286155MS
7 Cooktop Glass
8286174 White
8286172 Black
8286173 Biscuit
8 Cap, (RR)(Center)
8286153CG
8286153BL
8286153MS
9 Cap, (LF)
8286156CG
8286156BL
8286156MS
Cumberland Grey
Black
Moleskin
Cumberland Grey
Black
Moleskin
Cumberland Grey
Black
Moleskin
Cumberland Grey
Black
Moleskin
Illus. Part
No. No. DESCRIPTION
10 Grate, Burner
8285879CG
8285879BL
8285879MS
11 Grate, Center
8285881CG
8285881BL
8285881MS
12 Knob, Control (4)
8286094WH
8286094BL
8286094BT
15 Holder, Orifice
8286241 Semi Rapid
8286179 Auxi
8286180 Rapid
8286177 Ultra Rapid
16 Head, Burner
8286181 Auxi
8286182 Rapid
8286183 Ultra Rapid
18 4449809 Screw
20 3368921 Screw
Cumberland Grey
Black
Moleskin
Cumberland Grey
Black
Moleskin
White
Black
Biscuit
2
8186323
Page 3

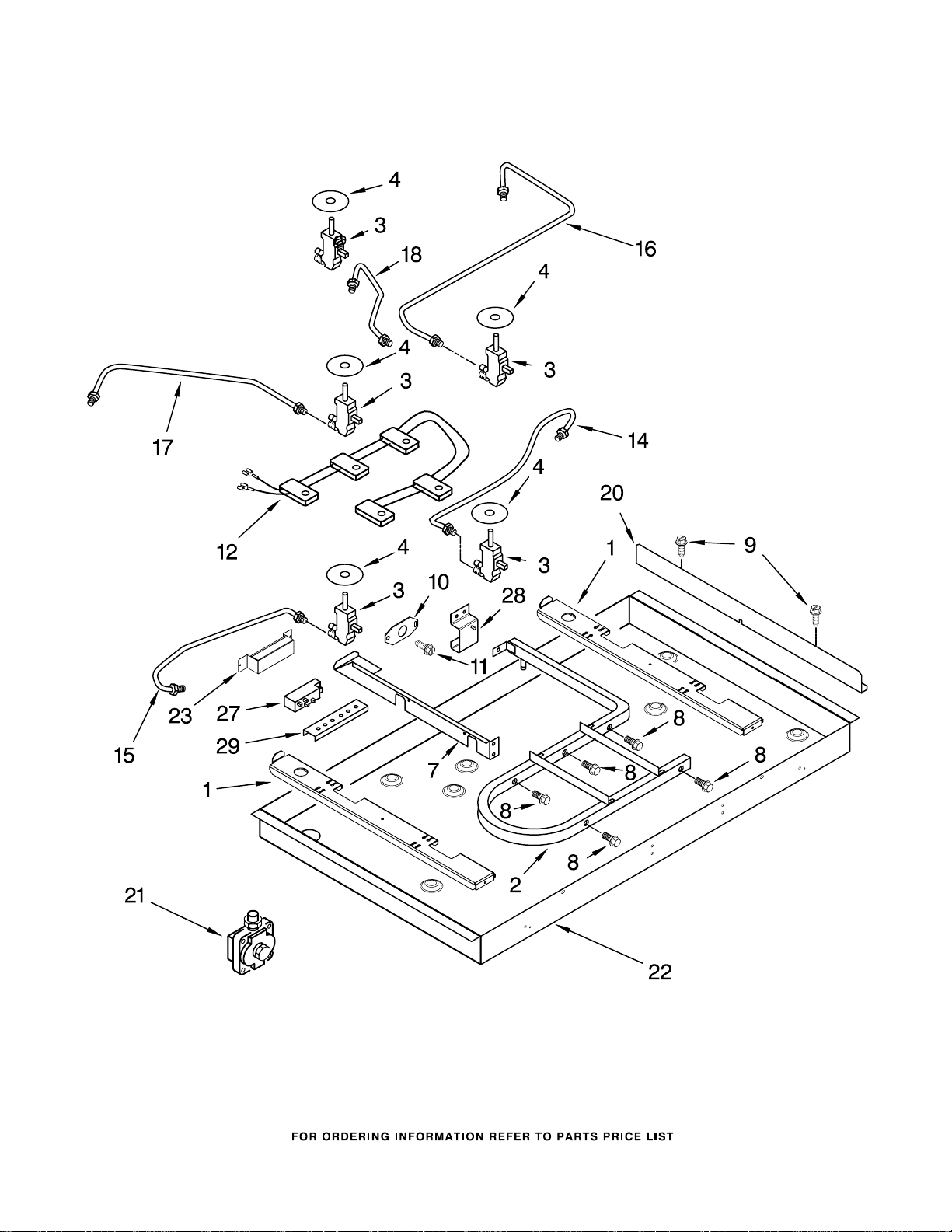

BURNER BOX, GAS VALVES, AND SWITCHES
For Models: KGCC566RBL00, KGCC566RWW00, KGCC566RBB00
(Black) (Pure White) (Pure Biscuit)
8186323
33
Page 4
BURNER BOX, GAS VALVES, AND SWITCHES
For Models: KGCC566RBL00, KGCC566RWW00, KGCC566RBB00
(Black) (Pure White) (Pure Biscuit)
Illus. Part
No. No. DESCRIPTION
1 8285796 Rail, Burner
2 8285751 Pipe, Manifold
3 Valve, Gas Burner
8286520 Auxi
8286560 Semi Rapid
4456817 Large
4456818 Turbi
4 3191387 Seal, Shaft
7 8285791 Rail, Center
8 3186217 Bolt, Gas Valve
9 3177991 Screw
10 3192491 Bracket, Manifold
11 3196160 Screw
12 4456901 Harness & Switches
14 8285768 Tubing, Gas
Burner (RF)
15 8285766 Tubing, Gas
Burner (LF)
16 8285767 Tubing, Gas
Burner (RR)
17 8285769 Tubing, Gas
Burner (LR)
18 8285770 Tubing, Gas
Burner (Center)
20 3191462 Shield, Heat
21 4454571 Regulator, Pressure
22 8285773 Burner Box
3196537 Screw
23 8285789 Shield, Heat
27 8522424 Module Spark
3400843 Screw
28 8285790 Bracket, Mounting
29 4455917 Bracket, Mounting
3400093 Screw
4
8186323
Page 5
OPTIONAL PARTS
For Models: KGCC566RBL00, KGCC566RWW00, KGCC566RBB00
(Black) (Pure White) (Pure Biscuit)
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
3192231 Cord, Power
4173634 Bushing
3177991 Screw
3183401 Bracket
4167077 Tinnerman Nut
3191933 Seal, Foam−Cooktop
Miscellaneous
4455918 Hardware, Mounting
3192741 Conversion Kit
Natural Gas To L.P.
WIRING HARNESS PARTS
4456626 Harness,
Ignitor 15" (2)
4456627 Harness,
Ignitor 28" (2)
8285402 Wire, Ground
8186323
5
