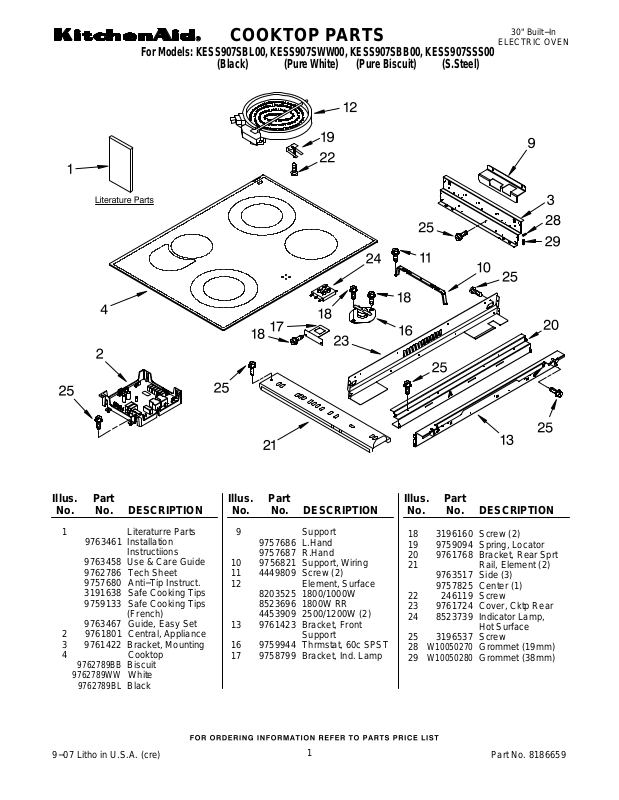

COOKTOP PARTS
30" Built−In
ELECTRIC OVEN
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 Literaturre Parts
9763461 Installation
Instructiions
9763458 Use & Care Guide
9762786 Tech Sheet
9757680 Anti−Tip Instruct.
3191638 Safe Cooking Tips
9759133 Safe Cooking Tips
(French)
9763467 Guide, Easy Set
2 9761801 Central, Appliance 3 9761422 Bracket, Mounting 4 Cooktop
9762789BB
9762789WW
9762789BL
9−07 Litho in U.S.A. (cre)
Biscuit
White
Black
Illus. Part
No. No. DESCRIPTION
9 Support
9757686 L.Hand
9757687 R.Hand
10 9756821 Support, Wiring
11 4449809 Screw (2)
12 Element, Surface
8203525 1800/1000W
8523696 1800W RR
4453909 2500/1200W (2)
13 9761423 Bracket, Front
Support
16 9759944 Thrmstat, 60c SPST
17 9758799 Bracket, Ind. Lamp
1
Illus. Part
No. No. DESCRIPTION
18 3196160 Screw (2)
19 9759094 Spring, Locator
20 9761768 Bracket, Rear Sprt
21 Rail, Element (2)
9763517 Side (3)
9757825 Center (1)
22 246119 Screw
23 9761724 Cover, Cktp Rear
24 8523739 Indicator Lamp,
Hot Surface
25 3196537 Screw
W10050270
28
W10050280
29
Grommet (19mm)
Grommet (38mm)
Part No. 8186659
Page 2
CONTROL PANEL PARTS
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 Control Panel
9761550WH
9761550BT
9761550BL
9761550NP
2 9761566 Switch, Membrane
3 9761799 Control, Interface
4 9763485 Shield, Console
5 3196068 Lens, Ind. (2)
6 9761745 Brkt, Touchsensor
7 3196160 Screw
White
Biscuit
Black
Nickel Plated
(Touchsensor Glas)
Illus. Part
No. No. DESCRIPTION
9 Knob
(RF)
9761780WH
9761780BT
9761780BL
9761780NP
9762764WH
9762764BT
9762764BL
9762764NP
White
Biscuit
Black
Nickel Plated
(LF,RR,LR)
White
Biscuit
Black
Nickel Plated
2
Illus. Part
No. No. DESCRIPTION
11 Switch, Infinite
9763761 RF
9763762 LF,RR,LR
12 9757778 Bushing
14 3196537 Screw
8186659
Page 3
OVEN PARTS
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
8186659
3
Page 4
OVEN PARTS
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 Trim, Side
(Right Hand)
9761572WH
9761572BT
9761572BL
9761572SS
9761571WH
9761571BT
9761571BL
9761571SS
2 3400832 Screw
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 9760749 Bumper, Door
5 9757461 Bracket,Side Panel
6 9757811 Brace, Side Panel
7 8303099 Top Chassis
8 4449809 Screw
9 4452158 Tube, Vent
10
w10067870
11
w10009930
12 4452166 Bulb, Light
14 9760756 Frame, Front
W10074200
15
17 4452152 Bracket, Mounting
18 9757685 Guide,Side Pnl (2)
White
Biscuit
Black
S.Steel
(Left Hand)
White
Biscuit
Black
S.Steel
Lens, Light
Oven Light Assy
Gasket, Door
Illus. Part
No. No. DESCRIPTION
19 4451478 Support, Insulation
20 Body, Side
9760723PB
9760723PC
9760723PW
21 3196537 Screw
22 9760888 Latch, Motorized
23 341196 Thermostat SPST
24 9759890 Clip, Side Panel
25 4455641 Side, Chassis
26 9759761 Back, Chassis
27 Liner, Oven
28 9759945 Cover, Rear
29 4455636 Sensor
30 9756454 Bracket, GOC
W10083460
31
32 3196160 Screw
33 9757717 Insulation,
34 4449743 Screw
35 3196176 Screw
Black
Biscuit
White
(205)
(R.H. & L.H.)
(Not serviceable)
Standoff
Slide. GOC
Bottom Vent
Illus. Part
No. No. DESCRIPTION
36 4449040 Screw
37 9759242 Thermostat (TOD)
Manager, 130c
(Temp.) SPST
38 4449154 Screw
43 9759713 Base, Chassis
49 4448933 Retainer, Gasket
50 9758583 Cover, Back
54 Vent, Bottom Upper
9756481WH
9756481BT
9756481BL
9756481SS
55 Trim, Btm Vent
9756485WH
9756485BT
9756485BL
9756485SS
White
Biscuit
Black
S.Steel
White
Biscuit
Black
S.Steel
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
9756817 Insulation, Wrap
9756470 Insulation, Back
4
8186659
Page 5
DOOR AND DRAWER PARTS
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
8186659
5
Page 6
DOOR AND DRAWER PARTS
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 Nameplate
9763444BL
9763444BT
9763444WH
9763444SS
2 3400832 Screw
3 3400805 Screw
4 4457132 Retainer, Glass
5 Glass, Door Front
9762766BL
9762766WH
9762766BT
9762766SS
W10045140
6
7 3196176 Screw
8 Handle, Door
8303774BL
8303774WH
8303774BT
8303774SS
9 9759230 Bracket, Central
Black
Biscuit
White
S.Steel
Black
White
Biscuit
S.Steel
Cover, Terminal
Black
White
Biscuit
S.Steel
Illus. Part
No. No. DESCRIPTION
10 Hinge, Door
9760579 R.Side (Orange)
9760580 L.Side (Orange)
11 9761935 Foot, Rear
12 9759229 Bracket, Side
13 8274149 Sensor
14 8054056 Element, Warming
15 9757706 Glass, Inner
16 4457114 Shield, Heat Btm
17 9759225 Glass, Inner (2)
18 4451722 Insulation, Door
19 9759413 Liner, Door
20 9757805 Drawer Assy
21 3196037 Foot, Front
22 9763456 Panel, Drawer
23 9758676 Support, Element
24 Front, Drawer
9761747WH
9761747BL
9761747BT
9761747SS
White
Black
Biscuit
S.Steel
Illus. Part
No. No. DESCRIPTION
25 Bracket, Handle
9763497 R.Hand
9763496 L.Hand
26 Handle, Drawer
9761573WH
9761573BT
9761573BL
9761573SS
27 8533988 Screw
28 4449809 Screw
29 Side, Base
9759953 R.Side
9759954 L.Side
30 4449743 Screw
31 3196537 Screw
32 Guide, Roller
4453719 R.Hand
4453718 L.Hand
33 4457103 Shield, Heat Top
White
Biscuit
Black
S.Steel
6
8186659
Page 7
INTERNAL OVEN PARTS
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
8186659
Illus. Part
No. No. DESCRIPTION
1 8301514 Element, Broil
2 4449154 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 3181534 Rack, Roasting
6 4448717 Rack, Oven
7 4452155 Element, Bake
8 9755542 Probe, Meat
9 4452157 Element, Convect.
10 9756690 Cover, Fan
11 4455037 Tray, Hidden Bake
12 4450039 Cover, Bake Tray
13 4451583 Motor, Convection
14 4452227 Nut
15 4452226 Blade, Fan
16 9755543 Jack, Meat Probe
17 9755547 Lock Washer
18 9755546 Hex Nut
7
Page 8

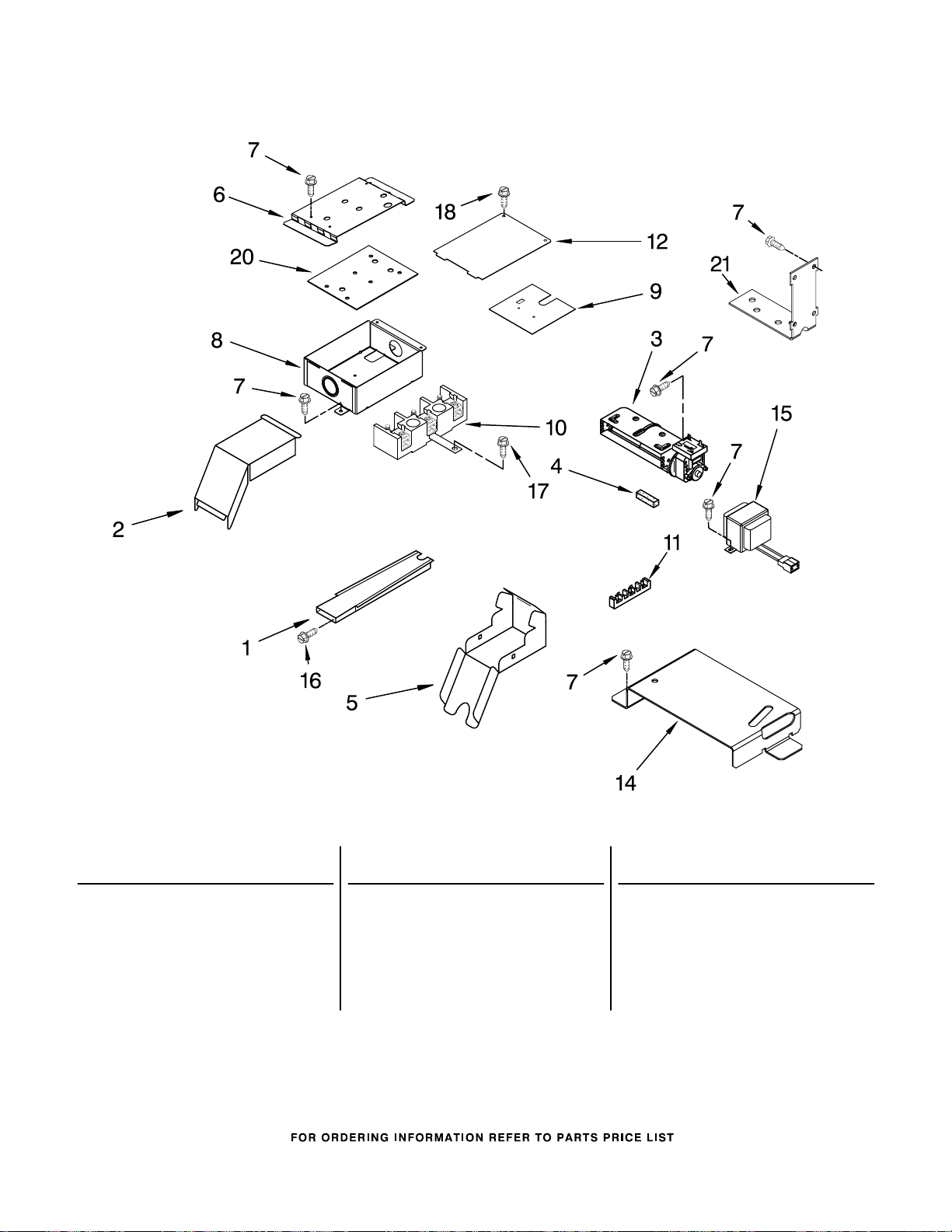

TOP VENTING PARTS
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent Top
3 Blower
9759320 45mm
4 4451758 Block, Foam
5 4455177 Elbow, Vent Bottom
6 9759938 Bracket, Term.Box
Illus. Part
No. No. DESCRIPTION
7 4449809 Screw
8 9757404 Box, Terminal
9 9759721 Insulator,Term Box
10 9761958 Block, Terminal
11 4449868 Block, Terminal
12 9757405 Cover, Term Box
8
Illus. Part
No. No. DESCRIPTION
14 9757829 Bracket, Transfrmr
15 9760212 Transformer
16 4449040 Screw
17 3400080 Screw
18 3196160 Screw
20 9759884 Insulation
21 4455352 Bracket, Blower
8186659
Page 9
OPTIONAL PARTS
For Models: KESS907SBL00, KESS907SWW00, KESS907SBB00, KESS907SSS00
(Black) (Pure White) (Pure Biscuit) (S.Steel)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
9761567 Harness, Wire
(Main)
9762909 Harness, Wire
(Switch, Elec)
9762921 Harness, Wire
W10112276
9762781 Harness, Wire
9763481 Harness, Ground
9759715 Conduit
313660 Clip, Ground Wire
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
4452222 Spacer, Harness
3400015 Screw, Ground
Harness, Cktp
(Elec. Sw.)
(Connector Cable)
Strap
Miscellaneous
814381 Hinge Pin Kit
4448950 Screw, Install (4)
9782676 Anit−Tip Assy
8186659
9
