A Note to You............... 2

Range Safety.............3-5

Getting to Know

Your Range .................. 6

Using and Caring

for Your Cooktop......... 9

Using and Caring

for Your Oven............. 15

Using the Self-

Cleaning Cycle........... 47

If You Need Assistance or

Service........................ 51

Warranty..................... 56

1-800-422-1230

Call us with questions

or comments.

THERMAL-CONVECTION™ Electric Ranges

PART NO. 9780936 Rev. A

KITCHENAID

Models: KERC507

KERH507

Note to You

Thank you for buying a KITCHENAID

KitchenAid designs the best tools for the most important room in your house. To ensure that you enjoy many years of trouble-free operation, we developed this Use and Care Guide. It contains valuable information concerning how to operate and maintain your new appliance properly and safely. Please read it carefully.

Also, please complete and mail the enclosed Product Registration Card.

Please record your model’s information.

Whenever you call our Consumer Assistance Center at 1-800-422-1230 or request service for your appliance, you need to know your complete model number and serial number. You can find this information on the model and serial number plate (see diagram on page 6 for location of plate).

Please also record the purchase

information. NOTE: You must provide proof of purchase

or installation date for in-warranty service.

Keep this book and the sales slip together in a safe place for future reference.

appliance!

Model Number __________________________ Serial Number __________________________ Purchase/

Installation Date ________________________ Builder/Dealer

Name _________________________________ Address _______________________________ Phone _________________________________

ange Safety

IMPORTANT SAFETY INSTRUCTIONS

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of the symbol.

This symbol alerts you to hazards such as fire, electrical shock, or other injuries.

wWARNING

General

•Read all instructions before using the range.

•Install or locate the range only in accordance with the provided Installation Instructions. The range must be installed by a qualified installer. The range must be properly connected to electrical supply and grounded.

•WARNING: To reduce the risk of tipping the appliance, the appliance must be secured by a properly installed anti-tip bracket. To check if the bracket is installed properly, see “The anti-tip bracket” on page 8.

•CAUTION: Do not store things children might want above the range. Children could be burned or injured while climbing on it.

•Do not leave children alone or unattended in area where the range is in use. They should never be allowed to sit or stand on any part of the range. They could be burned or injured.

To reduce the risk of fire, electrical shock, injury to persons, or damage when using the range, follow basic precautions, including the following:

•Do not use the range for warming or heating the room. Persons could be burned or injured, or a fire could start.

•Use the range only for its intended use as described in this manual.

•Do not touch surface units, areas near units, heating elements, or interior surfaces of oven. Surface units and heating elements may be hot even though they are dark in color. and interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units, areas near units, heating elements, or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the range, such as the oven vent opening, the surface near the vent opening, the cooktop, and the oven door and window, could also become hot enough to cause burns.

Areas near surface units

continued on next page

Range Safety

•Do not operate the range if it is damaged or not working properly.

•Do not wear loose or hanging garments when using the range. They could ignite if they touch a hot surface unit and you could be burned.

•Use only dry pot holders. Moist or damp pot holders on hot surfaces could result in burns from steam. Do not let pot holder touch hot heating elements. Do not use a towel or bulky cloth for a pot holder. It could catch on fire.

•Keep range vents unobstructed.

•Do not heat unopened containers.

They could explode. The hot contents could cause burns and container particles could cause injury.

•Use only cookware approved for oven use. Follow cookware manufacturer’s instructions, especially when using glass or plastic cookware.

•Do not store flammable materials on or near the range. The fumes could create an explosion and/or fire hazard.

•Do not repair or replace any part of the range unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

•Disconnect the electrical supply before servicing the range.

When using the cooktop

•Do not cook on a broken ceramic glass cooktop. If cooktop should break, cleaning solutions and spillovers could penetrate the broken cooktop and create a risk of electrical shock. Contact a qualified technician immediately.

•Select a pan with a flat bottom that is about the same size as the surface unit. If pan is smaller than the surface unit, some of the heating element will be exposed and could result in the igniting of clothing or pot holders. Correct pan size also improves cooking efficiency.

•Check to be sure glass cookware is safe for use on the range. Only certain types of glass, glassceramic, ceramic, earthenware, or other glazed cookware are suitable for cooktops without breaking due to the sudden change in temperature.

•Never leave surface units unattended at high heat settings. A boilover could result and cause smoking and greasy spillovers that could ignite.

•Turn pan handles inward, but not over other surface units. This will help reduce the chance of burns, igniting of flammable materials, and spills due to bumping of the pan.

Range Safety

•Grease is flammable. Do not allow grease to collect around cooktop or in vents. Wipe spillovers immediately.

•Do not use water on grease fires. Never pick up a flaming pan. Smother flaming pan on range by covering with a well-fitting lid, cookie sheet, or flat tray. Flaming grease outside of pan can be extinguished with baking soda or, if available, a multipurpose dry chemical or foam-type extinguisher.

•Clean ceramic glass cooktop with care. Some cleaners could produce noxious fumes if applied to a hot surface. If a wet paper towel is used to wipe spills on a hot cooking area, be careful to avoid steam burns.

When using the oven

•Always position oven rack(s) in desired location while oven is cool. If a rack must be removed while oven is hot, do not let pot holder contact hot heating elements in oven.

•Use care when opening oven door. Let hot air or steam escape before removing or replacing food.

•Small amounts of formaldehyde and carbon monoxide are given off in the Self-Cleaning cycle from fiberglass insulation and food decomposition. Significant exposure to these substances could cause cancer or reproductive harm. Exposure can be minimized by venting with a hood or open window and wiping out excess food spills prior to self-cleaning.

•Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

•Before self-cleaning the oven, remove broiler pan, broiler grid, oven racks, and other cookware. Do not use your oven to clean miscellaneous parts unless you are instructed to do so in this Use and Care Guide.

•Do not clean door gasket. It is essential for a good seal. Care should be taken not to rub, damage, or move the gasket. Clean only parts recommended in this Use and Care Guide.

– SAVE THESE INSTRUCTIONS –

etting to Know Your Range

This section tells you what features your range has and where they are located. It also discusses some safety and convenience features that you should know about, but which are not needed to operate the range. Please review this information before using your range.

Feature locations

Cooktop light

Oven vent

Model and serial number plate

QuickSet guide

C E S

SEC

MINMIN

ONON

D E

MIN

CLEAN

TIMED

HRHR

BROIL

A L E

DELAY

TIMER

K C

• MAXI

• M

O L

LOCKED

STOP

N A

CLEAN

START

BAKE

IS T O

•• ECONO

•• EC

ROTIS

CLEAN

H E

DEHYD

START?

CONVECTION

ROAST

BROIL

BAKE

AUTO SET

REAR

FRONT

KITCHEN TIMERKITCHEN TIMER

CANCEL

SET

• MIN• MIN

OVEN

DELAY/TIMED

•• HRS •• HRS

CLOCK

LIGHT

STOP

SET

START

TIME

TEMP

TIME

PROBE

CANCEL

OFFOFF

REAR

FRONT

Control panel

Surface unit

TOP LIGHTTOP LIGHT

START

TER EN

ENTER

Automatic oven

light switch

Broil element

(not shown)

Anti-tip floor bracket

Removable storage drawer

(containing broiler pan and grid)

Control panel

Left rear control knob

Display

Right rear control knob

Bake element

Cooktop light switch

Left front control knob

Electronic

oven control

Right front control knob

The oven vent

Getting to Know Your Range

Oven vent

Hot air and moisture escape from the oven through a vent on the lower left side of the backguard. Do not block the vent by using large pans or covers. Poor baking/roasting can result.

The storage drawer

You can remove the storage drawer to make it easier to clean under the range and to check for installation of the anti-tip bracket.

Use care when handling the drawer.

Removing the storage drawer:

wWARNING

Burn Hazard

Use pot holders when touching items left near oven vent.

Failure to do so can result in burns.

Replacing the storage drawer:

1. Empty drawer of any pots and pans before removing drawer. Use recessed area on top edge of drawer to pull drawer straight out to the first stop. Lift front and

pull out to the second stop.

2. Lift back slightly and slide drawer all the

way out.

Drawer slide rail

1. Fit ends of drawer slide rails into the

drawer guides on both sides of opening.

2. Lift drawer front and press in until metal stops on drawer slide rails clear white stops on drawer guides. Lift drawer front again to clear second stop and slide drawer closed.

Getting to Know Your Range

The anti-tip bracket

The range will not tip during normal use. However, tipping can occur if you apply too much force or weight to the open door without the anti-tip bracket properly secured.

wWARNING

Tip Over Hazard Connect anti-tip bracket to the range. Reconnect anti-tip bracket, if the range is moved. Do not push down on the open oven door. Follow the Installation Instructions. Do not let children climb onto the oven door. Failure to follow these instructions can result in death, burns,

or other injury.

To verify the anti-tip bracket is engaged:

Rear leveling foot

• Remove the storage drawer. (See page 7.)

• Look to see if the anti-tip bracket is attached

to floor with screws.

• Make sure left rear leveling foot is positioned under the anti-tip bracket.

• See Installation Instructions for further details.

sing and Caring for Your Cooktop

This section tells you how to operate the controls to the cooktop. It also discusses how the ceramic glass cooktop works, and includes tips on how to cook with and maintain the cooktop.

IN THIS SECTION

Using the surface units .......................9

Cookware tips ....................................11

Caring for your cooktop ................... 12

Using and replacing the

cooktop light...................................... 14

Using the surface units

Control knobs

Push in control knobs before turning them to a setting. Set them anywhere between HI and OFF.

Power on lights

Each control knob has a Power On Light.

Hot surface indicator lights

The Hot Surface Indicator Lights on the

HOT CHAUD

(“CHAUD” is French for “HOT”)

FRONT

When you use a control knob to turn on a surface unit, the Power On Light by that knob will glow.

cooktop surface will glow when the surface units get hot. The Indicator Lights will continue to glow as long as the surface units are too hot to touch, even after they are turned off.

wWARNING

Fire Hazard

Turn off all controls when done cooking.

Failure to do so can result in death, fire, or burns.

Control setting guide

For best results, start cooking at the high setting; then turn the control knob down to continue cooking.

SETTING RECOMMENDED USE

HI • To start foods cooking.

• To bring liquids to a boil.

6MED HI5 • To hold a rapid boil.

• To fry chicken or pancakes.

MED • For gravy, pudding, and

icing.

• To cook large amounts of vegetables.

3MED LO2 • To keep food cooking

after starting it on a higher setting.

LO • To keep food warm until

ready to serve.

U sing and Caring for Your Cooktop

Using the dual-size surface unit

(some models)

You can use the left front surface unit as either a small diameter, lower wattage element or large diameter, full wattage element.

Use both elements for larger pans

Use small element for smaller pans

To use the small element (for smaller pans):

• Push in and turn the control knob to the left (counterclockwise) to the desired setting in the area marked “SINGLE.”

To use both elements (for larger pans):

• Push in and turn the control knob to the

right (clockwise) to the desired setting in the area marked “DUAL.”

NOTE: You can turn the control knob in either direction to reach “OFF.”

The ceramic glass cooktop

Standard elements

Cooking on the ceramic glass cooktop is almost the same as cooking on coil surface units. There are, however, a few differences:

• The cooking surface area will glow red when the element is turned on. You will see the element cycling on and off – even on the HI setting – to help the area stay at the temperature setting you choose.

• Make sure the bottoms of pots and pans are clean and dry before cooking. Food and water particles left on the bottoms can leave deposits on the cooktop when it is heated.

• Wiping off the cooktop before and after each use will help keep the surface free from stains and give you the most even heating. See pages 12 and 13 for care and cleaning suggestions.

• Do not cook foods directly on the cooktop.

• Lift pots and pans onto and off of the

cooktop. Sliding pots and pans on the cooktop could leave marks that are difficult to remove or could leave permanent marks.

• Do not cook popcorn that comes in prepackaged aluminum containers on the cooktop. The container could leave aluminum marks on the cooktop that cannot be removed completely.

• Model KERH507: The surface units on the right side of the cooktop feature halogen elements. These elements light up as soon as you turn them on, and are brighter than conventional coil elements.

Dual element

(some models)

Hot surface indicator lights

Halogen elements

(Model KERH507 only)

U sing and Caring for Your Cooktop

Center over surface unit

• Do not use the cooktop as a cutting board.

• Do not allow anything that could melt, such as plastic or aluminum foil, to come in contact with the cooktop while it is hot.

Cookware tips

• Select a pan that is about the same size as the surface unit.

• NOTE: For best results and greater energy efficiency, use only flat-bottomed

cookware that makes good contact with the surface units. Cookware with rounded, warped, ribbed (such as some porcelain enamelware), or dented bottoms could cause uneven heating and poor cooking results.

You can, however, use the newer cookware available with slightly indented bottoms or very small expansion channels. This cookware is specially designed to provide the good contact needed for best cooking results.

Also, woks, canners, and teakettles with flat bottoms suitable for use on your cooktop are now available in most stores that sell housewares.

• The pan should have straight sides and a tight-fitting lid.

• Choose medium to heavy gauge (thick- ness) pans that are fairly lightweight.

• The pan material (metal or glass) affects how fast heat transfers from the surface unit through the pan material and how evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

• Dropping a heavy or hard object on the cooktop could crack it. Be careful when using heavy skillets and large pots. Do not store jars or cans above the cooktop.

• Sugary spills and soils can cause pitting. See pages 12 and 13 for more information.

• Handles should be made of sturdy, heat- resistant material and be securely attached to the pan.

• With your hand, feel the bottom of your pans while they are cool for nicks and scratches. Nicks and scratches on pan bottoms will scratch the ceramic glass cooktop.

• Avoid spillovers on cooktop. Use pans with tall sides.

NOTE: Do not leave empty cookware, or cookware which has boiled dry, on a hot surface unit. The cookware could overheat and damage the cookware or surface unit.

Home canning information

Pan

Surface

unit

• Use the largest surface unit for best results. Also, use a canner/pan which can be centered over the surface unit.

• Start with hot water. This reduces the time the control is set on high. Reduce heat setting to lowest position needed to keep water boiling.

• Refer to your canner manual for specific instructions.

U sing and Caring for Your Cooktop

Caring for your cooktop

This cooktop is designed for easy care. However, ceramic glass cooktops need to be maintained differently than standard electric coil elements. Foods spilled directly on the cooktop will not burn off as on coil elements. Because of this, the surface should be dust-free and soil-free before heating.

NIGN

CON

EASYEASYCON

BAKEBA

Your cooktop has been prepolished at the factory for improved protection and cleanability. The Cooktop Polishing Creme, a paper towel or a sponge, and a singleedge razor blade in a holder is all you need to clean your cooktop. For proper cleaning methods, please review the chart on page

13. Follow this chart after each use to ensure top performance and to preserve that uniquely elegant look.

To avoid damaging the cooktop, follow these instructions:

• Remove sugar spills and soils from the cooktop while the surface is still warm to avoid pitting on the surface.

• Marks from sliding metal pans on the cooktop are difficult to remove completely. Use cooktop polishing creme to clean the area. Several applications may be necessary.

• Do not use steel wool, plastic cleaning pads, abrasive powdered cleansers, chlorine bleach, rust remover, ammonia, or glass cleaning products with ammonia. These products could damage the cooktop surface.

NOTE: Let cooktop cool before cleaning.

U sing and Caring for Your Cooktop

Cleaning tips

What to use:

• Cooktop Polishing Creme with a paper

towel or clean, damp sponge – This

creme has been developed especially for cleaning and protecting your cooktop. When using, follow instructions on container.

• Razor scraper – Use to remove cooked- on soils from your ceramic glass cooktop. To avoid scratches, keep the razor blade as flat against the cooktop as possible.

Store razor blades out of reach of children.

Steps to follow:

1. Most spills (except sugary spills and

soils – see chart on this page) can be wiped off easily using a paper towel or clean, damp sponge as soon as Hot Surface Indicator Light(s) goes off.

2. For stubborn spills, rub Cooktop Polish-

ing Creme into cooked-on soil using a paper towel. If some soil remains, leave some creme on the spot(s) and follow Step 3.

3. Carefully scrape spots with a single-

edge razor blade in a holder.

4. Finish by polishing entire cooktop

with Cooktop Polishing Creme and a paper towel.

To order Cooktop Polishing Creme (Part No. 3184477), call 1-800-422-1230

and follow the instructions and telephone prompts you hear.

How to keep your cooktop looking like new:

IF THERE ARE Sugary spills

and soils (such

as jellies and candy syrups)

Dark streaks, specks, and discoloration

Metal marks

(from copper or aluminum pans)

Tiny scratches or abrasions

WHAT TO DO

To prevent pitting on the cooktop, wipe up with a paper towel or clean, damp sponge

while ceramic glass surface is still warm.

Remove as soon as possible after spill occurs.

Use Cooktop Polishing Creme or nonabrasive cleanser with a damp paper towel or sponge.

Use Cooktop Polishing Creme or nonabrasive cleanser with a damp paper towel or sponge before heating the cooktop again. If heated before cleaning, metal marks may not come off.

Scratches and abrasions do not affect cooking. In time, they will become less visible as a result of cleaning. To prevent scratches and abrasions, use Cooktop Polishing Creme regularly.

NOTE: Always wipe and dry your cooktop thoroughly after using cleanser to prevent streaking or staining.

U sing and Caring for Your Cooktop

REAR

• MAXI

•• ECONO

BAKE

BROILBROIL

CLEAN

BAKE BROILBROIL ROASTROAST

AUTO

SET

TEMPTEMP

PROBEPROBE

CONVECTIONCONVECTION

START TIMETIME

CLOCKCLOCK

SET

STOPSTOP TIME TIME

OVENOVEN LIGHTLIGHT

DELAY/TIMEDDELAY/TIMED

DELAY CLEAN DEHYD

TIMED LOCKED ROTIS

START?

START

STOP

MIN

CLEAN

OFF

• MAXI• MAXI

•• ECONO •• ECONO

BAKE

BROIL

CLEAN

BAKE BROIL ROAST

AUTO

SET

TEMP

PROBE

CONVECTION

START TIME

CLOCK

SET

STOP TIME

OVEN LIGHT

DELAY/TIMED

DELAY CLEAN

DEHYD

TIMEDTIMED LOCKED ROTIS

START?

MINMIN

START

STOP

MINMIN

CLEAN

REAR

Using and replacing the cooktop light

The fluorescent light is on the top of the control panel. The cooktop light switch is on the control panel. Press it to turn on the cooktop light. Press it again to turn light off.

Replacing the cooktop light:

1. Unplug appliance or disconnect at main

power supply.

If the cooktop light still does not work,

you may need to replace the starter. The starter is a knob-shaped part located on the right side of the backguard, under the light bulb. To remove and replace the

starter, first remove light bulb. Push

starter in and turn approximately 90° counterclockwise. Pull starter out of recessed area. You can find replacement

2. Flip up the top of the control panel.

starters at stores that sell fluorescent tubes.

4. Close the top panel. Plug in appliance or reconnect at main power supply.

3. Grasp the fluorescent tube at both ends. Turn the tube approximately 90° in either

direction until both ends come out of the receptacles. Replace with a 20-watt coolwhite fluorescent tube.

This section tells you, step by step, how to operate all oven functions controlled by the electronic controls. Carefully follow these instructions, along with the cooking tips and cleaning information, for successful use of your range.

IN THIS SECTION

sing and Caring for

Your Oven

Using the electronic oven

control ............................................ 15

Oven settings................................. 17

Setting the clock............................ 18

Using the kitchen timer................. 18

Baking or convection baking ....... 20

Roasting ......................................... 21

Adjusting oven temperature......... 23

Using the temperature probe ....... 24

Using auto set................................ 27

Broiling............................................. 28

Convection broiling ........................31

Timed cooking................................. 34

Dehydrating .....................................38

Raising (proofing) bread ................ 40

Cooking tips .................................... 41

Cleaning your oven and

controls ............................................ 44

Using and replacing the oven

light(s) ..............................................46

Using the electronic oven control

For a quick reference guide on using the electronic oven control, see the QuickSet Guide under the cooktop light cover.

BROIL

BAKE

CONVECTION

BAKE BROIL ROAST

AUTO

SET

• MAXI

•• ECONO

CLEAN

TEMP

PROBE

DELAY

TIMED

CLEAN

LOCKED

DEHYD

ROTIS

START?

DELAY/TIMED KITCHEN TIMER

START

STOP

TIME

CLOCK

SET

CLEAN

OVEN

LIGHT

MIN

START STOP TIMER

SET

• MIN

•• HRS

SECMINHR

CANCEL

START

ENTER

CANCEL

OFF

Standard oven command pads

Convection oven command pads

Display/clock

• When you first plug in the range, a tone

will sound and the display will show “88:88.” If, after you set the clock (page 18), the display again shows “88:88,” your electricity was off for a while. Reset the clock.

• The time display will show “Err” and three

short tones will sound if a time or temperature is incorrectly entered.

Number pads

Starting an operation

START

ENTER

After programming a function, you must press the Start/Enter pad to start the function. If you do not press the Start/Enter pad within 5 seconds of programming, “START?” will show in the display as a reminder.

U sing and Caring for Your Oven

START

TIME

Canceling an operation

CANCEL

OFF

The Cancel/Off pad will cancel any function, except for the Clock Set and Kitchen Timer functions. When you press the Cancel/Off pad, the large display will show the time of day.

Changing audible signals

Audible signals tell you if a function is entered correctly or not. They also tell you when a cycle is completed.

To shut off audible signals during programming:

PRESS

and hold

for 4

seconds

To shut off all signals except for the end-of-timer tone:

PRESS

and hold

for 4

seconds

To change the end-of-timer tone to a 4-second tone:

PRESS

and hold

for 4

seconds

STOP

TIME

SET

•MIN

••HR

A short tone will sound to tell you the signals have been changed. Repeat step above to turn the signals back on.

U sing and Caring for Your Oven

Oven settings

This chart tells you when to use each setting. It also explains what elements heat up for each setting.

SETTING BAKE

Use this setting for baking and heating casseroles.

BROIL (MAXI/ECONO)

Use this setting for broiling regular-sized and smaller cuts of meat, poultry, and fish.

CONVECTION BAKE

Use this setting for foods which require gentle heating and for baking breads and cakes. Use also when baking large quantities of food on more than one oven rack.

CONVECTION BROIL

Use this setting for broiling thick cuts of meat.

DIAGRAM

SETTING INFORMATION

• The bottom element and outer top element heat up.

• During baking, the elements will turn on and off to maintain the oven temperature.

• Both top elements heat during Maxi Broil. (Maximum browning coverage)

• Only the inner element heats up during Econo Broil. (Browning coverage in center only)

• For faster preheating, the bottom element and outer top element heat up until oven reaches desired temperature. After preheat, only the rear element heats up.

• For even heating, the fan at the back of the oven circulates air in the oven cavity.

• Both top elements heat up.

• For even heating, the fan at the

back of the oven circulates air in the oven cavity.

CONVECTION ROAST

Use this setting for roasting and baking on one rack.

CLEAN

Use this setting for selfcleaning only.

• The bottom element and outer top element heat up.

• For even heating and faster cooking, the fan at the back of the oven circulates air in the oven cavity.

• The bottom element and outer top element heat up.

U sing and Caring for Your Oven

MIN

START STOP TIMER

SECMINHR

CLEAN

Setting the clock

1. Choose Clock Set.

PRESS

2. Set time.

CLOCK

SET

Example:

YOU SEE

START STOP TIME

CLEAN

MIN

SECMINHR

Example:

PRESS

33 0

3. Start clock.

PRESS

START

ENTER

Using the kitchen timer

The Kitchen Timer does not start or stop the oven. It works like a regular kitchen timer. It can be set in hours and minutes up to 99 hours, 99 minutes, or in minutes and seconds up to 99 minutes, 99 seconds.

Example:

YOU SEE

MIN

SECMINHR

START STOP TIME

CLEAN

If the time has not been entered correctly, three short tones will sound and “Err” is displayed for 1 second. The previous display then reappears. Repeat Steps 1, 2, and 3 to re-enter the time of day.

1. Choose Kitchen Timer.

count down

and seconds

PRESS

once

minutes

SET

•MIN

••HR

YOU SEE

U sing and Caring for Your Oven

MIN

START STOP TIMER

SECMINHR

CLEAN

MIN

START STOP TIMER

SECMINHR

CLEAN

MIN

START STOP TIMER

CLEAN

PRESS

twice

count down

hours and

minutes

2. Set time.

Example:

PRESS

3 0 0 0

3. Start Kitchen Timer.

PRESS

The Kitchen Timer will begin counting down immediately after you press the Start/Enter pad.

When time is up, you will hear a single tone that sounds every 5 seconds.

START

ENTER

SET

•MIN

••HR

SET

•MIN

••HR

YOU SEE

Example:

YOU SEE

to turn off tone

NOTE: To change the end-of-timer tone

to a 4-second tone, press and hold the Kitchen Timer Set pad for 4 seconds. A short tone will sound to tell you the tone has been changed.

To cancel the Kitchen Timer:

PRESS

KITCHEN/

TIMER

YOU SEE

CANCEL

KITCHEN/

TIMER

CANCEL

U sing and Caring for Your Oven

Baking or convection baking

1. Position racks.

For correct rack placement, see “Rack positions” on page 41 and “Rack placement” chart on page 41.

NOTES:

• Before turning on the oven always place oven racks where you need them.

• Be sure rack(s) is level.

• Use pot holders or oven mitts to

protect hands if rack(s) must be moved while oven is hot.

• Do not let pot holder or oven mitt touch hot elements.

2. Choose setting.

PRESS

BAKE

CONVECTION

PRESS

BAKE

3. Set temperature (optional).

Do this step if you want to set a temperature other than 350°F (for Bake) or 325°F (for Convection Bake).

Example:

PRESS

(See a reliable cookbook or your convection oven cookbook for temperature recommendations.)

73 5

YOU SEE

Example For Bake:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

U sing and Caring for Your Oven

4. Preheat oven.

PRESS

NOTE: After the temperature reaches

170°F, the red display will show the actual oven temperature at each 5°F increase and stop at the set temperature. To see the set temperature before it is reached, press the command pad you used to choose the cook setting. The set temperature will be displayed for 5 seconds.

START

ENTER

5. Put food in oven.

NOTE: If you want to change the baking

temperature after baking has begun, repeat Steps 2, 3, and 4.

6. After cooking, turn off oven.

PRESS

CANCEL

OFF

Example

For Bake:

YOU SEE

Example:

YOU SEE

(time of day)

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

Roasting

1. Prepare oven.

Position the rack properly. For correct rack placement, see “Rack positions” on page 41. Place food in the oven. For large roasts and turkeys, place rack in position 1 (closest to oven bottom).

MIN

SECMINHR

START STOP

CLEAN

continued on next page

U sing and Caring for Your Oven

2. Choose setting.

CONVECTION

PRESS

ROAST

3. Set temperature (optional).

Do this step if you want to set a temperature other than 300°F.

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

Example:

PRESS

23 5

(See convection oven cookbook for temperature recommendations.)

4. Start oven.

PRESS

NOTES:

• After the temperature reaches 170°F, the red display will show the actual oven temperature at each 5°F increase and stop at the set temperature. To see the set temperature before it is reached, press the Convection Roast pad. The set temperature will be displayed for 5 seconds.

START

ENTER

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

• If you want to change the roasting temperature after roasting has begun, repeat Steps 2, 3, and 4.

5. After cooking, turn off oven.

PRESS

CANCEL

OFF

Example:

YOU SEE

(time of

day)

CLEAN

START STOP

MIN

SECMINHR

U sing and Caring for Your Oven

Adjusting oven temperature

Although your new oven is properly adjusted to provide accurate temperatures, it may cook faster or slower than your old oven.

If, after using the oven for a period of time, you are not satisfied with the baking/roasting results, you can change the offset temperature by following the steps below. The control will “remember” the selected offset even after the power has been interrupted or lost.

1. Choose Bake setting.

PRESS

and hold

for 4 seconds

BAKE

NOTE: Do not measure oven temperature with a thermometer. Opening the oven door will lower the oven temperature and give you an inaccurate reading. Also, the thermometer temperature reading will change as your oven cycles.

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

START STOP TIMER

CLEAN

MIN

SECMINHR

Release the Bake pad when a number appears in the temperature display and you hear a tone.

2. Set new offset temperature.

PRESS

Each time you press the Bake pad, the displayed temperature will increase by 5°F. To decrease the temperature, hold down the Bake pad until the display goes past 35°F. At that point the display will return to 0 and will then decrease 5°F for every time you press the Bake pad. You can set the offset temperature adjustment as low as -35°F or as high as +35°F. (To determine the amount of adjustment needed, see the chart on page 24.)

BAKE

3. Enter the adjustment.

PRESS

START

ENTER

“0” (the setting shown) is set at the factory.

Example:

Adjustment 5°F cooler:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

Example:

YOU SEE

(time of day)

CLEAN

MIN

START STOP TIME

SECMINHR

CLEAN

START STOP

MIN

SECMINHR

U sing and Caring for Your Oven

How to determine the amount of adjustment needed

The following chart tells you how much to adjust the offset temperature to get the desired cooking results. You can determine cooking results by amount of browning, moistness, and rising times for baked foods.

TO COOK FOOD …

A little more

ADJUST BY THIS NUMBER OF DEGREES

+5 to +10 Moderately more Much more A little less Moderately less Much less

Using the temperature probe

The Temperature Probe is the most accurate guide to the degree of doneness of meat. Use it when baking, roasting any type of meat or poultry, or cooking casseroles with liquid.

1. Insert probe into food.

Insert the probe into the center of the thickest portion of meat or into the inner thigh or breast of poultry, away from fat or bone.

2. Put food in oven.

Place meat on the convection roasting rack, place rack on broiler pan, and place pan in the center of the oven.

+15 to +20 +25 to +35

-5 to -10

-15 to -20

-25 to -35

3. Connect probe to oven.

Open the Temperature Probe cover located on the left side of the oven wall. Insert plug into jack. (Keep the top of the probe as far as possible from the heat source.)

4. Close oven door.

U sing and Caring for Your Oven

5. Choose Temperature Probe setting.

PRESS

TEMP

PROBE

6. Set temperature (optional).

Do this step if you want to set an internal food temperature (from 100°F-200°F) other than 160°F.

Example:

PRESS

51 0

(See a reliable cookbook or your convection oven cookbook for internal food temperature recommendations.)

7. Choose cook setting.

CONVECTION

PRESS

CONVECTION

OR OR

BAKE ROAST

BAKE

8. Set temperature (optional).

Do this step if you want to set an oven temperature other than the one displayed.

YOU SEE

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

CLEAN

MIN

START STOP TIMER

SECMINHR

MIN

SECMINHR

Example

PRESS

73 5

(See a reliable cookbook or your convection oven cookbook for oven temperature recommendations.)

NOTE: Do not use the Temperature Probe when broiling or convection broiling.

continued on next page

U sing and Caring for Your Oven

9. Start oven.

PRESS

NOTES:

• After the food temperature reaches

100°F, the large display will show the actual food temperature at each 5°F increase and stop at the set temperature. Four short tones will sound when food reaches the set temperature. The oven then shuts off.

• If you want to change the probe

temperature after cooking has begun, repeat Steps 5, 6, and 9.

Use an oven mitt or pot holder to remove temperature probe. Do not touch broil element. Failure to follow these instructions can result in burns.

START

ENTER

Example

For Bake:

YOU SEE

DELAY

TIMED

CLEAN

LOCKED

DEHYD

ROTIS

START?

If probe is not plugged in:

YOU SEE

DELAY

TIMED

CLEAN

LOCKED

DEHYD

ROTIS

START?

Three short tones will also sound.

wWARNING

Burn Hazard

CLEAN

MIN

START STOP TIMER

SECMINHR

MIN

SECMINHR

10. After cooking, unplug probe.

One short tone will sound every minute, to remind you cooking is done, until you unplug the Temperature Probe.

11. Remove food from oven.

(This prevents overcooking.)

12. Clean probe.

Wash with a soapy sponge and dry thoroughly. Use a plastic scouring pad to remove cooked-on foods. You can also clean the probe in a dishwasher.

U sing and Caring for Your Oven

Using auto set

Auto Set lets you choose from among ten preset oven cooking cycles. These cycles store commonly used cooking times, cooking temperatures, and probe temperature settings. Auto Set saves you time by limiting the number of pads you have to press when cooking at a favorite setting.

1. Place food in cold oven.

If you need the Temperature Probe for your cycle (settings 5-8), insert probe into food. (Follow Steps 1-4 in “Using the temperature probe” on page 24.)

2. Set Auto Set cycle.

PRESS

AUTO

Press desired Number pad.

Example:

PRESS

(Use the “Auto set chart” on page 28 as your guide for selecting the correct cycle.)

NOTES:

• You can change the Auto Set cycle

any time before pressing the Start/ Enter pad by repeating Step 2.

3. Start oven.

PRESS

NOTE: Cycles 1-4, 9, 0: To see the time

when the Auto Set cycle will end, press the Stop Time pad.

When the Auto Set cycle is done,

“End” and the time of day will show in the display. Four tones will sound, followed by one short tone every minute, until you open the door, remove the probe, or press the Cancel/Off pad.

START

ENTER

SET

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

START STOP TIMER

CLEAN

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

START STOP TIMER

CLEAN

• The cooking setting, time, or probe temperature will be displayed before you press the Start/Enter pad.

Example For Auto

Set 5:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

CLEAN

START STOP TIMER

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

START STOP TIMER

CLEAN

MIN

SECMINHR

MIN

SECMINHR

MIN

SECMINHR

MIN

SECMINHR

U sing and Caring for Your Oven

Auto set chart

CYCLE NUMBER

CONVECTION CYCLE

OVEN TEMP

TIME OR PROBE TEMP

FOOD OR MEAL

5 6 7

8 9 0

Conv. Bake

Conv. Roast Conv. Roast Conv. Roast

Conv. Bake Conv. Bake Conv. Roast

350°F

375°F

300°F 300°F 300°F

325°F 325°F 400°F

45 min

1 hr

1 hr 15 min

55 min

140°F 160°F 170°F

150°F 3 hr

18 min

Meal # 1: Chicken pieces, Fruit crisp, Vegetable casserole

Meal # 2: Macaroni and cheese, Baked winter squash, Fruit pie

Meal # 3: Precooked ham, Baked potatoes, Quick bread loaf

Baked potatoes only Meal # 4: Beef stew, Scalloped

potatoes, Frozen fruit pie Beef roast rare Beef roast medium Beef roast well

Pork roast Meat loaf

Casseroles Pot roast with vegetables – 3 lbs Pizza

Broiling

NOTE: Preheating is not necessary when broiling.

1. Position rack.

See “Thermal broiling chart” on page 33 for recommended rack positions.

2. Put food in oven.

Place food on grid in broiler pan and place in center of the oven rack.

Broiler grid

Broiler pan

U sing and Caring for Your Oven

DELAY CLEAN DEHYD

TIMED LOCKED ROTIS

START?

3. Close door.

Close the door to the Broil Stop position (open about 4 inches). The door will stay open by itself.

4. Choose Broil setting.

once

for Maxi Broil

twice

for Econo Broil

PRESS

BROIL

•MAXI

••ECONO

BROIL

•MAXI

••ECONO

BROIL

•MAXI

••ECONO

5. Set temperature (optional).

Do this step if you want to use variable

temperature broiling (see page 30).

Example:

PRESS

23 5

(See “Thermal broiling chart” on page 33 for

temperature recommendations.)

YOU SEE

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

Maxi broil:

TIMED LOCKED ROTIS

Econo broil:

TIMED LOCKED ROTIS

Maxi broil:

TIMED LOCKED ROTIS

Example:

YOU SEE

Econo broil:

continued on next page

U sing and Caring for Your Oven

6. Start oven.

PRESS

NOTE: Leave the door partly open

whenever using the oven to broil. This allows the oven to maintain proper temperatures. If you want to change the broiling temperature after broiling has begun, repeat Steps 4, 5, and 6.

START

ENTER

7. When broiling is done, turn off oven.

PRESS

CANCEL

OFF

Example:

YOU SEE

(time of

day)

Example:

YOU SEE

Example:

YOU SEE

(time of

day)

DELAY CLEAN DEHYD

START?

DELAY CLEAN DEHYD

START?

CLEAN

Maxi broil:

TIMED LOCKED ROTIS

Econo broil:

TIMED LOCKED ROTIS

START STOP

MIN

SECMINHR

Variable temperature broiling

• If food is cooking too fast or you want the

food to broil slower from the start, set the broil temperature between 170°F and 325°F (77°C and 163°C). These temperature settings allow the broil heating element to cycle and to slow cooking. The lower the temperature, the slower the cooking.

• Fish and chicken are some foods that

may cook better if you use lower broiling temperatures. (See the “Thermal broiling chart” on page 33 for temperature recommendations.)

U sing and Caring for Your Oven

Convection broiling

Convection broiling is actually high-temperature convection roasting. Use this setting when broiling thick cuts of meat. Results are similar to those you get when using a rotisserie.

1. Position rack.

See “Thermal broiling chart” on page 33 for recommended rack positions.

2. Put food in oven.

Place food on grid in broiler pan and place in center of the oven rack. Turn the pan so the long side is parallel to the oven door for the most even heat and the best airflow.

3. Close door.

NOTE: Do not try to convection broil with

the door open. The fan will not operate.

4. Choose Convection Broil setting.

CONVECTION

PRESS

BROIL

5. Set temperature (optional).

Do this step if you want to set a temperature (up to 450°F) other than 450°F.

Example:

PRESS

(See convection oven cookbook for temperature recommendations.)

04 0

YOU SEE

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

continued on next page

U sing and Caring for Your Oven

6. Start oven.

PRESS

NOTE: If you want to change the convec-

tion broiling temperature after broiling has begun, repeat Steps 4, 5, and 6.

7. When broiling is over, turn off oven.

PRESS

START

ENTER

CANCEL

OFF

Example:

YOU SEE

Example:

YOU SEE

(time of

day)

DELAY CLEAN DEHYD

START?

CLEAN

TIMED LOCKED ROTIS

START STOP

MIN

SECMINHR

Broiling tips

• Always start broiling with a cold broiler

pan for even results.

• To retain more natural juice, do not

pierce meat with a fork.

• Trim the outer layer of fat from steaks

and chops.

• Slit fatty edges to prevent meat from

curling during broiling.

• Use a nonstick cooking spray or veg-

etable oil on the broiler pan and grid when

broiling fish to prevent sticking.

Broiling rack positions

5 4

3 2 1

U sing and Caring for Your Oven

Thermal broiling chart

–Press the Broil pad. –The recommended rack position is numbered lowest (1) to highest (5).

RACK

MEAT Steak, 1" thick

• rare

• medium

• well-done

Steak, 11⁄2" thick

• rare

• medium

Hamburger patties or steaks, 1⁄2" thick or less

• medium

Lamb chops, 1" thick Ham slice, 1⁄2" thick

1" thick

Pork chops, 1" thick

POSITION

5 4 4

4 4

TEMPERATURE

500°F

500°F 400°F 500°F

500°F 450°F

APPROXIMATE

TOTAL TIME

(MINUTES)

16 21 25

23 28

8-12 18-20 10-12

20-22 25-28

Frankfurters Chicken pieces Fish,1⁄2" thick

1" thick

Calves liver, 1⁄2" thick

4 3 3

3 4

500°F 500°F 350°F

350°F 350°F

8 32 20

20-22 10-12

U sing and Caring for Your Oven

Timed cooking

The electronic clock/oven control will turn the oven on and off at times you set, even when you are not around.

Delayed time cooking is ideal for foods which do not require a preheated oven, such as meats and casseroles. Do not use

delayed time cooking for cakes, cookies, etc. – they will not rise properly. Before using timed cooking, make sure the clock is set to the correct time of day.

(See “Setting the clock” on page 18.)

To start baking/roasting now and stop automatically:

1. Prepare oven.

Position the oven rack(s) properly and place the food in the oven. For correct rack placement, see “Rack positions” on page 41 and “Rack placement” chart on page 41.

wWARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before or after cooking.

Doing so can result in death, food poisoning, or sickness.

2. Choose setting.

PRESS

BAKE ROAST

OR OR

CONVECTION

BAKE

CONVECTION

Example For

Convection

Roast:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

U sing and Caring for Your Oven

3. Set temperature (optional).

Do this step if you want to set a temperature other than the one displayed.

Example

PRESS

(See a reliable cookbook or your convection oven cookbook for temperature recommendations.)

4. Set stop time.

PRESS

Example:

PRESS

5. Start oven.

PRESS

23 5

STOP

TIME

03 0

START

ENTER

Example

YOU SEE

Example

YOU SEE

(time of

day)

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

CLEAN

MIN

START STOP TIME

MIN

START STOP TIME

SECMINHR

When baking/roasting is done, “End” and the time of day will show in the display. Four tones will sound, followed by one short tone every minute, until you open the door or press the Cancel/Off pad.

Example:

YOU SEE

(time of

day)

U sing and Caring for Your Oven

To delay start and stop automatically:

1. Prepare oven.

Position the oven rack(s) properly and place the food in the oven. For correct rack placement, see “Rack positions” on page 41 and “Rack placement” chart on page 41.

2. Choose setting.

Example For

CONVECTION

PRESS

CONVECTION

BAKE ROAST

OR OR

BAKE

Convection

Roast:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

3. Set temperature (optional).

Do this step if you want to set a temperature other than the one displayed.

Example:

PRESS

23 5

(See a reliable cookbook or your convection oven cookbook for temperature recommendations.)

4. Set start time.

PRESS

Example:

PRESS

START

01 0

TIME

Example:

YOU SEE

Example:

YOU SEE

(time of

day)

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

CLEAN

MIN

START STOP TIME

MIN

START STOP TIME

SECMINHR

5. Set stop time.

Example:

PRESS

U sing and Caring for Your Oven

STOP

TIME

03 0

Example:

YOU SEE

(time of

day)

Example:

YOU SEE

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

CLEAN

MIN

START STOP TIME

MIN

START STOP TIME

SECMINHR

6. Complete entry.

PRESS

When baking/roasting is done, “End” and

the time of day will show in the display. Four tones will sound, followed by one short tone every minute, until you open the door or press the Cancel/Off pad.

START

ENTER

To cancel timed cooking settings:

PRESS

CANCEL

OFF

Example:

YOU SEE

(time of

day)

Example:

YOU SEE

Example:

YOU SEE

(time of

day)

Example:

YOU SEE

(time of

day)

TIMED

DELAY

CLEAN DEHYD

START?

LOCKED ROTIS

CLEAN

START STOP TIME

When start time is reached:

DELAY CLEAN DEHYD

START?

TIMED

LOCKED ROTIS

CLEAN

START STOP TIME

MIN

SECMINHR

MIN

SECMINHR

CLEAN

START STOP

MIN

SECMINHR

U sing and Caring for Your Oven

Dehydrating

You can use your THERMAL-CONVECTION™ oven to dehydrate a variety of foods.

1. Prepare food.

Prepare foods as recommended in recipe.

2. Arrange food on drying racks.

Racks are not included with oven. See below to order a dehydration kit* which includes racks and a spacer or contact a local store handling specialty cookware.

NOTE: To learn detailed information about dehydration, refer to a book written specifically about dehydrating and/or preserving foods.

3. Place drying racks in the oven

to allow maximum air circulation around the racks.

4. Position door.

Attach the dehydration spacer*, which is specially designed to depress the oven light plunger and maintain the operation of the fan during dehydration.

The spacer provides a 1 inch gap between the oven frame and the oven door allowing moisture to escape.

* The dehydration spacer (Part No.

814166) or the dehydration kit which includes racks and a spacer (Part No.

4395974) can be ordered from your local KitchenAid dealer, or by calling 1-800-422-1230 and following the instructions and telephone prompts you hear.

NUMBER OF RACKS

1 rack 2 racks 3 racks

USE OVEN RACK POSITION

3 2 and 4 1, 3, and 5

Dehydration spacer

Oven light

plunger

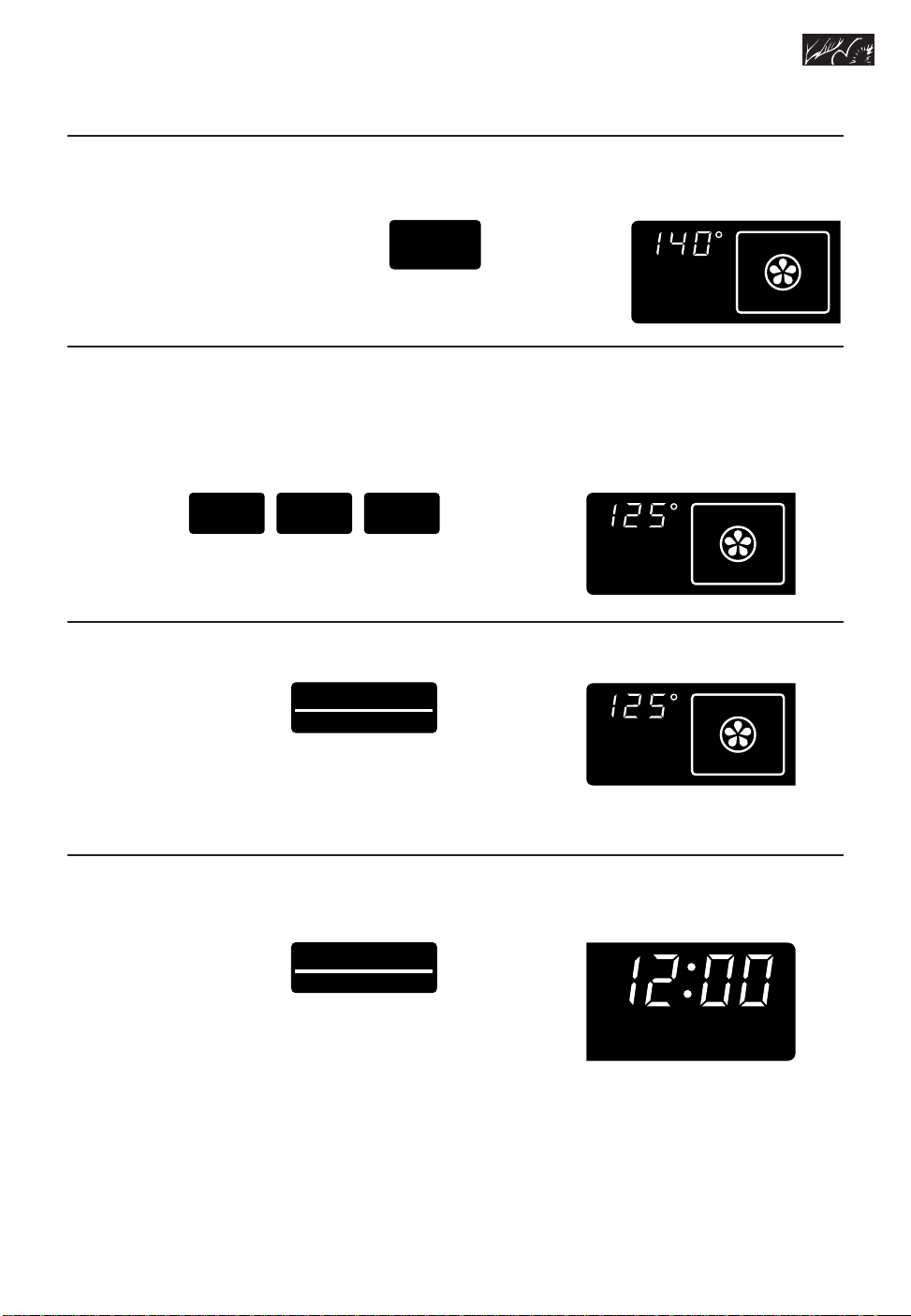

5. Choose Convection Bake setting.

PRESS

and hold for

2 seconds

6. Set temperature (optional).

Do this step if you want to set a temperature (from 100°F to 200°F) other than 140°F.

U sing and Caring for Your Oven

CONVECTION

BAKE

Example:

YOU SEE

DELAY CLEAN

DEHYD

START?

TIMED LOCKED ROTIS

Example:

PRESS

21 5

7. Start oven.

PRESS

NOTE: If you want to change the dehy-

drating temperature after dehydrating has begun, repeat Steps 5, 6, and 7.

START

ENTER

8. When dehydrating is done, turn off oven.

PRESS

CANCEL

OFF

Example:

YOU SEE

Example:

YOU SEE

Example:

YOU SEE

(time of

day)

DELAY CLEAN

DEHYD

START?

DELAY CLEAN

DEHYD

START?

CLEAN

TIMED LOCKED ROTIS

START STOP

MIN

SECMINHR

U sing and Caring for Your Oven

Raising (proofing) bread

You can use your THERMAL-CONVECTION™ oven to proof bread.

1. Put bread in oven.

NOTE: Be sure to close the door.

2. Choose Convection Bake setting.

PRESS

and hold for

2 seconds

3. Set temperature.

Set temperature to 100°F.

CONVECTION

BAKE

YOU SEE

DELAY CLEAN

DEHYD

START?

TIMED LOCKED ROTIS

Example:

PRESS

01 0

4. Start oven.

PRESS

START

ENTER

5. When proofing is done, turn off oven.

PRESS

CANCEL

OFF

Example:

YOU SEE

Example:

YOU SEE

Example:

YOU SEE

(time of

day)

DELAY CLEAN

DEHYD

START?

DELAY CLEAN

DEHYD

START?

CLEAN

TIMED LOCKED ROTIS

START STOP

MIN

SECMINHR

U sing and Caring for Your Oven

Cooking tips

Baking tips

The hot air must circulate around the pans in the oven for even heat to reach all parts of the oven. This results in better baking.

For best air circulation:

• Place the pans so that one is not directly

over the other.

• For best results, allow 11⁄2 to 2 inches of

space around each pan and between pans and oven walls.

• When baking with one pan, place pan in

the center of the oven rack.

• When baking with two pans, place pans

in opposite corners of the oven rack.

NOTE: “Oven peeking” may cause heat loss, longer cooking times, and unsatisfactory baking or roasting results. Rely on your timer.

Rack positions

For proper cooking, follow these guidelines:

• When using one rack, place the rack so the top of the food will be centered in the oven.

• When using two racks, place one rack in position 1 and the other rack in position 3.

• Use only one cookie sheet in the oven at a time when using the Bake setting.

Bakeware tips

• When baking with insulated cookie sheets or baking pans, place them in the

bottom third of the oven. You may need to increase the recommended baking times, so test for doneness before removing from the oven.

• When using ovenproof glassware or dark bakeware, reduce the oven tempera-

ture by 25°F, but use the same baking time. Because these pans absorb heat, producing darker bottom browning and crispier crusts, place the rack in the center of the oven. When baking pies and bread, you can use the temperature suggested in the recipe.

Rack placement for specific foods:

(For rack positions, see “Rack positions” in previous column.)

RACK

FOOD

POSITION

No. 5 No. 4 No. 3 No. 2 No. 1

Your oven has two straight racks and five rack positions. Rack position 5 is the highest position, or farthest from the bottom of the oven. Rack position 1 is the lowest position, or closest to the bottom of the oven.

Frozen pies Angel food and bundt

cakes, most quick breads, yeast breads, casseroles, meats

Cookies, biscuits, muffins, cakes, nonfrozen pies

1 or 2

2 or 3

U sing and Caring for Your Oven

Using aluminum foil in the oven

(For thermal baking)

Use aluminum foil to catch spillovers from pies or casseroles.

• Place the foil on the oven rack below the rack with the food. Turn foil edges up and make sure foil is about 1 inch larger all around than the dish holding the food.

• Do not cover the entire rack with alumi- num foil. It will reduce air circulation and cause poor cooking results.

• Do not line oven bottom or entire oven rack with foil or other liners. It could affect the quality of your baking.

Convection baking tips

(convection bake pad)

• Do not use aluminum foil when convection baking. Aluminum foil may block airflow.

• Reduce recommended recipe oven temperature by approximately 25°F. See recipe adaption chart in your convection oven cookbook for recommended temperatures.

• For most recipes, you can reduce con- vection baking time compared to standard baking times. See convection baking chart in your convection oven cookbook for recommended baking times.

• When baking on two or three racks, use the Convection Bake setting for more even results. (You can, however, use only one rack when Convection Baking.)

• To use three racks during convection baking, place racks in position 5 (the

highest position), 3 and 1 (the closest to the oven bottom). This allows all three racks to be an equal distance apart for better baking.

• Stagger cake pans or other cookware in opposite directions on each rack when three racks are used.

Roasting tips

• Roast meats fat-side up in a shallow pan using a roasting rack.

• Use a roasting pan that fits the size of the food to be roasted. Meat juices may overflow the sides of a pan that is too small. Too large of a pan will result in increased oven spatter.

• Spatter can be reduced by lining the bottom of the roasting pan with lightly crushed aluminum foil.

NOTE: Cooking time may be longer when you use more than one rack.

• A foil tent will slow down surface browning for long-term roasting, as when roasting a turkey. Place tent-shaped foil loosely over meat to allow for air circulation. Do not seal foil or meat will be steamed.

U sing and Caring for Your Oven

• Use an accurate meat thermometer or

temperature probe (see page 24) to

determine when meat has reached desired degree of doneness. Insert the thermometer or probe into the center of the thickest portion of the meat or inner thigh or breast of poultry. For an accurate reading, the tip of the thermometer or probe should not touch fat, bone, or gristle.

• After reading the thermometer once,

push it further into the meat 1⁄2 inch or more and read again. If the temperature drops, return the meat to the oven for more cooking.

• Check pork and poultry with a thermom- eter in 2-3 places to ensure adequate doneness.

• Poultry and roasts will be easier to carve if loosely covered with foil and

allowed to stand 10-15 minutes after removal from the oven.

• You can reduce roasting times and temperatures for most standard recipes when using the Convection Roast setting. See convection roasting chart in your convection oven cookbook for recommended roasting times and temperatures.

• Use the convection roasting rack on the broiler pan (both included with your range). (The convection roasting rack rests on the broiler pan, not inside it.) The long side of the rack should be parallel with the oven door for best heat distribution and airflow.

NOTE: Place the convection roasting rack on the broiler pan with grid to contain the drippings as the meat roasts.

U sing and Caring for Your Oven

Cleaning your oven and controls

wWARNING

Explosion Hazard

Do not store flammable materials such as gasoline near this appliance.

Doing so can result in death, explosion, fire, or burns.

PART

Control knobs

Control panel

Exterior surfaces

(other than ceramic cooktop and control panel)

WHAT TO USE

Sponge and warm, soapy water

Paper towel and spray glass cleaner

Sponge and warm, soapy water

HOW TO CLEAN

• Turn knobs to OFF and pull straight away from control panel.

• Wash, rinse, and dry thoroughly. Do not soak.

• Do not use steel wool or abrasive cleansers. They may damage the finish of the knobs.

• Replace knobs. Make sure all knobs point to OFF.

• Wash, wipe with clean water, and dry thoroughly.

• Do not use steel wool or abrasive cleansers. They may damage the finish.

• Do not spray cleaner directly on panel. Apply cleaner to paper towel.

NOTE: Make sure you have not turned the oven on when cleaning panel. If you have, press the Cancel/Off pad.

• Wash, wipe with clean water, and dry thoroughly.

• Use nonabrasive, plastic scrubbing pad on heavily soiled areas.

• Do not use abrasive or harsh cleansers. They may damage the finish.

Broiler pan and grid (clean after

each use)

Steel-wool pad and warm, soapy water

• Wash, rinse, and dry thoroughly.

• Do not clean the pan and grid in the

Self-Cleaning cycle.

U sing and Caring for Your Oven

PART Oven racks

Oven door glass

Oven cavity

WHAT TO USE

Steel-wool pad and warm, soapy water

The Self-Cleaning cycle

Paper towel and spray glass cleaner

Warm, soapy water and a nonabrasive, plastic scrubbing pad

Self-Cleaning cycle

HOW TO CLEAN

• Wash, rinse, and dry thoroughly.

• Leave in oven during Self-Cleaning cycle.

NOTE: Racks will permanently discolor and become harder to slide if left in oven during the Self-Cleaning cycle. Apply a small amount of vegetable oil to the side rungs to aid sliding.

• Make sure oven is cool.

• Follow directions provided with the

cleaner.

• Wash, wipe with clean water, and dry thoroughly.

• Wipe up food spills containing sugar as soon as possible after the oven cools down. (See “Using the Self-Cleaning Cycle” on page 47.)

• See “Using the Self-Cleaning Cycle” on pages 47-50.

U sing and Caring for Your Oven

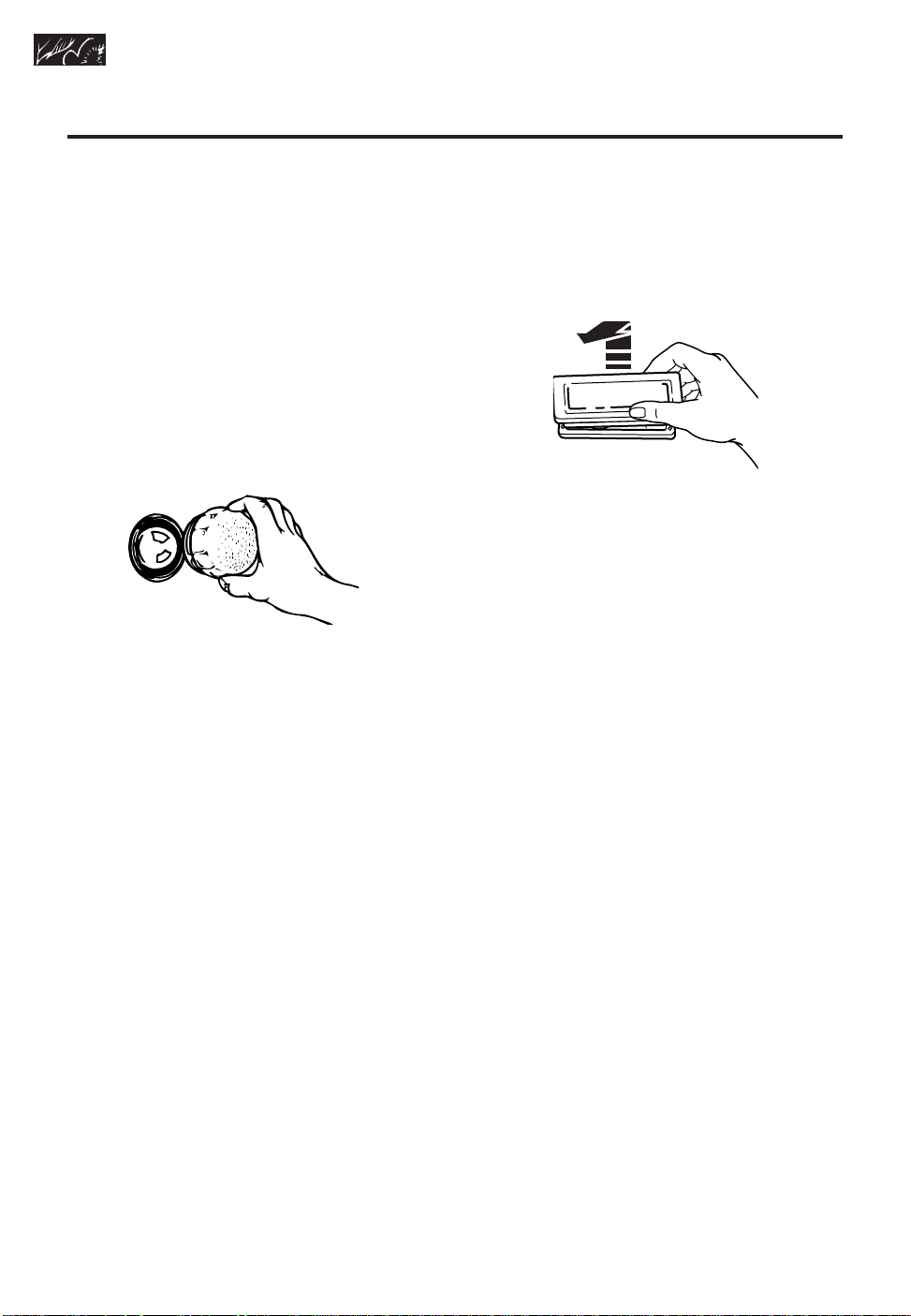

Using and replacing the oven light(s)

Your oven may have a standard oven light or two side halogen lights. The oven light(s) will come on when you open the oven door. To turn the light(s) on when the oven door is closed, press the Oven Light pad on the control panel. Press the pad again to turn off the light(s).

Replacing the oven light (models with light on back wall):

1. Disconnect appliance at main power supply. Make sure the oven is cool before replacing the light bulb.

2. Remove the glass bulb cover in the back of the oven by screwing it out counterclockwise.

3. Remove the light bulb from its socket. Replace the bulb with a 40-watt appli-

ance bulb.

4. Replace the bulb cover by screwing it in clockwise. Reconnect appliance at main power supply.

Replacing oven lights (models with side halogen lights):

1. Disconnect appliance at the main power supply. Make sure the oven is cool before replacing the light bulb.

2. Remove glass light cover by grasping front edge of cover and pulling it away from the side wall of the oven.

3. Remove the light bulb from its socket. Replace the bulb with another halogen

bulb (12 volt, 5 watt maximum, available at most hardware stores).

4. Replace the light cover by snapping it back into wall. Reconnect appliance at main power supply.

NOTE: The oven lights will not work during the Self-Cleaning cycle.

NOTE: The oven light will not work during the Self-Cleaning cycle.

sing the Self-Cleaning Cycle

The Self-Cleaning cycle saves you from the toil and mess that often come with handcleaning the oven interior. Like the other functions of your oven, you operate the Self-Cleaning cycle with the easy-to-use electronic control. To use this cycle properly, follow the step-by-step instructions in this section.

Do not touch the oven during the Self-Cleaning cycle. Keep children away from oven during Self-Cleaning cycle. Do not use commercial oven cleaners in your oven. Failure to follow these instructions can result in burns, or

illness from inhaling dangerous fumes.

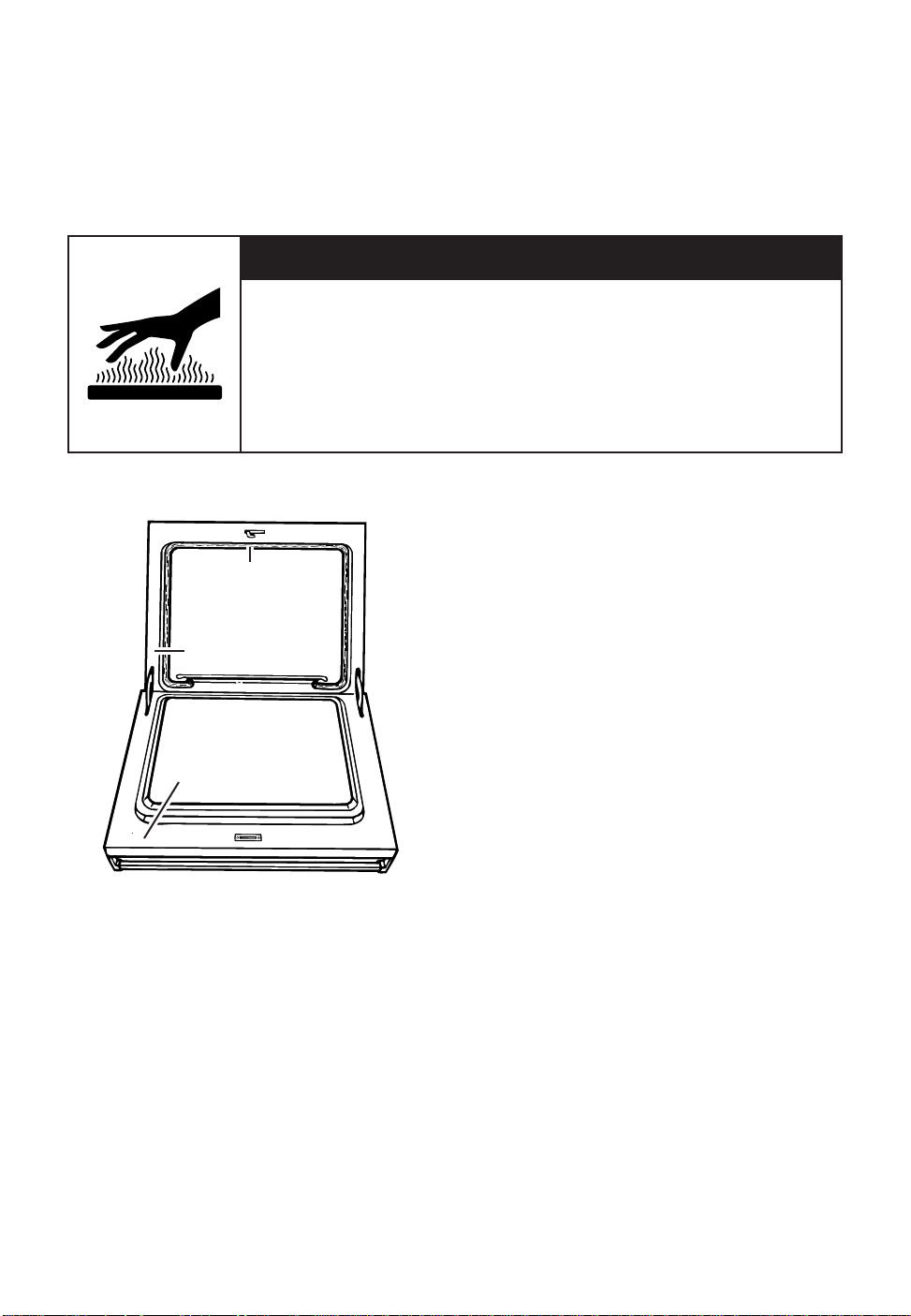

Before you start

DO NOT hand-clean gasket

Hand-clean frame

Hand-clean door around edge

Before you start the Self-Cleaning cycle, make sure you:

• Hand-clean the areas shown. They do not get hot enough during the Self-Cleaning cycle for soil to burn away. Use hot water and detergent or a soapy steelwool pad for cleaning.

NOTE: DO NOT clean, move, or bend the gasket. Poor cleaning, baking and roasting may result.

• Remove the broiler pan and grid and anything else being stored in the oven.

• Wipe out any loose soil or grease. This will help reduce smoke during the SelfCleaning cycle.

wWARNING

Burn Hazard

• Wipe up food spills containing sugar as soon as possible after the oven cools down. When sugar is heated to a high temperature in the Self-Cleaning cycle, the high temperature can cause the sugar to burn and react with the porcelain. This can cause staining and etching or pitting.

• Remove the oven racks from the oven if

you want them to remain shiny. You can clean racks in the Self-Cleaning cycle, but they will discolor and become harder to slide. If you clean racks in the SelfCleaning cycle, place them on the rack guides.

• Heat and odors are normal during the

Self-Cleaning cycle. Keep the kitchen well ventilated by opening a window or by turning on a vent hood or other kitchen vent during the cycle.

NOTES:

• Do not block the vent during the Self-

Cleaning cycle. Air must move freely for best cleaning results.

• Do not leave plastic utensils on the

cooktop. They may melt.

• Do not leave any foil in oven during the

Self-Cleaning cycle. Foil could burn or melt and damage the oven surface.

• The oven lights will not work during the

Self-Cleaning cycle.

U sing the Self-Cleaning Cycle

Setting the controls

Make sure clock is set to correct time of day.

(See “Setting the clock” on page 18.)

To start cleaning immediately:

1. Choose clean setting.

PRESS

CLEAN

A 3-hour Self-Cleaning cycle will be set. NOTE: You cannot open the door when

LOCKED is on.

2. Set clean time (optional).

If you want a Self-Cleaning cycle other than 3 hours, press the desired number pads for the new time up to 4 hours.

Example:

PRESS

04 0

• Use 2 hours for light soil.

• Use 3-4 hours for moderate to heavy soil.

3. Start oven.

PRESS

NOTE: If you want to change the clean-

ing time after cleaning has begun, repeat Steps 1-3.

START

ENTER

YOU SEE

Example:

YOU SEE

Example:

YOU SEE

DELAY

CLEAN

DEHYD

DELAY

CLEAN

DEHYD

DELAY

CLEAN

DEHYD

START?

TIMED

LOCKED

ROTIS

TIMED

LOCKED

ROTIS

TIMED

LOCKED

ROTIS

CLEAN

MIN

START STOP TIME

MIN

START STOP TIME

MIN

START STOP TIME

SECMINHR

To delay clean using start time:

1. Choose clean setting.

PRESS

A 3-hour Self-Cleaning cycle will be set. NOTE: You cannot open the door when

LOCKED is on.

CLEAN

YOU SEE

DELAY

CLEAN

DEHYD

START?

TIMED

LOCKED

ROTIS

CLEAN

MIN

START STOP TIME

SECMINHR

2. Set clean time (optional).

If you want a Self-Cleaning cycle other than 3 hours, press the desired number pads for the new time up to 4 hours.

U sing the Self-Cleaning Cycle

Example:

PRESS

04 0

• Use 2 hours for light soil.

• Use 3-4 hours for moderate to heavy

soil.

3. Set start time.

PRESS

Example:

PRESS

03 0

4. Complete entry.

PRESS

START

TIME

ENTER

Example:

YOU SEE

Example:

YOU SEE

(time of

day)

Example:

YOU SEE

Example:

YOU SEE

DELAY

CLEAN

DEHYD

DELAY CLEAN DEHYD

DELAY

START?

TIMED

LOCKED

ROTIS

TIMED LOCKED ROTIS

CLEAN

MIN

START STOP TIME

MIN

START STOP TIME

MIN

START STOP TIME

MIN

START STOP TIME

SECMINHR

NOTE: If you want to change the cleaning time after cleaning has begun, repeat Steps 1-4.

After the Self-Cleaning cycle is completed:

When the oven cools to normal baking/roasting temperatures:

Example:

YOU SEE

Example:

YOU SEE

(time of

day)

Example:

YOU SEE

(time of

day)

When the Self-Cleaning

cycle starts:

TIMED

DELAY

LOCKED

CLEAN

ROTIS

DEHYD

START?

CLEAN LOCKED

CLEAN

START STOP TIME

continued on next page

MIN

SECMINHR

U sing the Self-Cleaning Cycle

To stop the Self-Cleaning cycle at any time:

PRESS

For best cleaning results

• After the oven cools to room tempera-

ture, wipe up any residue or ash with a

damp cloth or sponge. If any spots remain, clean with a mild abrasive cleanser or cleaning sponge.

• Clean the oven before it gets heavily soiled. Cleaning a very soiled oven takes longer and results in more smoke than usual.

CANCEL

OFF

When the oven cools to normal

Example:

baking/roasting temperature:

YOU SEE

(time of

day)

DELAY CLEAN DEHYD

START?

TIMED LOCKED ROTIS

START STOP

MIN

• If the Self-Cleaning cycle does not get

the oven as clean as you expected, the

cycle may not have been set long enough or you may not have prepared the oven properly. Set the Self-Cleaning cycle longer the next time and hand-clean areas noted on page 47.

SECMINHR

How the cycle works

The Self-Cleaning cycle uses very high heat to burn away soil and grease. During the cycle, the oven gets much hotter than it does for normal baking or broiling. This high heat breaks up the soil or grease and burns it away.

Your oven is preset for a 3-hour SelfCleaning cycle. However, the cycle time can be adjusted to the amount of soil in your oven. The cycle can be set anywhere between 2 and 4 hours. (See “Setting the controls” on page 48.)

The graph at the right is representative of a normal, 3-hour Self-Cleaning cycle. Note that the heating stops when the 3-hour setting is up, but it takes longer for the oven to cool enough to unlock.

875°F ( 468°C )

CLEANING CYCLE

OVEN SHUT OFF

( normal broiling temperature )

Temperature

DOOR LOCKS

STAR T 1 2 3 STOP

DOOR UNLOCKS

Time In Hours

f You Need Assistance

or Service

Questions or comments? Call our toll-free Consumer Assistance Center telephone number, 1-800-422-1230.

This section is designed to help you save the cost of a service call. Part 1 of this section outlines possible problems, their causes, and actions you can take to solve each problem. Parts 2 and 3 tell you what to do if you still need assistance or service. When calling our Consumer Assistance Center for help or calling for service, please provide a detailed description of the problem, your appliance’s complete model and serial numbers, and the purchase or installation date. (See page 2.) This information will help us respond properly to your request.

1. Before calling for service:

If your appliance should fail to operate, review the following list before calling your dealer. You could save the cost of a service call.

PROBLEM Nothing will

operate

The oven will not operate

The surface units will not operate

The control knob(s) will not turn

POSSIBLE CAUSE

The unit is not wired into a live circuit with proper voltage.

A household fuse has blown or a circuit breaker has tripped.

You have not set the electronic control correctly.

You have programmed a delayed start time.

A household fuse has blown or a circuit breaker has tripped.

You have not set the control knobs correctly.

You are not pushing in before turning.

WHAT TO DO

Wire the unit into a live circuit with proper voltage. (See Installation Instructions.)

Replace household fuse or reset circuit breaker.

Refer to the section in this manual describing the function you are operating.

Wait for the start time to be reached or cancel and reset the controls.

Replace household fuse or reset circuit breaker.

Push control knobs in before turning to a setting.

Push control knob(s) in before turning to a setting.

continued on next page

f You Need Assistance or Service

PROBLEM The Self-

Cleaning cycle will not operate

Cooking results are not what you expected

POSSIBLE CAUSE

You have programmed a delayed start time.

The range is not level.

The oven temperature seems too low or too high.

You did not preheat the oven before baking.

The recipe you are using may need to be altered to improve the taste or appearance of the food.

The pan used is not the correct type or size.

There is not proper air circulation around pan when baking.

Cookware does not fit the surface unit being used.

WHAT TO DO

Wait for the start time to be reached or cancel and reset the controls.

Level range. (See Installation Instructions.)

Adjust the oven temperature. (See “Adjusting oven temperature” on page 23.)

Preheat oven when called for in recipe.

Alter recipe as needed.

Refer to a reliable cookbook or recipe for recommended pan type and size.

Allow 11⁄2 to 2 inches of air space on all sides of pan.

Pan should be the same size or slightly larger than surface unit being used.

The display is flashing “88:88”

“F-” followed by a number shows in the display

There has been a power failure.

Reset the clock. (See page 18.)

Call for service. (See Step 3 on page 53.)

f You Need Assistance or Service

2. If the problem is not due to one of the items listed in Step 1:

• Call KitchenAid Consumer Assistance

Center:

1-800-422-1230

One of our trained consultants

can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

• If you prefer, write to: KitchenAid Brand Home Appliances

Consumer Assistance Center c/o Correspondence Dept. 2000 North M-63 Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

3. If you need service*:

• Call your dealer or the repair service he

recommends.

• All service should be handled

SERVICE

• If you are unable to obtain the name of a

local authorized KitchenAid servicer, call our Consumer Assistance Center telephone number (see Step 2).

locally by the dealer from whom you purchased the unit or an authorized KitchenAid servicer.

4. If you are not satisfiedwith the action taken:

• Contact the Major Appliance Consumer

Action Program (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance industry.

• Contact MACAP only when the dealer,

authorized servicer, and KitchenAid have failed to resolve your problem.

Major Appliance Consumer Action Program 20 North Wacker Drive Chicago, IL 60606

• MACAP will in turn inform us of your action.

* When asking for help or service:

Please provide a detailed description of the problem, your appliance’s complete model and serial numbers, and the purchase date. (See page 2.) This information will help us respond properly to your request.

Don’t forget, KitchenAid offers a full line of quality home appliances.

Built-In Refrigerators Trash Compactors Ranges & Cooktops Freestanding Refrigerators Hot Water Dispensers Microwave Ovens 50-Pound Ice Makers Food Waste Disposers Washers & Dryers Dishwashers Built-In Ovens Mixers & Blenders For more information on these appliances, or the one you have purchased, call our

toll-free Consumer Assistance Center telephone number, 1-800-422-1230.

Electric Range

Warranty

LENGTH OF WARRANTY:

ONE-YEAR FULL WARRANTY

FROM DATE OF PURCHASE.

SECONDTHROUGH FIFTHYEAR LIMITED WARRANTY

FROM DATE OF PURCHASE.

SECONDTHROUGH TENTHYEAR LIMITED WARRANTY

FROM DATE OF PURCHASE.

KITCHENAID WILL PAY FOR:

Replacement parts and repair labor costs to correct defects in materials or workmanship. Service must be provided by an authorized KitchenAid servicing outlet.

Replacement parts for any electric element to correct defects in materials or workmanship. Replacement ceramic glass if breakage is due to defects in materials or workmanship.

Replacement parts for solid state touch control system to correct defects in materials or workmanship.

Replacement parts for the porcelain oven cavity/inner door if the part rusts through due to defects in materials or workmanship.

KITCHENAID WILL NOT PAY FOR:

A. Service calls to:

1. Correct the installation of the

range.

2. Instruct you how to use the range.

3. Replace house fuses or correct house wiring.

B. Repairs when range is used in other

than normal home use.

C. Damage resulting from accident,

alteration, misuse, abuse, improper installation, or installation not in accordance with local electrical codes.

D. Any labor costs during the limited

warranties.

E. Replacement parts or repair labor

costs for units operated outside the United States.

F. Pickup and delivery. This product

is designed to be repaired in the home.

G.Repairs to ceramic glass cooktop if it

has not been cared for as recommended in this Use and Care Guide.

H. Repairs to parts or systems caused

by unauthorized modifications made to the appliance.

7/95

KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of

incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized KitchenAid dealer.

If you need service, first see the “If You Need Assistance or Service” section of this book. After checking “If You Need Assistance or Service,” additional help can be found by calling our Consumer Assistance Center telephone number, 1-800-422-1230, from anywhere in the U.S.A.

KitchenAid

Benton Harbor, Michigan 49022-2692

PART NO. 9780936 Rev. A

9/96

KitchenAid KERH507 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Using the surface units

Cookware tips

Caring for your cooktop

Using and replacing the cooktop light

Using the electronic oven control

Oven settings

Setting the clock

Using the kitchen timer

Baking or convection baking

Roasting

Adjusting oven temperature

Using the temperature probe

Using auto set

Broiling

Convection broiling

Timed cooking

Dehydrating

Raising (proofing) bread

Cooking tips

Cleaning your oven and controls

Using and replacing the oven light(s)

Warranty
