COOKTOP PARTS
For Models: KECD805HBL04, KECD805HWH04, KECD805HBT04
(Black) (White) (Biscuit)
30" ELECTRIC
BUILT−IN
DOWNDRDAFT COOKTOP
8−03 Litho in U.S.A. (cre)
1
Part No. 8186132
COOKTOP PARTS
For Models: KECD805HBL04, KECD805HWH04, KECD805HBT04
(Black) (White) (Biscuit)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8285364
LIT3192708
LIT3192515
LIT3191638
2 Cooktop, Glass &
4455586 Black
4455584 White
4455585 Honeycomb
3 3196537 Screw, 8−18 x 3/8
5 Element, Surface
8523698 L.R. (1200W)
8523694 L.F. (2200W)
8523696 R.R. (1800W)
8523697 R.F. (1500W)
6 Rail, Element
3192520 Right Hand
3192521 Left Hand
7 4456522 Box, Burner
8 3191387 Seal, Switch
9 4455802 Shield, Vent
3177991 Screw
10 3190656 Drip Bowl, Grease
11 4455354 Bracket, Control
3183956 Seal, Switch
12 311865 Screw, 8−32 x 7/32
13 3190639 Switch, Speed
14 Switch, Infinite
3191049 LR & RF
3191050 RR & LF
15 8285469 Seal, Switch
16 3192439 Seal, Limiter
18 Knob, Control
9750372FF
9750372FW
9750372FC
19 Knob, Blower
3190723 Black
3190724 White
3192502 Biscuit
20 3192418 Grille, Air
21 3192530 Filter, Grease
23 3193012 Light, Indicator
25 3191791 Spring, Locator
30 3193032 Gasket, Vent
33 3191343 Light, Hot Surface
34 3193094 Plate, Cover
Installation
Instructions
Wiring Diagram
Use & Care Guide
Safe Cooking Tips
Bracket Assembly
Mounting
Cover
Control
Black
White
Biscuit
Switch
Shield
Indicator
2
8186132

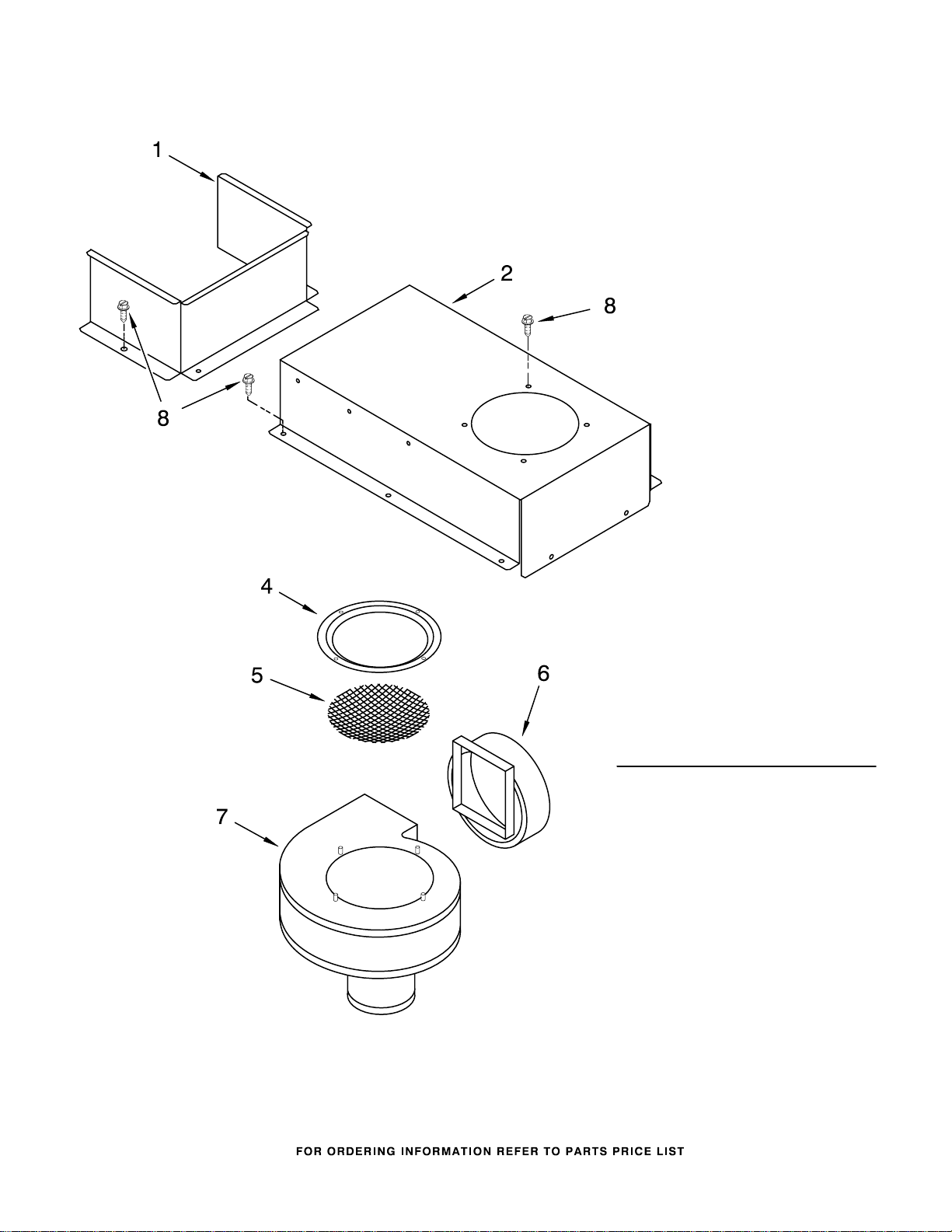

BLOWER UNIT PARTS
For Models: KECD805HBL04, KECD805HWH04, KECD805HBT04
(Black) (White) (Biscuit)
8186132
Illus. Part
No. No. DESCRIPTION
1 4455355 Bracket, Shield
2 3192403 Bracket, Blower
Mounting
4 3190735 Ring, Inlet
5 3190947 Screen, Inlet
6 3190736 Adapter, Vent
7 3190737 Blower Motor Asm.
(Includes Fan Asm)
8 3196537 Screw, 8−18 x 3/8
3
MISCELLANEOUS PARTS
For Models: KECD805HBL04, KECD805HWH04, KECD805HBT04
(Black) (White) (Biscuit)
Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
Miscellaneous
3172515 Hardware, Mounting
3192408 Bracket, Mounting
Illus. Part
No. No. DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242820 Wire, Black
14 Ga. 150
242822 Wire, Blue
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242829 Wire, Red
12 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242826 Wire, White
14 Ga. 150
242827 Wire, Yellow
14 Ga. 150
242832 Wire, Yellow
14 Ga. 200
C
C
C
C
C
C
C
C
C
C
C
C
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
3191048 Cleaner, Glass
WIRING HARNESS PARTS
WIRING HARNESS PARTS
4456587 Harness, Wire
(Ceran Downdraft)
3190722 Harness, Wire
(Blower/Switch)
98997 Clip
3190962 Strain Relief
4456514 Conduit, Downdraft
3400015 Screw, 10−32 x 3/8
4
