OVEN PARTS
For Model: KEBS177DBL1, KEBS177DWH1, KEBS177DAL1
(BLACK) (WHITE) (ALMOND)
27" BUILT−IN ELECTRIC
SINGLE OVEN
THERMAL CONVECTION
1−97 Litho in U.S.A.(dmz)
1
Part No. 4174540 Rev B
OVEN PARTS
For Model: KEBS177DBL1, KEBS177DWH1, KEBS177DAL1
(BLACK) (WHITE) (ALMOND)
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Trim, Side
4450844 RH Black
4450845 RH White
4450846 RH Almond
4450847 LH Black
4450848 LH White
4450849 LH Almond
Screw
4449747 Black Model
4449041 White, Alm. Mdls.
4 4448520 Bumper, Door
6 4451038 Divider, Vent
4449809 Screw
7 4451165 Partition
4449809 Screw
9 4449009 Tube, Vent
4449154 Screw
11 4448972 Oven Light Assy
4449748 Screw
12 313382 Clip, Bulb
13 4450812 Safety Switch
(Oven Temp)
4449809 Screw
Illus. Part
No. No. DESCRIPTION
14 4450416 Frame, Front
4449040 Screw
15 4449371 Gasket, Door
19 4450541 Support, Insulation
4449809 Screw
21 Rail, Side
4450579 Right Side
4450580 Left Side
4448444 Grommet
4449154 Screw
22 4451036 Shield, Latch
4450289 Screw
23 4450051 Deflector, Latch
4449154 Screw
24 4450332 Latch, Assy
4449809 Screw
25 4450528 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4451168 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4450026 Sensor
4449154 Screw
31 4450819 Switch, Door
32 4449369 Vent Box Assy.
Illus. Part
No. No. DESCRIPTION
37 4450934 Thermostat (TOD)
(Temp.) SPST
4449809 Screw
43 4450526 Base, Chassis
4449809 Screw
49 4448933 Retainer
4449154 Screw
50 4450544 Cover, Back
4449809 Screw
51 Trim, Bottom
4448458 Black Model
4448459 White Model
4448460 Almond Model
4159465 Screw
52 4450795 Vent Extension
4449809 Screw
53 4449845 Support, Bracket
54 4451002 Spacer, Harness
4449809 Screw
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449315 Insulation, Wrap
4450364 Insulation, Back
2
4174540
CONTROL PANEL PARTS
For Model: KEBS177DBL1, KEBS177DWH1, KEBS177DAL1
(BLACK) (WHITE) (ALMOND)
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Control Panel Assy
W/Membrane Switch
4451257 Black Model
4451258 White Model
4451259 Almond Model
4174540
Illus. Part
No. No. DESCRIPTION
2 4451033 Gasket,
Control Panel
4159465 Screw
3 4448866 Microcomputer
4449745 Screw
3
Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
LIT4450410
LIT4450571
LIT4449066
LIT4450917
LIT4449264
LIT4450839
Installation
Instructions
Use & Care Guide
Cookbook T/C
Tech Sheet
Guide, Easy−Set
Installation/
Undercounter
OVEN DOOR PARTS
For Model: KEBS177DBL1, KEBS177DWH1, KEBS177DAL1
(BLACK) (WHITE) (ALMOND)
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4450428 Door Liner
2 4451173 Hinge, Door
4449743 Screw
3 4448707 Insulation, Sides
4 4449253 Glass, Inner
5 4450422 Retainer, Glass
4449809 Screw
Illus. Part
No. No. DESCRIPTION
6 4450361 Shield, Heat
4449809 Screw
7 4449257 Glass, Inner (2)
8 4448679 Insulation
Top and Bottom
9 4450813 Bracket, Handle
4451040 Screw
10 4450836 Seal, Top
11 Handle
4448411 Black Model
4448412 White Model
4448413 Almond Model
4
Illus. Part
No. No. DESCRIPTION
12 Glass, Outer
4450696 Black Model
4450697 White Model
4450698 Almond Model
15 4450838 Seal, Sides
16 4449031 Retainer, Glass
4449809 Screw
17 4450470 Retainer, Glass
4449809 Screw
18 Clip, Retainer
4450863 Black Model
4450864 White Model
4450865 Almond Model
4174540

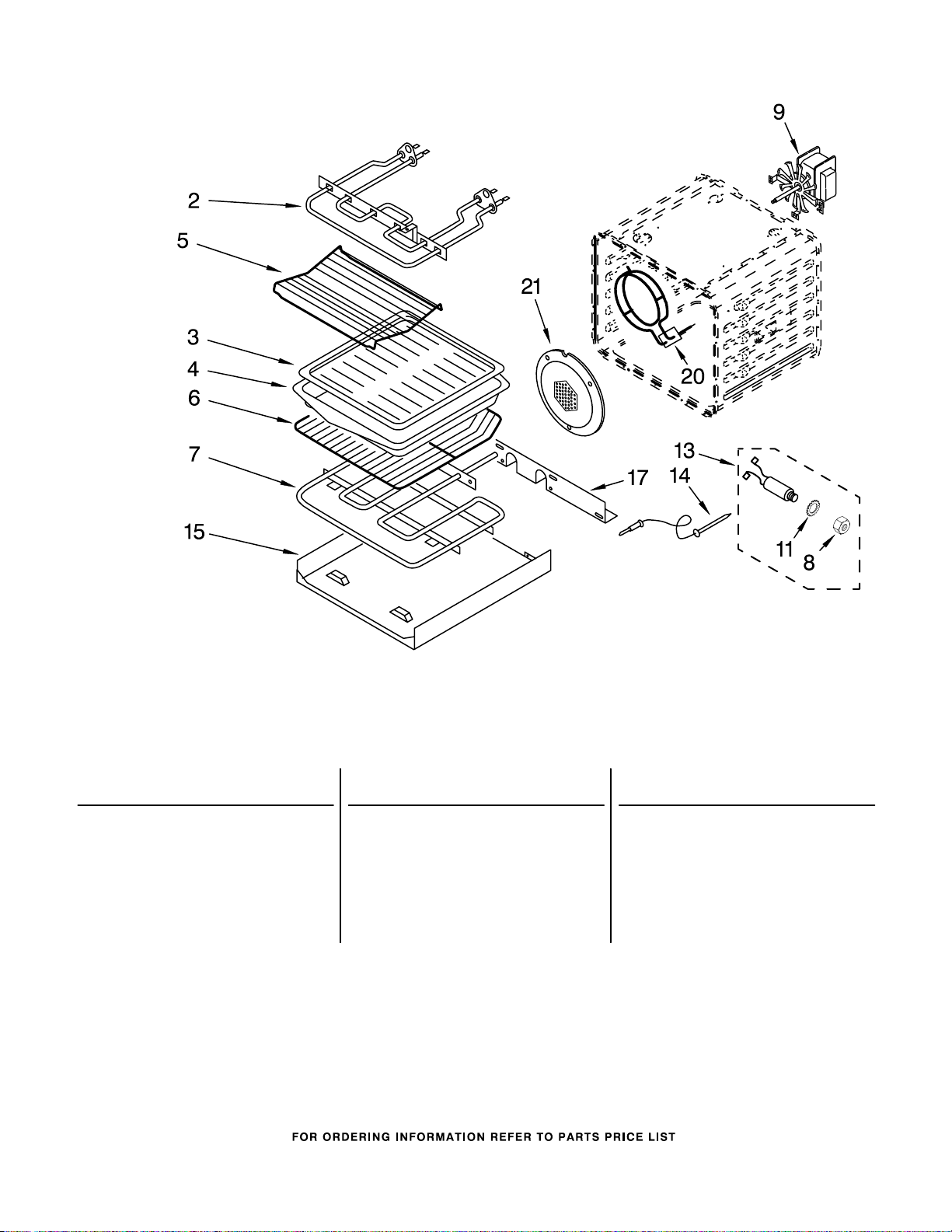

INTERNAL OVEN PARTS
For Model: KEBS177DBL1, KEBS177DWH1, KEBS177DAL1
(BLACK) (WHITE) (ALMOND)
Illus. Part
No. No. DESCRIPTION
2 4448701 Element, Broil
4449154 Screw
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
5 3181534 Rack, Roasting
6 4448715 Rack, Oven
7 4448695 Element, Bake
4174540
Illus. Part
No. No. DESCRIPTION
8 4448881 Nut, Hex
9 4448952 Fan, Convection
4449154 Screw
11 4448882 Washer, Lock
13 4451355 Jack, Meat Probe
14 4448948 Probe, Meat
15 4448722 Tray, Bake
5
Illus. Part
No. No. DESCRIPTION
17 4450039 Cover, Bake Tray
4449809 Screw
20 4448841 Element, Convection
4449154 Screw
21 4448418 Cover, Fan
4449154 Screw
TOP VENTING PARTS
For Model: KEBS177DBL1, KEBS177DWH1, KEBS177DAL1
(BLACK) (WHITE) (ALMOND)
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
3 4450920 Blower
5 4450328 Transformer,
Light
4449809 Screw
6 4450366 Exhaust Duct
4449809 Screw
Illus. Part
No. No. DESCRIPTION
11 4449868 Block, Terminal
3196181 Screw
13 4448551 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Top
4448371 Right
4448372 Left
4449809 Screw
6
Illus. Part
No. No. DESCRIPTION
15 4450658 Back, Control
4449809 Screw
16 4450550 Cover, Top Rear
4449809 Screw
17 4448664 Clamp
4449809 Screw
18 4450553 Cover, Top Front
4449809 Screw
19 4450545 Bracket, Blower
4449809 Screw
21 3182384 Seal, Foam
4174540
OPTIONAL PARTS
For Model: KEBS177DBL1, KEBS177DWH1, KEBS177DAL1
(BLACK) (WHITE) (ALMOND)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
4450951 Harness, Wire
(Door Switch)
488366 Clamp
4449809 Screw
4450753 Harness, Wire
(Latch)
4450952 Conduit
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
4450963 Harness, Wire
(Main)
Miscellaneous
814381 Hinge Pin Kit
814387 Roll Tape,
Exhaust Duct
4448950 Screw, Install (4)
4174540
7
