NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 3179678 Disc, Thermostat (2)
2 4168403 Knob, Control (2)
3 3177121 Knob, Timer (2) (Start & Stop)
4 4163800 Disc, Selector
4175379 Nut Tinnerman
4175379 Clip
5 4173071 Electronic Timer
4159456 Screw (6)
4168838 Nut (2)
4164360 Nut (4)
6 4164218 Bracket, Control
4159470 Screw (4)
4159465 Screw (2)
7 3177122 Knob, Timer
8 4163867 Light, Indicator
4163867 Clean On
9 3177174 Switch, Selector
155023 Screw (2)
10 4164361 Thermostat
155023 Screw (2)
11 4164345 Glass, Panel
12 4164363 Frame, Control
13 4163730 Indicator, Probe
4159465 Screw
14 4168717 Vent, Insert
4170323 Screw 8A x 1/2(5)
15 4173385 Top, Insert
4168838 Nut (4)
16 4167332 Switch, Light
254225 Screw (2)
17 4167590 Retainer, Glass (2)
4159456 Screw (6)
18 4163840 Knob, Probe Control
19 Light,Indicator (3)
4168597 Oven On
4168597 Probe On
4168597 Lock
4169465 Screw
20 4169372 Bezel, Knob
LITERATURE PARTS
LIT3177123 Installation Instructions
LIT4177639 Use and Care Guide
LIT884422 List, Repair Parts
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
2 4173054 Sandwich Panel
3 4173043 Bushing (2)
4 4168257 Hole Cover (2)
4159465 Screw (2)
6 4166561 Transformer
4159465 Screw (2)
7 4163731 Relay, Probe
8 4173004 Blower
4159465 Screw (4)
9 4168735 Terminal Block,
4159465 Screw (4)
4168800 Wire 10 G.A. 70"
4168001 Wire 10 G.A. 70"
4168002 Wire 10 G.A. 70"
11 4173276 Cabinet Top,
4159465 Screw (8)
13 4173166 Panel, Blower
14 4173165 Flexible Bushing
4159465 Screw
15 4173008 Switch, Fan
4159465 Screw (2)

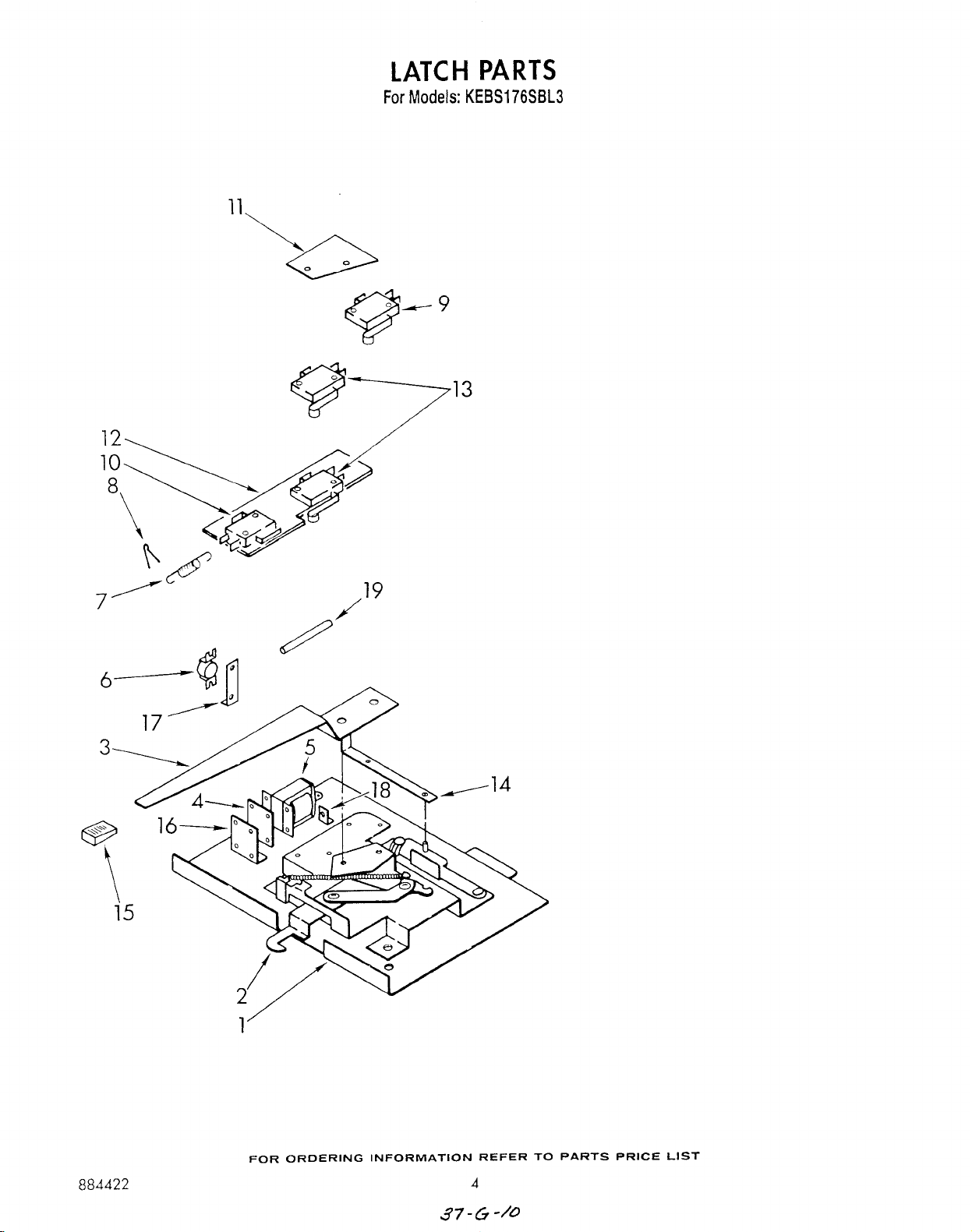

NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
4168063 Latch, Plate
4159287 Screw (4)
4159109 Nut (4)
4168538 Latch Mechanism
4159186 Screw (4)
3177965 Lever, Latch
4168579 Screw (4)
4168169 Solenoid Spacer
4173081 Solenoid
4173007 Thermal Switch
4159445 Screw (2)
4168560 Solenoid Spring
4159129 Cotter Pin
4168514 Switch, Latch
10 4164366 Switch, Safety
4173053 Screw (2)
4159117 Nut (2)
11 4163746 Insulator, Switch
12 4168522 Insulator (2)
13 4168517 Latch Switch (2)
4173053 Screw (2)
4159117 Nut (2)
14 4168058 Arm, Actuator
4168554 Screw (2)
4168553 Spacer
4159160 Retaining Ring
4159109 Nut
4159603 Washer, Flat
15 4163821 Knob, Lock
4159201 Screw, Machine
16 4168292 Bracket
4159470 Screw (2)
17 4173170 Bracket Mtg.
4159445 Screw (2)
18 4173168 Bracket, Harness
4159465 Screw
19 3178555 Sleeve
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 4164391 Door Frame
2 4173018 Door Handle
3179716 Insert, Screw
3 4168863 Screw, (4)
4 4164241 Door Glass
5 4168826 Rubber Bumper
6 4163857 Air Baffle Top
7 4169357 Insulation Retainer
8 4163852 Lock Bracket
4159465 Screw(2)
9 4164235 Window Pack
4159465 Screw (4)
10 4163987 Insulation
11 3178761 Door Liner
12 4163855 Glass Mounting Bracket
4159465 Screw (4)
13 4164243 Glass Panel
14 4163859 Air Baffle Bottom
15 4168863 Screw, 8A X 3/8"
17 3178584 Gasket, Window
4169465 Screw, (6)
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
1 4163966 Main Bottom
4159465 Screw (4)
2 4164191 Insulation, Bottom
3 3178580 Door Gasket
4 4166352 Skewer, Rotisserie (2)
5 4168724 Spear
6 4167588 Cover, Seal End
7 4168412 Rack
8 Insulation
4169310 Top and Sides
4164192 Rear
9 3177549 Retainer, Gasket
4168863 Screw (7)
10 4164251 Grid, Broiler
11 4164250 Pan, Broiler
12 4168401 Rack, Oven
13 4167526 Rear Anchor
4159465 Screw (4)
4167599 Spring, Anchor
14 4168492 Eliminator, Smoke
15 4173275 Bulb, Thermostat
16 4168266 Support, Frame
17 4168681 Collector Box
4159465 Screw (2)
18 Support, Element
4168217 Right Side
4168218 Left Side
4159564 Screw (4)
19 3178717 Front Frame
20 3178745 Liner, Oven
21 4169336 Control Frame Support
4159470 Screw (6)
22 4169314 Compartment Top
4159465 Screw (11)
23 4163941 Vent Box
4159465 Screw (2)
4166262 Nut, 8-32(4)
4168838 Nut, Tinnerman (4)
24 4168494 Vent Tube
25 4173055 Cabinet Side
27 4168242 Bracket, Vent
4159465 Screw (2)
28 Latch Assembly (See Page Three)
4159465 Screw (15)
29 4163990 Element, Bake
30 3177405 Element, Broil
4159465 Screw (8)
31 4168203 Cover, Cap
4159445 Screw
32 4163883 Plate, Cover
4159465 Screw (4)
33 311225 Bulb, 40 Watt
34 4168755 Light Socket
4159465 Screw (3)
35 4167579 Light Shield
36 4163836 Rotisserie Motor
37 4167469 Plate, Motor
4159334 Screw (4)
38 4168592 Vent Tube
4168140 Retainer, Tube
39 4168126 Vent Tube, Extension
4159465 Screw(3)
40 Cabinet, Support
4163759 Right Side
4163760 Left Side
42 4166868 Gasket, Oven Light
44 4168590 Spacer
4159188 Screw (4)
45 4167599 Spring Anchor
46 4173048 Door Spring,
47 4167596 Hinge Assembly
4159188 Screw (6)
48 4167597 Cam Plate, Right
49 4167598 Cam Plate, Left
4159188 Screw (6)
50 4167518 Cover, Rotisserie
4168874 Screw
51 4166866 Lens, Light
52 4167938 Retainer, Lens
4159445 Screw (3)
53 4164293 Jack, Probe
4163975 Gasket
4167277 Nut
4173084 Jamnut
4159557 Washer
4173438 Washer
54 4167266 Cover, Jack
55 4167267 Probe, Temperature
56 4159122 Button, Plug 5/8" Hole
57 4169313 Cabinet, Back
4159465 Screw (15)
4159470 Screw(6)
4159456 Screw (6)
58 Air Duct
4163752 Left Hand
4159465 Screw (2)
4163753 Right Hand
4159465 Screw (2)
59 Extension, Air Duct
4173016 Left Hand
4173017 Right Hand
4159465 Screw (15)
1 3178617 Low Temperature
2 3178615 Upper Latch
3 3178618 High Temperature
