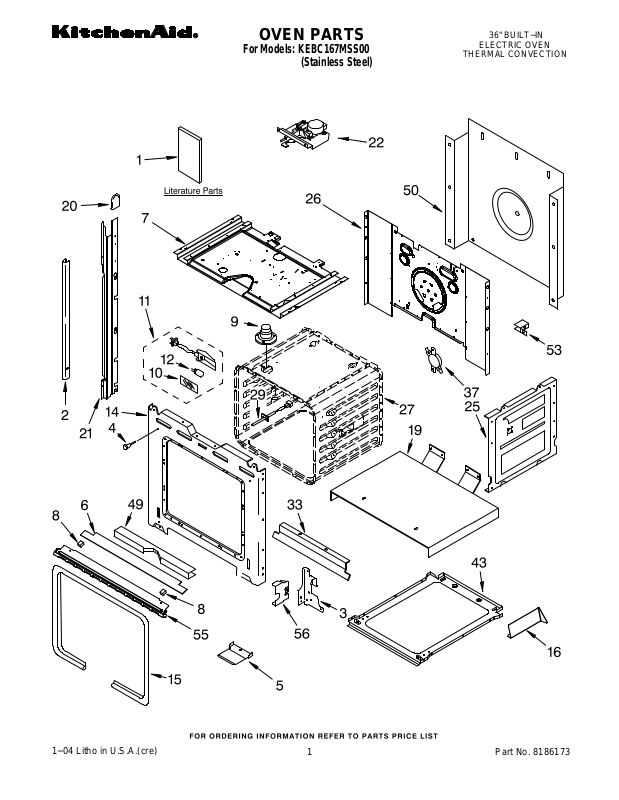

Page 1
OVEN PARTS
For Models: KEBC167MSS00
(Stainless Steel)
36" BUILT−IN
ELECTRIC OVEN
THERMAL CONVECTION
1−04 Litho in U.S.A.(cre)
1
Part No. 8186173
Page 2
OVEN PARTS
For Models: KEBC167MSS00
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Literature Parts
LIT8301807
LIT8302334
LIT8301808
LIT4449264
LIT8302333
LIT3191638
2 Trim, Side
4452079 (Right Hand)
4452080 (Left Hand)
694091 Screw
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
5 4452489 Deflector,
6 8300154 Insulation
7 8301784 Top, Chassis
4449809 Screw
Installation
Instructions
Use & Care Guide
(Oven)
Tech Sheet
Easy Set Guide
Installation/
Undercounter
Safer Cooking Tips
Vent Box
Illus. Part
No. No. DESCRIPTION
8 4452490 Spacer, Foam
9 4452158 Tube, Vent
3196176 Screw
10 4452163 Lens, Light
11 4448972 Oven Light Assy
4449748 Screw
12 4452164 Bulb, Light
14 8300150 Frame, Front
4449040 Screw
4450118 Nut
15 8300142 Gasket, Door
16 Bracket, Deflector
8302338 R.Hand
8302339 L.Hand
3400805 Screw (2)
19 8300184 Support, Insulation
4449809 Screw
20 4451605 Cap, Spacer
21 Rail, Side
4450579 Right Side
4450580 Left Side
4448444 Grommet
4449154 Screw
22 8302474 Latch, Motorized
25 4455641 Side, Chassis
(R.H. & L.H.)
4449809 Screw
Illus. Part
No. No. DESCRIPTION
26 8302199 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
4449154 Screw
33 8301780 Deflector, Vent
37 4451442 Thermostat (TOD)
(Temp.) SPST
43 8302327 Base, Chassis
49 4448933 Retainer, Gasket
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
53 4449845 Support, Bracket
4449809 Screw
55 8301788 Trim, Bottom
56 4452152 Bracket, Mounting
Bottom Trim
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
8300158 Insulation, Wrap
8300159 Insulation, Back
2
8186173
Page 3
OVEN DOOR PARTS
For Models: KEBC167MSS00
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 8300152 Door Liner
2 Hinge, Door
8300579 R.Side (Orange)
8300580 L.Side (Orange)
4449743 Screw
8186173
Illus. Part
No. No. DESCRIPTION
3 4449259 Glass, Inner
4 8300797 Insulation, Door
7 4449263 Glass, Inner
4449809 Screw
12 8302468 Door Glass, Assy
13 4455852 Door Handle
14 Bracket, Handle
4455803 Stainless Steel
4455804 Stainless Steel
3196184 Screw
3
Illus. Part
No. No. DESCRIPTION
19 8301089 Shield, Heat
4449809 Screw
20 8300190 Retainer, Glass
4449809 Screw
21 8300153 Seal, Door Top
23 4451432 Retainer, Clip
Page 4
INTERNAL OVEN PARTS
For Models: KEBC167MSS00
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
2 8301514 Element, Broil
4449154 Screw
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
5 3181534 Rack, Roasting
6 8300796 Rack, Oven
7 8300204 Element, Bake
4449154 Screw
Illus. Part
No. No. DESCRIPTION
8 4452157 Element, Convect.
4449154 Screw
9 4451583 Motor Convection
4449154 Screw
10 4452226 Blade, Fan
11 4448882 Lock Washer
12 4452227 Nut
13 4451355 Jack, Meat Probe
4
Illus. Part
No. No. DESCRIPTION
14 4448881 Hex Nut
15 4448418 Cover, Fan
4449154 Screw
16 8300799 Tray, Hidden Bake
17 8300800 Cover, Hidden Bake
4449809 Screw
18 4448948 Meat Probe
8186173
Page 5
CONTROL PANEL PARTS
For Models: KEBC167MSS00
(Stainless Steel)
8186173
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 8301226 Panel, Control
2 8301236 Switch Membrane
7 8302322 Assy, Control
4449745 Screw
5
Page 6
TOP VENTING PARTS
For Models: KEBC167MSS00
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4451759 Vent, Exhaust
4449809 Screw
2 4455178 Elbow, Vent−Top
3 8300223 Blower
4455352 Bracket
4449809 Screw
4 4451758 Block, Foam
Illus. Part
No. No. DESCRIPTION
5 6610122 Transformer, Light
6 4451985 Suppressor,
Transient
8 4455177 Elbow, Vent−Bottom
11 4449868 Block, Terminal
3400080 Screw
13 8301778 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Top
4451597 Right
4451598 Left
4449809 Screw
4449154 Screw
6
Illus. Part
No. No. DESCRIPTION
15 8302583 Back, Control
4449809 Screw
16 8301222 Cover, Top Front
4449809 Screw
18 8301223 Cover, Top Rear
4449809 Screw
19 8300642 Transformer,
Control
8186173
Page 7
OPTIONAL PARTS
For Models: KEBC167MSS00
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
4392899 Biscuit
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
4392901 Biscuit
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
Illus. Part
No. No. DESCRIPTION
WIRING HARNESS PARTS
8301237 Harness, Wire
(Main)
4450952 Conduit
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
4451761 Support, Wiring
4454842 Tie, Cable
4454835 Tie, Cable
4452222 Spacer, Harness
4452400 Lead, Ground
Miscellaneous
814381 Hinge Pin Kit
4448950 Screw, Install (4)
2261590 Cleaner, S.Steel
8186173
7
