KitchenAid KCDS100T User Manual

A

B

Installations on thicker sinks (such as solid surface, porcelain, or cast iron) may
require the use of alternate parts. Measure existing mounting assembly as shown in
figure A or measure sink thickness as shown in figure B, to determine whether an
extended sink flange must be ordered.

A. 9" (22.9 cm)
B. 12-3/4" (30.5 cm)
C. 5-3/4" (14.6 cm)
D. 4" (10.2 cm)
E. 6-11/16" (17.0 cm)
F. Dishwasher drain connection

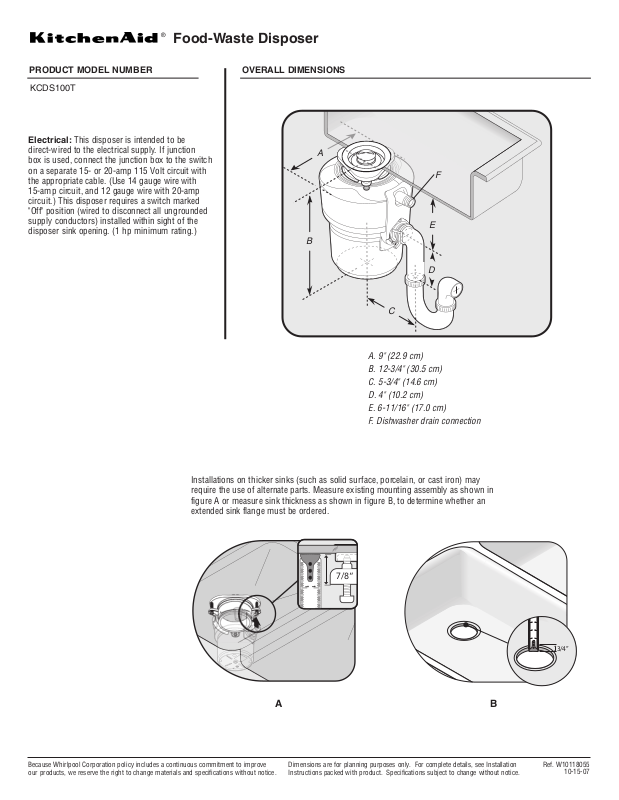

Food-Waste Disposer

OVERALL DIMENSIONS

KCDS100T

Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.

Ref. W10118055

10-15-07

PRODUCT MODEL NUMBER

Electrical: This disposer is intended to be

direct-wired to the electrical supply. If junction
box is used, connect the junction box to the switch
on a separate 15- or 20-amp 115 Volt circuit with
the appropriate cable. (Use 14 gauge wire with
15-amp circuit, and 12 gauge wire with 20-amp
circuit.) This disposer requires a switch marked
"Off" position (wired to disconnect all ungrounded
supply conductors) installed within sight of the
disposer sink opening. (1 hp minimum rating.)

®

A

B

C

D

E

F

3/4”

7/8”
